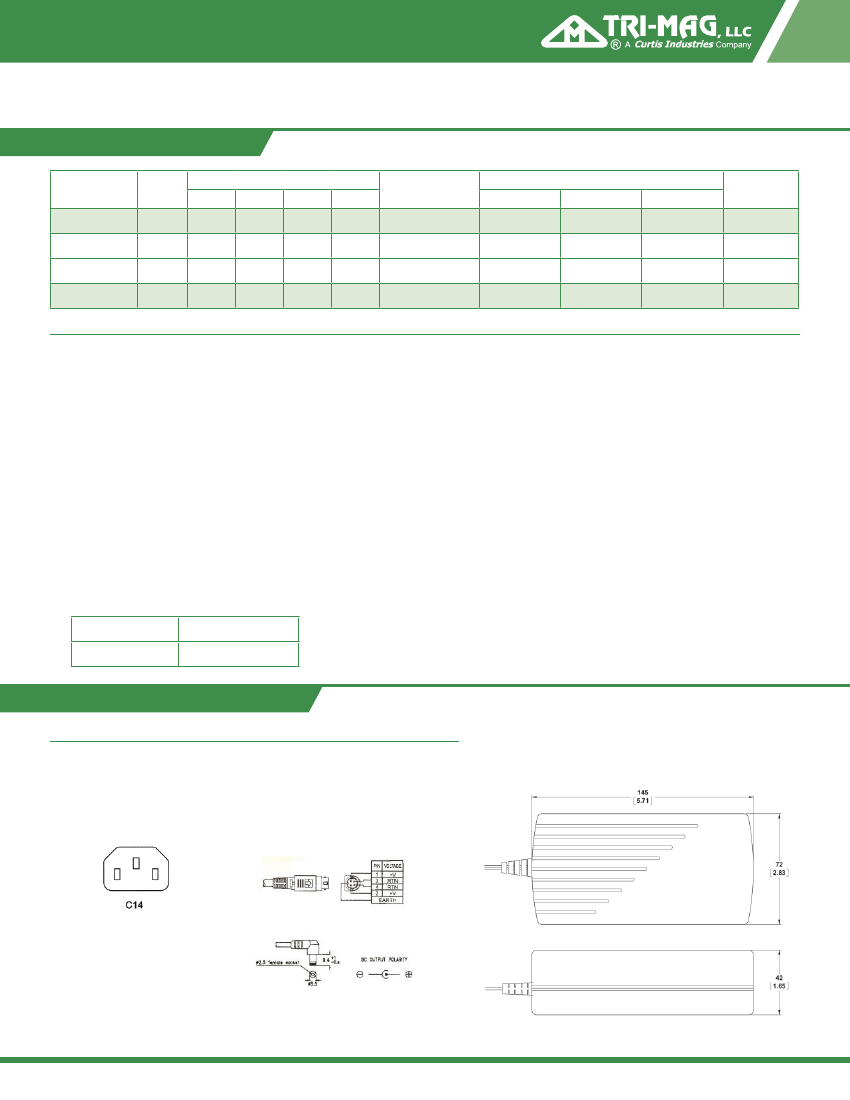

Power
Supplies
80W/100W Peak
•
•
•
•
•
•
Level VI energy compliant
No load input power < 0.15 W
Average efficiency > 89%
Eco-friendly design
UL/CSA/EN 60950-1, 2
nd
edition
ANSI/AMMI/CSA/EN 60601-1, 3
rd
edition
10 year warranty
Description
The
DT080AF Series
is a 72W external power supply (EPS) designed for both medical and ITE applications. The eco-friendly
design is compliant with the new DOE Energy Conservation Standards for External Power Supplies. With a 100W peak power
rating, operating efficiencies > 89% and no-load input power < 0.15W, the DT080AF Series is ideal for ITE and medical equip-
ment designs, including MOOP and 2xMOPP, that are compliant with 2016 conservation standards.
Specifications
Input
Input Voltage
Input Frequency
Inrush Current
Input Protection
No Load Input Power
Input Current
•
•
•
•
•
•
85 VAC to 264 VAC
47 Hz to 63 Hz
< 40/80A at 115/230 VAC, cold start, 25ºC
Internal T3.15A / 250 VAC fuse in line
< 0.15W
2A
rms
max/115 VAC, 1 A
rms
max/230VAC
General
Efficiency
Energy Saving
•
•
89% typical
DOE: EPS efficiency Level VI
ErP: EC Code of Conduct Ver. 5
(Tier 2/2016)
4000 VAC Input to Output, 2 x MOPP
1500 VAC Input to Ground, 1 x MOPP
1500 VDC Output to Ground, 1 x MOPP
50 MΩ
120 kHz typical
> 200 kHrs to MIL-HDBK-217F at 50°C
Isolation
•
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Ripple & Noise
Over-voltage Protection
Over-load Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
•
•
See tables on page 2
See tables on page 2
No minimum load required
2 ms typical
18 ms typical
±0.5% typical
±3.0% typical
< 1% pk-pk typical, 20MHz Bandwidth
latch off
auto recovery
auto recovery
Isolation Resistance
Switching Frequency
MTBF
•
•
•
EMC & Safety
Safety Approvals:
•
•
•
•
•
•
•
•
•
•
•
•
UL/CSA/EN 60950-1, 2nd edition
ANSI/AMMI/CSA/EN 60601-1, 3rd edition
CE Mark
EN 61000-3-2 class A
EN 55022/CISPR 22 Class B,
EN 61000-3-3
EN 61000-4-2, 6kV/contact, 8kV/air
EN 61000-4-3, 10V/m with 80% AM
EN 61000-4-4, 2kV
EN 61000-4-5, 1kV/L-L, 2kV/L-G
EN 61000-4-6, 10V with 80% AM
E61000-4-8, 10A/m
EN 61000-4-11, 30% dips 500ms,
60% dips 200ms, 100% dips 10ms,
100% dips 20ms, 100% dips 5000ms
Harmonic Currents
EMI
ESD Immunity
Radiated Immunity
EFT Burst
Surge
Conducted Immunity
Magnetic Fields
Dips & Interruptions
Environmental
Operating Temperature
Cooling
Operating Humidity
Storage Temperature
Altitude
•
•
•
•
•
-20°C to 60°C derating: 2.5% / ºC > 40°C
72W, free air convection
10-95% RH, non-condensing
-40°C to +80°C
0 to 5000 m
Warranty
Manufacturer’s Warranty
•
10 years. Call Tri-Mag or go to
www.Tri-Mag.com for details.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
1 of 2
GREEN POWER
DT080AF Series
| ITE & Medical Safety
Power
Supplies
DT080AF Series |
ITE & Medical Safety
Output Specifications
Model No.
DT080AF-5-3
DT080AF-8-3
DT080AF-6-3
DT080AF-14-3
Output
Rail
+12V
+15V
+24V
+48V
Load
Min
0A
0A
0A
0A
Rated
6.0A
5.1A
3.2A
1.6A
Max
-
-
-
-
Peak
8.4A
7.3A
4.6A
2.3A
Initial
Accuracy
+11.4V~+12.6V
+14.25V~+15.75V
+22.8V~+25.2V
+45.6V~+50.4V
Step Efficiency
@20% Load
89%
89%
89%
89%
@50% Load
89%
89%
89%
89%
@100% Load
89%
89%
89%
89%
Avg. Eff.
89%
89%
89%
89%
Notes
1.
Output Load:
Rated 72W for convection cooling.
2.
Peak Load Duration:
100W peak rating for durations up to 5 sec. Ideal for motor-starting/in-rush conditions.
3.
Engineering Specification:
Contact Tri-Mag for full engineering specification for the specific part number used in your design application.
4.
Standby Power Cosumption with System:
New external power supply (EPS) efficiency requirements have been established by the U.S. DOE (EPS) and the European ErP
regulations. The no-load power consumption requirements are < 0.21W and < 0.15W respectively.
5.
Audible Noise:
For the DT080AF-x-3 energy saving series, achieving level VI (<0.15W) standby power consumption is accomplished through burst
mode operation of the controller. The burst operation frequency is dependent on load conditions and is approx. 114Hz, within the
audible frequency range.
6.
Step Efficiency and Average Efficiency:
Test conditions in step efficiency are referred to 3.2.21PS (Internal Power Supply) of ENERGY STAR program requirements for
computers. ENERGY STAR required for efficiency @ 20%, 50%, 100% load is 89%, 89%, 89%; average efficiency is the average
of step efficiency.
7.
Model Ordering Table:
Safety/Application
ITE & Medical
Energy Saving
DT080AF-x-3
Mechanical Specifications
Notes
1. Dimensions shown in mm (inch). Tolerance: ±1mm (Excluding cables).
2.
Size:
72.0 x 145.0 x 42.0 (mm)
2.83 x 5.70 x 1.65 (inches)
Net weight: 517 g approx. / unit
4. Output Connectors:
+12 to +24Vdc Models
3. Input Socket:
IEC320 C14 (Class I)
+48Vdc Model, DT080AF-14-3
5.
6.
7.
Cable length is 1.5m approx.
Power ON indication LED is on top of Box. Box Color is Black.
RoHS compliant
2014-10
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
2 of 2
