KM48V514BLLTR-7 datasheet, PDF

Datasheet> All Categories > storage> storage> KM48V514BLLTR-7

KM48V514BLLTR-7: DescriptionEDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28; Categorystorage storage; File Size433KB，15 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM48V514BLLTR-7 Overview

EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28

KM48V514BLLTR-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	TSOP
package instruction	TSOP2-R, TSOP28,.46
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.41 mm
memory density	4194304 bit
Memory IC Type	EDO DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2-R
Encapsulate equivalent code	TSOP28,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
reverse pinout	YES
Maximum seat height	1.2 mm
self refresh	YES
Maximum standby current	0.0001 A
Maximum slew rate	0.065 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

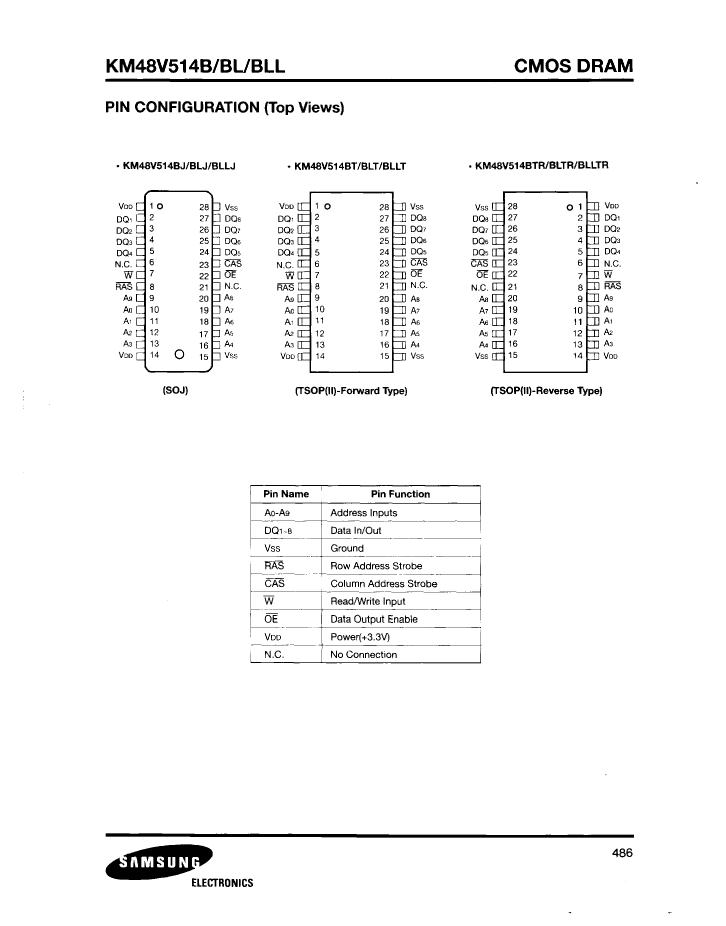

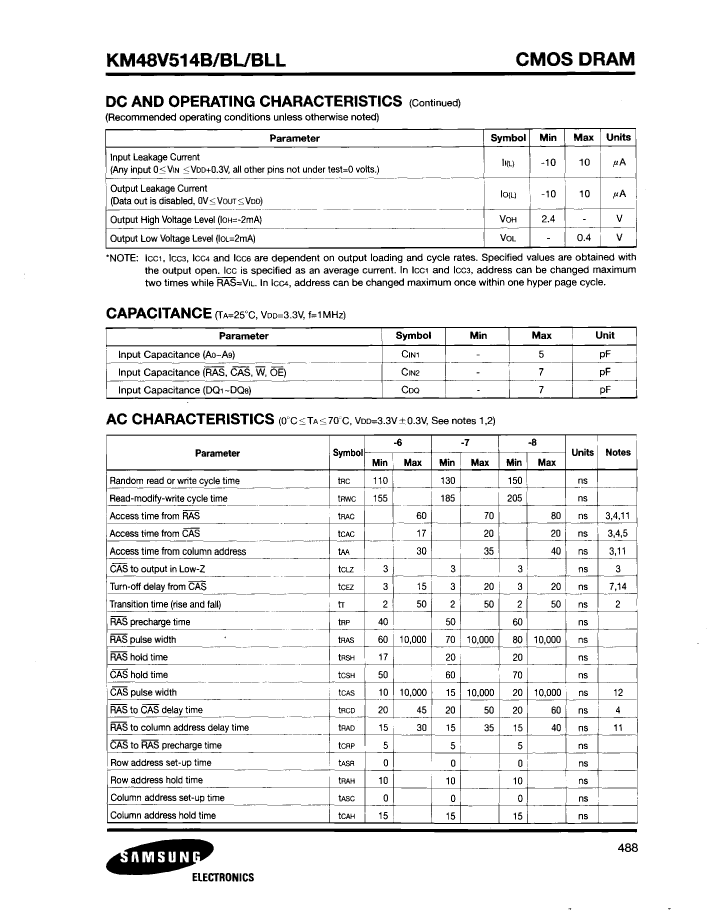

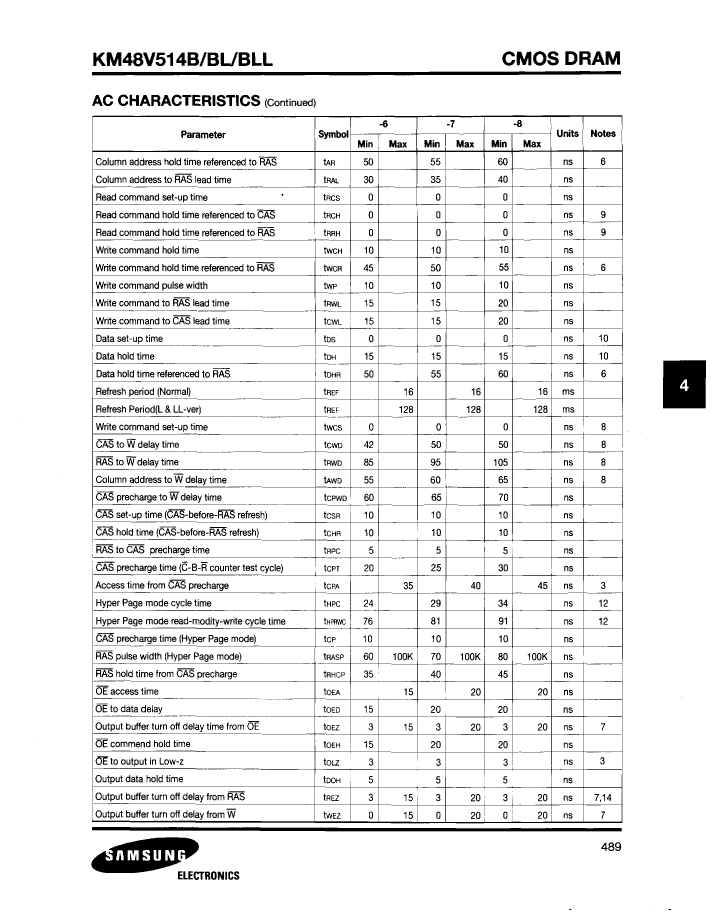

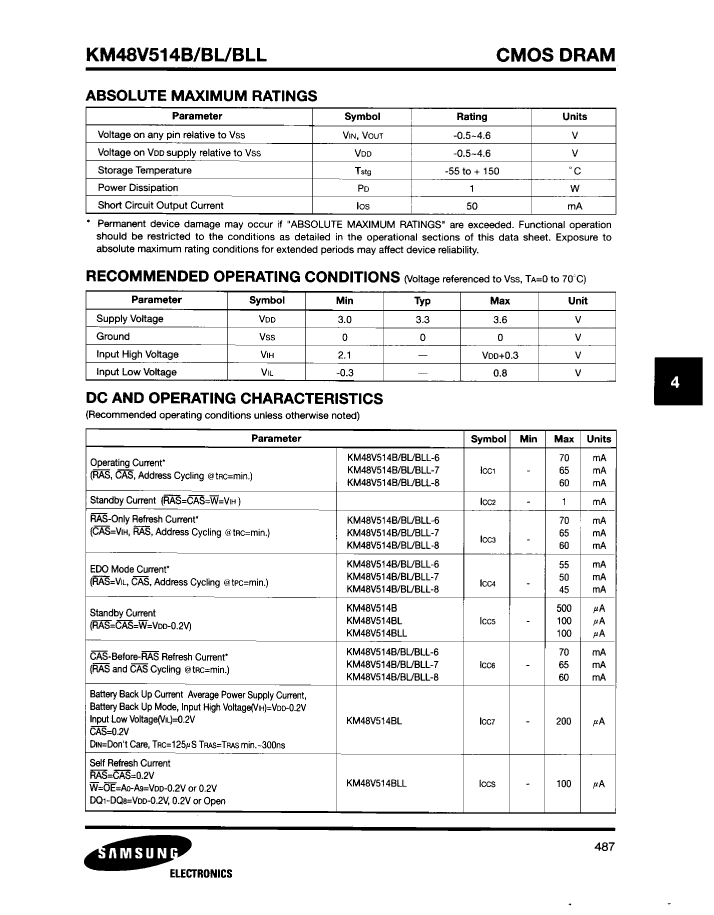

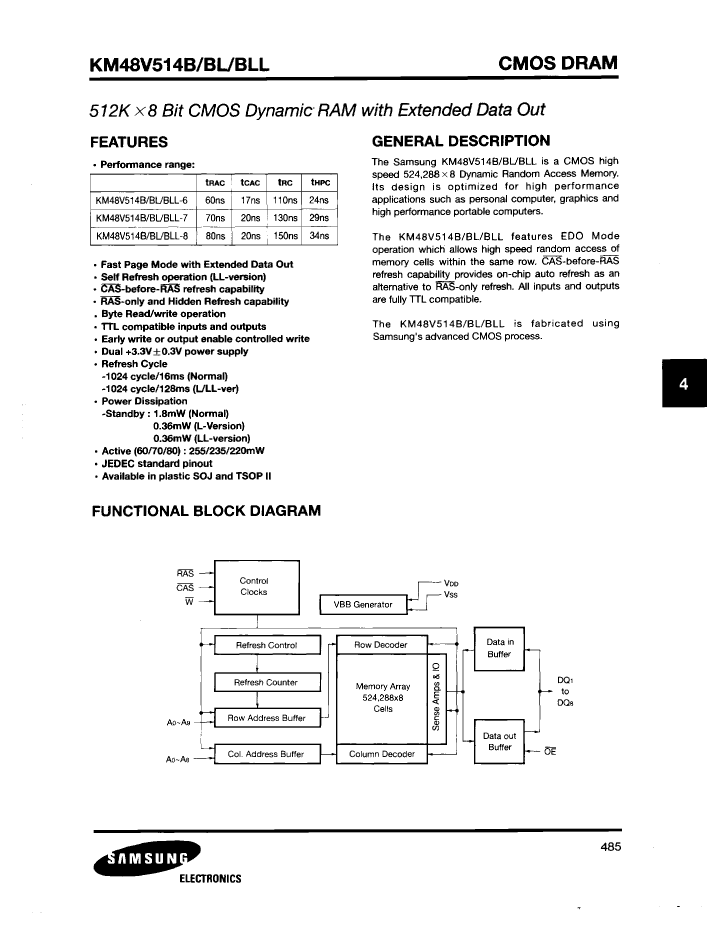

Preview

Download Datasheet

View All

KM48V514BLLTR-7 Related Products

	KM48V514BLLTR-7	KM48V514BLLT-7	KM48V514BLLTR-8	253B104B50NB	KM48V514BLLT-8	KM48V514BLLTR-6	KM48V514BLLJ-6	KM48V514BLLT-6	KM48V514BLLJ-8
Description	EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28	EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, TSOP2-28	EDO DRAM, 512KX8, 80ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28	Two Axis, Ministick Controller With Optional Momentary Switch	EDO DRAM, 512KX8, 80ns, CMOS, PDSO28, PLASTIC, TSOP2-28	EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28	EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, SOJ-28	EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, TSOP2-28	EDO DRAM, 512KX8, 80ns, CMOS, PDSO28, PLASTIC, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	-	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	TSOP	TSOP	TSOP	-	TSOP	TSOP	SOJ	TSOP	SOJ
package instruction	TSOP2-R, TSOP28,.46	TSOP2, TSOP28,.46	TSOP2-R, TSOP28,.46	-	TSOP2, TSOP28,.46	TSOP2-R, TSOP28,.46	SOJ, SOJ28,.44	TSOP2, TSOP28,.46	SOJ, SOJ28,.44
Contacts	28	28	28	-	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	-	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	70 ns	80 ns	-	80 ns	60 ns	60 ns	60 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	-	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON	COMMON	COMMON	-	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	-	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28	R-PDSO-G28	R-PDSO-J28
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
length	18.41 mm	18.41 mm	18.41 mm	-	18.41 mm	18.41 mm	18.415 mm	18.41 mm	18.415 mm
memory density	4194304 bit	4194304 bit	4194304 bit	-	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	-	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	8	8	8	-	8	8	8	8	8
Number of functions	1	1	1	-	1	1	1	1	1
Number of ports	1	1	1	-	1	1	1	1	1
Number of terminals	28	28	28	-	28	28	28	28	28
word count	524288 words	524288 words	524288 words	-	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	-	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	-	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2-R	TSOP2	TSOP2-R	-	TSOP2	TSOP2-R	SOJ	TSOP2	SOJ
Encapsulate equivalent code	TSOP28,.46	TSOP28,.46	TSOP28,.46	-	TSOP28,.46	TSOP28,.46	SOJ28,.44	TSOP28,.46	SOJ28,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	-	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
power supply	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	-	1024	1024	1024	1024	1024
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	-	1.2 mm	1.2 mm	3.76 mm	1.2 mm	3.76 mm
self refresh	YES	YES	YES	-	YES	YES	YES	YES	YES
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	-	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.065 mA	0.065 mA	0.06 mA	-	0.06 mA	0.07 mA	0.07 mA	0.07 mA	0.06 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	-	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	J BEND	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	-	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
