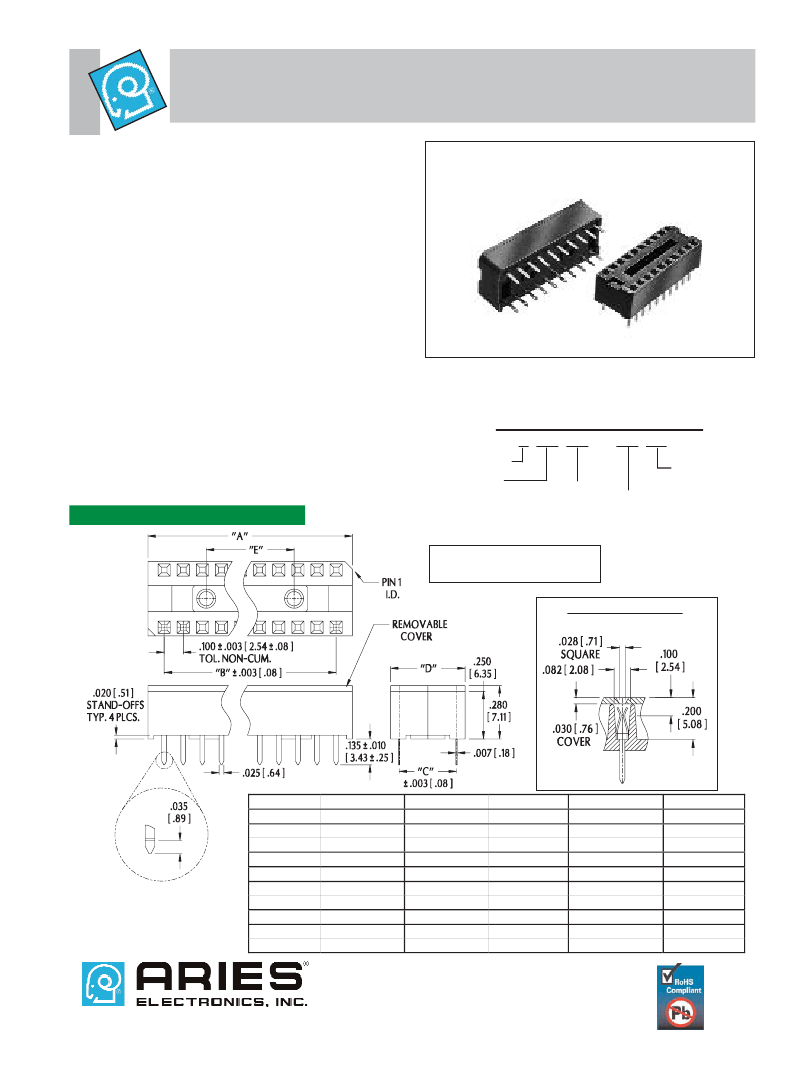

Series C82/C92 Standard Dual Beam
Solder Tail Edge-Grip Sockets
FEATURES:
• Dual beam, edge-grip contacts provide high retention with
positive wiping action.
• Removable cover provides lower profile.
• Side-to-side stackable.
SPECIFICATIONS:
• Body is black UL-94V-0 Glass-filled 4/6 Nylon.
• Contact is Grade A spring-tempered Phosphor Bronze.
• Contact plating: (all over 50
μ”
[1.27μm] Nickel per SAE-AMS-
QQ-N-290)
Tin = 200μ” [5.08μm] min Matte Tin per ASTM B545-97.
Tin/Lead = 50-150μ” [1.27-3.81μm] min. 90/10 Tin/Lead per
MIL-P-81728.
Gold = 10μ” [0.25μm] min. Gold per MIL-G-45204.
• Contact current rating=1 Amp.
• Contact resistance=20 mOhms initial.
• Insulation resistance=100 MOhms @ 500 VDC per
Note: Aries specializes in custom design and production. In addition to the stan-
MIL-STD-1344, method 3003.1.
dard products shown on this page, special materials, platings, sizes, and configu-
• Dielectric withstanding voltage=1000 VAC.
rations can be furnished, depending on quantities. Aries reserves the right to
• Operating temperature= -67°F to 221°F [-55°C to 105°C] Tin
change product specifications without notice.
= -67°F to 257°F [-55°C to 125°C] Gold
• Solderability: MIL-STD-202, method 208 less heat aging.
ORDERING INFORMATION
• Accepts leads up to .011 x .018 ± .003 [.28 x .46 ± .08] or .021
C XX XX - XX TL
[.53] diameter.
Plating option:
Socket series
• Accepts leads .100-.200 [2.54-5.08] long with cover .
Tin/Lead
MOUNTING CONSIDERATIONS:
Pin plating:
•Suggested PCB hole size=.036 ± .002 [.91 ± .05] dia.
No. of pins
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
82 = Tin
92 = Gold
(see table)
All tolerances ± .005 [.13]
unless otherwise specified
C82 series:
-04 = closed entry
-54 = open entry
C92 series:
-00 = closed entry
-50 = open entry
CONTACT DETAIL
Pin tails can be bent
over without breaking
for mounting on PCB
No. of Pins
8
14
16
18
20
22
24
28
36
40
Dim. “A”
.465 [11.81]
.765 [19.43]
.865 [21.97]
.965 [24.51]
1.065 [27.05]
1.180 [29.97]
1.280 [32.51]
1.480 [37.59]
1.880 [47.75]
2.080 [52.83]
Dim. “B ”
.300 [7.62]
.600 [15.24]
.700 [17.78]
.800 [20.32]
.900 [22.86]
1.000 [25.40]
1.100 [27.94]
1.300 [33.02]
1.700 [43.18]
1.900 [48.26]
Centers “C”
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.400 [10.16]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
Dim. “D ” (max)
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.500 [12.70]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
Dim. “E ”
---
.300 [7.62]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.500 [12.70]
.500 [12.70]
.500 [12.70]
.800 [20.32]
.800 [20.32]
12002
http://www.arieselec.com • info@arieselec.com
REV. D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
