TNPW120664K90.1%T-10E52E3

Description
Fixed Resistor, Thin Film, 0.25W, 64900ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1206, CHIP
CategoryPassive components    The resistor
File Size173KB，13 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

TNPW120664K90.1%T-10E52E3 Overview

Fixed Resistor, Thin Film, 0.25W, 64900ohm, 200V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 1206, CHIP

TNPW120664K90.1%T-10E52E3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7174785366
package instructionCHIP
Reach Compliance Codecompliant
Country Of OriginGermany, Israel
ECCN codeEAR99
YTEOL8.2
Other featuresLASER TRIMMABLE, PRECISION, RATED AC VOLTAGE (V): 200
structureChip
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.55 mm
Package length3.2 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width1.6 mm
method of packingTR, PAPER, 7 INCH
Rated power dissipation(P)0.25 W
Rated temperature70 °C
GuidelineAEC-Q200
resistance64900 Ω
Resistor typeFIXED RESISTOR
size code1206
surface mountYES
technologyTHIN FILM
Temperature Coefficient15 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage200 V

TNPW120664K90.1%T-10E52E3 Preview

TNPW e3

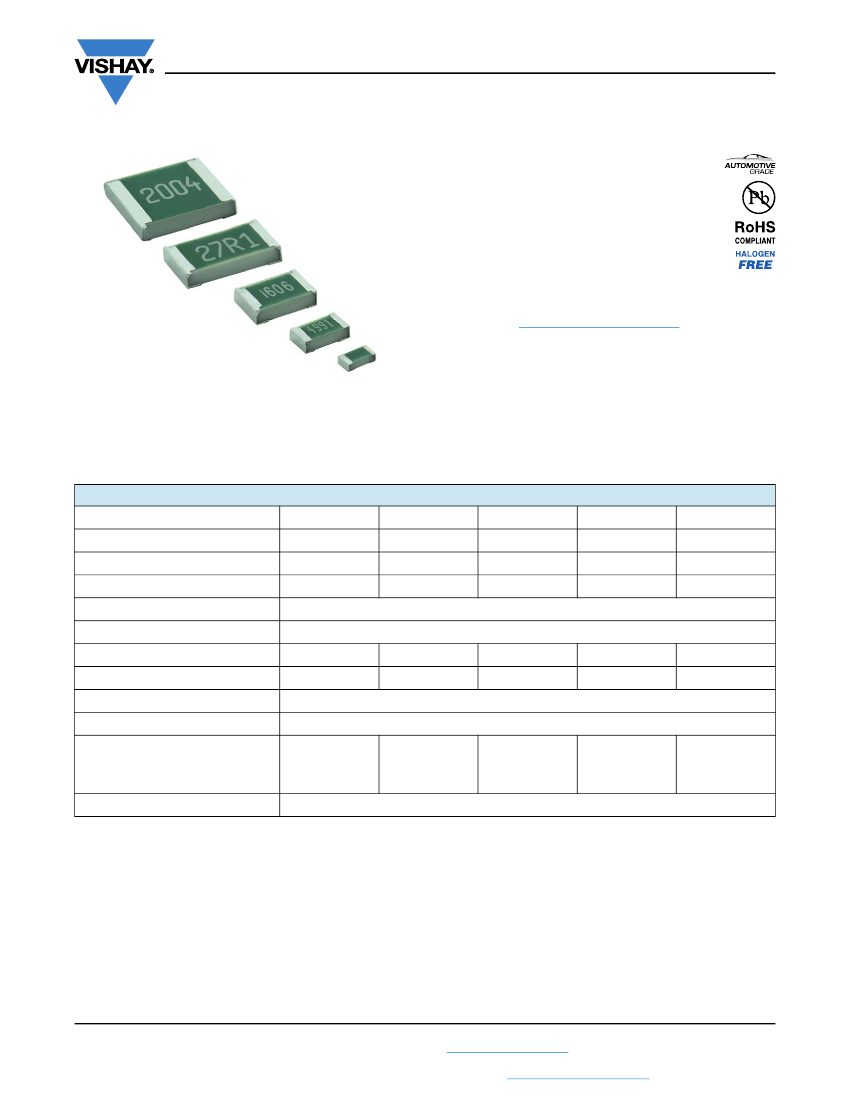

www.vishay.com
Vishay
High Stability Thin Film Flat Chip Resistors
FEATURES
• Superior moisture resistivity (85 °C; 85 % RH)
• Excellent overall stability at different
environmental conditions
0.05 % (1000 h
rated power at 70 °C)
• AEC-Q200 qualified (sizes 0402 to 1206)
• Single lot date code (optional)
• Sulfur resistance verified according to ASTM B 809
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
TNPW e3 precision thin film flat chip resistors are the perfect
choice for most fields of modern electronics where highest
reliability and stability is of major concern. Typical
applications include test and measuring equipment, medical
equipment, industrial, and automotive.
• Test and measuring equipment
• Medical equipment
• Industrial equipment
• Automotive
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (2)
Operating voltage,
U
max.
AC
RMS
or DC
Permissible film temperature,
F max. (2)
Operating temperature range
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Notes
(1)
The detail specification EN 140401-801 does not cover this product size.
(2)
Please refer to APPLICATION INFORMATION, see next page.
75 V
100 V
200 V
0.1 x 10
-9
/h
300 V
300 V
0.100 W
50 V
TNPW0402 e3
0402
RR1005M
10
to 100 k
TNPW0603 e3
0603
RR1608M
4.7
to 332 k
TNPW0805 e3
0805
RR2012M
4.7
to 1 M
± 1 %; ± 0.5 %; ± 0.1 %
± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K
0.125 W
75 V
0.200 W
150 V
155 °C
-55 °C to 155 °C
0.400 W
200 V
0.500 W
200 V
TNPW1206 e3
1206
RR3216M
4.7
to 2 M
TNPW1210 e3
(1)
1210
RR3225M
10
to 3.01 M
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 12-May-16
Document Number: 28758
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPW e3
www.vishay.com
Vishay
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
TNPW0402 e3
TNPW0603 e3
Rated dissipation,
P
70
TNPW0805 e3
TNPW1206 e3
TNPW1210 e3
Operating temperature range
Permissible film temperature,
F max.
TNPW0402 e3
TNPW0603 e3
TNPW0805 e3
Max. resistance change at
P
70
for resistance range,
|R/R| after:
TNPW1206 e3
TNPW1210 e3
1000 h
8000 h
225 000 h
STANDARD
0.063 W
0.100 W
0.125 W
0.250 W
0.330 W
-55 °C to 125 °C
125 °C
10
to 100 k
4.7
to 332 k
4.7
to 1 M
4.7
to 2 M
10
to 3.01 M
0.05 %
0.10 %
0.30 %
POWER
0.100 W
0.125 W
0.200 W
0.400 W
0.500 W
-55 °C to 155 °C
155 °C
10
to 100 k
4.7
to 332 k
4.7
to 1 M
4.7
to 2 M
10
to 3.01 M
0.10 %
0.20 %
0.60 %
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance.
Revision: 12-May-16
Document Number: 28758
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPW e3
www.vishay.com
Vishay
TCR
TOLERANCE
±1%
RESISTANCE
10
to 100 k
10
to 100 k
47
to 100 k
10
to 100 k
10
to 100 k
47
to 100 k
4.7
to 332 k
4.7
to 332 k
4.7
to 332 k
4.7
to 332 k
E24; E192
47
to 332 k
4.7
to 1 M
4.7
to 1 M
4.7
to 1 M
4.7
to 1 M
E24; E192
47
to 1 M
4.7
to 2 M
4.7
to 2 M
4.7
to 2 M
4.7
to 2 M
E24; E192
47
to 2 M
10
to 3.01 M
10
to 3.01 M
47
to 2.13 M
10
to 3.01 M
10
to 3.01 M
47
to 2.13 M
E24; E192
E24; E96
E24; E192
E24; E96
E24; E96
E24; E192
E24; E96
E24; E96
E24; E192
E24; E96
E24; E192
E-SERIES
E24; E96
E24; E192
E24; E96
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
± 50 ppm/K
± 0.5 %
± 0.1 %
TNPW0402 e3
±1%
± 25 ppm/K
± 0.5 %
± 0.1 %
± 15 ppm/K
± 10 ppm/K
± 0.1 %
± 0.1 %
±1%
± 50 ppm/K
± 0.5 %
± 0.1 %
E24; E96
E24; E192
E24; E96
TNPW0603 e3
±1%
± 25 ppm/K
± 0.5 %
± 0.1 %
± 15 ppm/K
± 10 ppm/K
± 0.1 %
± 0.1 %
±1%
± 50 ppm/K
± 0.5 %
± 0.1 %
TNPW0805 e3
±1%
± 25 ppm/K
± 0.5 %
± 0.1 %
± 15 ppm/K
± 10 ppm/K
± 0.1 %
± 0.1 %
±1%
± 50 ppm/K
± 0.5 %
± 0.1 %
TNPW1206 e3
±1%
± 25 ppm/K
± 0.5 %
± 0.1 %
± 15 ppm/K
± 10 ppm/K
± 0.1 %
± 0.1 %
±1%
± 50 ppm/K
± 0.5 %
± 0.1 %
TNPW1210 e3
±1%
± 25 ppm/K
± 0.5 %
± 0.1 %
± 15 ppm/K
± 10 ppm/K
± 0.1 %
± 0.1 %
Revision: 12-May-16
Document Number: 28758
3
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPW e3
www.vishay.com
Vishay
PACKAGING
TYPE / SIZE
CODE
EP1 = EP
TNPW0402 e3
ET2 = EI
ET7 = ED
TNPW0603 e3
TNPW0805 e3
TNPW1206 e3
TNPW1210 e3
E52 = EN
ET1 = EA
ET6 = EC
(2)
QUANTITY
1000
(1)
PACKAGING
STYLE
WIDTH
PITCH
PACKAGING
DIMENSIONS
5000
10 000
1000
(1)
2 mm
Paper tape acc.
IEC 60286-3, Type 1a
Ø 180 mm/7"
8 mm
4 mm
Ø 180 mm/7"
5000
20 000
4 mm
Ø 330 mm/13"
Notes
(1)
1000 pieces packaging is available only for precision resistors with tolerance ± 0.1 % and temperature coefficient
± 25 ppm/K.
(2)
20 000 pieces packaging is available only for resistors with TCR ± 25 ppm/K and ± 50 ppm/K.
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: TNPW12061K32DEEA
T
N
P
W
1
2
0
6
1
K
3
2
D
E
E
A
TYPE/SIZE
TNPW0402
TNPW0603
TNPW0805
TNPW1206
TNPW1210
RESISTANCE
R
= decimal
K
= thousand
M
= million
(4 digits)
TOLERANCE
B
= ± 0.1 %
D
= ± 0.5 %
F
= ± 1.0 %
TCR
H
= ± 50 ppm/K
E
= ± 25 ppm/K
X
= ± 15 ppm/K
Y
= ± 10 ppm/K
PACKAGING
EI
EP
EA
EC
ED
EN
(E.. = lead-free)
SPECIAL
Up to 2 digits
Blank = standard
0H = single lot date
code
Product Description: TNPW1206 1K32 0.5 % T-9 ET1 e3
TNPW1206
TYPE/SIZE
TNPW0402
TNPW0603
TNPW0805
TNPW1206
TNPW1210
1K32
RESISTANCE
Examples:
54R1
= 54.1
1K32
= 1320
0.5 %
TOLERANCE
± 0.1 %
± 0.5 %
± 1.0 %
T-9
TCR
T-2
= ± 50 ppm/K
T-9
= ± 25 ppm/K
T-10
= ± 15 ppm/K
T-13
= ± 10 ppm/K
ET1
PACKAGING
EP1
ET1
ET2
ET6
ET7
E52
e3
LEAD (Pb)-FREE
e3
= pure tin
termination finish
BV 20545 = single
lot date code
Note
• The product can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION.
Revision: 12-May-16
Document Number: 28758
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPW e3
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A
homogeneous film of special metal alloy is deposited on a
high grade ceramic substrate (AI
2
O
3
) and conditioned to
achieve the desired temperature coefficient. Specially
designed inner contacts are deposited on both sides. A
special laser is used to achieve the target value by smoothly
fine trimming the resistive layer without damaging the
ceramics. A further conditioning is applied in order to
stabilize the trimming result. The resistor elements are
covered by a protective coating designed for electrical,
mechanical and climatic protection. The terminations
receive a final pure tin on nickel plating.
The result of the determined production is verified by an
extensive testing procedure and optical inspection
performed on 100 % of the individual chip resistors. This
includes full screening for the elimination of products with a
potential risk of early life failures (feasible for
R
10
).
Only
accepted products are laid directly into the tape in
accordance with
IEC 60286-3, Type 1a
(1)
.
Vishay
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapour phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
RELATED PRODUCTS
The TNPW with SnPb termination plating is designed for
those applications, where lead bearing terminations are
mandatory. For ordering TNPW with SnPb terminations
please refer to latest edition of datasheet TNPW
(www.vishay.com/doc?31006).
TNPU e3 ultra precision thin film flat chip resistors combine
the proven reliability of TNPW e3 products with a most
advanced
level
of
precision
and
stability
(www.vishay.com/doc?28779).
TNPS .... ESCC high-reliability thin film chip resistors are the
premium choice for design and manufacture of equipment,
where matured technology and proven reliability are
of utmost importance. They are regularly used in
communication and research satellites and fit equally well
into aircraft and military electronic systems.
Approval of the TNPS .... ESCC products is granted by the
European Space Components Coordination and registered
in
the
ESCC
Qualified
Parts
List,
REP005
(www.vishay.com/doc?28789).
TNPV e3 High Voltage Thin Film Flat Chip Resistors are
designed for most fields of modern electronics where
precision, reliability and stability at high operating voltage
are primary concerns (www.vishay.com/doc?28881).
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 12-May-16
Document Number: 28758
5
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Single channel infrared remote control receiving circuit

Generator longitudinal differential protection circuit a

STK057 audio IC circuit diagram

Thyristor regulated power supply using bidirectional trigger tube

3.5w ultra-high amplifier (600-860MHZ) circuit

Button type rechargeable lithium-ion battery charging circuit

I have run 58 kilometers this month, keep it up!
...
chenzhufly Talking
HIVE+binfs how to save the registry, the code has been modified, but the function can not be realized, please give me some advice
: According to the relevant information available on the Internet, I have made some modifications. The Hive-base option has been added, and the platform.reg file has been modified accordingly. The fol...
guoqingling988 Embedded System
Please help provide the entire PCB board production process and the SMD component mounting process animation. Thank you
Please help provide the entire PCB board production process and the SMD component mounting process animation. Thank you...
深圳小花 PCB Design
It's time to re-enable the BoosterPack section
It has been a while since everyone has bought MSP432 Launchpad in groups. However, there are few MSP432 sharings in the forums, which makes people feel that most boards are gathering dust. So what is ...
qiushenghua Microcontroller MCU
Graduation Project on Simulation Research of Switched Reluctance Speed Control Motor
I am going to study the simulation of the switched reluctance speed regulating motor for my graduation project. Please help me. Please provide some information....
chenying71 Embedded System
How should we calculate the attenuation or approximate loss caused by the atmosphere on RX reception?
When I use the RX receiving module to receive the 433.92MHz signal transmitted by TX, I find that the strength of the signal received and the distance at which the signal can be received vary greatly ...
mark245 Test/Measurement
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. SIT8208AC-32-25S-33.333000T
  2. CDR32BP680BJURAB
  3. CDR14BP361CJWM
  4. GUS-SS7A-00-2771-CC
  5. SL8A-02-2K58-DA
  6. WBDDQSC-A-03-5102-G-B
  7. 8121M1000182MCC02A97
  8. C138220MCG2
  9. GQZ12B_R1_10001
  10. A7921WVB-7P-S-23-C
  11. TR0603D86R6P
  12. 14D102K

Popular Articles

  1. 51 MCU-Serial Port & LCD Screen Ⅰ
  2. Automotive PCB research: Intelligent electrification has boosted demand for PCBs, and local manufacturers are emerging
  3. Valeo and Leoni collaborate on zone controller to make cars smarter
  4. 2021 Munich Auto Show: Technology review of 13 auto parts players
  5. Melexis helps differentiate automotive lighting with MeLiBu, making vehicles more attractive in niche markets
  6. NVIDIA AI Perception for ROS Developers
  7. 51 single chip microcomputer simulation - alarm and rotating light
  8. OPPO "chip manufacturing", small steps and fast progress
  9. Keysight Technologies Receives First FCC Spectrum Horizons License
  10. Optical liquid analysis prototyping platform points the way to ubiquitous testing

Technical ResourceMore

  1. Diagram of oscillation modulation and demodulation circuit
  2. UL94 fire test standard
  3. Common circuit topologies of DC-DC modules
  4. Design of high-precision speed measurement circuit based on Hall sensor
  5. Freescale XGATE Software Database
  6. Design of BIT software under partition operating system
  7. MQX RTCS Telnet Program
  8. Changhong G1430 color TV circuit diagram
  9. LPC2132 communication protocol source code and LCD source code
  10. Sony Car Audio Circuit Diagram - XR-C5110R

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 695  2384  2644  2051  2782  14  49  54  42  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
