ERA1ARB1300C

Description
Fixed Resistor, Metal Film, 0.05W, 130ohm, 25V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0201, CHIP
CategoryPassive components    The resistor
File Size357KB,7 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

ERA1ARB1300C Overview

Fixed Resistor, Metal Film, 0.05W, 130ohm, 25V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0201, CHIP

ERA1ARB1300C Parametric

Parameter NameAttribute value
Objectid145117150582
package instructionCHIP
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL8.6
Other featuresIEC 60115-8
structureRectangular
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.23 mm
Package length0.6 mm
Package formSMT
Package width0.3 mm
method of packingTR, PRESSED
Rated power dissipation(P)0.05 W
Rated temperature85 °C
GuidelineAEC-Q200
resistance130 Ω
Resistor typeFIXED RESISTOR
size code0201
surface mountYES
technologyTHIN FILM
Temperature Coefficient10 ppm/°C
Terminal surfaceTIN
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage25 V

ERA1ARB1300C Preview

Metal Film (Thin Film) Chip Resistors, High Reliability Type
Metal Film (Thin Film) Chip Resistors,
High Reliability Type
Type:
ERA 1A, 2A, 3A, 6A, 8A
Features
reliability ................ Stable at high temperature and humidity
(85 °C 85 %RH rated load, Category temperature range : –55 °C to +155 °C)
High accuracy ............... Small resistance tolerance and Temperature Coefficient of Resistance
High performance ......... Low current noise, excellent linearity
Reference Standard ...... IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
AEC-Q200 qualified
RoHS compliant
High
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
E24
Series
1
2
3
4
5
6
7
8
9
10
11
E
R
A
3
A
E
B
1
0
2
V
Product Code
Metal Film
Chip Resistors
Size, Power Rating
Code Inch Power Rating
0.05 W
1A
0201
0.063 W
2A
0402
0.1 W
3A
0603
0.125 W
6A
0805
0.25 W
8A
1206
Temperature Coefficient
T.C.R.
Code
±10×10
–6
/°C
R
±15×10
–6
/°C
P
±25×10
–6
/°C
E
±50×10
–6
/°C
H
±100×10
–6
/°C
K
Resistance Tolerance
Code
Tolerance
W
±0.05 %
B
±0.1 %
C
±0.25 %
D
±0.5 %
Packaging Methods
Code
C
X
V
Packaging
Pressed Carrier Taping
2 mm pitch, 15000 pcs.
Punched Carrier Taping
2 mm pitch, 10000 pcs.
Punched CarrierTaping
4 mm pitch, 5000 pcs.
Part No.
ERA1A
ERA2A
ERA3A
ERA6A
ERA8A
Resistance Value
Consist of three figures for E24 series resistance value.
The first two digits are significant figures of resistance
and the third one denotes number of zeros following.
(example) 102 : 1k
Ω
E96
Series and other Resistance values
1
2
3
4
5
6
7
8
9
10
11
12
E
R
A
3
A
E
B
1
0
5
1
V
Product Code
Metal Film
Chip Resistors
Size, Power Rating
Code Inch Power Rating
0.05 W
1A
0201
0.063 W
2A
0402
0.1 W
3A
0603
0.125 W
6A
0805
0.25 W
8A
1206
Temperature Coefficient
T.C.R.
Code
±10×10
–6
/°C
R
±15×10
–6
/°C
P
±25×10
–6
/°C
E
±50×10
–6
/°C
H
±100×10
–6
/°C
K
Resistance Tolerance
Code
Tolerance
W
±0.05 %
B
±0.1 %
C
±0.25 %
D
±0.5 %
Packaging Methods
Code
C
X
V
Packaging
Pressed Carrier Taping
2 mm pitch, 15000 pcs.
Punched Carrier Taping
2 mm pitch, 10000 pcs.
Punched CarrierTaping
4 mm pitch, 5000 pcs.
Part No.
ERA1A
ERA2A
ERA3A
ERA6A
ERA8A
Resistance Value
Consist of four figures for E96 series resistance value.
The first three digits are significant figures of resistance
and the fourth one denotes number of zeros following.
(example) 1051 : 1.05k
Ω
note : Duplicated resistance values as E24 series part
numbers shall follow E24 part numbers.
(apply three digit resistance value)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
12 Sep. 2018

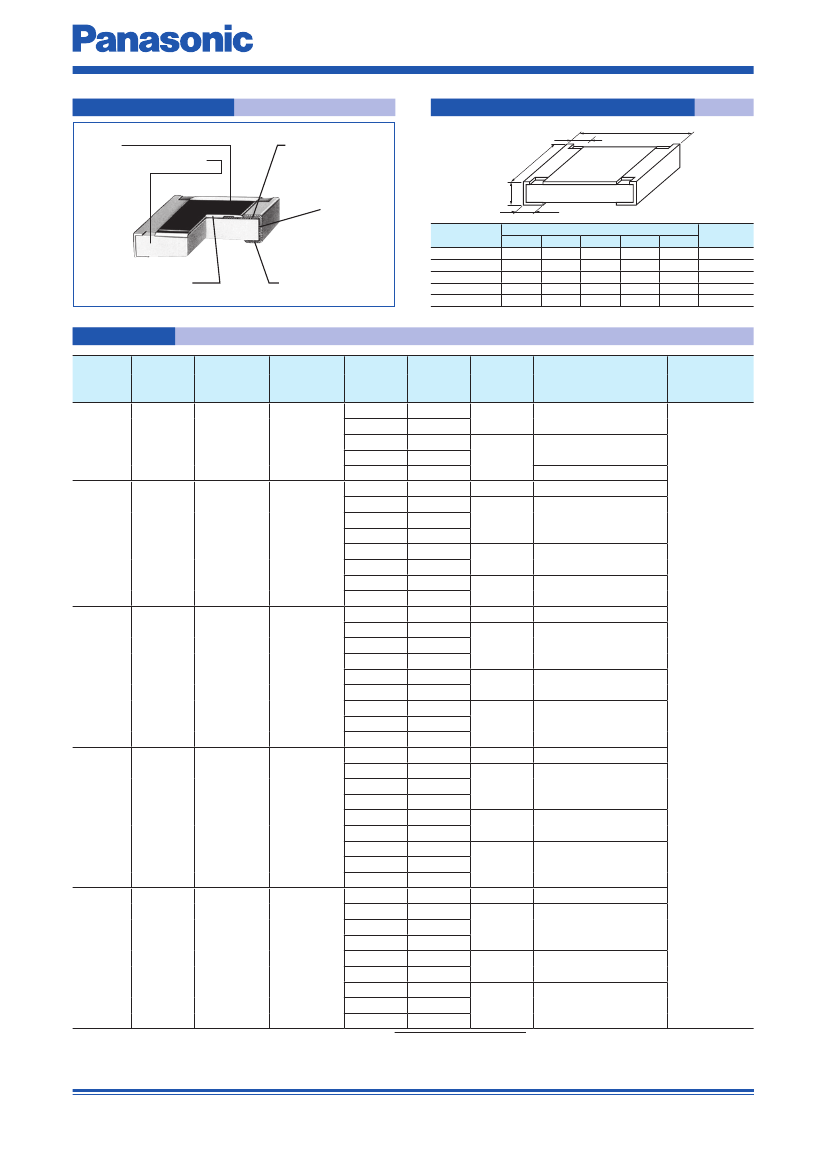

Metal Film (Thin Film) Chip Resistors, High Reliability Type
Construction
Protective coating
Alumina substrate
Electrode (Inner)
W
Dimensions in mm (not to scale)
a
L
t
Electrode
(Between)
Part No.
(inch size)
ERA1A (0201)
ERA2A (0402)
ERA3A (0603)
ERA6A (0805)
ERA8A (1206)
L
0.60
±0.03
1.00
±0.10
1.60
±0.20
2.00
±0.20
3.20
±0.20
b
High reliability
metal film
Electrode (Outer)
Dimensions (mm)
W
a
b
0.30
±0.03
0.15
±0.05
0.15
±0.05
0.50
+0.10
0.15
±0.10
0.25
±0.10
–0.05
0.80
±0.20
0.30
±0.20
0.30
±0.20
1.25
±0.10
0.40
±0.25
0.40
±0.25
1.60
+0.05
0.50
±0.25
0.50
±0.25
–0.15
Mass (Weight)
[g/1000 pcs.]
t
0.23
±0.03
0.14
0.35
±0.05
0.6
0.45
±0.10
2
0.50
±0.10
4
0.60
±0.10
8
Ratings
Power Rating Limiting Element
Maximum
Resistance
T.C.R.
Part No.
(1)
(2)
Part No.
Tolerance
at 85 °C
Voltage
Overload Voltage
(detail)
(×10
–6
/°C)
(inch size)
(W)
(V)
(V)
(%)
ERA1AEB
±0.1
±25
ERA1AEC
±0.25
ERA1A
0.05
25
50
ERA1ARC
±0.25
(0201)
ERA1ARB
±0.1
±10
ERA1ARW ±0.05
ERA2AKD
±0.5
±100
ERA2AED
±0.5
ERA2AEC
±0.25
±25
ERA2AEB
±0.1
ERA2A
0.063
50
100
(0402)
ERA2APC
±0.25
±15
ERA2APB
±0.1
ERA2ARC
±0.25
±10
ERA2ARB
±0.1
ERA3AHD
±0.5
±50
ERA3AED
±0.5
ERA3AEC
±0.25
±25
ERA3AEB
±0.1
ERA3A
0.1
75
150
ERA3APC
±0.25
(0603)
±15
ERA3APB
±0.1
ERA3ARC ±0.25
ERA3ARB
±0.1
±10
ERA3ARW ±0.05
ERA6AHD
±0.5
±50
ERA6AED
±0.5
ERA6AEC
±0.25
±25
ERA6AEB
±0.1
ERA6A
ERA6APC
±0.25
0.125
100
200
(0805)
±15
ERA6APB
±0.1
ERA6ARC
±0.25
ERA6ARB
±0.1
±10
ERA6ARW ±0.05
ERA8AHD
±0.5
±50
ERA8AED
±0.5
ERA8AEC
±0.25
±25
ERA8AEB
±0.1
ERA8A
ERA8APC
±0.25
0.25
150
300
(1206)
±15
ERA8APB
±0.1
ERA8ARC
±0.25
ERA8ARB
±0.1
±10
ERA8ARW ±0.05
(1)
(2)
(3)
(4)
Resistance
(3)(4)
Range
(Ω)
100 to
100 to
10k (E24, E96)
10k (E24, E96)
Category
Temperature Range
(°C)
1k to 10k (E24, E96)
10 to 46.4 (E24, E96)
47 to 100k (E24, E96)
200 to
200 to
47k (E24, E96)
47k (E24, E96)
10 to 46.4 (E24, E96)
47 to 330k (E24, E96)
470 to 100k (E24, E96)
1k to 100k (E24, E96)
10 to 46.4 (E24, E96)
47 to
1M (E24, E96)
–55 to +155
470 to 100k (E24, E96)
1k to 100k (E24, E96)
10 to 46.4 (E24, E96)
47 to
1M (E24, E96)
470 to 100k (E24, E96)
1k to 100k (E24, E96)
Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
Rated Power
×
Resistance Values, or Limiting Element Voltage listed above, whichever less.
Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5
×
RCWV or max. Overload Voltage listed above whichever less.
E192 series resistance values are also available. Please contact us for details.
Duplicated resistance values between E96, E192 and E24 series shall follow E24 Part Numbers. (apply three digit resistance value)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
12 Sep. 2018
Metal Film (Thin Film) Chip Resistors, High Reliability Type
Power Derating Curve
For resistors operated in ambient temperatures above
85 °C, power rating shall be derated in accordance
with the figure on the right.
–55 °C
100
Rated Load (%)
80
60
40
20
0
–60 –40 –20
0
20
40
60
155 °C
80 100 120 140 160 180
Ambient Temperature (°C)
85 °C
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
12 Sep. 2018
Fixed Resistors
Safety Precautions (Common precautions for Fixed Resistors)
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject to
change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products under the actual conditions for use.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as
damage to vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment,
electric heating appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention
equipment.
½ Systems equipped with a protection circuit and a protection device.
½ Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single
fault.
½ Systems equipped with an arresting the spread of fire or preventing glitch.
• These products are designed and manufactured for general and standard use in general elec tron ic equipment.
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
For applications in which special quality and reliability are required, or if the failure or malfunction of the
products may directly jeopardize life or cause threat of personal injury (such as for aircraft and aerospace
equipment, traffic and transport equipment, combustion equipment, medical equipment, accident prevention
and anti-theft devices, and safety equipment), please be sure to consult with our sales representative in
advance and to exchange product specifications which conform to such applications.
• These products are not intended for use in the following special conditions. Before using the products, carefully
check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent.
2. In direct sunlight, outdoors, or in dust.
3. In salty air or air with a high concentration of corrosive gas, such as Cl
2
,H
2
S,NH
3
,SO
2
,or NO
X
.
4. Electric Static Discharge (ESD) Environment.
These components are sensitive to static electricity and can be damaged under static shock (ESD).

Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic and Radioactive Environment.
Avoid any environment where strong electromagnetic waves and radiation exist.
6. In an environment where these products cause dew condensation.
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials.
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range
due to the effects of neighboring heat-generating components. Do not mount or place heat-generating
components or inflammables, such as vinyl-coated wires, near these products.
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the
performance or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to
leave water residues. Otherwise, the insulation performance may be deteriorated.
• Do not apply flux to these products after soldering. The activity of flux may be a cause of failures in these
products.
• Refer to the recommended soldering conditions and set the soldering condition. High peak temperature or
long heating time may impair the performance or the reliability of these products.
• Recommended soldering condition is for the guideline for ensuring the basic characteristics of the products,
not for the stable soldering conditions. Conditions for proper soldering should be set up according to individual
conditions.
01. Oct. 2019
(1) Precautions for use
How to Regulate Low Voltage Isolated Power Supplies
[p=16, null, left][color=rgb(51, 51, 51)][size=12px][color=#cd171f][url=http://www.ti.com/hval-sll-lin-powerlab-pwrhouse-20140116-tl431-pf-en]TL431[/url][/color] Shunt regulators are perhaps the most ...
wstt Power technology
A newbie asking for help.... About the usage of m2716...
I have never come across this type of chip before. Now I need to use it, but I don't know how to use it. Can anyone tell me how to load data into M2716 in Proteus, and what to use to burn data into it...
guoyaru123 Embedded System
The mc55 module automatically shuts down after 20 seconds of power on
After setting the mc55 module/IGT pin to a low level, the mc55 module is powered on, but after 20 seconds the mc55 module automatically shuts down. This happens every time, and I can't find the reason...
chenli_502 Embedded System
CC2640R2F Single Carrier Code
1. IntroductionThere is no single-carrier transmission code in the CC2640R2F SDK. It is transplanted according to the single-carrier code of CC1310, and the actual test shows OK. 2. Environment1.IAR8....
Jacktang Wireless Connectivity
Playing stm32 with zero blind spots - beginner's edition (final edition)
...
qin552011373 Integrated technical exchanges
Essential PCB wiring rules for electronic hardware engineers: basic theories of right-angle routing, differential routing, and serpentine routing
[align=center][/align] [size=4] [/size] [size=4]Essential PCB wiring rules for electronic hardware engineers: right-angle routing, differential routing and serpentine routing basic theory:[/size] [siz...
sigma Electronics Design Contest

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2549  408  2264  696  2479  52  9  46  15  50
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
