0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip
actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
FH34(S)Series
Increased FPC/FFC holding force
Space saving (30 pos. shown)
Actuator
Metal fittings
1.0mm
17m
m
3.2mm
Easy FPC/FFC insertion
Back opening rotating
17
mm
Top contacts
All four
sides are
chamfered.

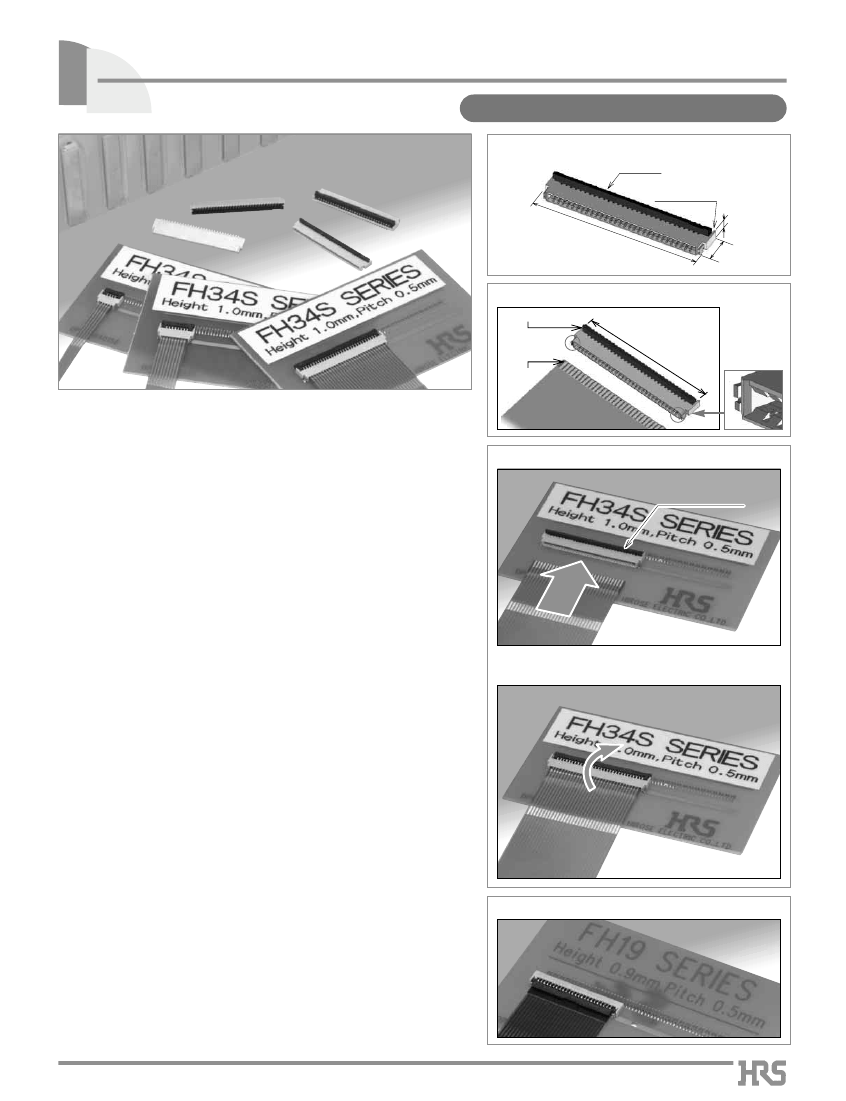

sFeatures
1. Low-profile
With the 1.0 mm above the board and width of 3.8 mm the
connectors are used in space saving applications.
FP
C
/F
FC
Ready to insert FPC/FFC
Delivered with
the actuator open
2. Increased FPC/FFC retention
As compared with existing similar construction connectors:
* In horizontal direction: Approximately 2.6 times
* In vertical direction: Approximately 2 times
3. Unique Back-Flip rotating actuator
The rotating actuator opens from the back of the connector,
assuring reliable electrical and mechanical connection.
4. Easy FPC insertion and reliable electrical connection
Proven Flip Lock actuator allows easy insertion of FPC and
provides a tactile sensation when fully closed, confirming
complete electrical and mechanical connection.
FPC
FPC/FFC inserted and retained.
Completed electrical and mechanical connection.
5. Delivered with the actuator open
FPC/FPC can be immediately inserted without the need for the
opening of the actuator.
6. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) can be used.
This is the only ultra-low profile ZIF connector using standard
FPC.
7. Compatible with existing connectors.
FPC/FFC and PCB mounting patterns are the same as for the
FH19SC Series (bottom contact), allowing the use of both
connectors for interconnections between two boards or replacement
of the connectors.
8. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
9. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate vacuum
pick-up and placement.
Standard reel packaging contains 5000 connectors.
Compatible with existing connectors.(FH19SC SERIES)
10.Halogen-free
*
(FH34SJ,FH34SW,FH34SRJ)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum, Cl + Br combined-1,500ppm maximum
2012.3
1
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sSpecifications
Current rating 0.5 A (Note 1)
Ratings
Voltage rating 50 Vrms AC
Recommended FPC/FFC
Operating temperature range:
-55 to +85°C (Note 1)
Operating humidity range:
Relative humidity 90% max. (No condensation)
Storage temperature range:
-10 to +50°C (Note 2)
Storage humidity range:
Relative humidity 90% max. (No condensation)
Thickness: 0.3 ± 0.03 mm, Gold plated contact pads
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Durability
5. Vibration
Specification
500 Mø min.
No flashover or insulation breakdown
100 mø max.
* Including FPC and FFC conductor resistance
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
No deformation of components affecting performance
Conditions
100 V DC
250 Vrms AC / one minute
1 mA, AC / DC 20mV max (AC: 1kHz)
20 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75
mm, 10 cycles in each of the 3 axis
Acceleration of 981m/s
2
, 6 ms duration, sine half-
wave, 3 cycles in each of the 3 axis
96 hours at 40°C and humidity of 90 to 95%
Temperature : -55°C
/
+15°C to +35°C/+85°C
/
+15°C to +35°C
Time:
30
/
2 to 3
/
30
/
2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350°C ±5°C for 5 seconds (Note 3)
6. Shock
7. Humidity (Steady state)
8. Temperature cycle
9. Resistance to soldering heat
Note1: When passing the current through all of the contacts, use 70% of the rated current.
Note2: Includes temperature rise caused by current flow.
Note3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage, shipment or
during transportation after board mounting.
Note4: Information contained in this catalog represents general requirements for this Series.
Contact us for the drawings and specifications for a specific part number shown.
sMaterials
Part
Material
Finish
FH34S series
Color:Beige
FH34SJ series
FH34SW series
FH34SR series
Color:Gray
FH34SRJ series
FH34S series
FH34SJ series
Color:Black
FH34SR series
FH34SRJ series
FH34SW series
Color:Light brown
FH34SJ series
Color:Black
FH34SR series
Gold plating with nickel barrier
Pure tin reflow plating
Remarks
LCP
UL94V-0
Insulator
PA
UL94HB
UL94V-0
-------
-------
LCP(8pos.)
Contacts
Metalfittings
Phosphor bronze
Phosphor bronze
sOrdering
information
FH 34S J - 30S - 0.5 SH (50)
1
1
Series name : FH
2
Series No.
: 34S
3
Blank : Standard
J
W
R
RJ
: Top contact, Halogen-free
(Flame retardance UL94V-0).
: Top contact, Halogen-free
(Flame retardance UL94HB).
: Bottom contact
: Bottom contact, halogen-free
(Flame retardance UL94V-0).
2
3
4
5
6
7
4
Number of positions : 4 to 34
5
Contact pitch : 0.5mm
6
Termination type
SH : SMT horizontal mounting type
7
Plating specifications
(50)…Gold plating with nickel barrier
2
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sConnector
Dimensions
A±0.15
B
0.5
∞Number of contacts
(0.15)
0.15 H
H
Number of contacts indicator
Cav No.
(1.95)
(3.2)
(3.8)
2.9
1±0.1
(1.75)
1
HRS mark
Note 1 : The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Note 2 : Packaged on tape and reel only. Check packaging specification.
Note 3 : Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
Note 4 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH34S-4S-0.5SH(50)
FH34S-6S-0.5SH(50)
FH34S-7S-0.5SH(50)
FH34S-8S-0.5SH(50)
FH34S-11S-0.5SH(50)
FH34S-14S-0.5SH(50)
FH34S-16S-0.5SH(50)
FH34S-20S-0.5SH(50)
FH34S-22S-0.5SH(50)
FH34S-23S-0.5SH(50)
FH34S-24S-0.5SH(50)
FH34S-26S-0.5SH(50)
FH34S-30S-0.5SH(50)
FH34S-32S-0.5SH(50)
FH34S-34S-0.5SH(50)
FH34SJ-4S-0.5SH(50)
FH34SJ-6S-0.5SH(50)
FH34SJ-8S-0.5SH(50)
FH34SJ-30S-0.5SH(50)
FH34SW-4S-0.5SH(50)
FH34SW-12S-0.5SH(50)
FH34SR-22S-0.5SH(50)
FH34SRJ-4S-0.5SH(50)
FH34SRJ-6S-0.5SH(50)
FH34SRJ-8S-0.5SH(50)
CL No.
580-1203-2-50
580-1205-8-50
580-1224-2-50
580-1204-5-50
580-1213-6-50
580-1206-0-50
580-1211-0-50
580-1217-7-50
580-1216-4-50
580-1228-3-50
580-1210-8-50
580-1212-3-50
580-1201-7-50
580-1208-6-50
580-1207-3-50
580-1237-4-50
580-1234-6-50
580-1235-9-50
580-1239-0-50
580-1225-5-50
580-1233-3-50
580-1240-9-50
580-1238-7-50
580-1236-1-50
580-1231-8-50
Number of Contacts
4
6
7
8
11
14
16
20
22
23
24
26
30
32
34
4
6
8
30
4
12
22
4
6
8
A
4
5
5.5
6
7.5
9
10
12
13
13.5
14
15
17
18
19
4
5
6
17
4
8
13
4
5
6
B
1.5
2.5
3
3.5
5
6.5
7.5
9.5
10.5
11
11.5
12.5
14.5
15.5
16.5
1.5
2.5
3.5
14.5
1.5
5.5
10.5
1.5
2.5
3.5
C
2.53
3.53
4.03
4.53
6.03
7.53
8.57
10.57
11.57
12.07
12.57
13.57
15.57
16.53
17.53
2.53
3.53
4.53
15.57
2.53
6.53
11.57
2.53
3.53
4.53
D
3.38
4.38
4.88
5.38
6.88
8.38
9.38
11.38
12.38
12.88
13.38
14.38
16.38
17.38
18.38
3.38
4.38
5.38
16.38
3.38
7.38
12.38
3.38
4.38
5.38
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
A * *
(0.15)
(C)
D±0.1
0.5
2.9
0.1
0.3
3
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sRecommended
PCB mounting pattern and metal mask dimensions
Recommended metal mask thickness: t=0.1
0.65±0.03
(Metal mask)
B
J
(0.25)
(0.25)
(0.15)
(2.9)
0.5
∞Number of contacts
0.3±0.05
0.1 J
0.25±0.03
(Metal mask)
0.8±0.05
3.3±0.05
0.8±0.05
(0.065)
(0.185)
E±0.1
F±0.1
(A)
sRecommended
FPC/FFC Dimensions
G±0.05
0.5±0.07
0.5±0.03
0.
2
B±0.03
2-
0.3±0.03
R
0.3±0.03
(Uncover area)
Note 1 : Stiffener dimension should be 2.5mm min., and H dimension should be 0.5mm for improved flexibility of FPC.
Note 2 : When using the FPC/FFC in FH34S or FH19SC connectors, the exposed area inserted in either connector is 2.5mm ±
0.3mm and the stiffener is 3.5mm min.
All dimensions: mm
F
G
2.5
3.9
3.5
4.9
4
5.4
4.5
5.9
6
7.4
7.5
8.9
8.5
9.9
10.5
11.9
11.5
12.9
12
13.4
12.5
13.9
13.5
14.9
15.5
16.9
16.5
17.9
17.5
18.9
2.5
3.9
3.5
4.9
4.5
5.9
15.5
16.9
2.5
3.9
6.5
7.9
11.5
12.9
2.5
3.9
3.5
4.9
4.5
5.9
Part Number
FH34S-4S-0.5SH(50)
FH34S-6S-0.5SH(50)
FH34S-7S-0.5SH(50)
FH34S-8S-0.5SH(50)
FH34S-11S-0.5SH(50)
FH34S-14S-0.5SH(50)
FH34S-16S-0.5SH(50)
FH34S-20S-0.5SH(50)
FH34S-22S-0.5SH(50)
FH34S-23S-0.5SH(50)
FH34S-24S-0.5SH(50)
FH34S-26S-0.5SH(50)
FH34S-30S-0.5SH(50)
FH34S-32S-0.5SH(50)
FH34S-34S-0.5SH(50)
FH34SJ-4S-0.5SH(50)
FH34SJ-6S-0.5SH(50)
FH34SJ-8S-0.5SH(50)
FH34SJ-30S-0.5SH(50)
FH34SW-4S-0.5SH(50)
FH34SW-12S-0.5SH(50)
FH34SR-22S-0.5SH(50)
FH34SRJ-4S-0.5SH(50)
FH34SRJ-6S-0.5SH(50)
FH34SRJ-8S-0.5SH(50)
1.5±0.3
CL No.
580-1203-2-50
580-1205-8-50
580-1224-2-50
580-1204-5-50
580-1213-6-50
580-1206-0-50
580-1211-0-50
580-1217-7-50
580-1216-4-50
580-1228-3-50
580-1210-8-50
580-1212-3-50
580-1201-7-50
580-1208-6-50
580-1207-3-50
580-1237-4-50
580-1234-6-50
580-1235-9-50
580-1239-0-50
580-1225-5-50
580-1233-3-50
580-1240-9-50
580-1238-7-50
580-1236-1-50
580-1231-8-50
Number of Contacts
4
6
7
8
11
14
16
20
22
23
24
26
30
32
34
4
6
8
30
4
12
22
4
6
8
A
4
5
5.5
6
7.5
9
10
12
13
13.5
14
15
17
18
19
4
5
6
17
4
8
13
4
5
6
B
1.5
2.5
3
3.5
5
6.5
7.5
9.5
10.5
11
11.5
12.5
14.5
15.5
16.5
1.5
2.5
3.5
14.5
1.5
5.5
10.5
1.5
2.5
3.5
2.5MIN(Stiffener)
H
(0.15)
E
3.1
4.1
4.6
5.1
6.6
8.1
9.1
11.1
12.1
12.6
13.1
14.1
16.1
17.1
18.1
3.1
4.1
5.1
16.1
3.1
7.1
12.1
3.1
4.1
5.1
4
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sRecommended

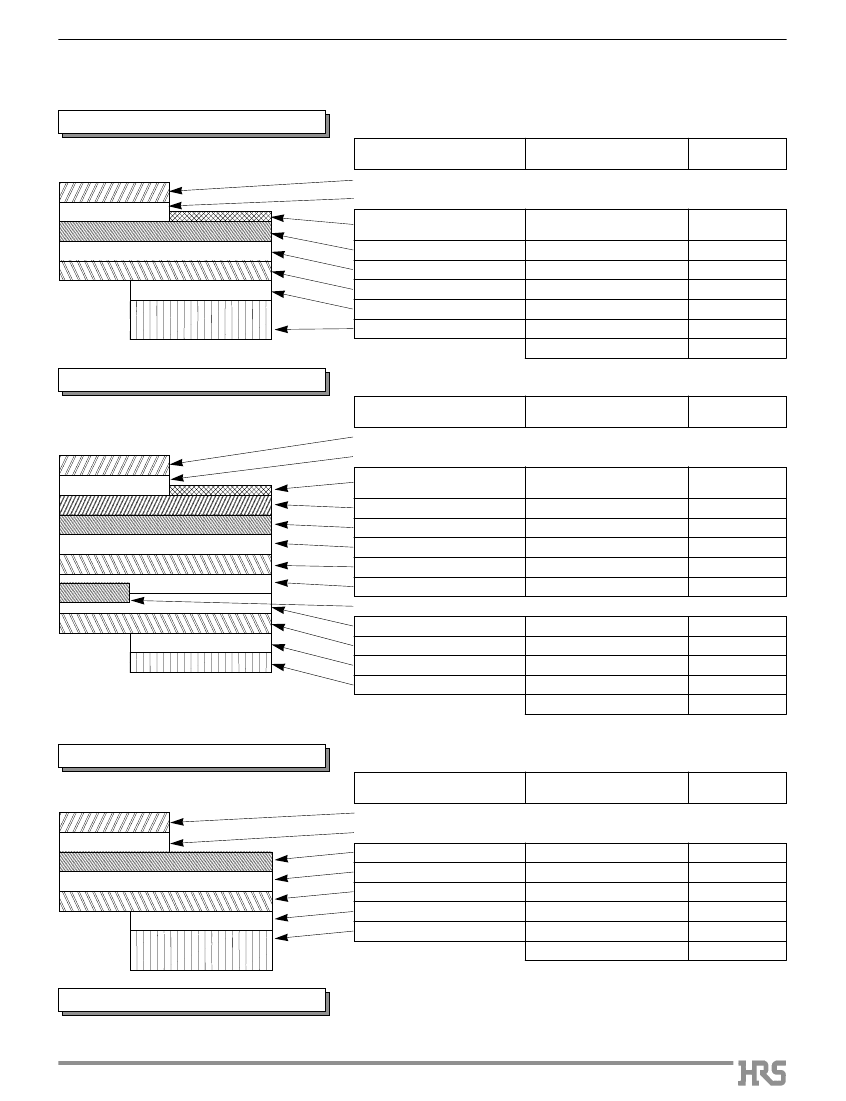

FPC construction
q
Contact FPC manufacturer for specific details.
1. Using Single-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
0.2µm thick gold plated over 1
to 5µm thick nickel underplating
Cu
1oz
Polyimide
Material
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
35
25
25
35
175
298
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Polyimide
Total
7 mil thick
2. Using Double-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Reinforcement material adhesive
Stiffener
Cu
1/2oz
0.2µm thick gold plated over 1
to 5µm thick nickel underplating
Cu
Cu
1/2oz
Polyimide
Material
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
50
100
297
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
Total
4 mil thick
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Using FFC
FFC : Flexible Flat Cable
Material Name
Polyester film
Adhesive
Gold plated annealed copper foil
Adhesive
Polyester
Adhesive
Stiffener
Polyester
Polyester
Total
Polyester
Thermoplastic polyester
Material
Material Thickness
(µm)
(12)
(30)
35
30
12
30
188
295
4. Precautions
1. This specification is a recommendation for the construction of the FH34S Series FPC and FFC (t=0.3 ± 0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
Could you please give me some information on DSP development of servo motor control system? Could you please give me the contact information?
I am currently working on motor control and want to develo...
The role of PA input matching:1. Frequency error/phase error/EVM/modulation spectrum---Reduce reflections and avoid VCO pulling2. Conducted spurious---Design a low-pass filter to reduce harmonics3.ACL...
As the title says, I am currently using CreateFile. If successful, it means the serial port exists and is not in use. However, when the return value is something invalid (-1), how can I tell if the se...
[align=left][b][font=宋体][size=14.0pt]Methods to compile and update preloader and uboot programs in SoCEDS environment[/size][/font][/b][/align][align=left][font=宋体][b] [/b][/font][/align][align=left][...
PIC emulators are too expensive. I wonder if I can use USB to convert TTL serial to burn the program? Is there a DIY burner? What software do I use to burn the program?...
Based on the difference between PIC microcontrollers and MCS-51 series microcontrollers, there are three main features: (1) Bus structure: The bus structure of the MCS-51 microcontroller is the von Ne...
_pdf/pg_0001.png)
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
