Bandpass Filters
Ceramic Resonator Type

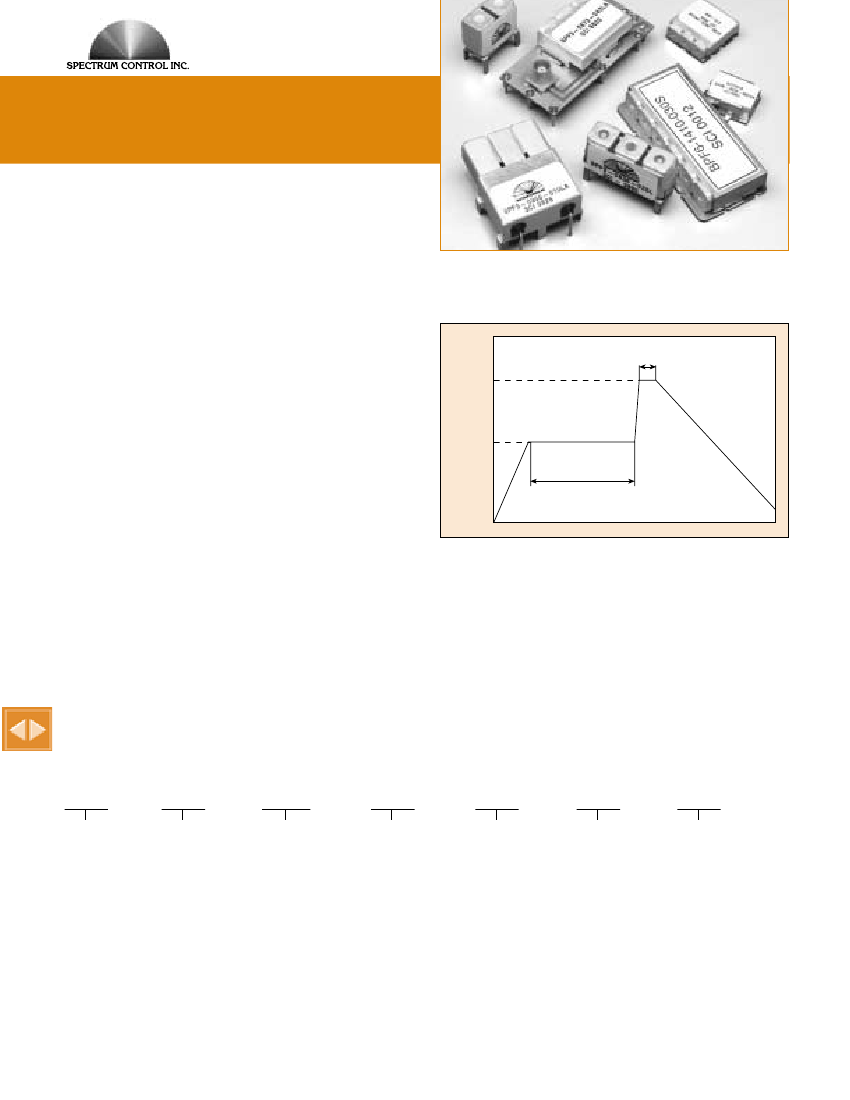

Features
s
s
s
s
s
s
s
s
s
Bandpass Filters Ceramic Resonator Type
s
s
s
s
Temperature stable (±5 ppm/°C)
Temperature range (-30°C to +85°C)
High Q factor (400 to 2,000)
Low insertion loss
Wide frequency range (400 MHz to 4 GHz)
High frequency and mechanical stability
Notch filters available
Surface mount and thru-hole mount
Available in 2 to 7 poles
Available with 2 mm to 6 mm resonators
50 Ohm standard, 75 Ohm impedance available
Custom designs available
Available in tape and reel. (Specs vary based
on the size of the part.) Please consult the factory
for specifications.
Recommended Temperature Profile
for Soldering
Preheat 100 Seconds Max.
200-215°C
Soldering
30 Seconds Max.
Natural
Cooling
140-160°C
60 Seconds Min.
Applications
s
s
s
s
s
s
s
s
s
Cellular telephones
Cellular base station transceivers
Satellite transceivers
Cordless phones
GPS and car navigation equipment
Land mobile radios
CATV
Modems
Wireless LANs
Part Numbering System
Example:
BPC3-0881-025SC
BP
Class
Bandpass
Filters
C
Resonator
Cross Section
B
= 2 mm
C
= 3 mm
D
= 4 mm
F
= 6 mm
3
Number
of Poles
2 to 7
standard
-
0881
Center
Frequency
(MHz)
Use 4 digits
-
025
Bandwidth
(MHz)
Use 3 digits
S
Mounting
Type
L
= Leaded
S
= Surface Mount
C
Series
Assigned
by factory
62
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Bandpass Filters
Ceramic Resonator Type
Standard Parts List
Application
E-Amps
SCI Part Number
BPC3-0881-025SC
Center
Frequency
(MHz)
881.5
Bandwidth
(MHz)
±12.5
Number
of
Poles
3
Insertion
Loss
(dB)
2.6
Ripple
(dB)
1.0
VSWR
2:1
Attenuation
(dB @ MHz)
12 @ ƒ
0
±32.5
Footprint
A
E-Amps
BPC3-0836-025SC
836.5
±12.5
3
2.6
1.0
2:1
12 @ ƒ
0
±32.5
A
GSM
BPC3-0902-025SC
902.5
±12.5
3
2.6
1.0
2:1
12 @ ƒ
0
±32.5
A
GSM
BPC3-0947-025SC
947.5
±12.5
3
2.6
1.0
2:1
12 @ ƒ
0
±32.5
A
PCS
BPC3-1880-060SC
1880.0
±30.0
3
2.2
1.0
2:1
15 @ ƒ
0
±100
B
PCS
BPC3-1960-060SC
1960.0
±30.0
3
2.2
1.0
2:1
15 @ ƒ
0
±100
23 @ ƒ
0
-77.5
18 @ ƒ
0
+77.5
7 @ ƒ
0
±80
30 @ ƒ
0
±200
16 @ ƒ
0
-140
14 @ ƒ
0
+140
3.5 @ 855
3.5 @ 911
25 @ 793
25 @ 973
4 @ 860
4 @ 917
30 @ 798.5
30 @ 978.5
45 @ 789
45 @ 929
20 @ 697
20 @ 837
15 dBc @ ±6
18 dBc @ ƒ
0
±5.8
28 dBc @ ƒ
0
±12
45 dBc @ ƒ
0
±18
18 dBc @ ƒ
0
±5.8
28 dBc @ ƒ
0
±12
45 dBc @ ƒ
0
±18
B
ISM
BPC2-0915-026SC
915.0
±13.0
2
2.2
1.0
2:1
C
ISM
BPC3-2442-084SB
2442.0
±42.0
3
2.4
1.0
2:1
D
GPS
BPC2-1575-002SC
1575.42
±1.0
2
0.8
0.3
2:1
C
DSF
BPD3-0883-050SA
883.0
±25.0
3
4.0
2.0
2:1
F
DSF
BPD3-0888-033SA
888.5
±16.5
3
3.0
1.0
2:1
F
DSF
BPD4-0859-038SA
859.0
±19.5
4
3.0
2.0
2:1
F
DSF
BPD5-0767-072SA
767.0
±36.0
5
4.0
2.0
2:1
F
CATV
*
BPC3-0445-001SB
445.25
±0.5
3
8.1
0.25
2:1
E
CATV
*
BPF3-0445-001LA
445.25
±0.5
3
4.5
0.25
2:1
G
CATV
*
BPF3-0547-001LA
547.25
±0.5
3
5.5
0.25
2:1
G
Notes: *
All CATV parts are 75 Ohm standard.
Consult the factory for custom filter designs.
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Website: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
63
Bandpass Filters Ceramic Resonator Type
Bandpass Filters
Ceramic Resonator Type

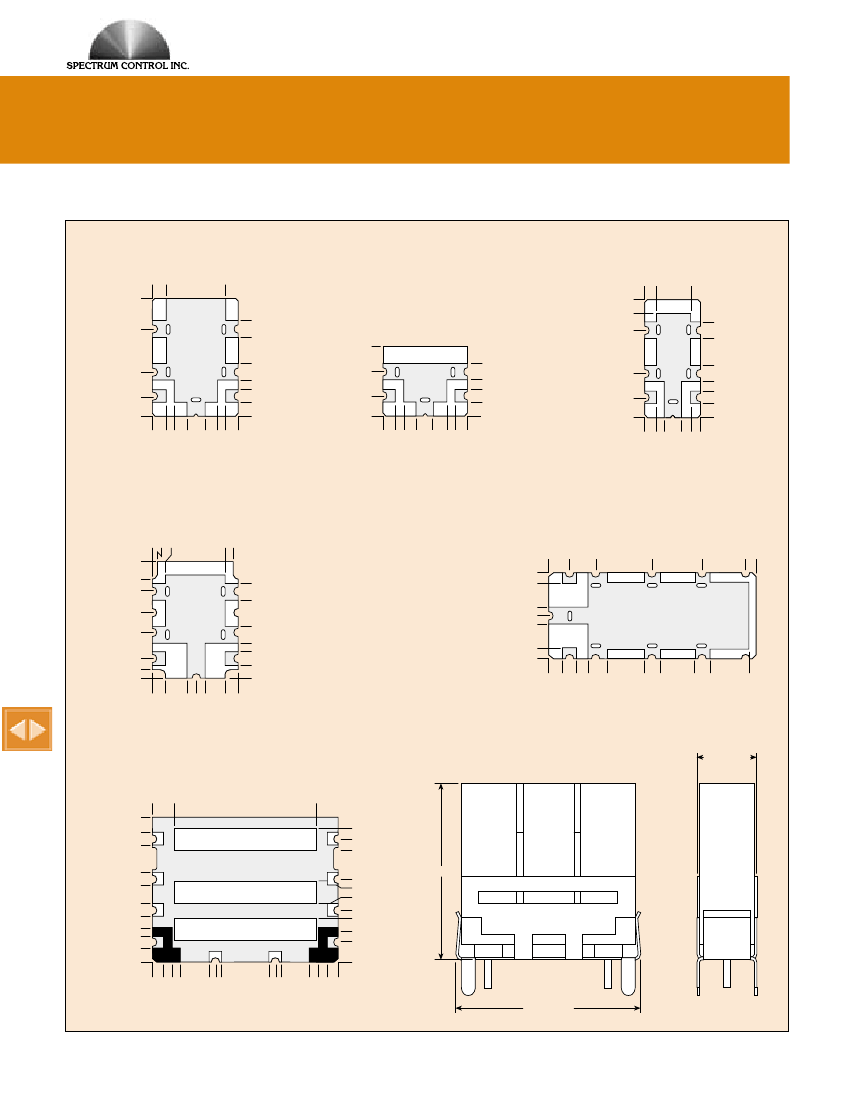

Dimensions and Configurations
(Reference Only)
.000
(0.00)
.060
(1.52)
.334
(8.48)
.000
(0.00)
.050
(1.27)
.208
(5.28)
.436
(11.07)
.357
(9.07)
.239
(6.07)
.160
(4.06)
.120
(3.05)
.060
(1.52)
.000
(0.00)
.000
(0.00)
.052
(1.32)
.090
(2.29)
.170
(4.32)
.208
(5.28)
.260
(6.60)
.700
(17.78)
“A”
“C”
.532
(13.51)
.385
(9.78)
.435
(11.05)
.356
(9.04)
.238
(6.05)
.159
(4.04)
.121
(3.07)
.061
(1.55)
.000
(0.00)
.000
(0.00)
.060
(1.52)
.099
(2.51)
.157
(3.99)
.236
(5.99)
.295
(7.49)
.334
(8.48)
.394
(10.01)
.315
(8.00)
.198
(5.03)
.090
(2.29)
.000
(0.00)
.000
(0.00)
.060
(1.52)
.099
(2.51)
.157
(3.99)
.236
(5.99)
.295
(7.49)
.334
(8.48)
.394
(10.01)
.238
(6.05)
.159
(4.04)
.121
(3.07)
.061
(1.55)
.000
(0.00)
“B”
.532
(13.51)
.472
(11.99)
.396
(10.06)
.198
(5.03)
.199
(5.05)
.090
(2.29)
.000
(0.00)
Bandpass Filters Ceramic Resonator Type
.090
(2.29)
.000
(0.00)
.000
(0.00)
.022
(0.56)
.059
(1.50)
.334
(8.48)
.372
(9.45)
“D”
“E”
.900
(22.86)
.950
(24.13)
.919
(23.34)
.472
(11.99)
.265
(6.73)
.511
(12.98)
.000
(0.00)
.096
(2.44)
.214
(5.44)
.531
(13.49)
.449
(11.40)
.396
(10.06)
.298
(7.57)
.208
(5.28)
.090
(2.29)
.043
(1.09)
.000
(0.00)
.000
(0.00)
.059
(1.50)
.158
(4.01)
.198
(5.03)
.236
(5.99)
.334
(8.48)
.393
(9.98)
.236
(5.99)
.158
(4.01)
.119
(3.02)
.060
(1.52)
.000
(0.00)
.432
(10.97)
.354
(8.99)
.000
(0.00)
.051
(1.30)
.158
(4.01)
.197
(5.00)
.237
(6.02)
.343
(8.71)
.394
(10.01)
.000
(0.00)
.067
(1.70)
.126
(3.20)
.177
(4.50)
.666
(16.92)
.737
(18.72)
.440
(11.18)
.750
(19.05)
.000
(0.00)
.660
(16.76)
.594
(15.09)
.533
(13.54)
.410
(10.41)
.350
(8.89)
.270
(6.86)
.210
(5.33)
.160
(4.06)
.121
(3.07)
.062
(1.57)
.000
(0.00)
.532
(13.51)
.562
(14.27)
.592
(15.04)
.721
(18.31)
.760
(19.30)
.799
(20.29)
.850
(21.59)
.000
(0.00)
.051
(1.30)
.089
(2.26)
.129
(3.28)
.258
(6.55)
.288
(7.32)
.318
(8.08)
.610
(15.49)
.564
(14.33)
.510
(12.95)
.380
(9.65)
.370
(3.40)
.270
(6.86)
.240
(6.10)
.200
(5.08)
.100
(2.54)
.091
(2.31)
.000
(0.00)
“H”
.100
(2.54)
“F”
“G”
.256
(6.50)
.840
(21.33)
Note:
See sales drawing for detailed specifications on each part.
Dimensions in inches ±0.012
(mm ±0.3)
64
