RB06DTP1040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RB06DTP1040

RB06DTP1040: DescriptionFixed Resistor, Thin Film, 0.1W, 104ohm, 75V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size286KB，9 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RB06DTP1040 Overview

Fixed Resistor, Thin Film, 0.1W, 104ohm, 75V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, LEAD FREE

RB06DTP1040 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2141147176
package instruction	CHIP, LEAD FREE
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	8.55
structure	Chip
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

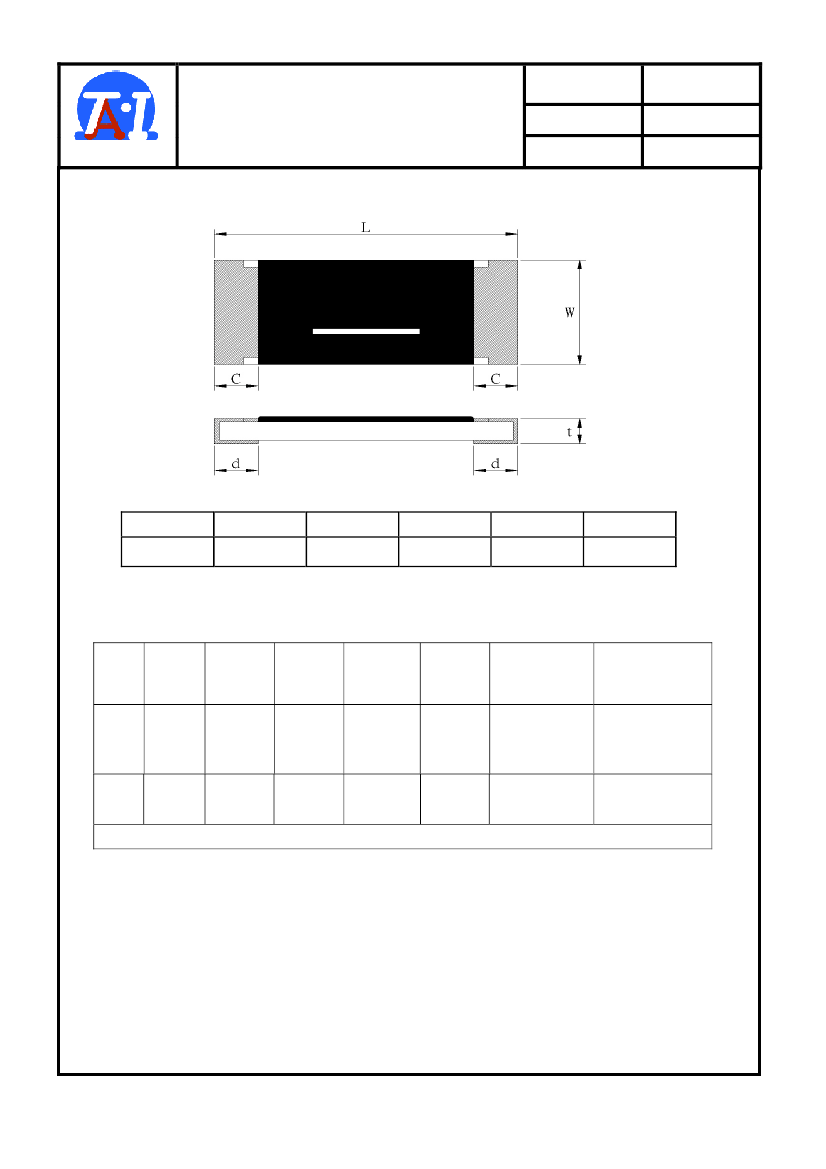

Package height	0.45 mm
Package length	1.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.8 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	104 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	75 V

Preview

Download Datasheet

View All

Document No

TRB-060S001B

2007/12/27

1/9

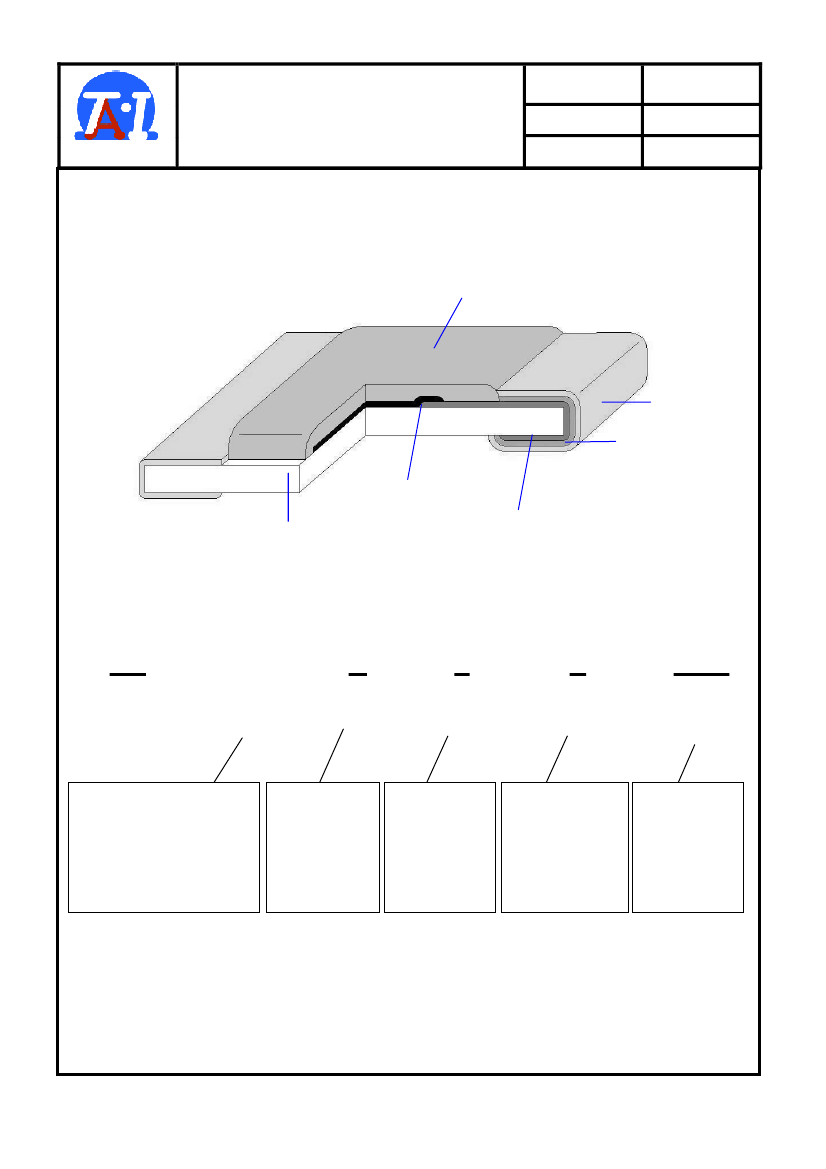

Thin Film Chip Resistors

( RB series Standard )

Issued date

page

1. Scope :

This specification applies for the RB series of thin film chip resistors made by TA-I.

2. Construction:

Over Coat

Sn Plating

Ni Plating

Resistive Element

Ceramic Substrate

Inner electrode

3. Type Designation:

Product Code

RB : Thin Film

Size

Power Rating

Tolerance

Packaging

TCR

1001

Nominal

Resistance

06-0603(1608) 1/10W

B-

±0.10%

C-

±0.25%

D-

±0.50%

F-

±1.00%

T- Paper

Tape

B- Bulk

Cassette

J-

±5

ppm

±10

ppm

M-

±15

ppm

P-

±25

ppm

S-

±50

ppm

e.g.,

1001=1kΩ
