Series FT
DISTINCTIVE CHARACTERISTICS
• Expansion of FT Series with more universal options include
wider, larger and narrow frame types
• Construction of film and glass with superior durability and
flexibility
• Choice of input methods: finger or stylus
• Wide range of panel sizes in analog includes 5.7”,
6.5”, 8.4”, 10.4”, 10.6", 12.1”, 15”, 15.6” and 19”
• Anti-Newton Ring (ANR) Technology eliminates many of
the typical visual artifacts for analog types
• Operator can easily direct the device without specialized
technical training or computer knowledge by combining touch
screen to LCD panel, plasma EL or other display
• Touch screens support flexible design, including digital and analog,
in a variety of sizes and relatively low cost
• Anti-glare surface reduces reflection from fluorescent lighting, sunlight, etc.
• Adhesive layer between glass and film has improved durability to withstand diverse
environmental conditions
Touch Screens
• Hard resin coating on film's surface ensures excellent protection against scratches or damage
APPLICATIONS
• Office Automation
• Industrial Automation
• Medical Equipment
• Broadcast
Cross Section View of Touch Screen
Transparent
Conductive Film
Adhesive Layer
Top Electrode
(Film)
Surface
• Information Technology • Hospitality
• Banking Systems
• Gaming/Entertainment
Bottom Electrode
(Glass or Film)
Dot Spacer
Specializing in Custom Products
• Custom sizes for Resistive Touch Screens
• Capability to attach touch screens to LCDs or
other components
• Specializing in custom construction such as film
plus film combinations
• Fingerprint resistant, high transmittance films
• Availability of metallic tails (i.e., copper pattern
plus gold plate)
2
www.nkkswitches.com
Control Board for Analog Touch Panels
• Combining an analog touch panel with a
controller board device driver on a computer
enables performing the same operations as with
a mouse by touching the touch panel screen
• NKK offers controller boards compatible with
USB or with RS232C
Touch Screens
TYPICAL TOUCH SCREEN ORDERING EXAMPLE
Series FT
AS

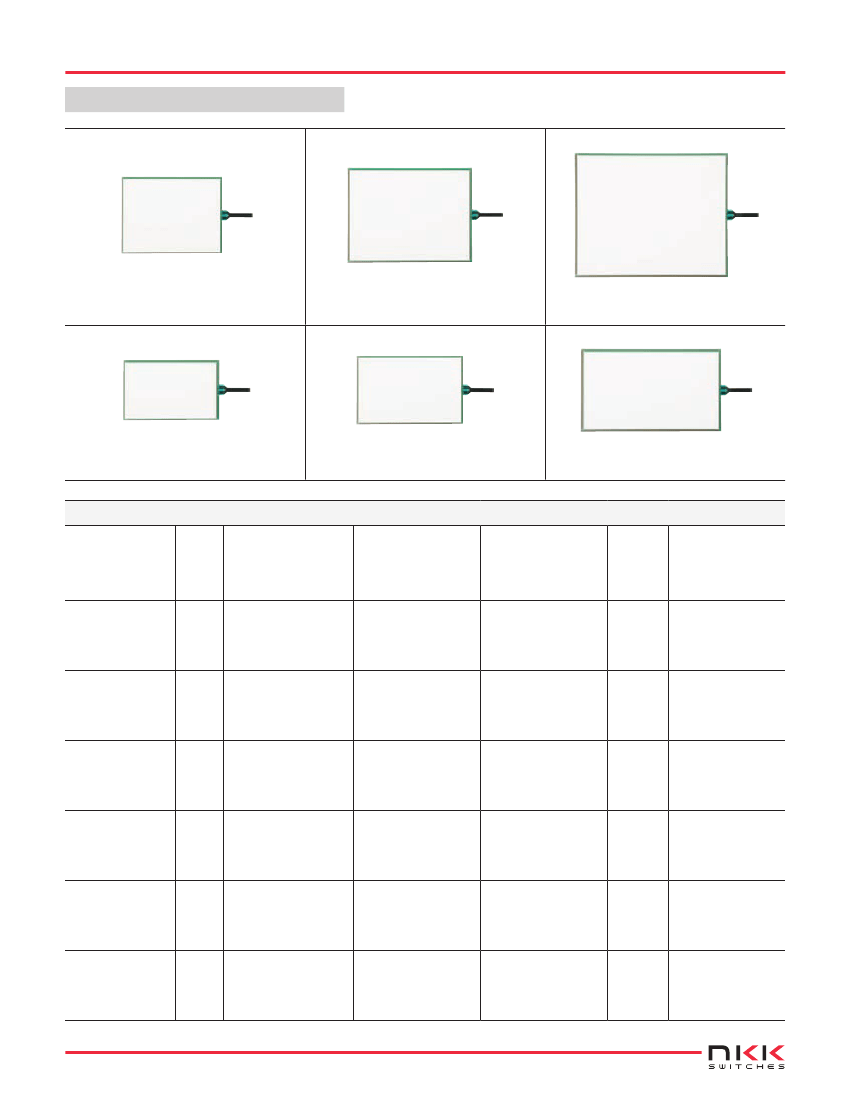

Screen Size
5.7
6.5
8.4
10.4
10.6
12.1
15
15.6
19
5.7”
6.5”
8.4”
10.4”
10.6”
12.1”
15.0”
15.6”
19.0”
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
N
W
A
FT
Number of Keys
00
Analog
00
10.6
Input Method
Finger or Stylus
No
Code
V
S
A
W
4
4
Type
4-Wire
*Position of Tail (Analog)
Left or Right (Horizontal)
Top or Bottom (Vertical)
Narrow Frame Type 1
(Horizontal)
Narrow Frame Type 2
(Horizontal)
Wide Type (Horizontal)
FTAS00–10.6AW–4
Touch Screen with
10.6" Screen
Wide Type
(Horizontal Tail Position)
*
Aspect Ratio:
Narrow Frame: 4:3
Wide Frame: 16:9
Finger or Stylus Input
4-Wire Analog
GENERAL SPECIFICATIONS
4-Wire Analog Resistive Touch Screens
Power Level
XY Resistive Value
Linearity
Insulation Impedance
Expected Operational Life
Touch Activation Force
Chattering Time
Relative Humidity
Operating Temperature Range
Storage Temperature Range
Light Transmission
Surface Hardness
1mA @ 5V DC (resistive load)
Narrow: 250 ~ 850Ω
±1.5% maximum
10MΩ minimum @ 25V DC
Writing: 50,000 operations minimum (approximately 30mm movement with stylus)
Tapping: 1,000,000 operations minimum (pressing force 4.9N using silicone rubber, hardness 60°)
1.47N maximum
10 milliseconds maximum
+60°C (+140°F), humidity 90%, 240 hours
–20°C ~ +70°C (-4°F ~ +158°F)
–40°C ~ +80°C (–40°F ~ +176°F)
80% standard (Touch Panel portion)
2H minimum (JIS K5600)
Wide: 120 ~ 1,500Ω
www.nkkswitches.com
3
