6.3TLV10000MKC18X21.5 datasheet, PDF

Datasheet> All Categories > 6.3TLV10000MKC18X21.5

6.3TLV10000MKC18X21.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 10000uF, Surface Mount, 7575, CHIP, ROHS COMPLIANT; File Size189KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

6.3TLV10000MKC18X21.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 10000uF, Surface Mount, 7575, CHIP, ROHS COMPLIANT

6.3TLV10000MKC18X21.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1635863256
package instruction	, 7575
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.4
capacitance	10000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.63 mA
Manufacturer's serial number	TLV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	1584 mA
size code	7575
surface mount	YES
Delta tangent	0.44
Terminal surface	Tin (Sn)
Terminal shape	FLAT

Preview

Download Datasheet

View All

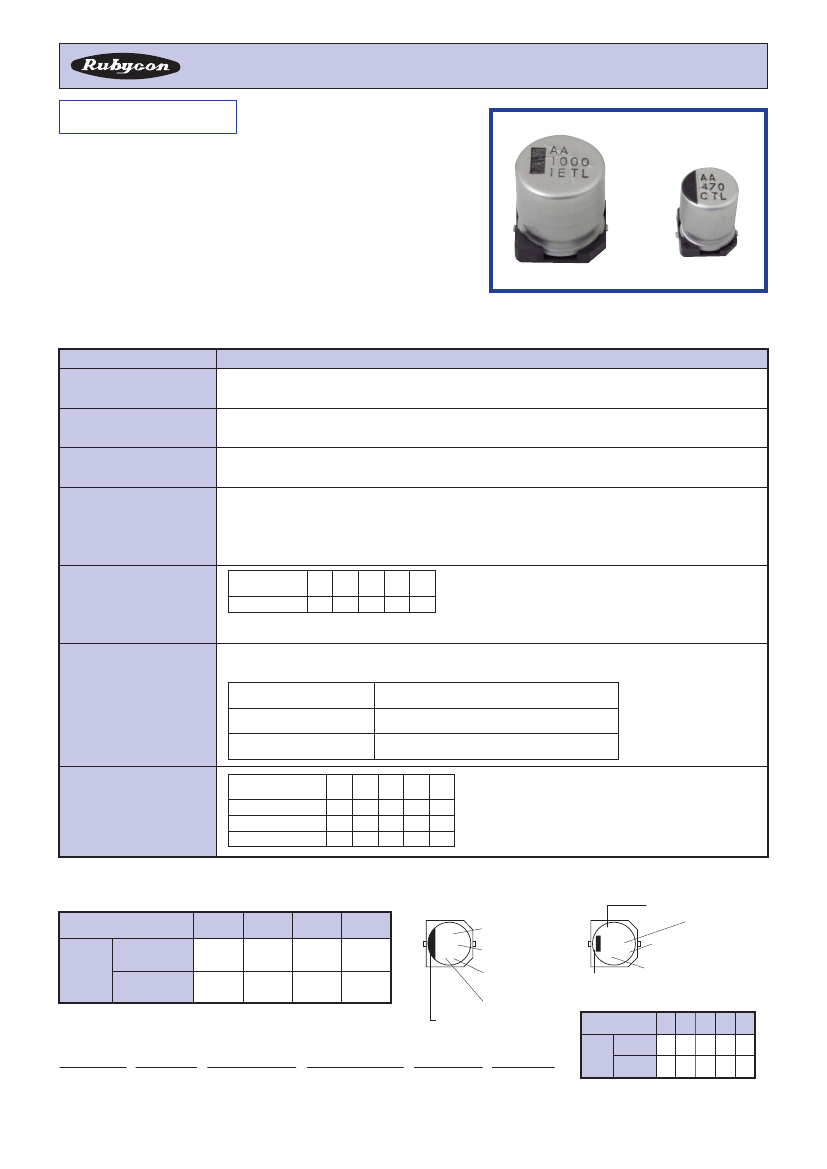

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

TLV

SERIES

105℃ Long Life, Low Impedance, Lead Free Reﬂow

Soldering.

◆FEATURES

・

Load Life 105℃ 5000 hours.

・

Reﬂow soldering is available.

・

Large can-size SMD.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−55∼＋105℃

6.3∼35V.DC

±20％

（20℃，

120Hz）

I＝0.01CV

or 3μA whichever is greater. (After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

Rated Voltage 6.3

（20℃,120Hz）

(tanδ)

Dissipation Factor(MAX)

tanδ

0.26 0.19 0.16 0.14 0.12

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with Increase of every 1000 μF.

After applying rated voltage with rated ripple current for 5000 hours at 105℃,

the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

Within ±30% of the initially measured value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Endurance

Rated Voltage

Low Temperature Stability

Impedance Ratio(MAX)

6.3

（120Hz）

（−25℃）（20℃） 2

（−40℃）（20℃） 3

（−55℃）（20℃） 4

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

◆MARKING

〈φ8,φ10〉

〈φ12.5∼φ18〉

Lot No.

Capacitance

Series

Capacitance

2200

1C TL

（Hz）

120

0.50

0.60

0.80

0.85

10K

0.95

100K≦

1.00

100∼150μF

Coeﬃcient

470

CTL

Series

220∼10000μF

※Rated voltage code

Polarity of the terminals

※Rated voltage code ※Voltage code

Polarity of the terminals

Rated Voltage

Voltage

code

6.3 10 16 25 35

◆PART NUMBER

□□□

Rated Voltage

φD≦10

TLV

Series

□□□□□

Rated Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

D×L

Case Size

φD≧12.5 0J 1A 1C 1E 1V
