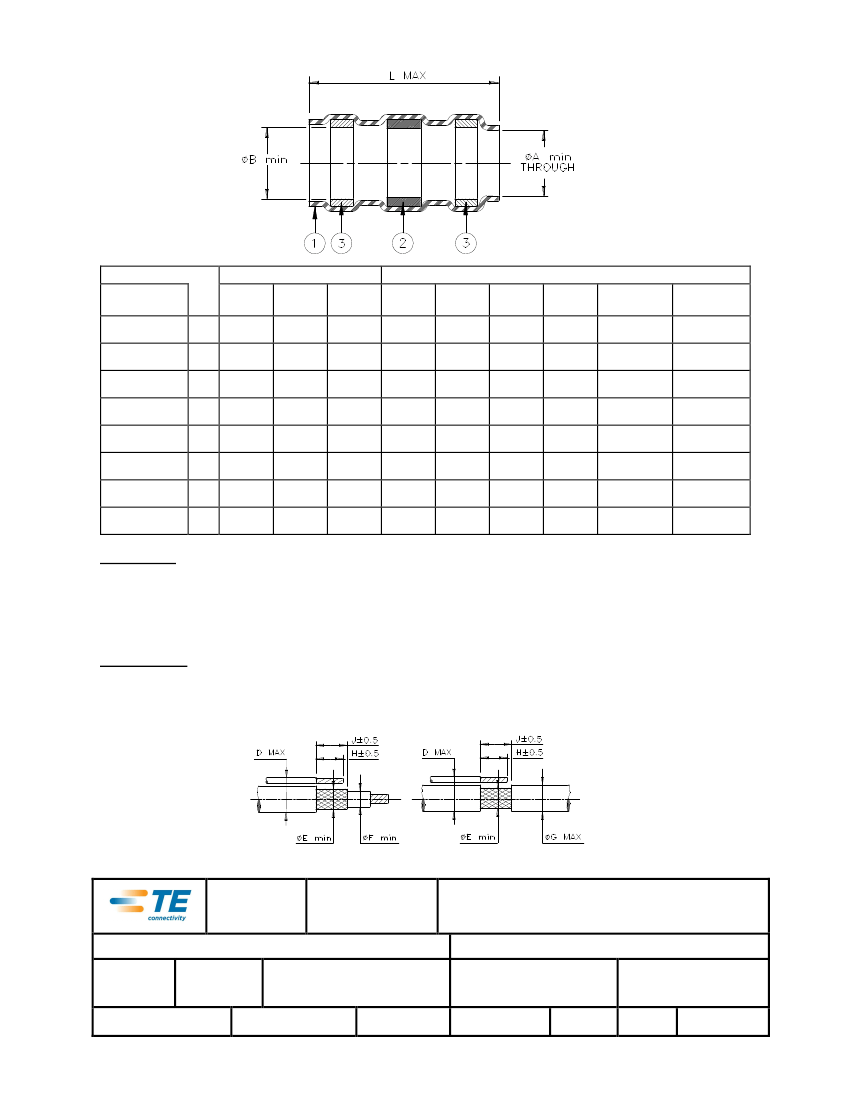

SPECIFICATION CONTROL DRAWING
Product Revision
Product Name
B-150-03
B-150-05
B-150-07
B-150-11
B-150-13
B-150-17
B-150-23
B-150-33
D
F
F
E
A
A
A
B
Product Dimensions
øA
øB
L
min
min
max
2.5
(0.098)
4.3
(0.169)
6.8
(0.267)
10.8
(0.425)
13.0
(0.512)
17.0
(0.669)
22.5
(0.885)
33.0
(1.299)
3.0
(0.118)
4.8
(0.189)
7.3
(0.287)
11.5
(0.452)
15.1
(0.594)
19.0
(0.748)
24.5
(0.964)
35.0
(1.380)
24.5
(0.964)
29.3
(1.153)
32.5
(1.279)
35.5
(1.397)
45.5
(1.79)
55.5
(2.165)
80.0
(3.149)
80.0
(3.149)
D
max
3.0
(0.118)
4.8
(0.189)
7.3
(0.287)
11.5
(0.452)
15.1
(0.594)
18.0
(0.748)
23.5
(0.925)
34.0
(1.338)
øE
min
1.5
(0.059)
2.0
(0.078)
3.3
(0.130)
4.5
(0.177)
7.0
(0.275)
9.0
(0.354)
12.0
(0.472)
19.0
(0.748)
Cable Dimensions
øF
øG
H±0.5
min
max
(H±0.020)
1.0
(0.039)
1.5
(0.059)
2.8
(0.110)
4.0
(0.157)
6.5
(0.256)
8.0
(0.315)
11.0
(0.433)
17.0
(0.689)
2.5
(0.098)
4.3
(0.169)
6.8
(0.267)
10.8
(0.425)
13.0
(0.512)
16.0
(0.630)
21.5
(0.846)
32.0
(1.259)
6.0
(0.236)
8.0
(0.315)
10.0
(0.393)
12.0
(0.472)
16.0
(0.630)
21.0
(0.827)
29.0
(1.142)
29.0
(1.142)
J±0.5
(J±0.020)
7.0
(0.275)
9.0
(0.354)
11.0
(0.433)
13.0
(0.512)
17.0
(0.669)
23.0
(0.905)
31.0
(1.220)
31.0
(1.220)
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin.
2. SOLDER PREFORM WITH FLUX.
SOLDER:
TYPE Cd18 per ANSI-J-STD-006.
FLUX:
TYPE ROM1 per ANSI-J-STD-004.
3. MELTABLE SEALING RINGS: Thermally stabilized thermoplastic.
APPLICATION
1. These controlled soldering devices are designed for termination of a bare or tin plated copper shield on a cable having an
insulation rated for at least +85°C.
2. Temperature range: -55°C to +125°C.
For installation procedure and application equipment, consult RPIP-688-00.
For best results, prepare
the cable as shown:
* A trademark of TE
connectivity.
THERMOFIT
DEVICES
TE Connectivity
300 Constitution Drive
Menlo Park, CA 94025
USA
TITLE:
SOLDERSLEEVE* DEVICE
LOW-FIRE-HAZARD SHIELD TERMINATION
LOW TEMPERATURE
DOCUMENT NO
:
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
ANGLES: N/A
TE Connectivity reserves the right to amend
0.00 N/A
this drawing at any time. Users should
ROUGHNESS IN
evaluate the suitability of the product for
0.0 N/A
0 N/A
MICRON
their application.
B-150-XX
REPLACES:
D980574
SIZE:
A
B150XX
SHEET:
1 of 1
DRAWN BY:
DATE:
REV.
DOC ISSUE:
SCALE:
M. FORONDA
06/29/98
SEE TABLE
3
None
Print Date: 11-May-11
If this document is printed it becomes uncontrolled. Check for the latest revision.
