101R09P-BRP4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 101R09P-BRP4

101R09P-BRP4: DescriptionD Type Connector, 9 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking, Plug; File Size522KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

101R09P-BRP4 Overview

D Type Connector, 9 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking, Plug

101R09P-BRP4 Parametric

Parameter Name	Attribute value
Objectid	315445241
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.218 inch
subject depth	0.455 inch
body length	1.39 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULFIDE
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation option 2	JACKPOST
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Terminal length	0.25 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

Plastic PCB Connectors

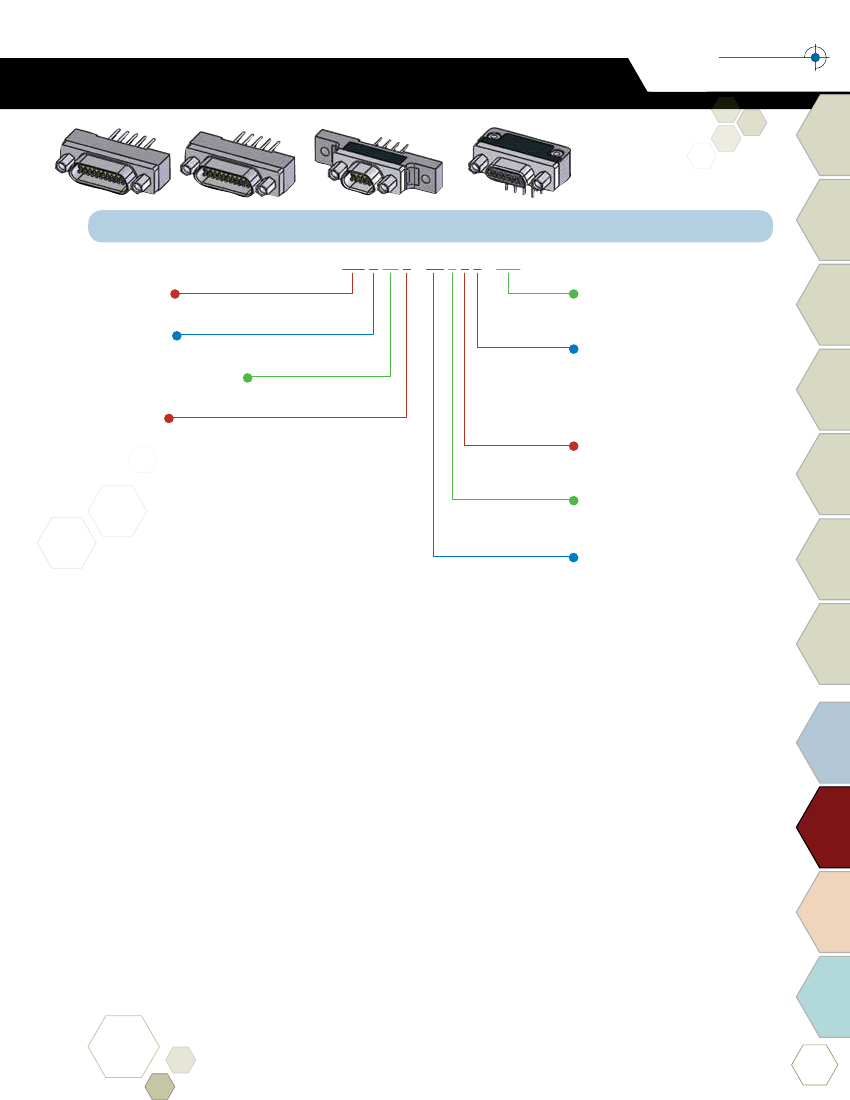

Series 101- How to Order

Amphenol

Aerospace

Contacts

& Tools

2M Specs

Example:

101R21P-CBRP1

Description: plastic shell size 21 plug, CBR termination,

PCB tail lead length .109 inches with jackposts included.

100

xxx

Connector Series

101

= all plastic shell

Insulator Material

R =

Polyphenylene Sulfide (Ryton)

Connector Size

(number of contacts)

09, 15, 21, 25, 31, 37, 51

Connector Type

= plug (pin)

= receptacle (socket)

Non Std. Wire Length (Inches)

(0.109 < length < 1.00)

e.g.

125

= .125 inches

Lead Length (inches)

= .109 ± .015

= .140 ± .015

= .172 ± .015

= .250 ± .015

= non std. length (add to end of part no.)

Threaded Insert

(pre-installed)

= threaded insert (PCB mounting option)

Omit for no threaded insert

Hardware for BS, BR, CBR:

(pre-installed)

= jackpost

Omit for no jackpost

2M801

2M803

2M804

2M805

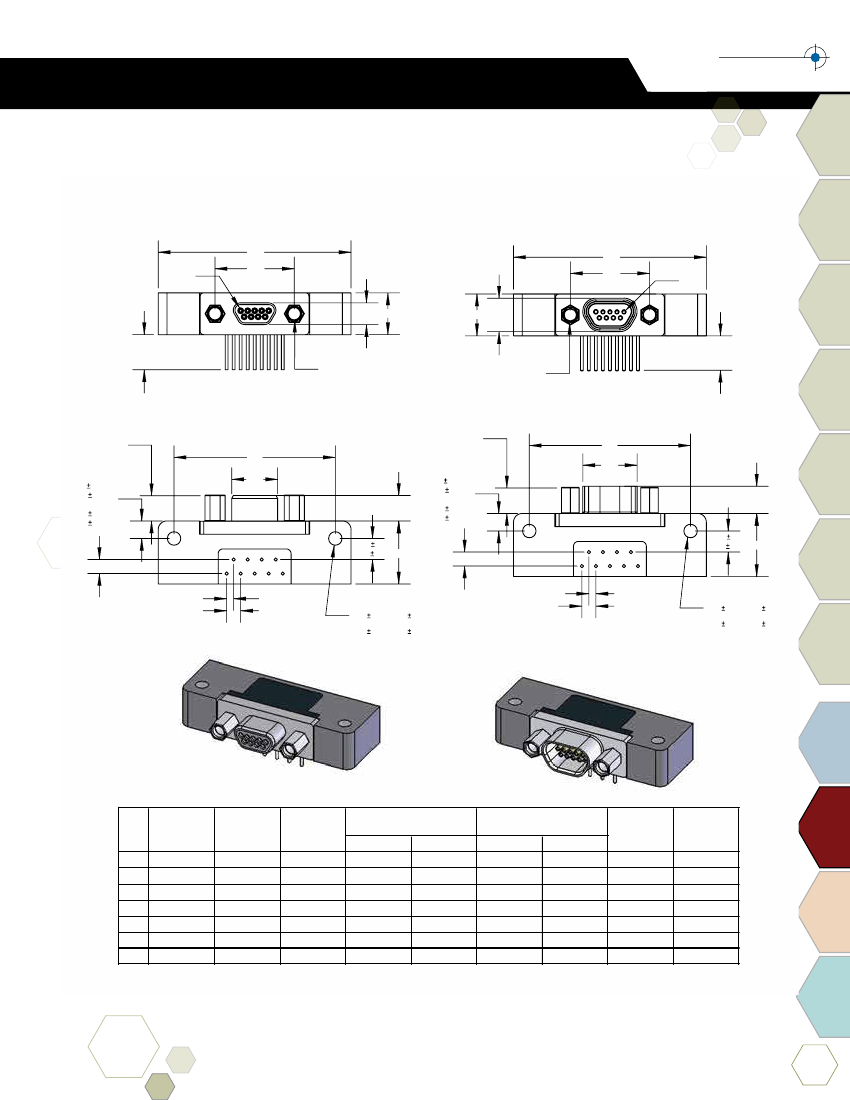

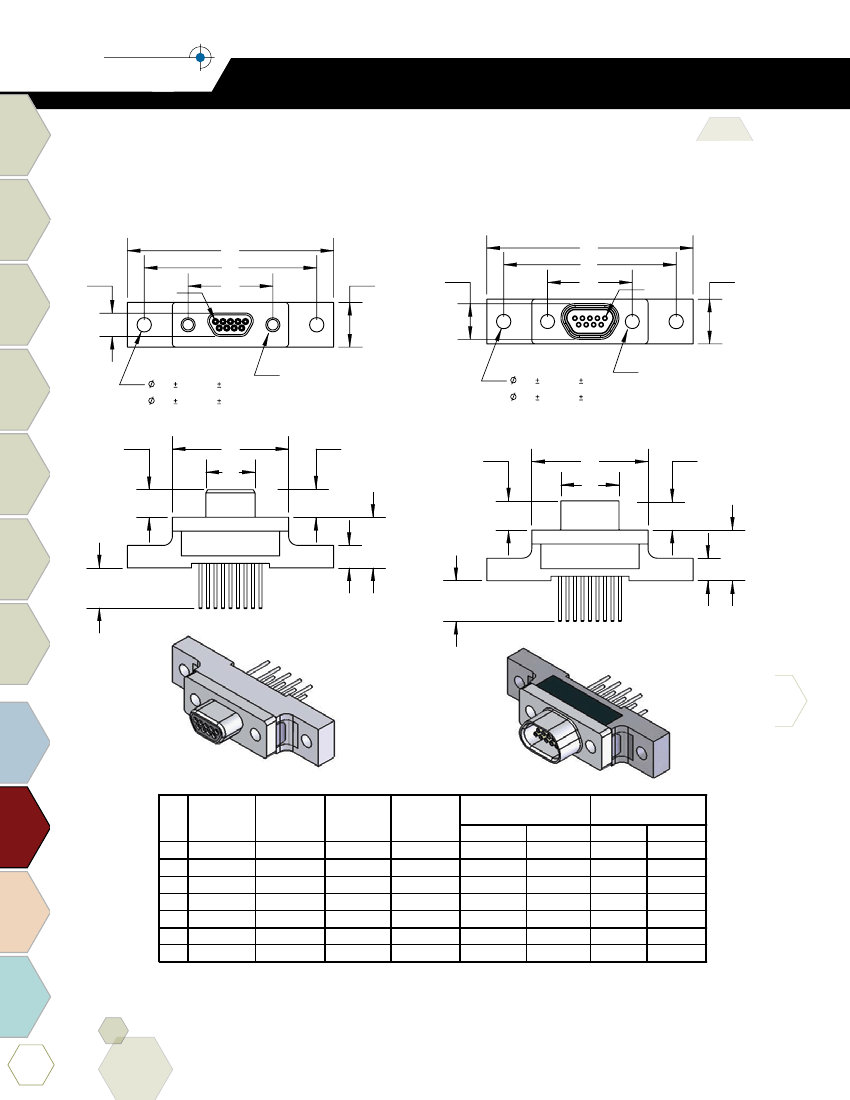

Termination Type

= straight PCB per M83513/22 thru /27

= 90

PCB per M83513/16 thru /21

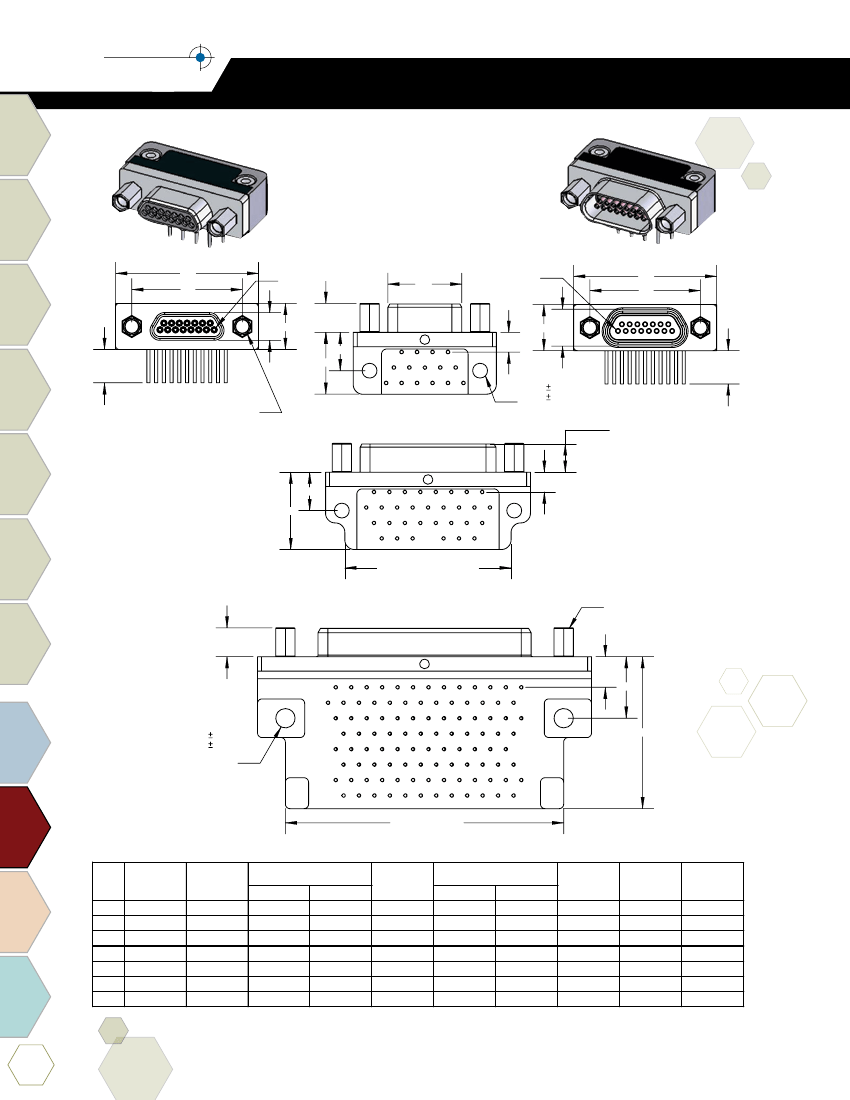

CBR

= narrow 90

PCB per M83513/10 thru /15

Accessories

HD38999

Micro-D

Features

•

Available in sizes 9 thru 51, straight and right angle PCB termination.

Solid copper 24 AWG PCB leads, tin plated, and solder dipped.

Wide selection of hardware options.

Consult Amphenol Aerospace for other wire size termination.

Terrapin

Nexus

Inches (mm)

All dimensions for reference only

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
