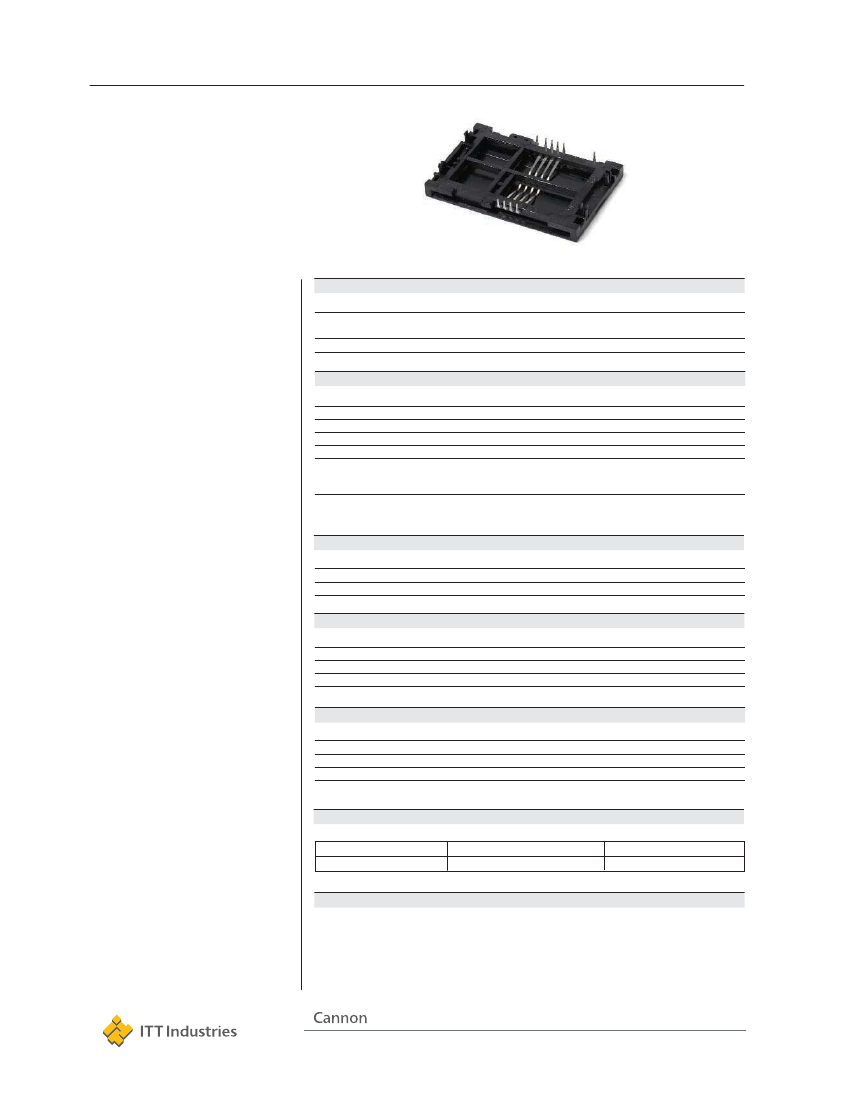

CCM01 MK I
CCM01 MK I connectors have fixed
contacts and a blade card detection
switch unsealed.
These connectors are intended for
applications where the card usage is
relatively low and the environment is
benign.
Features
• Available with 8 through hole
contacts.
• A normally closed blade switch
detects when the card is fully
inserted.
• Snap in boardlocks hold the connec-
tor in place prior to soldering.
Construction
Contacts
Plating
Moldings
Card detection switch
Mechanical Data
Number of Contacts
Mechanical life
Card insertion force
Card extraction force
Contact force
Vibration
Shock
8
10,000 cycles min
10 N max
1 N min / 10N max
0.20 N min / 0.60 N max
Frequency 10 to 500 Hz. Acceleration 50m/s
2
Duration 6 hours - amplitude 0.35 mm
(0.014) Max electrical discontinuity 1µs
Peak value 500 m/s
2
– Duration 11 ms
3 shocks in each direction of each axis
Max electrical discontinuity 1 µs
Copper alloy
Contact area : Gold over nickel
Terminals : Tin lead (2µ min)
Thermoplastic UL 94V-0 rated
Copper alloy
Contact Electrical Data
Insulation resistance
Resistance
Current rating
Dielectric strength
Switch Electrical Data
Card detection switch
Contact resistance
Dielectric strength
Current rating
Maximum power
Environmental Data
Operating temperature
Soldering temperature
Damp heat
Salt mist
Card detection switch
Ordering Code
Part Number
CCM01-1NF
Number of Contacts
8
Packaging Multiple
200
-40°C to +85°C
Wave : 260°C / 5 sec
IEC 512 test number 11c (10 days)
IEC 512 test number 11f (96 hours)
Not sealed blade switch
Normally closed
100 mΩ max
250 Vrms min
1 mA min /10 mA max
0.2 VA
1,000 MΩ min
100 mΩ max
10 µA min / 1 A max
750 Vrms min
Packaging
20 per tray, 10 trays per box.
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
6
CCM01 MK I

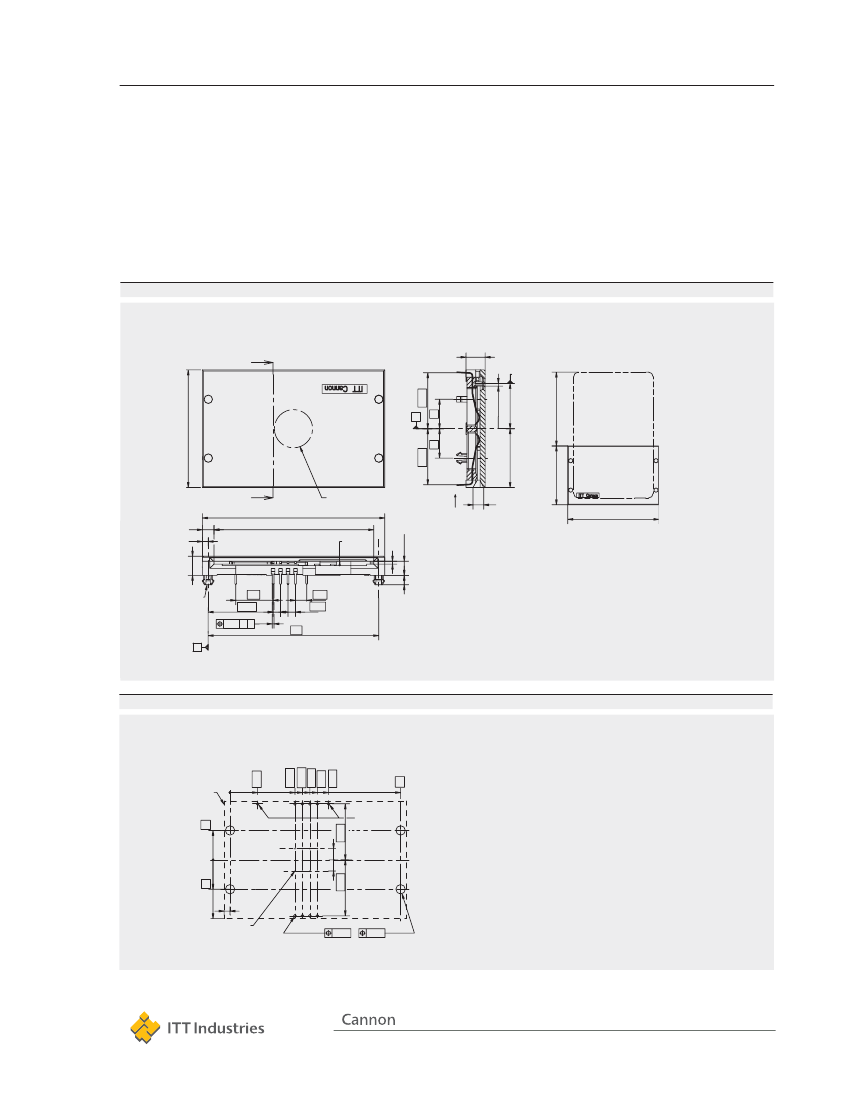

Dimensional Drawings
CCM01-1NF
A-A
6,5
Card stop
0,9
±0,25
15,4
19,05
50,3 (REF.)
A
40
B
19,05
10
10
20
40 (REF.)
A
4,0
2,0
6,5
62±0,2
54,3
Pick and place area
ø13
Card insertion
direction
3,65±0,3
Card entry
62 (REF.)
Embossed
Channel
4 Snap
Feet
10x
12,7
22,08
0,3 A B
0,6
3,81
3x 2,54
58
A
PCB Layout
CCM01-1NF
(Component side)
22,08
24,62
27,16
29,7
33,51
9,38
Plastic outline
0
SW
C1 C2 C3 C4 SW
0
3,81 3,81
10
2
20
Contact location according to
ISO 7816-2
C5C6C7C8 10x
+0,1
ø1 0
ø0,1
19,05
19,05
10
Card end travel
switch terminal
4x
ø0,1
ø3,2+0,1
0
58
3,2
1
4,8±0,2
Unless otherwise stated, tolerances are ± 0,10 mm
Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com
7
