GH101AR20ZN6N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > GH101AR20ZN6N

GH101AR20ZN6N: DescriptionCAPACITOR, CERAMIC, 100V, C0G, 0.0000002uF, SURFACE MOUNT, 0101, CHIP, ROHS COMPLIANT; File Size313KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

GH101AR20ZN6N Overview

CAPACITOR, CERAMIC, 100V, C0G, 0.0000002uF, SURFACE MOUNT, 0101, CHIP, ROHS COMPLIANT

GH101AR20ZN6N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1998016377
package instruction	, 0101
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	2e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Manufacturer's serial number	GH
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	WAFFLE PACK
positive tolerance	80%
Rated (DC) voltage (URdc)	100 V
size code	0101
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Gold (Au)
Terminal shape	ONE SURFACE

Preview

Download Datasheet

View All

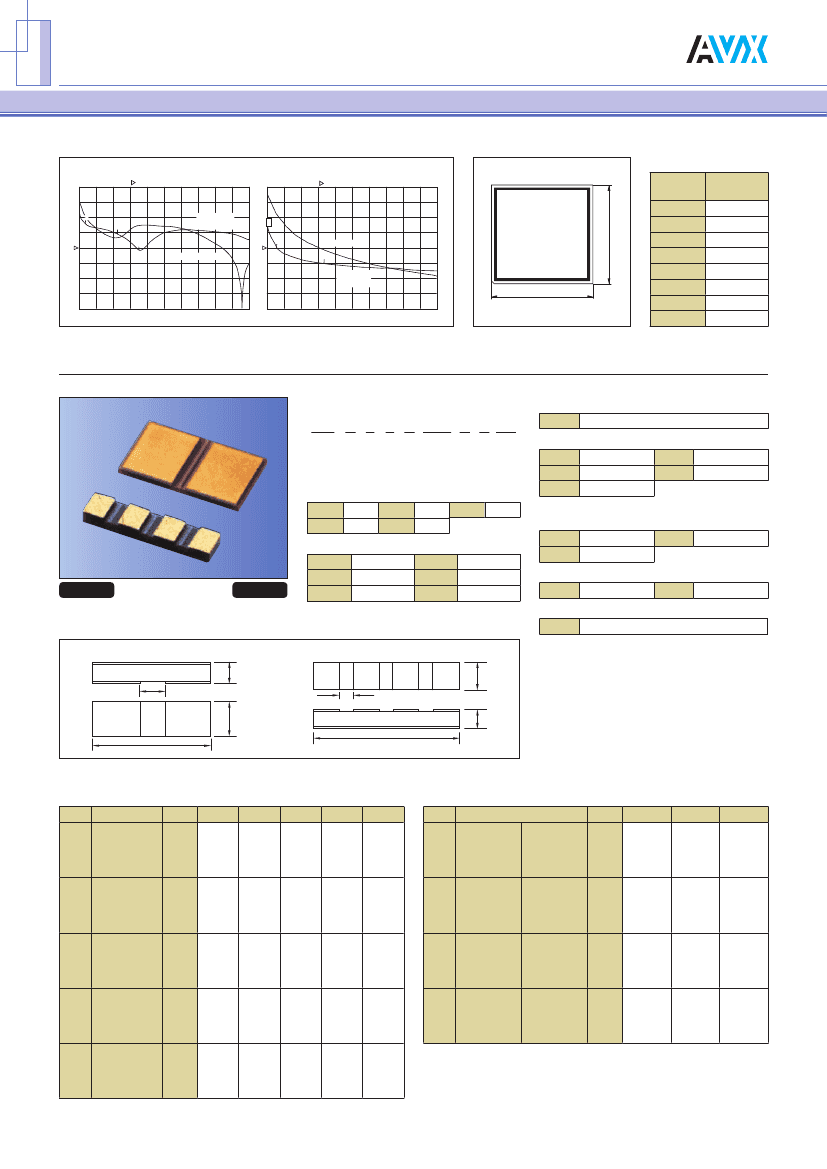

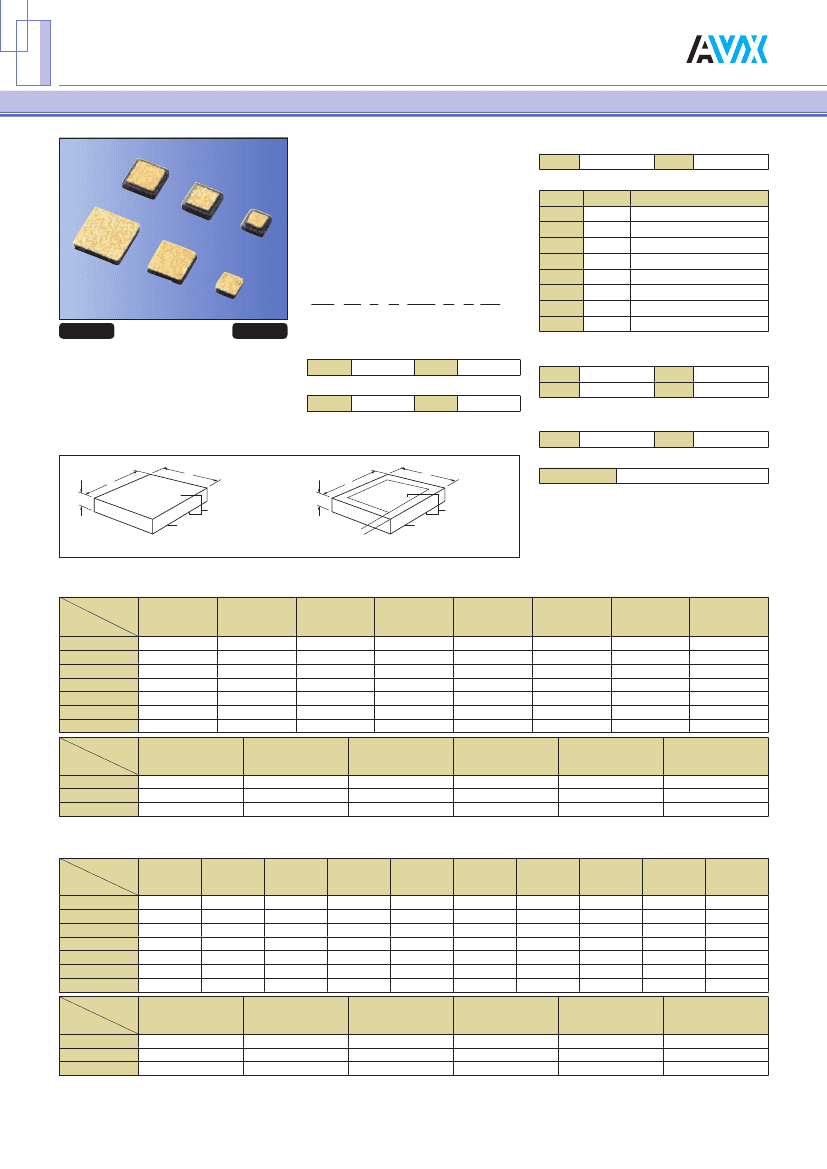

Microwave Capacitors

GH/ GB Series

Features

Maximum capacitance change of

±15%

from

−55°C

+125°C

•

Gold ter minations 100m inches over

barrier layer

•

Excellent bond strength (MIL−STD−883,

method 2011.5)

•

Available with and without borders

•

③

Working Voltage Code

Code

50WVDC

Dielectric

NP0

N1500

N3300

N4700

X7R

X7S

X7R (max)

X7R (maxi+)

100WVDC

④

Temperature Coefficient

0±30ppm/

°C

−1500±

250ppm/

°C

−3300±1000ppm/ °C

−4700±1000ppm/ °C

±15%

±22%

±15%

How to Order

GH 35 5 A 6R8 C A 6N

①

② ③ ④ ⑤ ⑥ ⑦ ⑧

Pb Free

RoHS Compliant

①

Type Code

01 to 06

No Border

maxi

With Border

⑤

Capacitance

⑥

Capacitance Tolerance Code

T=0.178±0.051

②

Case Size

10 to 90

Standard

±10%

±20%

+80

−20%

+100

to 0%

⑦

Termination Code

Case Dimensions

Termination

(Fine grained high density

ceramic dielectric)

Ti/ W+Au

Ti/ W+Ni+Au

⑧

Packaging Code

Antistatic Waffle Pack

Termination

(Fine grained high density

ceramic dielectric)

∗B=0.051

+0.051

+0.025

GH Series

GH10

L=0.254±0.076

W=0.254±0.076

T=0.152±0.051

GH15

L=0.381±0.127

W=0.381+0.000;−0.076

T=0.152±0.051

GH20

L=0.508±0.127

W=0.508+0.000;−0.076

T=0.152±0.051

GH25

L=0.635±0.127

W=0.635+0.000;−0.076

T=0.152±0.051

GH35

L=0.889±0.127

W=0.889±0.127

T=0.152±0.051

GH50

L=1.27±0.254

W=1.27±0.254

T=0.152±0.051

GH70

L=1.78±0.254

W=1.78±0.254

T=0.178±0.051

GH90

L=2.29±0.254

W=2.29±0.254

T=0.178±0.051

Dielectric Code

Cap Value (pF)

0.05−0.60

0.60−1.70

1.00−3.00

1.80−5.00

3.4−40.0

8.00−90.0

GH01

L=0.381±0.127

W=0.381±0.127

T=0.178±0.051

Cap Value (pF)

0.10−1.20

1.30−3.00

2.40−5.50

4.00−10.00

7.7−74.0

11.0−170

Cap Value (pF)

0.20−2.00

2.60−5.20

4.80−9.50

8.40−16.00

15.0−130.0

23.0−290

Cap Value (pF)

0.30−3.00

4.40−8.00

8.00−14.00

14.00−25.00

25.0−200.0

39.0−440

GH03

L=0.889±0.127

W=0.889±0.127

T=0.178±0.051

Cap Value (pF)

0.60−6.80

9.40−18.00

17.00−32.00

30.00−55.00

55.0−430.0

90.0−970

GH04

L=1.27±0.254

W=1.27±0.254

T=0.178±0.051

Cap Value (pF)

1.30−15.60

19.00−40.00

35.00−72.00

61.00−130.00

110.0−980.0

130−2200

Cap Value (pF)

1.70−18.00

25.00−46.00

45.00−84.00

80.00−150.00

150.0−1100.0

270−3400

Cap Value (pF)

3.80−29.00

56.00−73.00

100.00−130.00

180.00−230.00

330.00−1800.0

470−5400

GH06

L=2.29±0.254

W=2.29±0.254

T=0.178±0.051

GH02

L=0.635±0.127

W=0.635±0.127

T=0.178±0.051

GH05

L=1.78±0.254

W=1.78±0.254

T=0.178±0.051

Dielectric Code

Cap (pF)

68−330

330−390

Cap (pF)

330−750

390−1000

Cap (pF)

750−1200

1000−1800

Cap (pF)

1200−2700

1800−3300

Cap (pF)

2700−4700

3300−6800

Cap (pF)

4700−8200

6800−10000

GB Series

GB10

L=0.254±0.076

W=0.254±0.076

T=0.152±0.051

GB15

GB20

GB25

GB30

L=0.381±0.127

L=0.508±0.127

L=0.635±0.127

L=0.762±0.051

W=0.381+0.000;−0.076 W=0.508+0.000;−0.076 W=0.635±0.000;−0.076 W=0.762±0.051

T=0.152±0.051

GB35

L=0.889±0.127

W=0.889±0.127

T=0.152±0.051

GB40

L=1.02±0.051

W=1.02±0.051

T=0.152±0.051

GB50

L=1.27±0.254

W=1.27±0.254

T=0.152±0.051

GB70

L=1.78±0.254

W=1.78±0.254

T=0.178±0.051

GB90

L=2.29±0.254

W=2.29±0.254

T=0.178±0.051

Dielectric Code

Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF) Cap Value (pF)

—

6.00−70.0

0.10−1.00

1.30−2.20

2.40−4.00

4.30−7.00

8.0−54.0

9.00−120

0.16−1.50

2.40−4.00

4.30−7.00

7.50−12.50

14.0−97.0

20.0−250

GB02

L=0.635±0.127

W=0.635±0.127

T=0.178±0.051

0.30−2.40

3.80−6.20

7.00−11.00

12.00−20.00

22.0−150.0

33.0−380

0.40−3.50

5.50−9.00

10.00−16.00

17.00−28.00

31.0−220.0

—

0.50−4.60

8.00−12.00

14.00−20.00

25.00−37.00

45.0−300.0

80.0−870

0.70−5.70

9.00−14.00

16.00−25.00

30.00−45.00

50.00−330.0

—

1.00−10.00

15.00−25.00

30.00−45.00

50.00−80.00

90.0−600.0

120−2000

GB05

L=1.78±0.254

W=1.78±0.254

T=0.178±0.051

—

250−3200

—

450−5100

GB06

L=2.29±0.254

W=2.29±0.254

T=0.178±0.051

GB01

L=0.381±0.127

W=0.381±0.127

T=0.178±0.051

GB03

L=0.889±0.127

W=0.889±0.127

T=0.178±0.051

GB04

L=1.27±0.254

W=1.27±0.254

T=0.178±0.051

Dielectric Code

Cap (pF)

51.0−220

220−330

Cap (pF)

220−560

330−820

Cap (pF)

560−1000

820−1500

Cap (pF)

1000−2200

1500−2700

Cap (pF)

2200−4700

2700−6800

Cap (pF)

4700−8200

6800−10000
