TPSB107K006B250 datasheet, PDF

Datasheet> All Categories > TPSB107K006B250

TPSB107K006B250: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 1411, CHIP; File Size230KB，11 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

TPSB107K006B250 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 1411, CHIP

TPSB107K006B250 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1633389111
package instruction	, 1411
Reach Compliance Code	compliant
Country Of Origin	Czechia, El Salvador
ECCN code	EAR99
YTEOL	5.63
capacitance	100 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e4
leakage current	0.0063 mA
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	6.3 V
ripple current	525 mA
size code	1411
surface mount	YES
Delta tangent	0.1
Terminal surface	Gold (Au)
Terminal shape	J BEND

Preview

Download Datasheet

View All

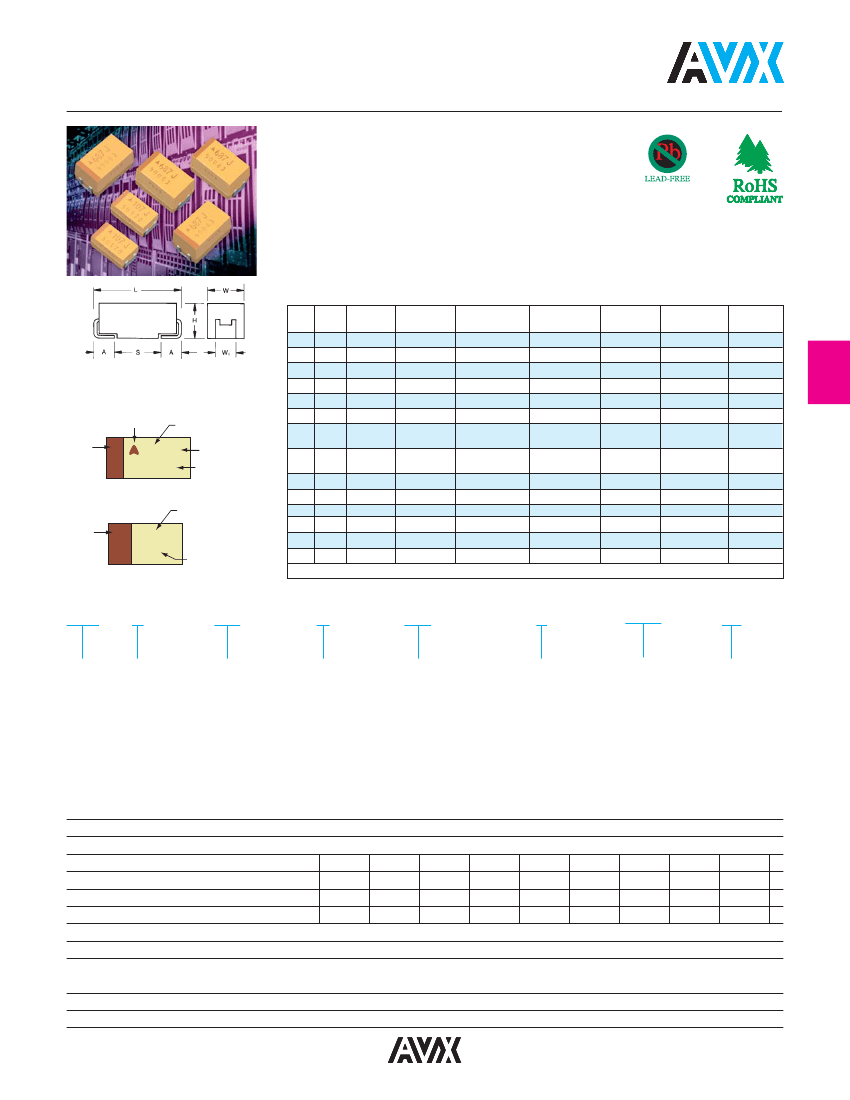

TPS Series

Low ESR

FEATURES

•

Low ESR series of robust Mn0

solid electrolyte capacitors

CV range: 0.15-1500μF / 2.5-50V

LEAD-FREE COMPATIBLE

14 case sizes available

COMPONENT

Power supply applications

APPLICATIONS

• General medium power DC/DC convertors

SnPb termination option is not

RoHS compliant.

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

1206

1210

2312

2917

2312

0805

1206

1210

2924

2312

2917

EIA

Metric

3216-18

3528-21

6032-28

7343-31

7343-43

6032-20

2012-15

2012-12

3216-12

3528-12

7361-38

6032-15

7343-15

7343-20

L±0.20

(0.008)

3.20 (0.126)

3.50 (0.138)

6.00 (0.236)

7.30 (0.287)

6.00 (0.236)

2.05 (0.081)

3.20 (0.126)

3.50 (0.138)

7.30 (0.287)

6.00 (0.236)

7.30 (0.287)

W+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

2.80 (0.110)

3.20 (0.126)

4.30 (0.169)

3.20 (0.126)

1.35 (0.053)

1.30 (0.051)

1.60 (0.063)

2.80 (0.110)

6.10 (0.240)

3.20 (0.126)

4.30 (0.169)

H+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

1.90 (0.075)

2.60 (0.102)

2.90 (0.114)

4.10 (0.162)

2.00 (0.079) max.

±0.20

(0.008)

1.20 (0.047)

2.20 (0.087)

2.40 (0.094)

2.20 (0.087)

A+0.30 (0.012)

-0.20 (0.008)

0.80 (0.031)

1.30 (0.051)

0.50 (0.020)

0.80 (0.031)

1.30 (0.051)

S Min.

1.10 (0.043)

1.40 (0.055)

2.90 (0.114)

4.40 (0.173)

2.90 (0.114)

0.85 (0.033)

1.10 (0.043)

1.40 (0.055)

4.40 (0.173)

2.90 (0.114)

4.40 (0.173)

MARKING

A, B, C, D, E, F, S, T, V, W,

X, Y CASE

AVX LOGO

Capacitance Value in pF

227 = 220µF

Rated Voltage Code

A = 10V

ID Code

Polarity

Band

(Anode+)

227 A

XXXXX

1.00 ±0.10

1.50 (0.059) max. (0.039 ±0.004)

1.20 (0.047) max.

3.55 (0.140)

1.50 (0.059) max.

2.00 (0.079) max.

1.00 ±0.10

(0.039 ±0.004)

1.20 (0.047)

2.20 (0.087)

3.10 (0.120)

2.20 (0.087)

2.40 (0.094)

P, R CASE

Capacitance Value in pF

106 = 10µF

Polarity

Band

(Anode+)

106

Rated Voltage Code

J = 6.3V

W1 dimension applies to the termination width for A dimensional area only.

HOW TO ORDER

TPS

107

Type

Case Size

See table

above

Capacitance Code

pF code: 1st two

digits represent

significant figures,

3rd digit represents

multiplier (number of

zeros to follow)

010

0100

—

Tolerance

K = ±10%

M = ±20%

Rated DC Voltage

002 = 2.5Vdc

004 = 4Vdc

006 = 6.3Vdc

010 = 10Vdc

016 = 16Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

Packaging

R = Pure Tin 7" Reel

S = Pure Tin 13" Reel

A = Gold Plating 7" Reel

B = Gold Plating 13" Reel

H = Tin Lead 7" Reel

(Contact Manufacturer)

ESR in mΩ

Additional

characters may be

added for special

requirements

V = Dry pack Option

(selected codes only)

K = Tin Lead 13" Reel

(Contact Manufacturer)

H, K = Non RoHS

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Environmental Classification:

Reliability:

Termination Finished:

All technical data relate to an ambient temperature of +25°C

0.15 μF to 1500 μF

±10%; ±20%

2.5

6.3

1.7

2.7

3.3

5.2

2.2

3.4

-55°C to +125°C

55/125/56 (IEC 68-2)

1% per 1000 hours at 85°C, V

with 0.1Ω/V series impedance,

60% confidence level

Sn Plating (standard), Gold and SnPb Plating upon request

For AEC-Q200 availability, please contact AVX

+85°C:

+125°C:

+85°C:

+125°C:
