Type 160
Metallized Polyester Radial Lead Capacitors
Radial Box Metallized Polyester Capacitors

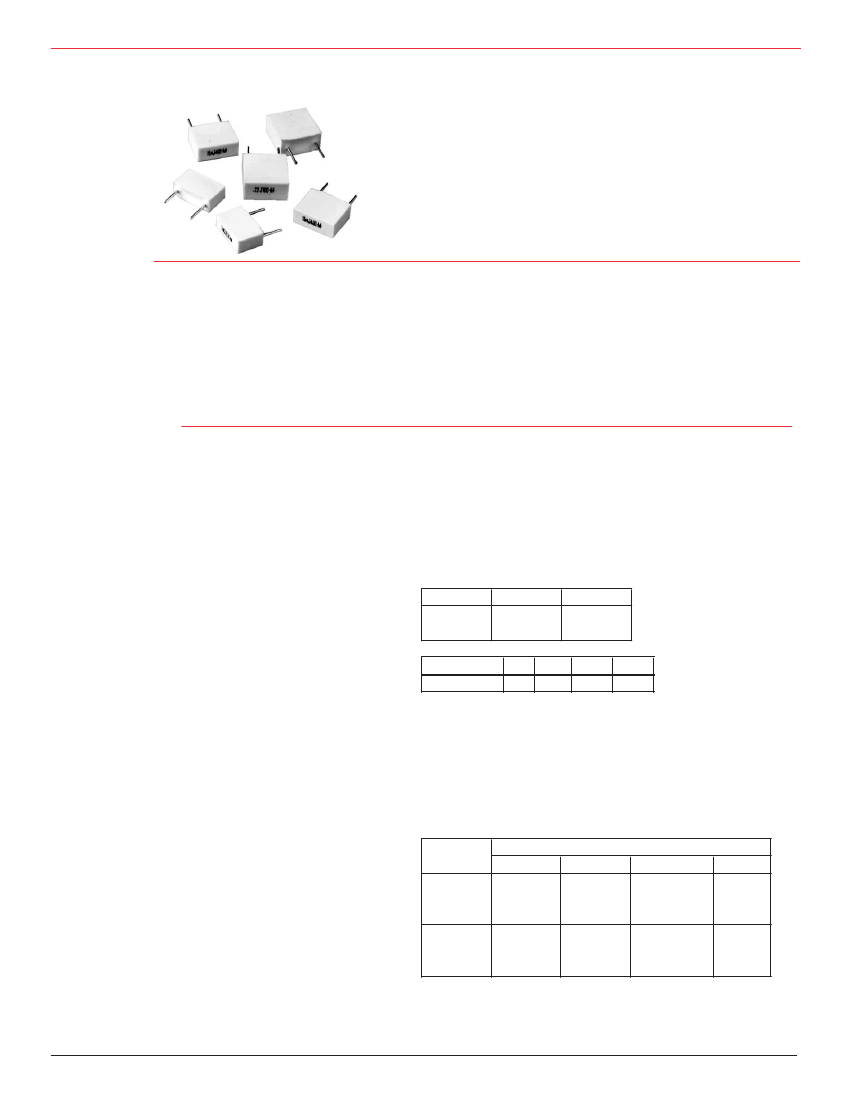

The Type 160 series radial lead metallized polyester box
capacitors are constructed in rugged rectangular plastic cases
with lead spacings that are standard in the electronics indus-
try. All Type 160 capacitors are available in bulk with a
.217” ±.039” lead length, and they are good for general
purpose applications such as bypass, decoupling, energy stor-
age/discharge and arc suppression.
Highlights
♦
♦
♦
♦
♦
Rugged plastic case
Case and epoxy fill meets UL94V0
10 mm through 27.5 mm lead spacings
Non-inductively wound
Non-polar
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Dielectric Withstand Voltage:
Dissipation Factor (DF):
0.0022 µF to 10.0 µF
63 Vdc to 1000 Vdc
(40 Vac to 250 Vac, 60 Hz)
±5%, ±10%, ±20%
–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)
1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC
tgδ x 10
–4
at 25 ºC ±5 ºC
kHz
1
10
C
≤1
µF
≤100
≥150
C >1 µF
≤100
Total Self Inductance (L):
Pitch (mm)
L (nH)
≈
10
9
15 22.5
10
18
27.5
18
Long Term Stability (after two years):
Capacitance change
∆C/C ≤
±3% under standard
environmental conditions
Corona (Partial Discharge Inception Voltage):
200 Vac for 100 Vdc, 200 Vdc
250 Vac for 400 Vdc, 630 Vdc
300 Vac for 1000 Vdc
Maximum Pulse Rise Time (dv/dt):
Vn
63
100/160
250
400
630
1000
10
3
6/8
11
20
30
60
Pitch (mm)
15
22. 5
1.5
1
3
2
7
4
10
5.5
15
8
25
15
27.5
1
1
3
5
7
10
If the working voltage (V) is less than the nominal voltage (Vn),
the capacitor can work at higher dv/dt. In this case, the maxi-
mum value allowed is obtained by multiplying the above value
with the ratio Vn/V.
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 160
Metallized Polyester Radial Lead Capacitors
Outline Drawing
L
Max
H
Max
.
217 ±.039
(5.5 ±1.0 mm)
Test Method and Performance
T
Max
Insulation Resistance
Test Conditions
Temperature
25 ºC ±5 ºC
Voltage Charge Time
1 minute
Voltage Charge
50 Vdc for Vn < 100 Vdc
100 Vdc for Vn
≥
100 Vdc
Performance
For Vn > 100 Vdc
≥30,000
MΩ for
≤
0.33µF
≥10,000
MΩ x µF for C > 0.33µF
For Vn
≤100
Vdc
≥10,000
MΩ for C
≤
0.1µF
≥1,000
MΩ x µF for
≤
0.1µF
Damp Heat Test
Test Conditions
Temperature
+40 ºC
Test Duration
95%
Voltage Applied
21 days
Performance
Capacitance Change
∆C/C
≤
±5%
4
DF Change
∆tgδ
≤50
x 10 at 1 kHz
≥
50% of limit value
Insulation Resistance
Life Test
Test Conditions
Temperature
+85 ºC
Test Duration
1000 hrs
Voltage Applied
1.25 x Vn
Performance
Capacitance Change
∆C/C
≤
±5%
–4
DF Change
∆tgδ
≤30
x 10 at 10 kHz for C
≤1.0
µF
–4
≤20
x 10 at 1 kHz for C >1.0 µF
≥
50% of limit value
Insulation Resistance
S
±.015
(±0.4 mm)
Note:
The lead diameter is a maximum dimen-
sion for lead spacing
≤15
mm and a nominal for
lead spacing >15 mm
Soldering
Test Conditions
Soldering Temperature
Soldering Duration
Performance
Capacitance Change
∆C/C
DF Change
∆tgδ
260 ºC ±5 ºC
10 sec ±1 sec
≤
±2%
–4
≤30
x 10 at 10 kHz for C
≤1.0
µF
–4
≤20
x 10 at 1 kHz for C >1.0 µF
Ratings
Catalog
Part Number
160224*63C
160274*63C
160334*63C
160394*63C
160474*63D
160564*63D
160684*63D
160684*63F
160824*63E
160824*63F
160105*63E
160105*63F
160155*63F
160225*63G
160335*63M
160475*63N
160685*63O
160106*63P
Cap
(µF)
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.68
0.82
0.82
1.0
1.0
1.5
2.2
3.3
4.7
6.8
10
L
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.512
0.709
0.512
0.709
0.709
0.709
1.043
1.043
1.043
1.260
T
0.157
0.157
0.157
0.157
0.197
0.197
0.197
0.197
0.236
0.197
0.236
0.197
0.197
0.236
0.276
0.335
0.394
0.433
Inches
H
S
Ød
63 Vdc / 40 Vac
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.591
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.630
0.886
0.031
0.669
0.886
0.031
0.748
0.886
0.031
0.787
1.083
0.031
L
13
13
13
13
13
13
13
18
13
18
13
18
18
18
26.5
26.5
26.5
32.0
T
4
4
4
4
5
5
5
5
6
5
6
5
5
6
7
8.5
10.0
11.0
Millimeters
H
9.5
9.5
9.5
9.5
11
11
11
11
12
11
12
11
11
12
16
17
19
20
S
10
10
10
10
10
10
10
15
10
15
10
15
15
15
22.5
22.5
22.5
27.5
Ød
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 160
Metallized Polyester Radial Lead Capacitors
Ca talog
Pa rt Num ber
160104*100C
160124*100C
160154*100C
160184*100C
160224*100D
160274*100D
160334*100E
160334*100F
160394*100D
160394*100F
160474*100E
160474*100F
160564*100G
160684*100G
160824*100H
160105*100H
160155*100M
160225*100N
160335*100O
160475*100P
160685*100Q
160106*100S
160333*250C
160393*250C
160473*250C
160563*250C
160683*250C
160823*250D
160104*250D
160104*250F
160124*250D
160124*250F
160154*250E
160154*250F
160184*250E
160184*250F
160224*250F
160274*250G
160334*250G
160394*250H
160474*250H
160474*250L
160564*250I
160564*250M
160684*250I
160684*250M
160824*250M
Ca p
(µF)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.33
0.39
0.39
0.47
0.47
0.56
0.68
0.82
1.0
1.5
2.2
3.3
4.7
6.8
10.0
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.10
0.12
0.12
0.15
0.15
0.18
0.18
0.22
0.27
0.33
0.39
0.47
0.47
0.56
0.56
0.68
0.68
0.82
Inche s
H
S
Ød
100 Vdc / 63 Va c
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.433
0.394
0.031
0.433
0.591
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
0.531
0.591
0.031
0.531
0.591
0.031
0.630
0.886
0.031
0.669
0.886
0.031
0.748
0.886
0.031
0.787
1.083
0.031
0.886
1.083
0.031
1.299
1.083
0.031
250 Vdc / 160 Va c
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.591
0.031
0.433
0.394
0.031
0.433
0.591
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
0.531
0.591
0.031
0.531
0.591
0.031
0.591
0.886
0.031
0.571
0.591
0.031
0.630
0.886
0.031
0.571
0.591
0.031
0.630
0.886
0.031
0.630
0.886
0.031
Millim eters
H
9.5
9.5
9.5
9.5
11.0
11.0
12.0
11.0
11.0
11.0
12.0
11.0
12.0
12.0
13.5
13.5
16.0
17.0
19.0
20.0
22.5
33.0
9.5
9.5
9.5
9.5
9.5
11.0
11.0
11.0
11.0
11.0
12.0
11.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
15.0
14.5
16.0
14.5
16.0
16.0
L
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.512
0.709
0.512
0.709
0.709
0.709
0.709
0.709
1.043
1.043
1.043
1.260
1.260
1.457
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.512
0.709
0.512
0.709
0.512
0.709
0.709
0.709
0.709
0.709
0.709
1.043
0.709
1.043
0.709
1.043
1.043
T
0.157
0.157
0.157
0.157
0.197
0.197
0.236
0.197
0.197
0.197
0.236
0.197
0.236
0.236
0.295
0.295
0.276
0.335
0.394
0.433
0.512
0.709
0.157
0.157
0.157
0.157
0.157
0.197
0.197
0.197
0.197
0.197
0.236
0.197
0.236
0.197
0.197
0.236
0.236
0.295
0.295
0.236
0.335
0.276
0.335
0.276
0.276
L
13
13
13
13
13
13
13
18
13
18
13
18
18
18
18
18
26.5
26.5
26.5
32.0
32.0
37.0
13
13
13
13
13
13
13
18
13
18
13
18
13
18
18
18
18
18
18
26.5
18.0
26.5
18.0
26.5
26.5
T
4
4
4
4
5
5
6
5
5
5
6
5
6
6
7.5
7.5
7.0
8.5
10.0
11.0
13.0
18.0
4
4
4
4
4
5
5
5
5
5
6
5
6
5
5
6
6
7.5
7.5
6.0
8.5
7.0
8.5
7.0
7.0
S
10
10
10
10
10
10
10
15
10
15
10
15
15
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
10
10
10
10
10
10
10
15
10
15
10
15
10
15
15
15
15
15
15
22.5
15.0
22.5
15.0
22.5
22.5
Ød
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Also available in 160 Vdc
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 160
Metallized Polyester Radial Lead Capacitors
Ca ta log
Pa rt Num be r
160105*250N
160155*250O
160225*250P
160335*250Q
160475*250R
160685*250S
160123*400C
160153*400C
160183*400C
160223*400C
160273*400C
160333*400D
160393*400D
160473*400E
160473*400F
160563*400F
160683*400F
160823*400F
160104*400G
160124*400G
160154*400H
160154*400L
160184*400L
160224*400L
160274*400M
160334*400M
160394*400N
160474*400N
160564*400O
160684*400P
160824*400P
160105*400P
160105*400Q
160392*630C
160472*630C
160562*630C
160682*630C
160822*630C
160103*630C
160123*630D
160153*630D
160183*630D
160223*630E
160273*630F
160333*630F
160393*630G
160473*630G
160563*630G
Ca p
(µF)
1.0
1.5
2.2
3.3
4.7
6.8
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.00
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
L
1.043
1.043
1.260
1.260
1.260
1.457
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.709
0.709
0.709
0.709
0.709
0.709
1.043
1.043
1.043
1.043
1.043
1.043
1.043
1.043
1.260
1.260
1.260
1.260
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.709
0.709
0.709
0.709
T
0.335
0.394
0.433
0.512
0.591
0.709
0.157
0.157
0.157
0.157
0.157
0.197
0.197
0.236
0.197
0.197
0.197
0.197
0.236
0.236
0.295
0.236
0.236
0.236
0.276
0.276
0.335
0.335
0.394
0.433
0.433
0.433
0.512
0.157
0.157
0.157
0.157
0.157
0.157
0.197
0.197
0.197
0.236
0.197
0.197
0.236
0.236
0.236
Inche s
H
S
Ød
250 Vdc / 160 Va c
0.669
0.886
0.031
0.748
0.886
0.031
0.787
1.083
0.031
0.886
1.083
0.031
1.181
1.083
0.031
1.299
1.083
0.031
400 Vdc / 200 Va c
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
0.531
0.591
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.630
0.886
0.031
0.630
0.886
0.031
0.669
0.886
0.031
0.669
0.886
0.031
0.748
0.886
0.031
0.787
1.083
0.031
0.787
1.083
0.031
0.787
1.083
0.031
0.886
1.083
0.031
630 Vdc / 220 Va c
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.472
0.394
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
L
26.5
26.5
32
32
32
37
13
13
13
13
13
13
13
13
18
18
18
18
18
18
18
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
13
13
13
13
13
13
13
13
13
13
18
18
18
18
18
T
8.5
10
11
13
15
18
4
4
4
4
4
5
5
6
5
5
5
5
6
6
7.5
6.0
6.0
6.0
7.0
7.0
8.5
8.5
10.0
11.0
11.0
11.0
13.0
4
4
4
4
4
4
5
5
5
6
5
5
6
6
6
Millim e te rs
H
17
19
20
22.5
30.0
33.0
9.5
9.5
9.5
9.5
9.5
11.0
11.0
12.0
11.0
11.0
11.0
11.0
12.0
12.0
13.5
15.0
15.0
15.0
16.0
16.0
17.0
17.0
19.0
20.0
20.0
20.0
22.5
9.5
9.5
9.5
9.5
9.5
9.5
11.0
11.0
11.0
12.0
11.0
11.0
12.0
12.0
12.0
S
22.5
22.5
27.5
27.5
27.5
27.5
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
Ød
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 160
Metallized Polyester Radial Lead Capacitors
Ca talog
Pa rt Number
160683*630H
160683*630L
160823*630L
160104*630L
160124*630M
160154*630M
160184*630N
160224*630N
160274*630Q
160334*630P
160394*630P
160474*630Q
160222*1000C
160272*1000C
160332*1000C
160392*1000D
160472*1000D
160562*1000D
160682*1000D
160822*1000D
160103*1000F
160123*1000F
160153*1000F
160183*1000G
160223*1000G
160273*1000H
160333*1000L
160393*1000L
160473*1000L
160563*1000M
160683*1000M
160823*1000N
160104*1000N
160124*1000O
160154*1000P
160184*1000Q
160224*1000Q
Ca p
(µF)
0.068
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
Inche s
H
S
Ød
630 Vdc / 220 Va c
0.531
0.591
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.630
0.886
0.031
0.630
0.886
0.031
0.669
0.886
0.031
0.669
0.886
0.031
0.886
1.083
0.031
0.787
1.083
0.031
0.787
1.083
0.031
0.886
1.083
0.031
1000 Vdc / 250 Va c
0.374
0.394
0.031
0.374
0.394
0.031
0.374
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.394
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.433
0.591
0.031
0.472
0.591
0.031
0.472
0.591
0.031
0.531
0.591
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.591
0.886
0.031
0.630
0.886
0.031
0.630
0.886
0.031
0.669
0.886
0.031
0.669
0.886
0.031
0.748
0.886
0.031
0.787
1.083
0.031
0.886
1.083
0.031
0.886
1.083
0.031
Millimeters
H
13.5
15.0
15.0
15.0
16.0
16.0
17.0
17.0
22.5
20.0
20.0
22.5
9.5
9.5
9.5
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
12.0
12.0
13.5
15.0
15.0
15.0
16.0
16.0
17.0
17.0
19.0
20.0
22.5
22.5
L
0.709
1.043
1.043
1.043
1.043
1.043
1.043
1.043
1.260
1.260
1.260
1.260
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.709
0.709
0.709
0.709
0.709
0.709
1.043
1.043
1.043
1.043
1.043
1.043
1.043
1.043
1.260
1.260
1.260
T
0.295
0.236
0.236
0.236
0.276
0.276
0.335
0.335
0.512
0.433
0.433
0.512
0.157
0.157
0.157
0.197
0.197
0.197
0.197
0.197
0.197
0.197
0.197
0.236
0.236
0.295
0.236
0.236
0.236
0.276
0.276
0.335
0.335
0.394
0.433
0.512
0.512
L
18
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
T
7.5
6.0
6.0
6.0
7.0
7.0
8.5
8.5
13.0
11.0
11.0
13.0
4.0
4.0
4.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
7.5
6.0
6.0
6.0
7.0
7.0
8.5
8.5
10.0
11.0
13.0
13.0
S
15
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
Ød
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
Part Numbering System
160
104
K
100
C
Case
Code
C
D
E
F
etc.
Series
160
Capacitance
392 = .0039 µF
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
Tolerance
J = ±5%
K = ±10%
M = ±20%
Voltage
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
1000 = 1000 Vdc
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
