Liquids and gases compatible with 316/316L Stainless Steel
8
0
-20
-40
-40
10
±0.5
50
+85
+125
+125
14
11
8.4
50
2X
3X
2.7
-0.25
-1
0.008
-1.5
0.1
3.3
3
5.5
1.5
666
333
399A
3CCB
0.25
1
MAX
UNITS
Count Hex
Count Hex
Count Hex
Count Hex
%Span
%Span
%Span
°C
°C
V
mA
MΩ
Rated
Rated
KΩ
%Span/Year
°C
°C
°C
°C
Bits
Bits
ms
9
8
8
5
6
7
1
4
NOTES
1
1
1
1
2
3
Interface Type
Media
–
Pressure
SENSOR SOLUTIONS
///85BSD
05/2018
Page 2
85BSD
Digital Output
Notes
1.
Measured at vacuum for absolute(A), ambient for gage(G) and sealed gage(S). Output is not ratiometric to supply voltage.
2.
Accuracy: combined linearity, hysteresis and repeatability.
3.
Total Error Band: includes calibration errors and temperature effects over the compensated range. See Figure 3.
4.
The deviation from a best fit straight line (BFSL) fitted to the output measured over the compensated temperature range. For errors beyond the compensated
temperature range, See Figure 2.
5.
Between case and sensing element.
6.
2X or 400psi, whichever is less. The maximum pressure that can be applied to a transducer without changing the transducer’s performance
or accuracy.
7.
3X or 600psi, whichever is less. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.
8.
Maximum temperature range for product with standard cable and connector is -20°C to +105°C.
9.
Start time to data ready is the time to get valid data after POR (Power on Reset). The time to get subsequent valid data is then specified by the response
time specification.

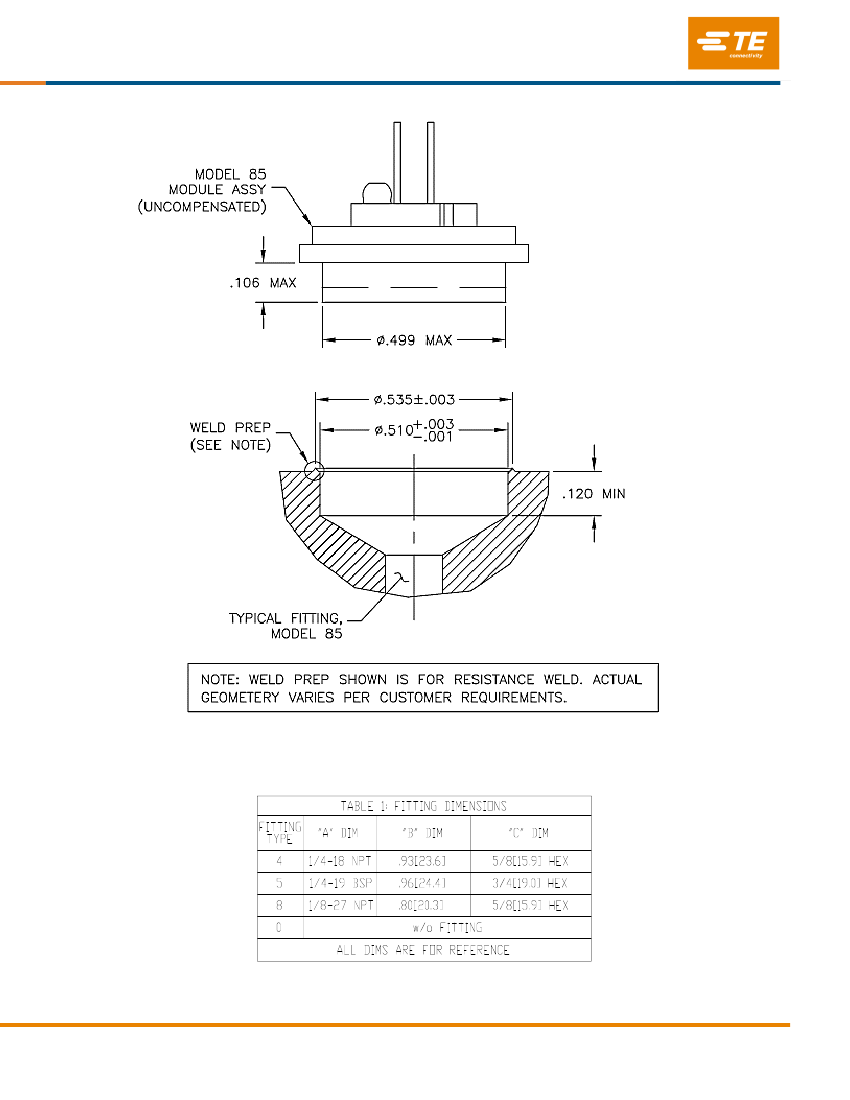

10. Sharp edge strongly recommended for welding applications. Optimum weld parameters will reduce the effect of weld heat on sensor performance. Devices
with lower pressure ranges have greater susceptibility to heat generated during the weld process

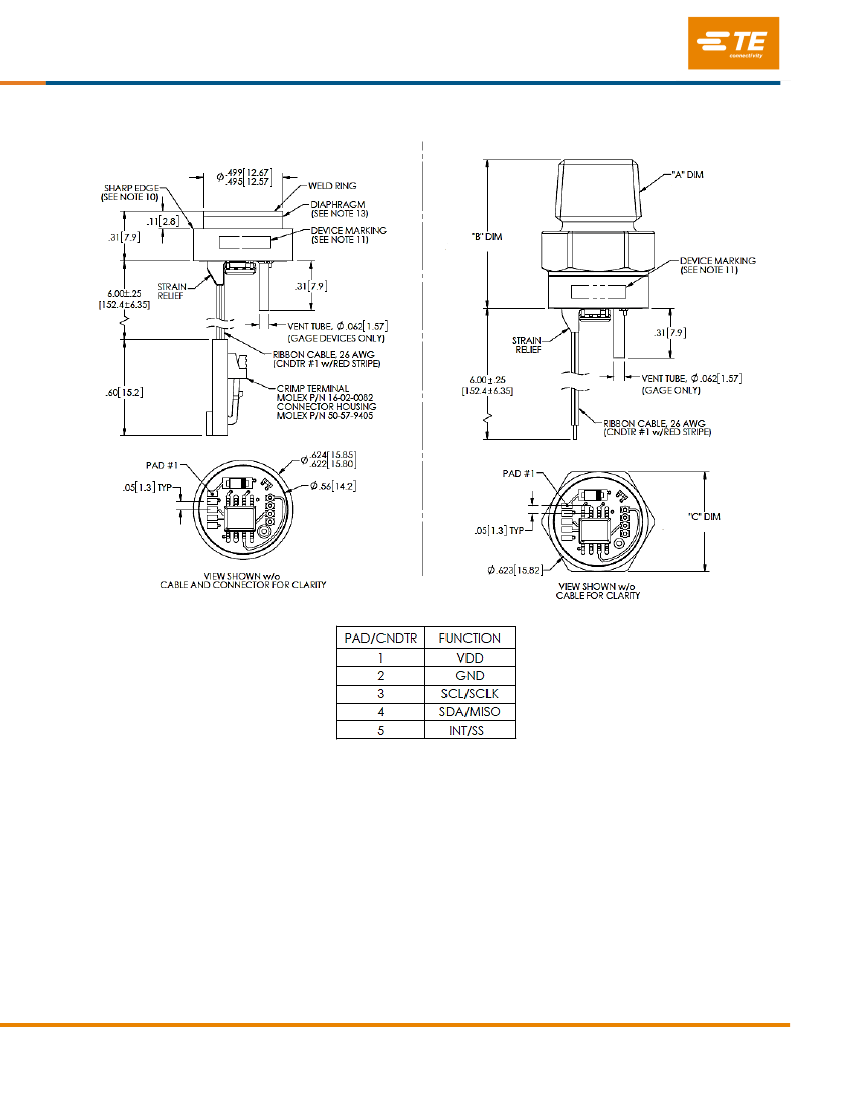

11. Device marking:
Each part shall be identified with model number, pressure range, type (‘A’ for absolute or ‘g’ for gage), Lot number, serial number, and data code.
12. Shipping/Packaging Requirements:
each device will be shipped individually packaged in a plastic vial with anti-static foam. For devices without fittings, the stainless steel diaphragm is protected
by a static dissipative cap.
13. Direct mechanical contact with Diaphragm is prohibited. Diaphragm surface must remain free of defects (scratches, punctures, dents, fingerprints, etc) for
device to operate properly. Caution is advised when handling parts with exposed diaphragms. Use protective cap whenever devices are not in use
