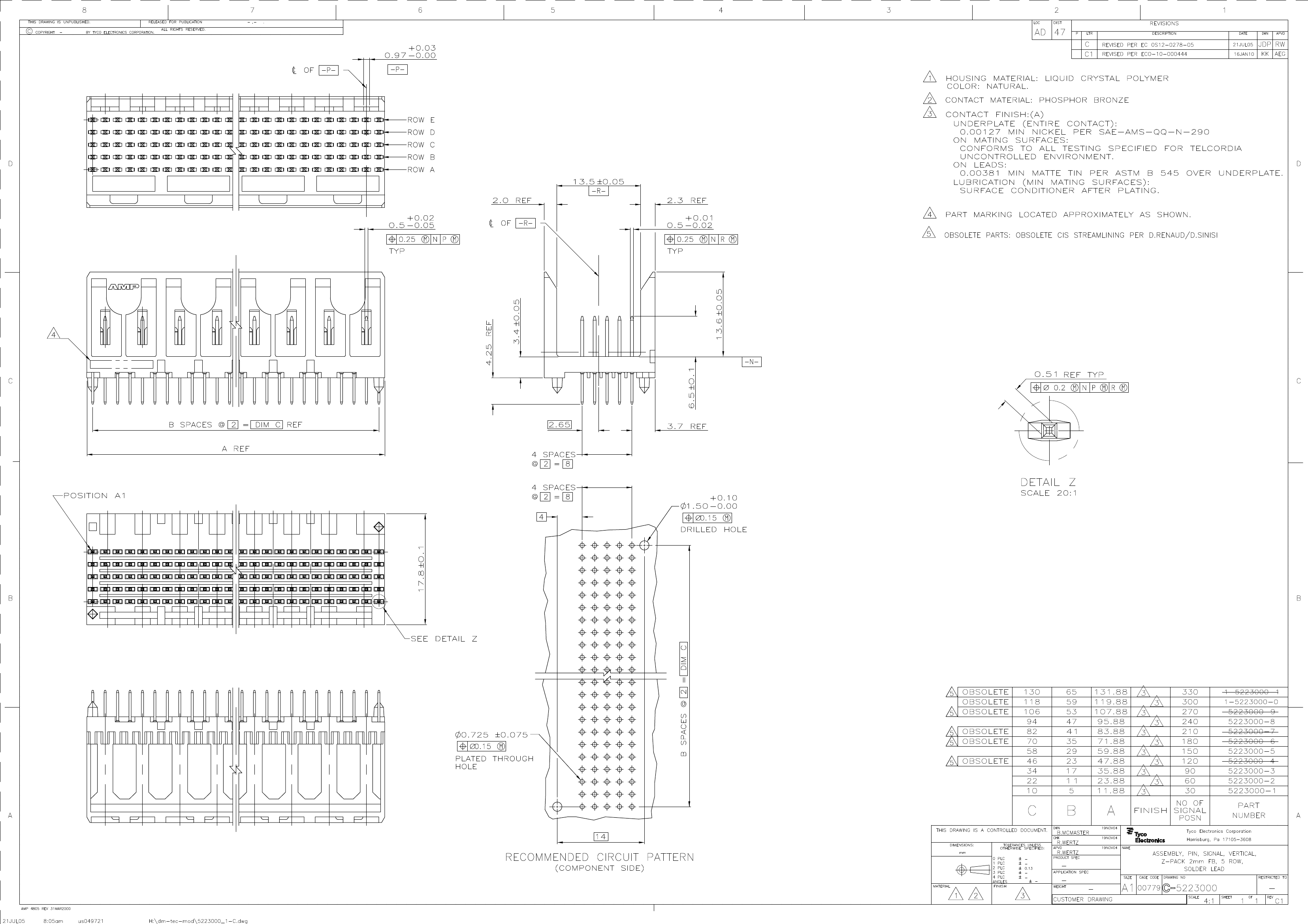

FB-5R,ASY,300,SIG,HDR,SL,4.25
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 9 weeks 5 days |
| Other features | Z-PACK |
| Board mount options | PEG |
| body width | 0.7 inch |
| subject depth | 0.669 inch |
| body length | 0.468 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .69778 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | NATURAL |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Manufacturer's serial number | 5223000 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| reliability | COMMERCIAL |
| Terminal length | 0.167 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| Evacuation force-minimum value | .11954 N |
| Base Number Matches | 1 |
| 5223000-1 | 5223000-2 | 5223000-3 | |
|---|---|---|---|
| Description | FB-5R,ASY,300,SIG,HDR,SL,4.25 | FB-5R,ASY,060,SIG,HDR,SL,4.25 | FB-5R,ASY,090,SIG,HDR,SL,4.25 |
| Brand Name | AMP | AMP | AMP |
| Is it lead-free? | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Factory Lead Time | 9 weeks 5 days | 13 weeks | 11 weeks 3 days |
| Other features | Z-PACK | Z-PACK | Z-PACK |
| Board mount options | PEG | PEG | PEG |
| body width | 0.7 inch | 0.7 inch | 0.7 inch |
| subject depth | 0.669 inch | 0.669 inch | 0.669 inch |
| body length | 0.468 inch | 0.94 inch | 1.413 inch |
| Body/casing type | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 250 Cycles | 250 Cycles | 250 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | .69778 N | .69778 N | .69778 N |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | NATURAL | NATURAL | NATURAL |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 5223000 | 5223000 | 5223000 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 5 | 5 | 5 |
| Number of rows loaded | 5 | 5 | 5 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 30u inch | 30u inch | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.167 inch | 0.167 inch | 0.167 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 30 | 60 | 90 |
| Evacuation force-minimum value | .11954 N | .11954 N | .11954 N |
| Base Number Matches | 1 | 1 | 1 |
