B32612A2102K030 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B32612A2102K030

B32612A2102K030: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 2000V, 0.001uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size572KB，32 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B32612A2102K030 Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 2000V, 0.001uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE

B32612A2102K030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2098024587
package instruction	, 7128
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	RATED AC VOLTAGE (V): 700
capacitance	0.001 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	17.5 mm
JESD-609 code	e3
length	18 mm
Manufacturer's serial number	B32612
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (AC) voltage (URac)	700 V
Rated (DC) voltage (URdc)	2000 V
series	B32612
size code	7128
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal pitch	7.5 mm
Terminal shape	WIRE
width	7 mm

B32612A2102K030 Preview

Film Capacitors

Metallized Polypropylene Film Capacitors (MKP)

Series/Type:

Date:

B32612 ... B32614

May 2009

information contained therein without EPCOS' prior express consent is prohibited.

Metallized polypropylene film capacitors (MKP)

High pulse (wound)

B32612 ... B32614

Typical applications

Electronic ballasts

Switch-mode power supplies

Climatic

Max. operating temperature: 110

°C

Climatic category (IEC 60068-1): 55/100/56

Construction

Dielectric: polypropylene (PP)

Wound capacitor technology

Epoxy resin coating (UL 94 V-0)

Features

Very high pulse strength

Terminals

Crimped wire leads, lead-free tinned,

lead length (6 1) mm

Double crimped wire leads, lead-free tinned

Straight wire leads, lead-free tinned,

lead length (17

±3)

Different lead spacings (reduced and enlarged) available,

lead length (6 1) mm

Marking

Manufacturer's logo, style and type (P61x),

rated capacitance (coded),

capacitance tolerance (code letter),

rated DC voltage, date of manufacture (code)

Delivery mode

Bulk (untaped)

Taped (Ammo pack or reel)

For notes on taping, refer to chapter "Taping and packing“.

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 32

B32612 ... B32614

High pulse (wound)

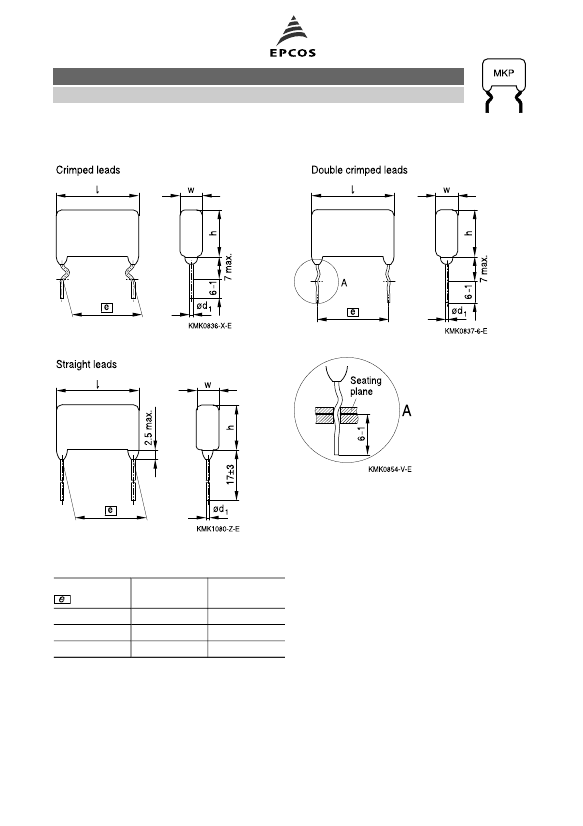

Dimensional drawings

Detail of double crimped version

Dimensions in mm

Lead spacing

±0.8

15.0

22.5

27.5

Lead diameter

0.8

Type

B32612

B32613

B32614

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 32

B32612 ... B32614

High pulse (wound)

Overview of available types

Lead spacing 15.0 mm

Type

Page

(V DC)

RMS

(V AC)

(nF)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

Lead configurations

Serie

Standard

Reduced

Enlarged

Straight

Double crimped

B32612

250

160

400

200

630

250

1000

250

1250

500

1600

500

1600

700

2000

700

B32612

B32613

B32614

15 mm

22.5 mm

27.5 mm

7.5 / 10 / 12.5 mm

15 / 17.5 / 20 mm

25 mm

17.5 mm

25 mm

15 mm

22.5 mm

27.5 mm

15 mm

22.5 mm

27.5 mm

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 32

B32612 ... B32614

High pulse (wound)

Overview of available types

Lead spacing 22.5 mm

Type

Page

(V DC)

RMS

(V AC)

(nF)

3.3

4.7

6.8

100

150

220

330

470

680

1000

Lead configurations

Serie

Standard

Reduced

Enlarged

Straight

Double crimped

B32613

250

160

400

200

630

250

1000

250

1600

500

2000

700

2000

1000

B32612

B32613

B32614

15 mm

22.5 mm

27.5 mm

7.5 / 10 / 12.5 mm

15 / 17.5 / 20 mm

25 mm

17.5 mm

25 mm

15 mm

22.5 mm

27.5 mm

15 mm

22.5 mm

27.5 mm

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 32
