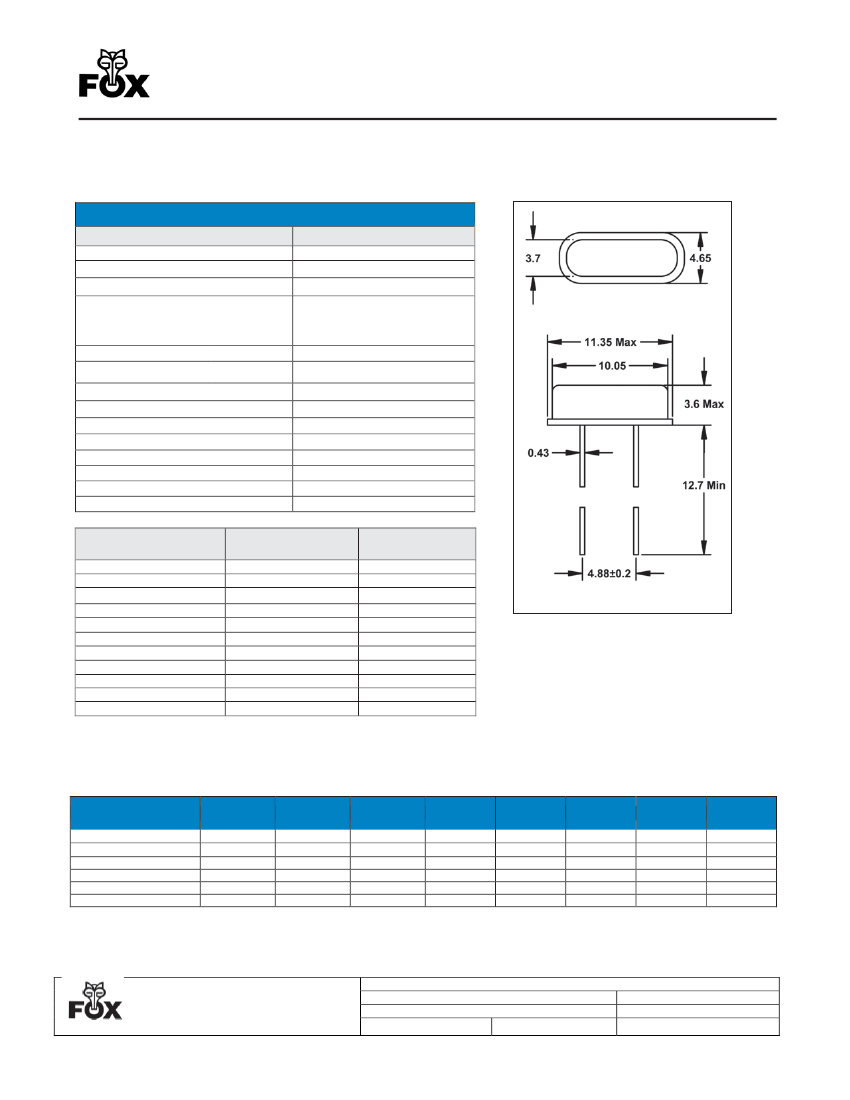

Thru-Hole Crystal
(former HC49SLF)
C4ST
Page
1
of
3
DATASHEET
•
Tolerances down to 10 PPM
•
Stabilities down to 5 PPM
•
Operating Temperature Range to -55ºC
~ +125ºC
• C4ST STANDARD SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seam Method
Lead (Pb) Free
RoHS Compliant
Frequency Range
(MHz)
3.200 ~ 3.500
3.500001 ~ 4.000
4.000001 ~ 5.000
5.000001 ~ 6.000
6.000001 ~ 7.000
7.000001 ~ 9.000
9.000001 ~ 13.000
13.000001 ~ 20.000
20.000001 ~ 40.000
27.000000 ~ 70.000
70.000001 ~ 80.000
MAX
(unless otherwise noted)
3.200 ~ 80.000 MHz
(See options on page 2)
(See options below)
(See options below)
-40ºC ~ +125ºC
7pF
(See options on page 2)
0.5 mW (0.1 mW Typical)
±3 PPM
260ºC / 10 Seconds
1
Sn/Ag/Cu
Resistance Weld
Yes
Yes
Max ESR
Ω
300
200
150
120
100
80
60
40
30
100
70
Operating
Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
3rd OT
All dimensions are in millimeters.
Note: Dimensional drawing is for reference to critical specifications defined by
size measurements. Certain non-critical visual attributes, such as side
castellations, etc. may vary.
All specifications subject to change without notice.
•Available Operating Temperatures and Stabilities*
Operating Temperature
-10°C to +60°C
-20°C to +70°C
-40°C to +85°C
-40°C to +105°C
-40°C to +125°C
-55°C to +125°C
±5 PPM
O
∆
X
X
X
X
±10 PPM
O
O
X
X
X
X
±15 PPM
O
O
O
X
X
X
±20 PPM
O
O
O
X
X
X
±25 PPM
O
O
O
X
X
X
±30 PPM
O
O
O
∆
X
X
±50 PPM
O
O
O
O
∆
∆
±100 PPM
O
O
O
O
O
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
*Does not imply a stocked part.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4ST STANDARD SPECIFICATIONS
Drawing Number:
100955
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
05/25/2017
Thru-Hole Crystal
(former HC49SLF)
C4ST
Page
2
of
3
DATASHEET
Available Options & Part Identification for Thru-Hole Crystal C4ST*
F C4ST C B M F 16.000
F
FOX
C4ST
Model
Number
C
Tolerance
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
B
Stability
A=100ppm
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
L=5ppm
M
Load
Capacitance
A=Series
E=10pF
G=12pF
K=16pF
L=18pF
M=20pF
N=22pF
P=27pF
Q=30pF
R=32pF
S=33pF
F
Operating
Temperature
D=-10 to +60C
F=-20 to +70C
M=-40 to +85C
P=-40 to +105C
I=-40 to +125C
T=-55 to +125C
16.000
Frequency
(MHz)
*Not
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
• C4ST (former HC49SLF) Standard Crystals
Part Number
FOXSLF/036S
FOXSLF/0368S
FOXSLF/0368-20
FOXSLF/040A
FOXSLF/040
FOXSLF/073-20
FOXSLF/080
FOXSLF/080-20
FOXSLF/100-20
FOXSLF/115
FOXSLF/115-20
FOXSLF/120
FOXSLF/120-20
FOXSLF/147-20
FOXSLF/160
FOXSLF/160-20
FOXSLF/184-20
FOXSLF/200
FOXSLF/200-20
FOXSLF/250F-20
Frequency
3.579545
3.686400
3.686400
4.000000
4.000000
7.372800
8.000000
8.000000
10.000000
11.059200
11.059200
12.000000
12.000000
14.745600
16.000000
16.000000
18.432000
20.000000
20.000000
25.000000
Tolerance
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
± 30 ppm
Stability
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
± 50 ppm
Temp Range
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
CL
18pF
Series
20Pf
Series
20pF
20pF
Series
20pF
20pF
Series
20pF
Series
20pF
20pF
Series
20pF
20pF
Series
20pF
20pF
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4ST STANDARD SPECIFICATIONS
Drawing Number:
100955
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
05/25/2017
Thru-Hole Crystal
(former HC49SLF)
C4ST
DATASHEET
Page
3
of
3
Corporate
Headquarters
Sales
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
Tech Support
PRODUCT USE: Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox
Electronics' sole discretion. All information in this document, including descriptions of product features and performance, is subject to
change without notice. Performance specifications and the operating parameters of the described products are determined in the
independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein
is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of Fox
Electronics' products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights
of others. This document is presented only as a guide and does not convey any license under intellectual property rights of Fox Electronics
or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or
similar devices where the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or
safety of users. Anyone using a Fox Electronics product in such a manner does so at their own risk, absent an express, written agreement
by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice.
Other trademarks and service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or
their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
