EGP10A........ EGP10J
1 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier
Dimensions in mm.
DO-41
(Plastic)
Voltage
50 to 600 V.
Current
1 A at 55 ºC.
®
5
+0.2
-0
58.5
± 0.5
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
2. Max. solder temperature, 350 °C.
3. Max. soldering time, 3.5 sec.
4. Do not bend lead at a point closer than
2 mm. to the body.
•
Glass Passivated Junction
•
High current capability
•
The plastic material carries
U/L recognition 94 V-0
•
Terminals: Axial Leads
•
Polarity: Color band denotes cathode
EGP10A EGP10B EGP10D
EGP10F EGP10G
EGP10J
Maximum Ratings, according to IEC publication No. 134
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
t
rr
C
j
T
j
T
stg
E
RSM
Peak Recurrent reverse voltage (V)
Maximum RMS voltage
Maximum DC blocking voltage
Forward current at Tamb = 55 °C
Recurrent peak forward current
8.3 ms. peak forward surge current
(Jedec Method)
50
35
50
100
70
100
200
140
200
1A
300
210
300
10 A
30 A
400
280
400
600
420
600
Max. reverse recovery time from
I
F
= 0.5 A ; I
R
= 1 A ; I
RR
= 0.25 A
Typical Junction Capacitance at 1 MHz
and reverse voltaje of 4V
DC
Operating temperature range
Storage temperature range
Maximum non repetitive peak
reverse avalanche energy.
I
R
= 0.5A ; T
J
= 25 ºC
Max. forward voltage drop at I
F
= 1 A
Max. reverse current at V
RRM
at 25 ºC
at 150 ºC
Max. thermal resistance ( l = 10 mm.)
0.95 V
50 ns
15 pF
– 65 to + 150 °C
– 65 to + 150 °C
20 mJ
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
thj-a
1.25 V
5µA
50 µ A
60 °C/W
EGP10

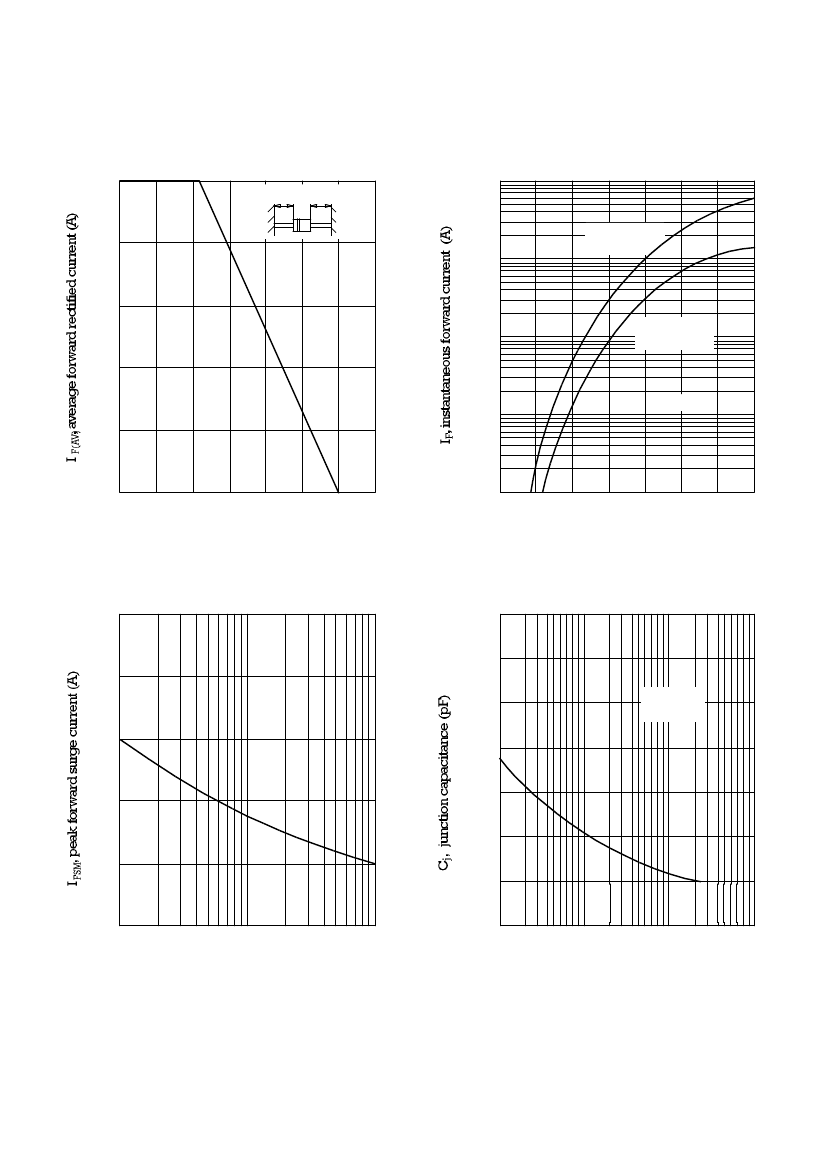

Rating And Characteristic Curves
FORWARD CURRENT DERATING CURVE
1
10 mm. - 10 mm.
EGP10A thru
EGP10D
TYPICAL FORWARD CHARACTERISTIC
10
2
0.8
10
0.6
1
0.4
10
-1
0.2
T j = 25 ºC
EGP10F thru
EGP10J
0
0
25
50
75
100
125
150
175
10
-2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Tamb, ambient temperature (ºC)
V
F
, instantaneous forward voltage (V)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
50
70
60
40
50
30
TYPICAL JUNCTION CAPACITANCE
T j = 25ºC
f = 1 MHz
40
30
20
20
10
10
0
1
2
4
6
10
20
40 60 100
0.1
0.5
1
2
5
10
50 100
Number of cycles at 60 Hz.
V
R
, reverse voltage (V)
0
