Wi-Fi Add-On-Kit
Application Kit
To add more flexibility to your embedded network, Rabbit Semiconductor offers Wi-Fi Add-On Kits for use with many of its RabbitCore
Microprocessor Core Modules (RCMs). These kits provide integrated Wi-Fi (IEEE 802.11b) capability for existing and new Rabbit-based
applications.

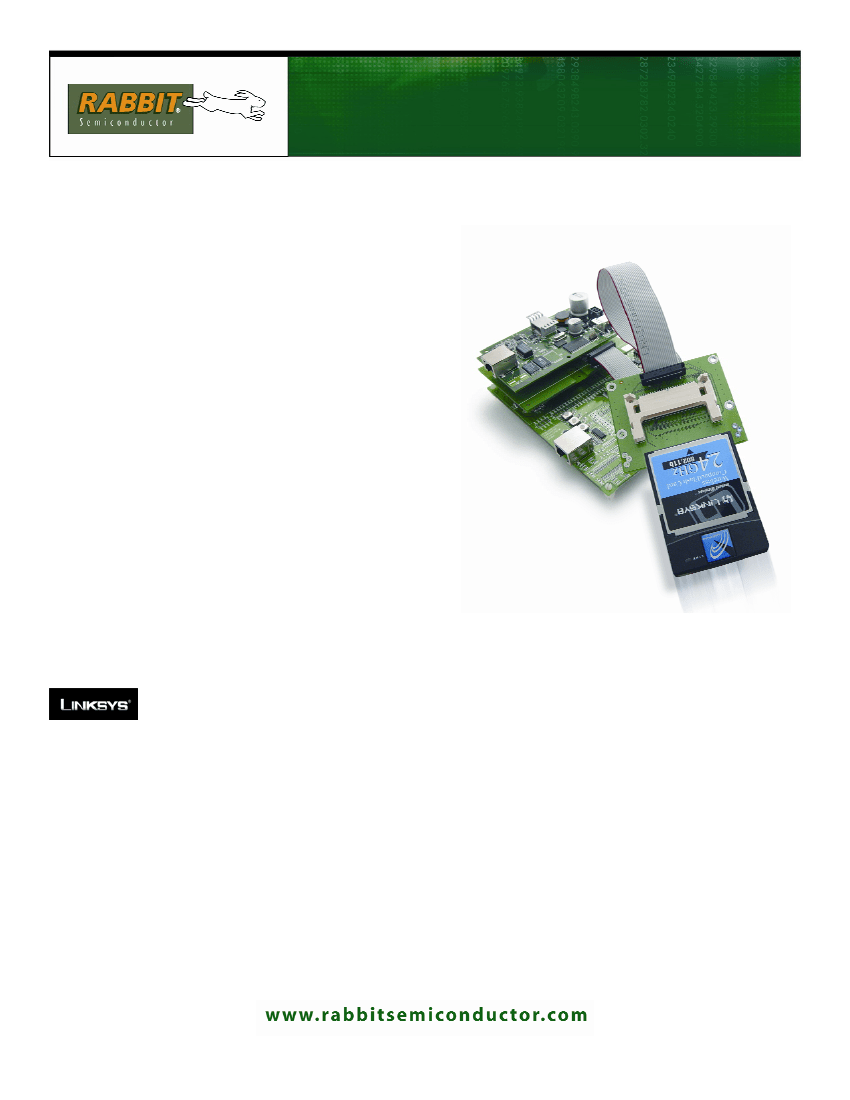

Rabbit Semiconductor has created a kit that minimizes the effort required to
add Wi-Fi capability to Rabbit-based applications. The kit consists of a
interposer card specifically designed to fit between an RCM and a motherboard
or prototyping board, a CompactFlash Wi-Fi Board, a LinkSys Wi-Fi
CompactFlash Card, a 12" ribbon cable to allow remote placement of the Wi-Fi
board and card, necessary connection hardware, and software including
sample programs and Dynamic C upgrade.
Wi-Fi Add-On Kits are available for the following RCM families:
•
•
•
•
•
•
•
•
RCM3000
RCM3100
RCM3200
RCM3300
RCM3400
RCM3600
RCM3700
PowerCore FLEX
To further expand the capabilities of your embedded network, the optional
RabbitWeb Software Module provides a mechanism by which Rabbit-based
applications can serve web pages including reading and writing program
variables remotely. In addition, correctly implementing other optional software modules, such as SSL and AES, will make your embedded network
and critical machine information more secure. Other optional software modules that may be of interest include FAT File System, PPP, SNMP, and
the µC/OS-II Real Time Kernel.
Z-World has partnered with LinkSys to provide Wi-Fi hardware support. LinkSys is the leader in networking solutions for the home and small
business particularly in wireless LAN equipment, broadband routers, network adapters for desktop and notebook computers, and hubs and switches.
Rabbit Security and Connectivity
RabbitWeb
–
The RabbitWeb module web-enables your Rabbit-based application. RabbitWeb lets you create web-page HTML forms that
interface with C variables in embedded networked applications. RabbitWeb can reduce weeks or months of complex Common Gate Interface (CGI)
programming to hours. RabbitWeb enhances the Dynamic C compiler and extends the Dynamic-C HTTP server. 101-0910 $149 Web
Download/101-0900 $159 Shipped CD
Secure Sockets Layer (SSL)
–
The SSL module provides a small footprint implementation of SSL allowing SSL security to be added to
your web-enabled embedded applications with just a few lines of code. The SSL module also includes a utility program for generating the security
certificates needed to use SSL. The SSL module is for use with products based on Rabbit 3000A and later microprocessors including the RCM3700
and RCM3300 families of RabbitCores. The unique block arithmetic instructions of those microprocessors speed encryption and decryption making
SSL fast and economical for embedded systems. 101-0895 $289 Web Download/101-0896 $299 Shipped CD
1/6/2005
FAT File System
–
Rabbit-based applications with serial flash memories including the RCM3300 and RCM3700 families of RabbitCores can
now use the common FAT file System. This module allows the file system to be integrated with HTTP upload and FTP for run-time updates of web
pages and graphics, security access lists, embedded help files, or any file that needs to be changeable in the field. RCM3300, RCM3700, and
PowerCore FLEX families only. PowerCore FLEX requires FAT File System Version 2.06. 101-0984 $149 Web Download/101-0979 $159 Shipped
CD.
SNMP Source Code & Sample Programs
–
Originally intended to gather statistics for network management and capacity planning,
the Simple Network Management Protocol (SNMP) can also be used for data gathering in embedded systems. Known applications include
monitoring thermostat temperatures, tool revolution speed, and status of physical components such as doors. The Rabbit SNMP module is based
upon RFCs 1155-1157. 101-0982 $149 Web Download/101-0977 $159 Shipped CD.
PPP Source Code & Sample Programs
–
This module includes a Point-to-Point Protocol driver for serial and PPPoE links, which
allows a serial or modem connection to use TCP/IP. The PPP module is based upon RFC2516 Method for Transmitting PPP over Ethernet. 101-
0983 $149 Web Download/101-0659 $159 Web Download
AES Source Code & Sample Programs
–
The AES module allows you to encrypt sensitive data for greater security. This module is
an implementation of the Rijndael Advanced Encryption Standard cipher with a 128-bit key. 101-0646 $149 Web Download/101-0658 $159 Shipped
CD
µC/OS-II Real-Time Kernel Source Code & Sample Programs
–
This module implements Jean LaBrosse’s popular real-
time kernel. This is a pre-emptive, prioritized kernel that allows 63 different tasks, flags, semaphores, mutex semaphores, queues, and message
mail boxes. Purchasers of this module also receive Jean J. Labrosse’s book MicroC/OS-II: The Real-Time Kernel. 101-0644 $159
Wi-Fi Interposer Board
Parameter
Current
Operating
Temperature
Storage Temperature
Humidity
Wi-Fi Compact Flash
Card Certifications
Wi-Fi Compact Flash
Card Channels
RCM3000-RCM3300
285 mA @ 3.3 V
RCM3400
285 mA @ 3.3 V
RCM3600-RCM3700
300 mA @ 5 V
PowerCore
300 mA @ 5 V
0°C to +55°C
-20°C to +65°C
10% to 90%, noncondensing
FCC Class B, CE
1-11 (Canada, U.S.A)
1-13 (Europe except France, Spain)
10-13 (France)
10-11 (Spain)
14 (Japan)
IEEE 802.11b (Wi-Fi)
11 Mbits/s, 2.4 GHz
•
•
Type 1 Compact Flash Adapter:
CF based 802.11b I/O
Dual 2 x 10, 2 mm pitch header
•
•
•
•
•
10-pin IDC header to DE9F serial cable
Sample programs and software related specifically to the Wi-Fi Add-
On Kits on CD
Dynamic C upgrade to 9.21 or higher on CD
Getting Started instructions
Miscellaneous connection and mounting hardware including
standoffs, if necessary
Protocol
CompactFlash Wi-Fi
Board Compact Flash
Connector
Wi-Fi Add-On Kit Contents
•
•
•
•
Interposer Board – Interposer boards are not interchangeable
between RCMs with different footprints. See below for the
appropriate part numbers.
CompactFlash Wi-Fi Board
LinkSys Wi-Fi CompactFlash Card
20-pin to 20-pin IDC header connection ribbon cable
Wi-Fi Add-On Kit (RCM3000 – RCM3300 Footprint) – 101-0997
Wi-Fi Add-On Kit (RCM3400 Footprint) – 101-0998
Wi-Fi Add-On Kit (RCM3600 – RCM3700 Footprint) – 101-0999
Wi-Fi Add-On Kit (PowerCore FLEX Footprint) – 101-1000
1/6/2005
