VG95234
Connectors

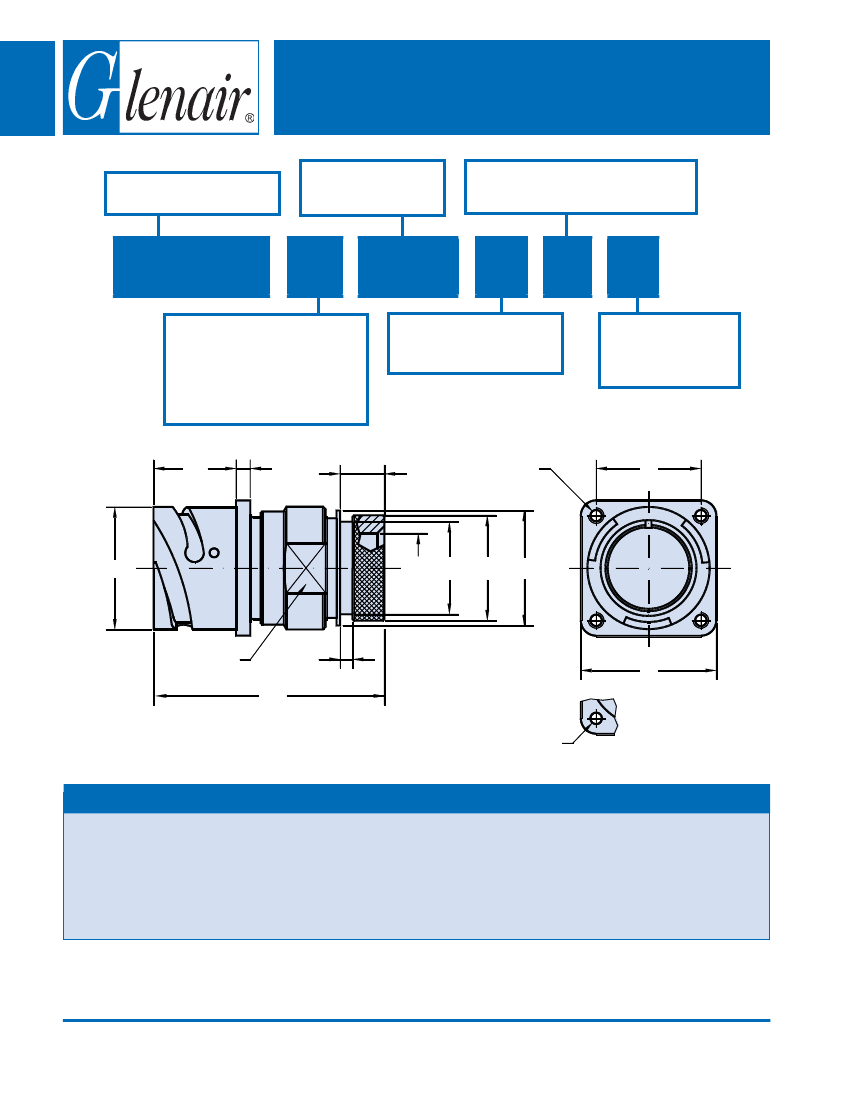

VG95234 U1 and VG95234 U2
Rear Wall Mount Receptacle
with Heat Shrink Boot Adapter and Sealing Grommet
Basic Part Number
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
U1
32-6
S
1
N
Alternate Insert
Positions
N-X-Y
Rear Wall Mount
Receptacle with Heat
Shrink Boot Adapter
U1
- Threaded Holes
U2
- Thru-Holes
P
- Pin contacts
S
- Socket contacts
L2
L3
L5
D2
E
ØA
D6 D5
D4
D3
K
3.5
±0.2
L1
L4
VG95234 U2
D2
APPLICATION NOTES
1.
2.
Rear wall mount receptacle with heat shrink boot adapter.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
4.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
48
VG95234 U1 and VG95234 U2
Rear Wall Mount Receptacle
with Heat Shrink Boot Adapter and Sealing Grommet
DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
ØA
+0
-0.15
18.2
24.6
27.4
27.4
30.8
34.2
37.4
40.9
46.7
53.4
59.6
D2
B1
M4
M4
M4
M4
M4
M4
M4
M4
M5
M5
M5
B2
H13
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.7
3.7
4.3
4.3
E
±0.1
18.2
23.0
24.6
24.6
27.0
29.4
31.8
35.9
39.7
44.5
49.2
L1
Max
55
70
70
70
70
70
70
70
70
75
85
L2
+0.4
-0
18.2
18.2
18.2
21.5
23.05
23.05
23.05
23.05
24.05
24.05
24.05
L3
±0.2
2.8
3.2
3.2
3.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
±0.3
25.4
30.0
32.5
32.5
35.0
38.0
41.0
44.5
50.8
57.0
63.5
Weight
gr.
Max
45
53
63
73
83
93
103
118
148
188
218
Please refer to VG95234G for dimensions D3, D4, D5, D6, D7, K and L5.
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
49
