REVISION AI
FLE-1XX-XX-XX-DV-X
No OF POSITIONS
-02 THRU -75
(PER ROW)
LEAD STYLE
-01: SURFACE MOUNT
(USE C-96-01-XX)
PLATING SPECIFICATION
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-GF: 3µ" ON ENTIRE CONTACT
DO NOT
SCALE FROM
THIS PRINT
OPTION
-A: ALIGNMENT PIN (SEE FIG 2 & 3, SHT 2)
(USE FLE-XX-D-XX)
(MOLDED TO POSITION OR STAKED)
(SAMTEC'S DISCRETION WHICH -A PIN IS USED)
(MOLDED 3 POSITION MINIMUM)
(STAKED 7 POSITION MINIMUM)
-P: PICK AND PLACE PAD (SEE FIG 4, SHT 2)
(USE LMP-09, -05 POSITIONS MIMIMUM)
-K: POLYIMIDE FILM PAD (SEE FIG 6, SHT 2)
(USE K-DOT-.167-.281-.005)
(-05 POSITIONS MIMIMUM)
-TR: TAPE & REEL
BODY SPECIFICATION
-DV: DOUBLE VERTICAL
(USE FLE-75-D-XX)
(NO OF POSITIONS -1) x .0500 [1.270]
C
(NO OF POSITIONS x .0500 [1.270] + .0045 [0.114]
+.0065[+0.165]
-.0050[ -0.127]
(SEE NOTE 8)
.050 1.27 REF
.131 3.33 REF
3 MAX SWAY
(EITHER DIRECTION)
FLE-75-D-XX
C
.039 0.99 REF
90°±3°
C
.172 4.37 REF
SEE NOTE 2
C-96-01-XX
.179 4.55
(MEASURE AT BEND)
SEE NOTE 6
.1809 4.59 REF
.0250 0.63 REF

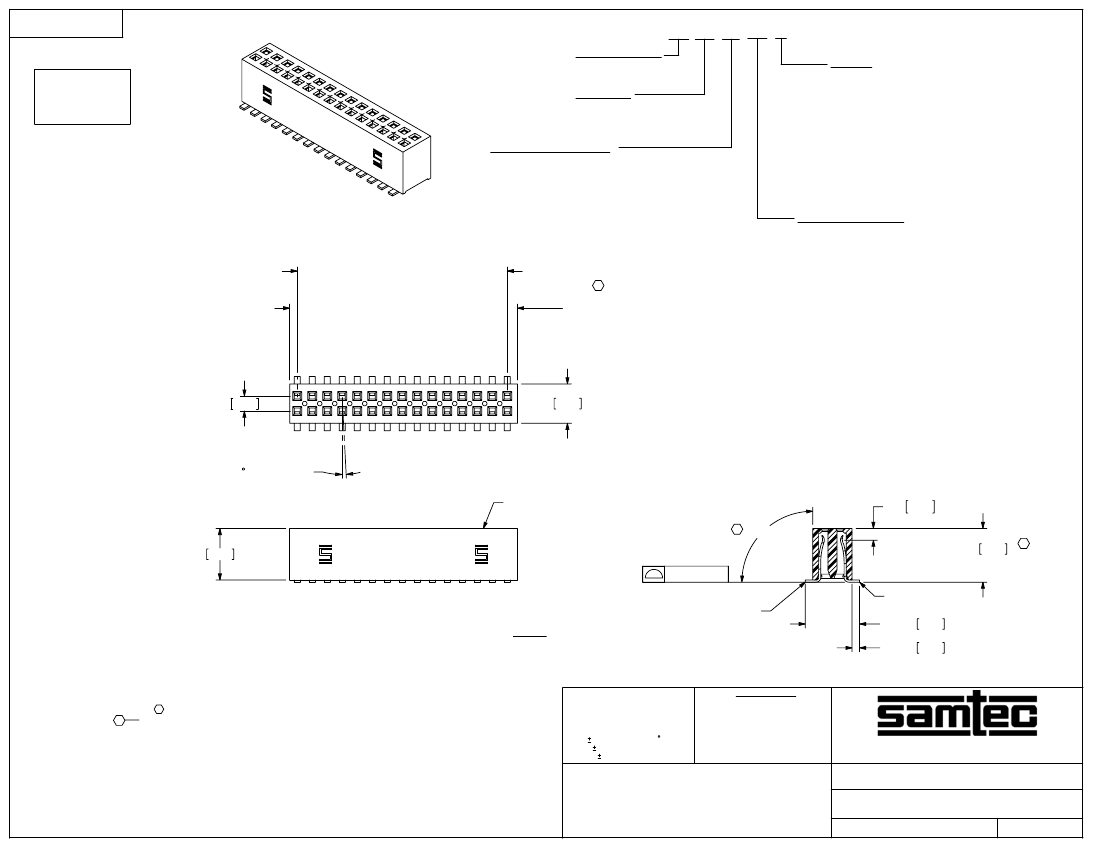

FLE-1XX-01-X-DV SHOWN
FIG 1
NOTES:
C
1.
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: POSITIONS -2 THRU -26: .004 [.10]
POSITIONS -27 THRU -75: .006 [.15]
3. MINIMUM PUSHOUT FORCE: .5 LB.
4. PACKAGE POSITIONS -05 THRU -75 IN TUBES;
PACKAGE POSITIONS -02 THRU -04 IN ASBBLT4X5.5 BUBBLE BAGS.
5. FOR EVERY FINISHED PART, ONE POSITION WILL BE LOST
WHEN CUTTING BODY TO LENGTH.
6. MAXIMUM BURR ALLOWANCE: .003 [.08].
7. MAXIMUM CUT FLASH: .010 [.25] MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS.
8. THIS DIMENSION FOR 75 POSITIONS IS 3.759[95.47] REF.
C
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: VECTRA E130i, COLOR: BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\MKTG\FLE-1XX-XX-XX-DV-X-MKT.SLDDRW
DUAL ROW .050 [1.27 X .050 [1.27] STRIP ASSEMBLY
FLE-1XX-XX-XX-DV-X
11/05/96
SHEET
1
OF
2
BY:
D PURVIS
REVISION AI

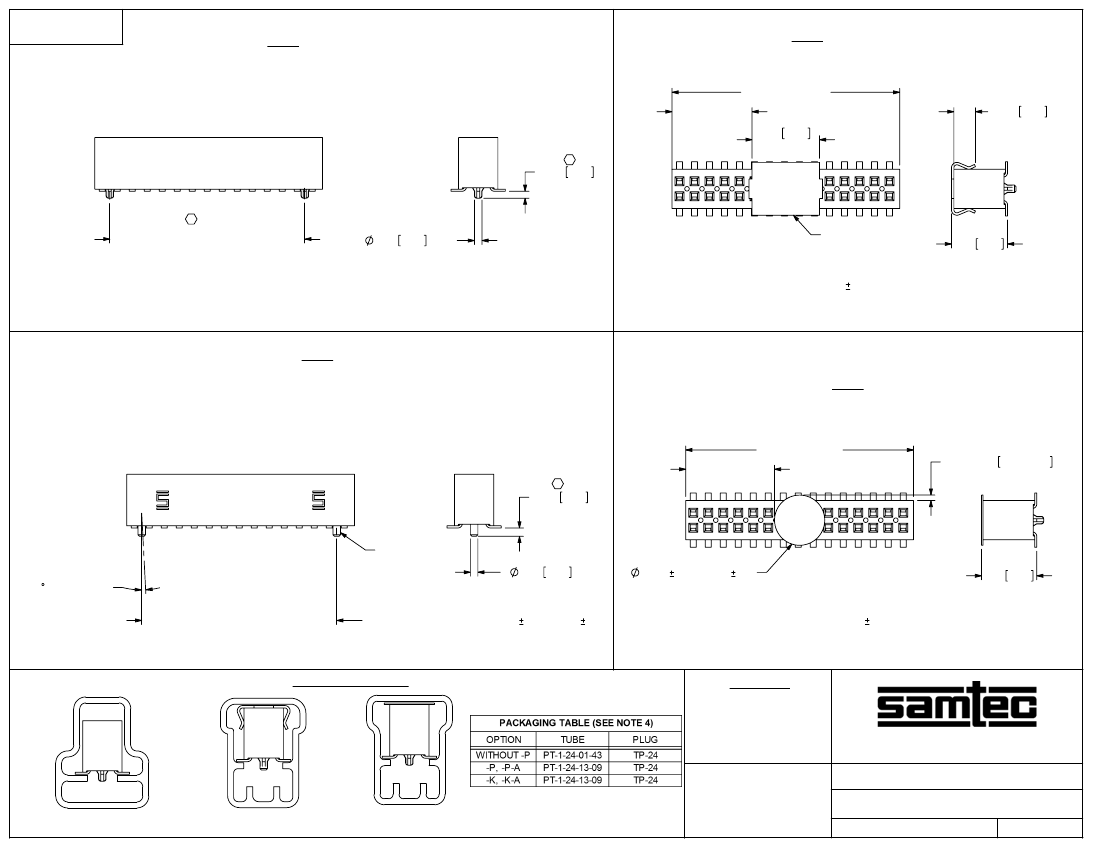

-A: OPTION
MOLDED ALIGNMENT PIN (3 POSITION MINIMUM)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
-P: OPTION
(USE LMP-09)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"M" (SEE NOTE)
"P" (SEE NOTE)
.225 5.72
REF
.023 0.58
C
FIG 4
.072 1.83 REF
C
(No OF POSITIONS -2) X .0500 [1.270]
.025 0.64 REF
LMP-09
.187 4.75
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = (("M" - .225 [5.71]/2) .020 [.51]
-A: OPTION
STAKED ALIGNMENT PIN (7 POSITION MINIMUM)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
-K: OPTION (POLYIMIDE FILM PAD)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 6
"R" (SEE NOTE)
"S" (SEE NOTE)
C
.018±.020 0.46±0.51
.028 0.71
SM-A7H
.025 0.64 REF
3 MAX SWAY
(EITHER DIRECTION)
(No OF POSITIONS -2) X .0500 .005 [1.270 .13]
.1675 .005 [4.255 .13]
.184 4.67
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = (("R" - .1675 [4.255]) /2 .020 [.51]
F:\DWG\MISC\MKTG\FLE-1XX-XX-XX-DV-X-MKT.SLDDRW
PACKAGING VIEW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
DUAL ROW .050 [1.27 X .050 [1.27] STRIP ASSEMBLY
PT-1-24-01-43
PT-1-24-13-09
PT-1-24-13-09
FLE-1XX-XX-XX-DV-X
11/05/96
SHEET
2
OF
2
BY:
D PURVIS
