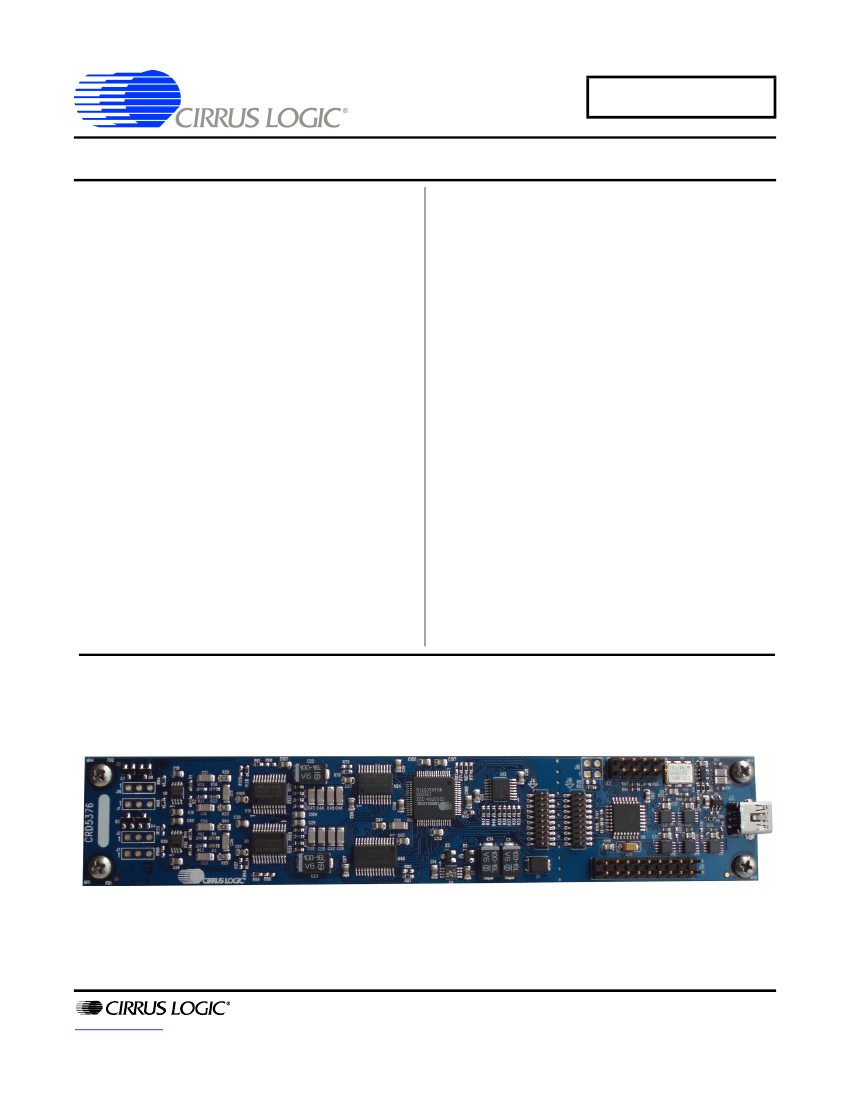

CRD5376

Multichannel Seismic Reference Design

Features

Four Channel Seismic Acquisition Node

– CS3301A geophone amplifiers (2x)

– CS3302A hydrophone amplifiers (2x)

– CS5372A dual

∆Σ

modulators (2x)

– CS5376A quad digital filter (1x)

– CS4373A

∆Σ

test DAC (1x)

– Precision voltage reference

– Clock recovery PLL

General Description

The CRD5376 board is a reference design for the Cirrus

Logic multichannel seismic chip set. Data sheets for the

CS3301A, CS3302A, CS4373A, CS5371A/72A, and

CS5376A devices should be consulted when using the

CRD5376 reference design.

Pin headers connect external differential geophone or

hydrophone sensors to the analog inputs of the mea-

surement channels. An on-board test DAC creates

precision differential analog signals for in-circuit perfor-

mance testing without an external signal source.

The reference design includes an 8051-type microcon-

troller with hardware SPI™ and USB serial interfaces.

The microcontroller communicates with the digital filter

via SPI and with the PC evaluation software via USB.

The PC evaluation software controls register and coeffi-

cient initialization and performs time domain, histogram,

and FFT frequency analysis on captured data.

The CRD5376 features a special breakout connector

used to detach the acquisition and control sections for

remote sensor applications.

ORDERING INFORMATION

CRD5376

Reference Design

On-board Microcontroller

– SPI

™

interface to digital filter

– USB communication with PC

PC Evaluation Software

– Register setup & control

– FFT frequency analysis

– Time domain analysis

– Noise histogram analysis

www.cirrus.com

Cirrus Logic, Inc. 2007

NOV ‘07

DS612RD2

CRD5376
