Special Purpose Meter
Digital Insulation Tester
DI2001
Cat. III Digital Insulation Tester
Measures insulation resistance to 2000MΩ
250V, 500V and 1000V test voltages
Meets IEC 1010-1, Category III-600V safety
standards
Data and Max hold
3-1/2 digit, 2000 count LCD
Continuity buzzer

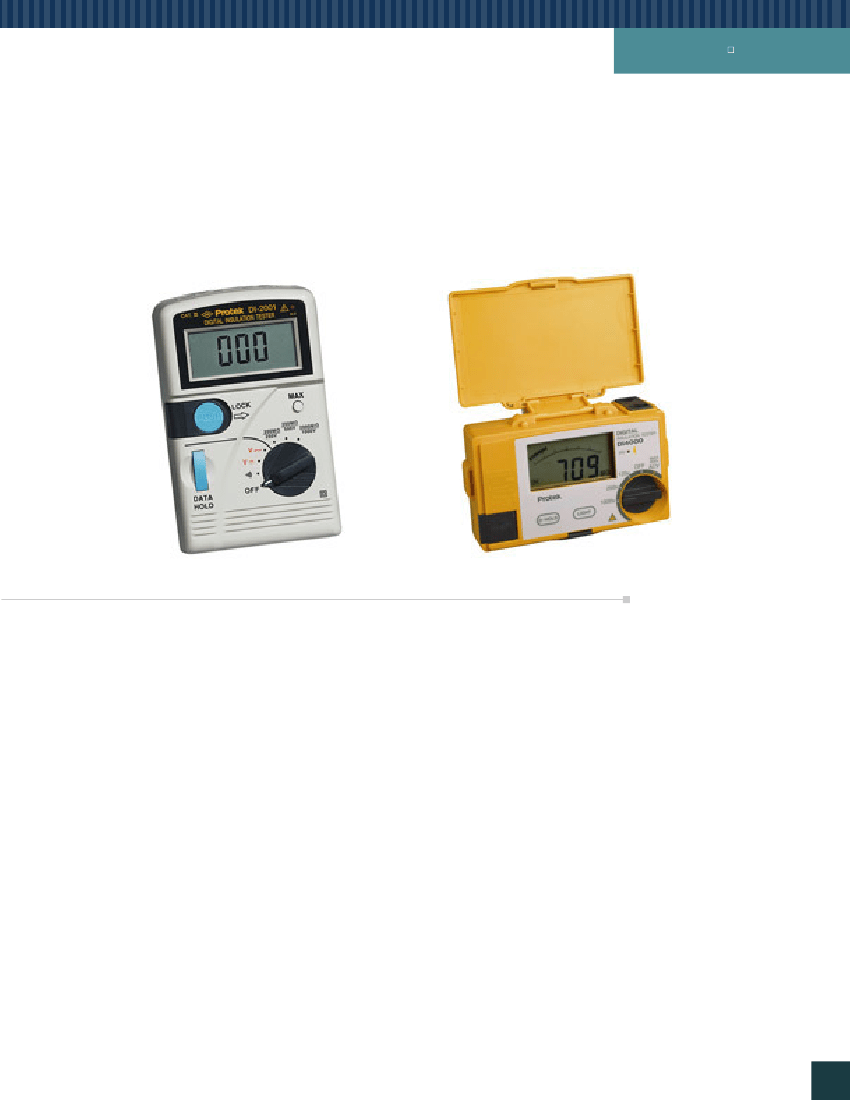

DI2001
DI4000
DI4000
Digital Insulation Tester
Measures insulation resistance to 2000MΩ
Measures AC volts
Data hold and backlight
3-1/2 digits, 3200 count LCD
Designed to IEC-1557-2 standards
Rugged case and lightweight
125, 250V and 1000V test voltages
DI2001
DI4000
SPECIFICATIONS
[ DI2001 ]
Volts DC
Range:
0 to 1000V
Resolution:
1V
Accuracy:
± (0.5% Rdg.+ 1D)
Volts AC
Ranges:
0 to 750V
Resolution:
1V
Accuracy:
± (0.8% Rdg + 4D)
Mega Ohms
Ranges:
0 to 250MΩ @ 250V
0 to 250MΩ @ 500V
0 to 2000MΩ @ 1000V
Resolution:
0.1MΩ (250MΩ Range)
1.0MΩ (2000MΩ Range)
Accuracy:
± (3% + 5D)
Display:
2000 Count; 3-1/2 Digit
General Specifications
Power:
(8) 1.5V AA Batteries
Operating Temperature:
0 to 40°C
at a relative humidity of < 80%
Size:
6.3" H × 3.8" W × 2.0" D
Weight:
17 oz.
Supplied Accessories:
Manual, Test probe, Leads, Batteries
[ DI4000 ]
Volts AC
Ranges:
0 to 600V
Resolution:
1V
Accuracy:
± (2.5% Rdg)
Input Impedance:
20MΩ
Max. Input:
600V
Insulation Measurement
Effective Measuring Resistance:
20MΩ @ 125V
50MΩ @ 250V
2000MΩ @ 1000V
Rated Measurement Current:
Approx. 1mA +20% - 0%
Short Circuit Current:
< 2mA
Minimum Measurable Resistance:
20MΩ Range: 0.125MΩ
50MΩ Range: 0.250MΩ
1000MΩ Range: 1.0 MΩ
Accuracy :
125V: 0.02Ω to 10MΩ: < ±5%
500V: 0.1MΩ to 50MΩ: < ±5%
1000V: 2MΩ to 1000ΩΩ: < ±5%
125V: 0.1MΩ to 0.03MΩ and 10MΩ to 100MΩ: < ±10%
500V: 0.05MΩ to 0.1MΩ and 50MΩ to 100MΩ: < ±10%
1000V: 1MΩ to 2MΩ and 1000MΩ to 2000MΩ: < ±10%
General Specifications
Power:
(6) 1.5V AA Batteries
Operating Temp:
0 to 40°C at a relative humidity of < 80%
Size:
4.1” H x 7.0” W x 2.1” D
Weight:
13 oz.
Supplied Accessories:
Manual, Test Probe, Lead with Case,
6 AA Batteries
