HLR-08V

Description
conn recept 8 pos 3.96mm pitch
CategoryThe connector    The connector
File Size238KB，3 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric Compare View All

HLR-08V Overview

conn recept 8 pos 3.96mm pitch

HLR-08V Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresCOMPATIBLE CONTACT: SSM-21T-P1.4
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded4
OptionsGENERAL PURPOSE
Termination typeCRIMP
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

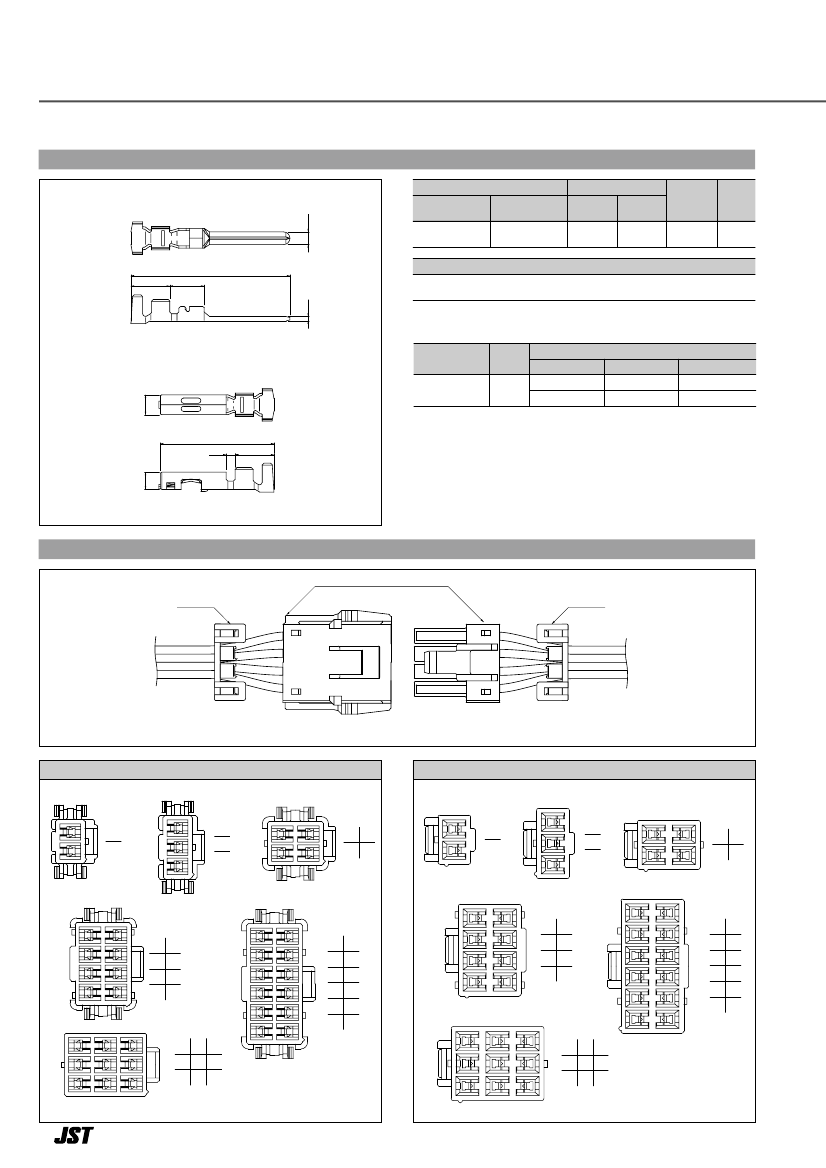

HL
CONNECTOR

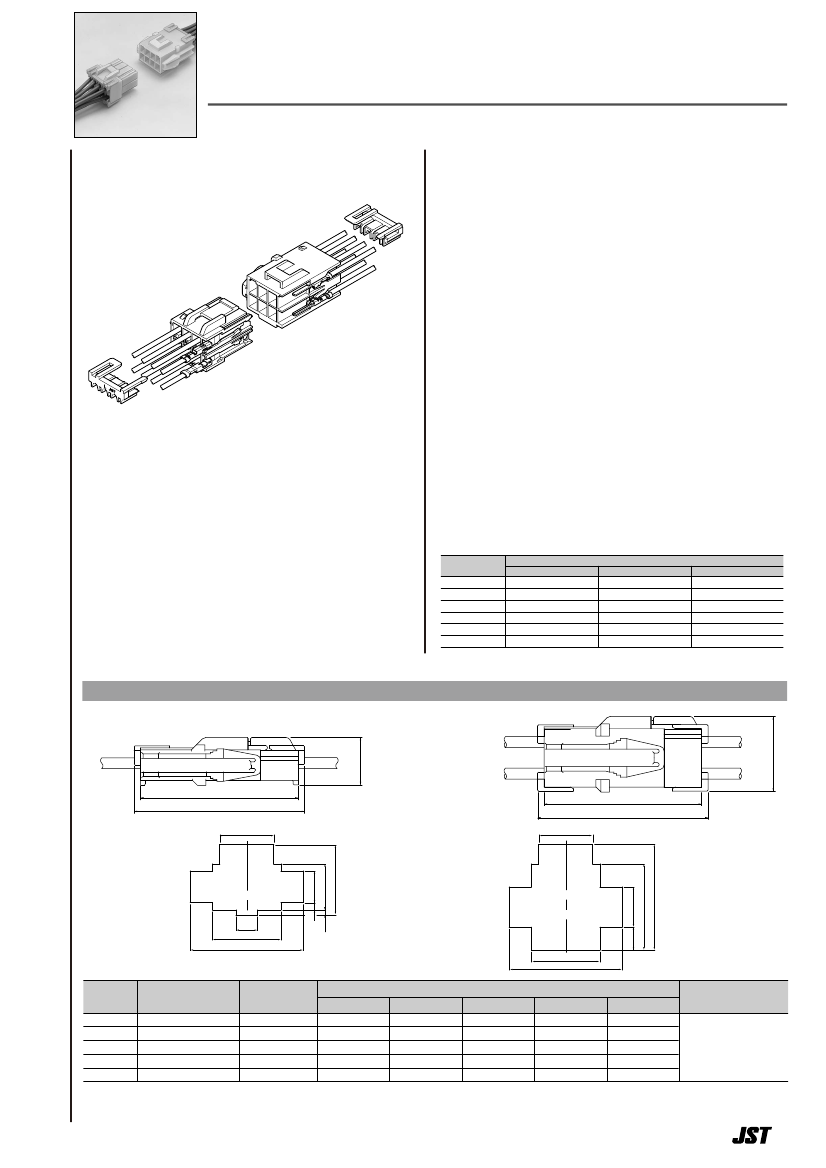

3.96mm pitch/Disconnectable Crimp style Wire-to-wire connectors
Specifications –––––––––––––––––––
• Current rating: 7A AC, DC max.
• Voltage rating: 300V AC, DC max.
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/7m
Ω
max.
After environmental testing/10m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #18
0.3 to 0.75mm
2
• Applicable panel thickness: 0.7 to 2.0mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Note: The current rating varies depending on the number of circuits and the
wire size used in each connector. The table below lists the current rating
as a function of the number of circuits and wire size.
• Low insertion force contact
• Housing lance
• Inner-housing lock
• Secondary retainers
• Panel lock construction
Current unit: A
Circuits
2
3
4
8
9
12
#18
7
6
6
4
4
3
Wire size (AWG)
#20
5
4
4
3
3
2
#22
4
4
4
3
3
2
Standards ––––––––––––––––––––
1
Certified LR20812
2
R50171609
(2 and 3 circuits)
0
Recognized E60389

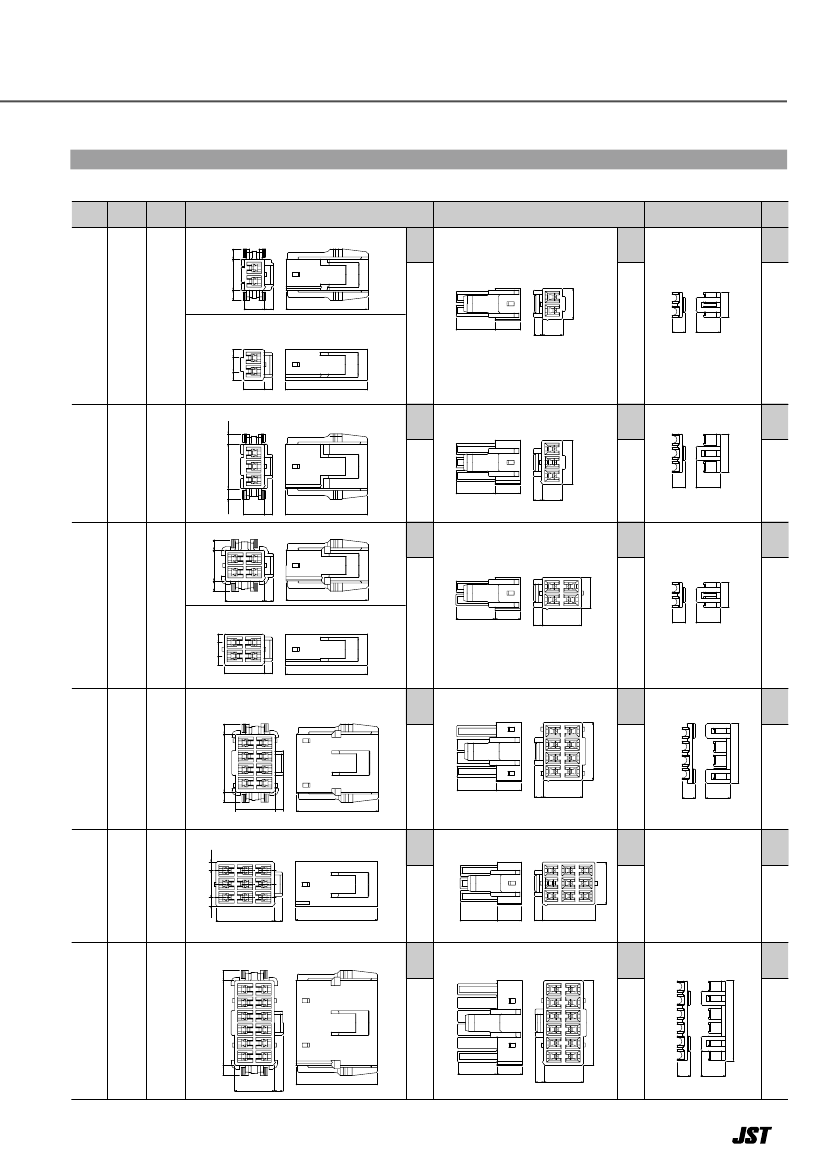

Panel layout and Assembly layout
4 circuits : 15.0
8 to 12 circuits : 15.1
(including retainer)
31.6
34.2
(including retainer)
(4, 8 and 12 circuits)
9.5
31.6
34.2
(including retainer)
Shape
I
7.5
Shape
II
C
D
9.8
7.5
3.0
A
B
E
0.7
A
B
Circuits
2
Receptacle housing
Panel hole
shape
Panel hole dimensions (mm)
A
±0.13
General tolerance
D
±0.13
E
C
D
14.7
B
±0.13
C
±0.1
E
±0.1
Applicable panel
thickness (mm)
4.4
15.7
1
9.5
HLR-02V
4.4
19.7
3
1
13.5
HLR-03V
5.6
15.7
4
2
9.5
HLR-04V
5.6
23.6
8
2
17.4
HLR-08V
5.6
31.6
12
2
25.3
HLR-12V
Note: 1. Punch holes in the panel according to the figures and table shown above. Burrs must be removed.
2. The strength of the panel must be considered when punching two or more holes.
3. The connector must be inserted from the same side as the hole is punched.
6.4
6.4
12.0
12.0
12.0
1.0
1.0
3.2
3.2
3.2
0.7
∼
2.0
1

HLR-08V Related Products

HLR-08V HLP-03V HLP-02V HLR-09VF HLP-09V HLR-02V HLR-02VF HLR-03V HLR-04VF HLR-12V
Description conn recept 8 pos 3.96mm pitch conn plug housing HL 3pos 3.96mm Board Connector, 2 Contact(s), 2 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT Board Connector, 9 Contact(s), 3 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT Board Connector, 9 Contact(s), 3 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT Board Connector, 2 Contact(s), 2 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT Board Connector, 2 Contact(s), 2 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT Board Connector, 3 Contact(s), 3 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT Board Connector, 4 Contact(s), 2 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT Board Connector, 12 Contact(s), 6 Row(s), Male, Crimp Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknown unknow unknown unknown unknown unknown unknown unknown unknown unknown
Other features COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSF-21T-P1.4 COMPATIBLE CONTACT: SSF-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSF-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4 COMPATIBLE CONTACT: SSM-21T-P1.4
Body/casing type RECEPTACLE PLUG PLUG RECEPTACLE PLUG RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE FEMALE FEMALE MALE FEMALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 4 3 2 3 3 2 2 3 2 6
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 8 3 2 9 9 2 2 3 4 12
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 1 1 1
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 - EAR99 - EAR99
Manufacturer's serial number - HL HL HL HL HL HL HL HL HL
