2010-40G-405: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size247KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2010-40G-405 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Solder Terminal, Locking, Socket,

2010-40G-405 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145156161187
Reach Compliance Code	compliant
body width	0.128 inch
subject depth	0.159 inch
body length	0.693 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	100000000 Ω
Plug contact pitch	0.032 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.8 mm
Rated current (signal)	0.5 A
Guideline	CSA;TUV;UL
Terminal pitch	0.8 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0

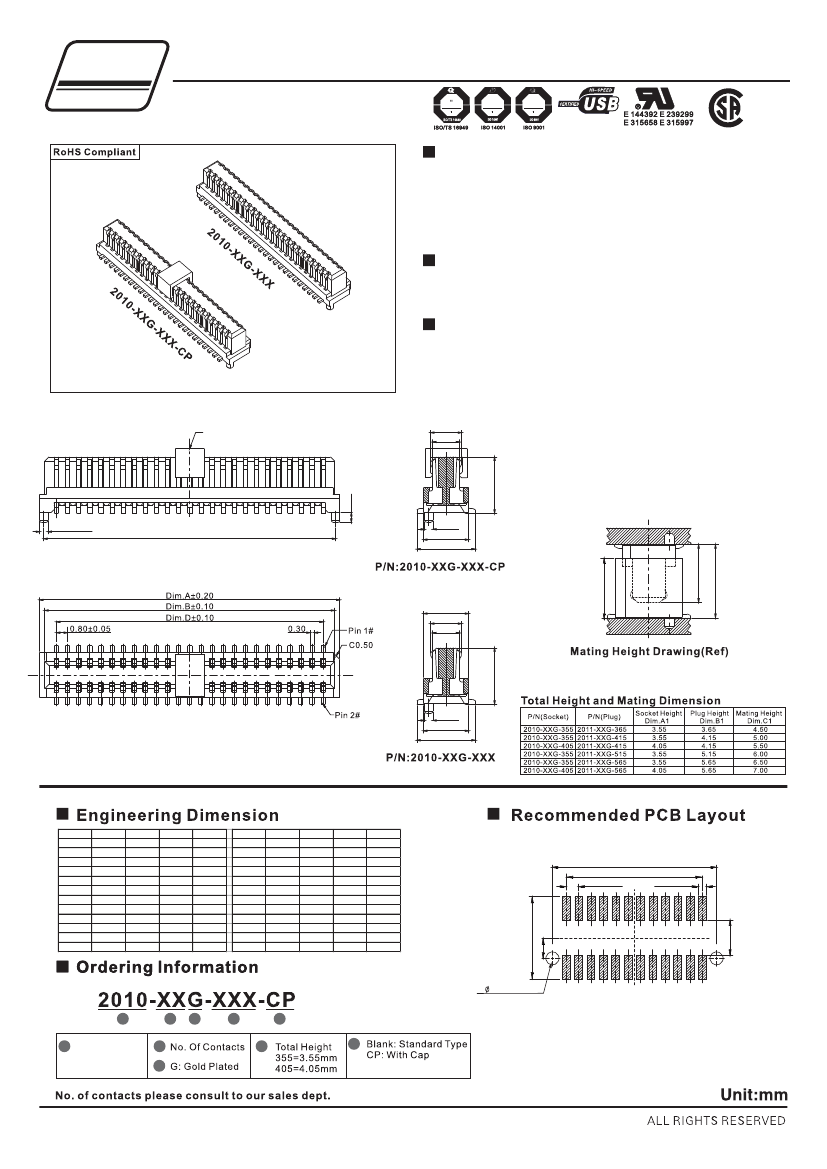

2010-40G-405 Preview

Neltron

Connectors

2010 Series

0.80 mm Board To Board

Socket

TUV

SUD

TUV

SUD

TUV

SUD

Specifications

1. Current Rating: 0.5A AC/DC.

2. Voltage Rating: 100V AC/DC.

3. Contact Resistance: 40m ohm. max.

4. Insulation Resistance: 100M ohm. Min. At 100V DC.

5. Withstanding Voltage: 500V AC for one minute.

6. Operating Temperature Range: -40°C to +105°C.

Material and Finish

1. Insulator: High Temperature M aterial (UL94V-0) .

2. Contact: Phosphor Bronze.

3 . Plating: Gold Plated .

Feature

1. Mating Height: 4.5/5.0/5.5/6.0/6.5/7.0mm Space.

2. Design for Digital Cameras, Mobile Phones,MP3,MP4,

MP5,Home Appliances, Aviation Electronics, Automobile

Electronics and Computer(PC) Peripherals.

Cap in the Center

3.25

1.96

0.70

0.60±0.05

Dim.C±0.10

Ø0.60

3.25

4.20

Dim.A1

3.25

2.24

1.96

Ø0.60

3.25

4.20

5.30

1.25

Circuits

10

12

14

16

18

20

22

24

26

28

30

32

Dim. A

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

12.80

13.60

14.40

Dim. B

4.85

5.65

6.45

7.25

8.05

8.85

9.65

10.45

11.25

12.05

12.85

13.65

Dim. C

5.00

5.80

6.60

7.40

8.20

9.00

9.80

10.60

11.40

12.20

13.00

13.80

Dim. D

3.20

4.00

4.80

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

2- 0.85

-0.00

HOLE

+0.10

1

2010:Socket

2

3

2

3

4

5

2017-2026

2.30

Circuits

34

36

38

40

50

60

68

70

80

90

100

Dim. A

15.20

16.00

16.80

17.60

21.60

25.60

28.80

29.60

33.60

37.60

41.60

Dim. B

14.45

15.25

16.05

16.85

20.85

24.85

28.05

28.85

32.85

36.85

40.85

Dim. C

14.60

15.40

16.20

17.00

21.00

25.00

28.20

29.00

33.00

37.00

41.00

Dim. D

12.80

13.60

14.40

15.20

19.20

23.20

26.40

27.20

31.20

35.20

39.20

Dim.A1

Dim.C±0.10

Dim.D±0.10

0.80 ± 0.05

0.55 ± 0.05

Dim.B1

Dim.C1
