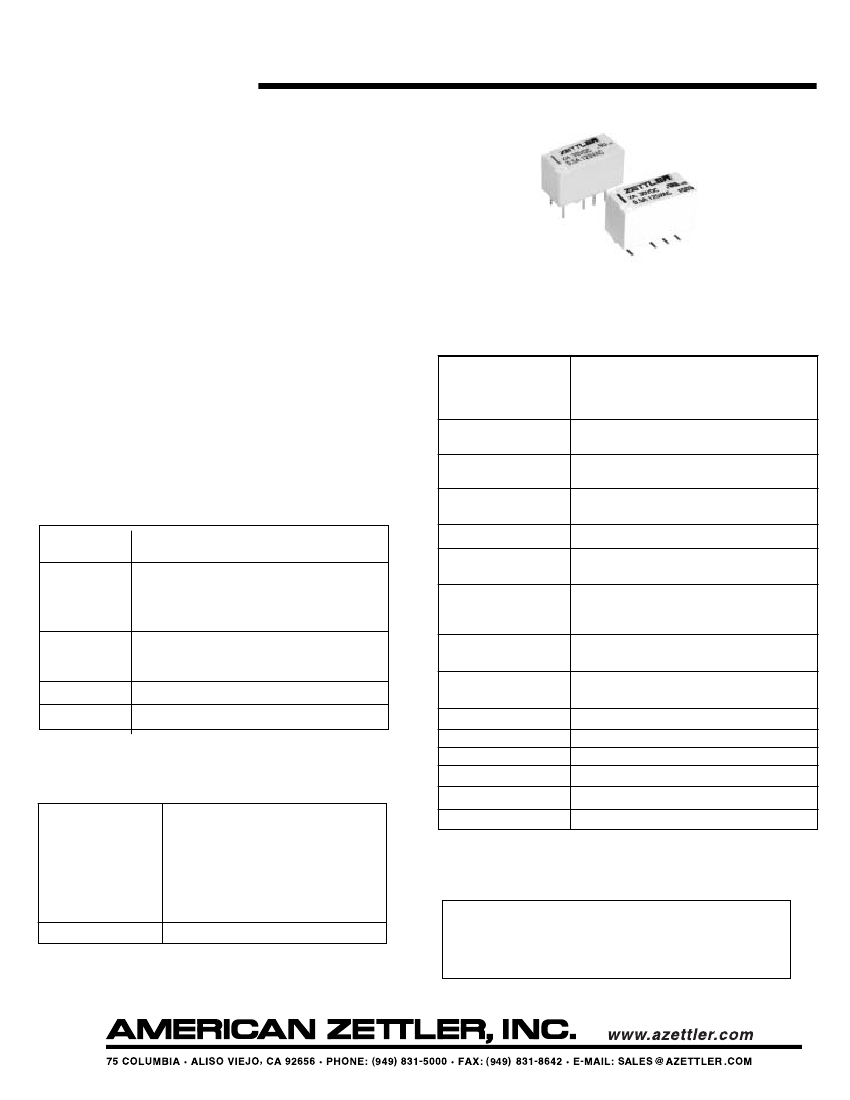

AZ8462
AZ
MICROMINIATURE
POLARIZED RELAY
FEATURES
•
SMT and DIP mounting available
•
Microminiature size: up to 50% less board area than
previous generation telecom relays
•
High dielectric and surge voltage:
2.5 KV surge (per Bellcore TA–NWT–001089)
1.5 KV surge (per FCC Part 68)
1,000 Vrms, open contacts
•
Monostable and bistable (latching) versions available
•
Low power consumption: 79 mW pickup
•
Stable contact resistance for low level signal switching
•
Epoxy sealed for automatic wave soldering and cleaning
•
UL, CUR file E43203
•
All plastics meet UL94 V–0, 30 min. oxygen index
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
(max)
Release Time (max)
Dielectric Strength
(at sea level)
Minimum operations
1 x 10
8
at 3Hz
1 x 10
5
at 0.5 A, 125 VAC, Res.
1 x 10
5
at 2.0 A, 30 VDC, Res.
4 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
See table
Greater than 10% of nominal coil voltage
10
9
ohms min. at 25°C, 500 VDC,
50% RH
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
Operational, 3.3 mm DA, 10–55 Hz
Non-destructive, 5.5 mm DA, 10–55 Hz
Operational, 75 g min., 11 ms
Non-destructive, 100 g min., 11 ms
260°C (500°F) for 5 seconds
80°C (176°F)
30 seconds
2 grams
P.B.T. polyester
Tinned copper alloy, P.C.
CONTACTS
Arrangement
Ratings
DPDT (2 Form C)
Bifurcated crossbar contacts
Resistive load:
Max. switched power: 60 W or 62.5 VA
Max. switched current: 2.0 A
Max. switched voltage: 220 VDC or 250 VAC
Rated Load
UL/CUR
Material
Resistance
0.5 A at 125 VAC general use
2.0 A at 30 VDC
Silver nickel, gold plated
< 50 milliohms initially at 6 V, 1 A
Dropout
Insulation Resistance
Ambient Temperature
Operating
Storage
Vibration
Shock
Max. Solder Temp.
Max. Solvent Temp.
Max. Immersion Time
Weight
COIL (Polarized)
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
79 mW (3–24 VDC)
152 mW (48 VDC)
Enclosure
Terminals
0.32 W at 20°C (68°F)
At 30° C (54°F) nominal coil voltage
Max. 115°C (239°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. Specifications subject to change without notice.
3/6/13
