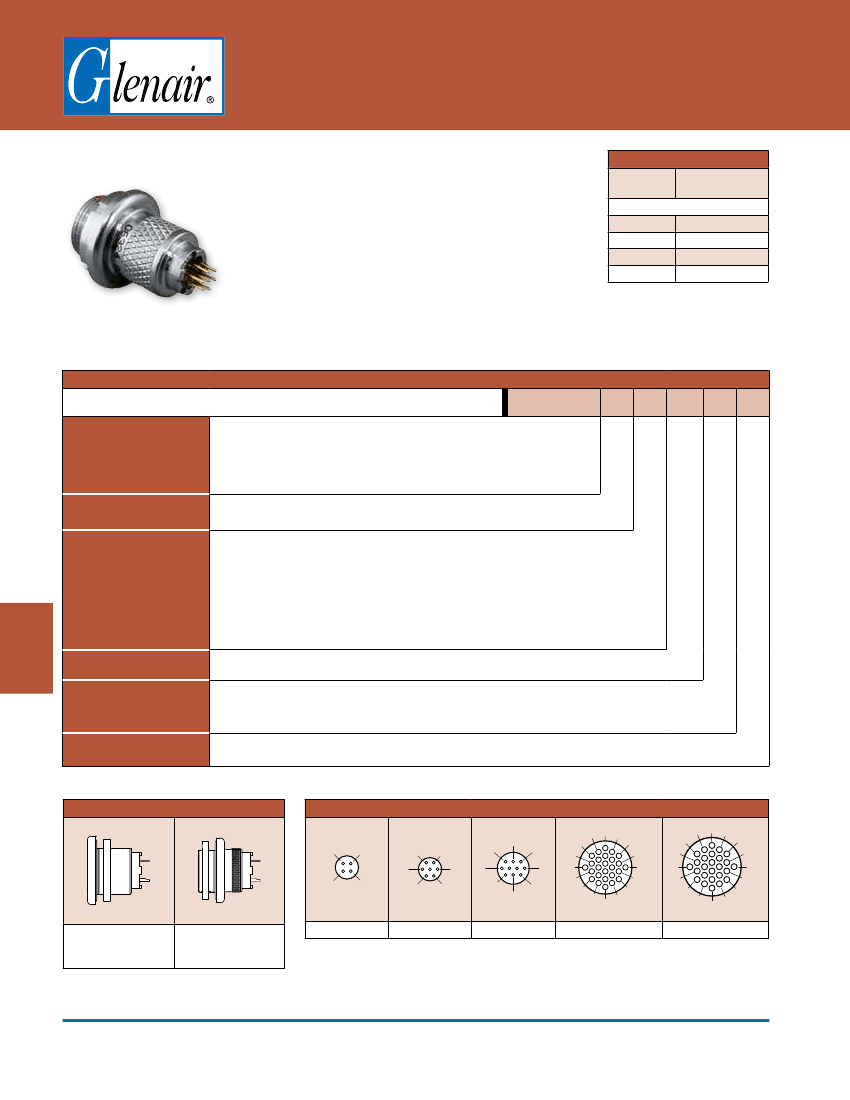

Series 804 Push-Pull
High-Speed
Mighty Mouse

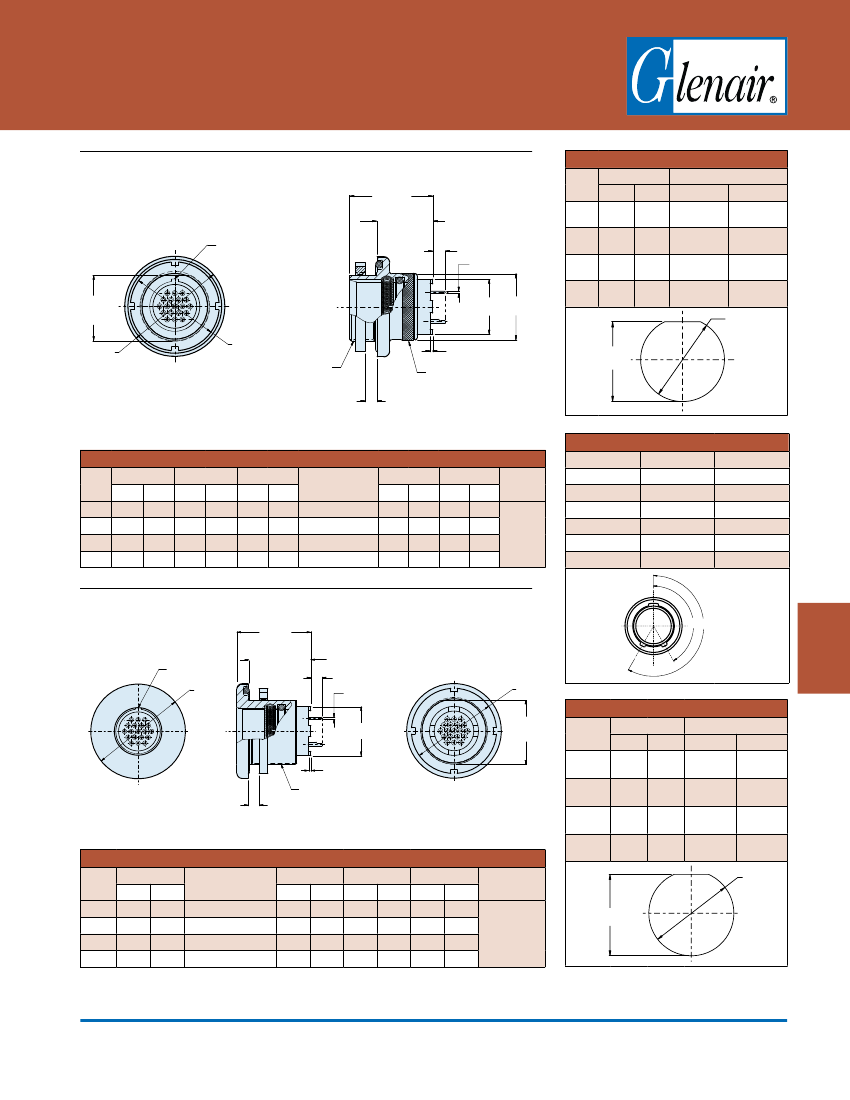

Rear and Front Mount Jam-Nut PCB or Solder Cup Receptacle
804-030 and 804-031 Ordering Information
Panel Mount Receptacles
feature factory-installed non-
removable contacts. Choose solder cup or printed circuit
board terminals. Front or rear panel mount versions available.
Water Immersion, Unmated
Specify 804-030 connectors
for applications where open face water immersion is
not a requirement. For MIL-STD-810 Method 512G immersion
requirements, specify 804-031 watertight connectors . These
804-031 connectors are specially sealed (“MOD-518”) and
are 100% tested to maintain a helium leak rate of 1 x 10
-4
cc/
second at one atmosphere pressure differential from -40°C
to +70°C.
How To Order
Sample Part Number
804-030
804-030
= Receptacle for Solder Cup or PCB Termination, With Standard Epoxy
Potting
804-031
= Receptacle for Solder Cup or PCB Termination, With Special “MOD-518”
Sealing For Open Face (unmated) Water Immersion Requirements. 100% Leak
Tested.
-00
= Jam Nut, Front Panel Mount
-07
= Jam Nut, Rear Panel Mounting
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
Shell Material and Finish
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
ZB
= Stainless Steel / Olive Drab Chromate over Cadmium
ZC
= Stainless Steel / Zinc Cobalt Alloy / Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
Shell Size - Insert
Arrangement (See Table Ii)
Contact Type
Shell Key Positions
(See Table III)
6-4, 6-7, 7-10, 9-19, 10-26
Connector supplied with contacts
P
= Pin
E
= Pin, Solder Cup
S
= Socket
F
= Socket, Solder Cup
Omit for Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
Series 804
High-Speed
Series
Shell Style (See Table I)
High–Speed Performance
Impedance
500 MHz
1 GHz
1.5 GHz
2 GHz
100 Ω± 20Ω at
200 Picoseconds
Insertion Loss
.71 dB
1.55 dB
2.75 dB
4.00 dB
-00
M
6-7
P
A
Q
Table I: Shell Style
1
4
2
6
3
5
1
Table II: Shell Size – Insert Arrangement
2
7
3
3
7
10
2
1
4
8
6
11
15
18
23
3
1
2
4
9
12
16
21
6
11
15
18
23
3
1
2
4
9
12
16
21
4
6-7
9
7-10
25
26
24
25
26
24
-00
Jam Nut, Front Panel
Mount
-07
Jam Nut, Rear Panel
6-4
9-19
10-26
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
Q-10
E-Mail: sales@glenair.com
Rear and Front Mount Jam-Nut PCB or Solder Cup Receptacle
804-030 and 804-031 Ordering Information
Rear panel jam nut 804-030/031 - shell style 07
.940
(23.88)
KEYWAY
.667/.657
(16.94/16.69)
.125 (3.18) MIN
øG
Rear Mount Jam Nut Panel Cutout
Shell
Size
6
7
9
10
øE øF
M Flat
In.
.479
.475
.606
.602
.667
.663
.734
.729
mm.
12.17
12.07
15.39
15.29
16.94
16.84
18.64
18.52
In.
.510
.635
.698
.760
ØN
mm.
12.95
16.13
17.73
19.30
ØN
M
Flat
C
FLAT
øA
øB
D THREAD
.025 (0.64)
MEDIUM RAISED
DIAMOND KNURL
.125 (3.18) MAX
PANEL THICKNESS
Receptacle Key Positions
Dimensions
Shell
Size
6
7
9
10
ØA
In. mm.
.730 18.54
ØB
In. mm.
.625 15.87
C Flat
D Threads
In. mm.
.467 14.40 .5000-32 UN-2A
ØE
ØF
ØF
Tail Dia.
In. mm. In. mm.
.330 8.38 .483 12.27
Position
A
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
.910 23.11 .750 19.05 .594 15.09 .6250-28 UN-2A .432 10.97 .570 14.48 .018/.022
1.000 25.40 .812 20.62 .655 16.64 .6875-28 UN-2A .551 14.00 .685 17.40 (.46/.56)
1.085 27.48 .875 22.22 .721 18.31 .7500-28 UN-2A .620 15.75 .725 18.42
Front panel jam nut 804-030/031 - shell style 00
.940
(23.88)
KEYWAY
øA
.830/.820 (21.08/20.83)
.125 (3.18) MIN
øF
øC
øD
A°B°
Front Mount Jam Nut Panel Cutout
E
FLAT
Shell
Size
6
7
9
10
P Flat
In.
mm.
.542
.538
.676
.671
.732
.728
.801
.796
13.77
13.67
17.17
17.04
18.59
18.49
20.35
20.22
ØR
In.
.575
.698
.760
.822
mm.
14.61
17.73
19.30
20.88
ØR
.025 (0.64)
B THREAD
.300 (7.62) MAX
PANEL THICKNESS
Dimensions
Shell
Size
6
7
9
10
ØA
In.
mm.
.885 22.48
.995 25.27
1.075 27.31
1.140 28.95
B Threads
.5625-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
ØC
In.
mm.
.330 8.38
.432 10.97
.551
.620
14.00
15.75
ØD
In.
mm.
.688 17.47
.812 20.62
.875
.938
22.22
23.82
E Flat
In.
mm.
.530 13.46
.663 16.84
.720
.788
18.29
20.02
ØF
Tail Dia.
.018/.022
(.46/.56)
P
Flat
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
Q-11
E-Mail: sales@glenair.com
Series 804
High-Speed
Series 804 Push-Pull
High-Speed
Mighty Mouse
Q
