52901-1602 datasheet, PDF - EEWORLD Datasheet

52901-1602: DescriptionBoard Stacking Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

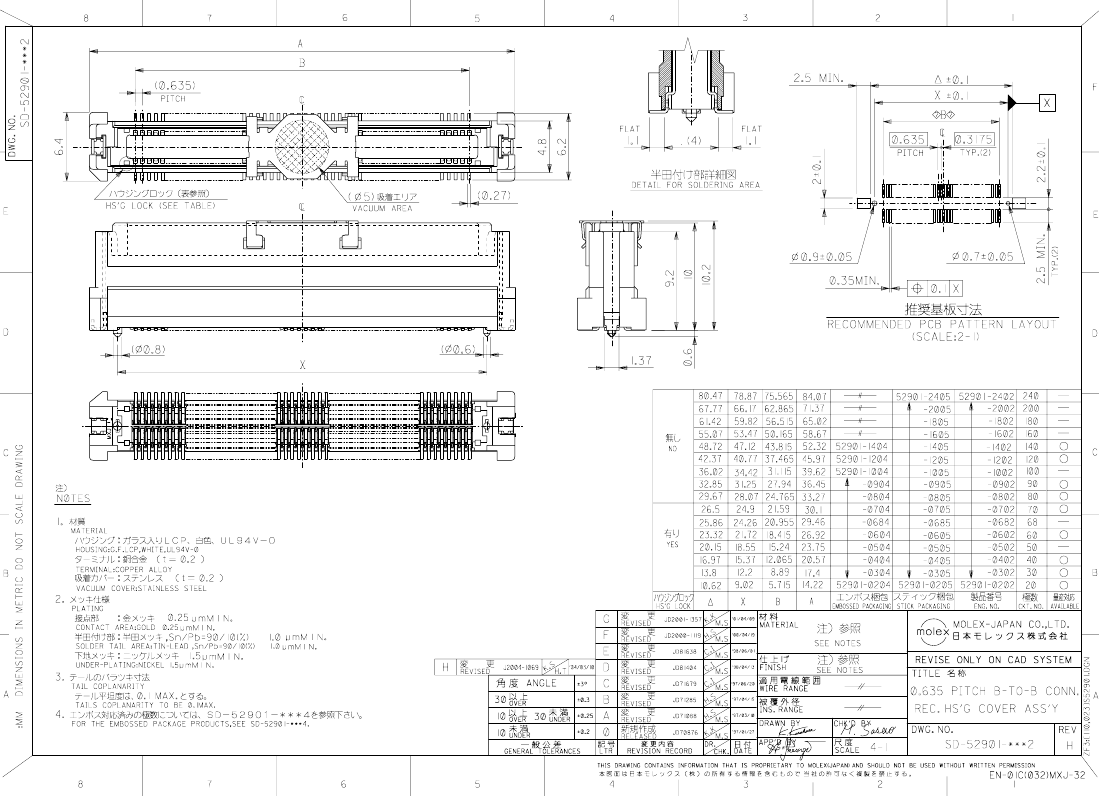

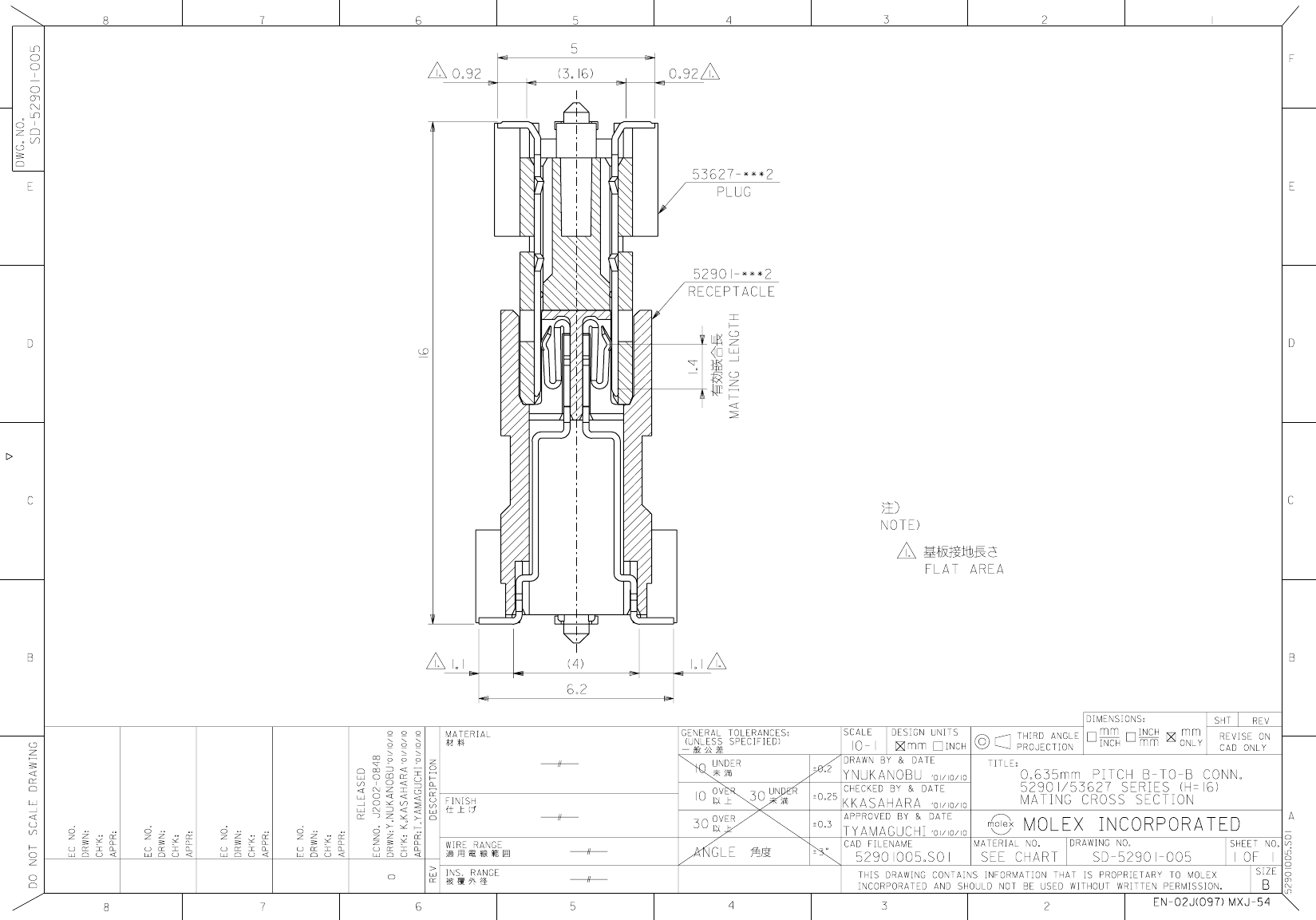

52901-1602 Overview

Board Stacking Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	SLIMSTACK, POLARIZATION AVAILABLE
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	TIN LEAD (39) OVER NICKEL (59)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52901
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
UL Flammability Code	94V-0
Base Number Matches	1
