34206100

Description
Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size198KB,2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

34206100 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

34206100 Parametric

Parameter NameAttribute value
Objectid304368615
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.197 inch
body length0.62 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VDC V
Filter functionNO
Insulation resistance1000000000 Ω
insulator materialPOLYETHYLENE
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6

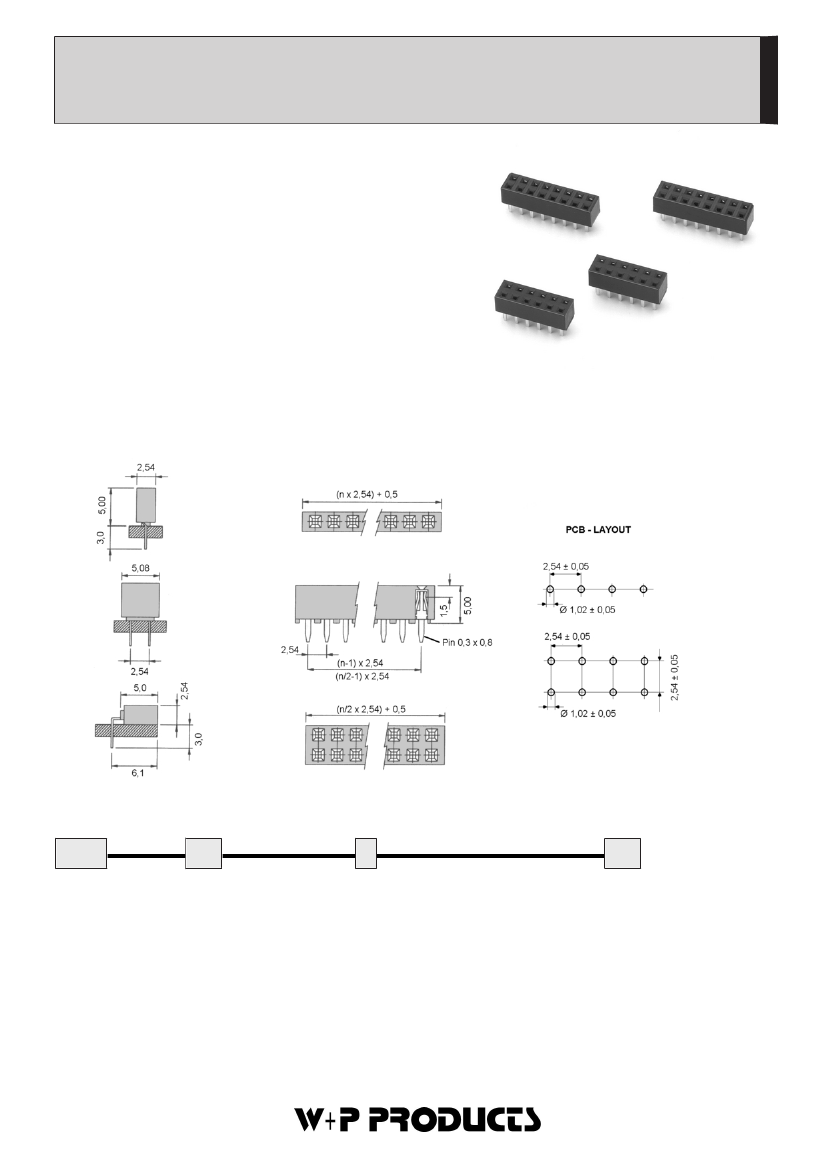

342
Buchsenleisten gerade / gewinkelt - RM 2,54mm - BH 5,0mm
Female Headers - 2,54mm Pitch - 5,0mm Profile - Straight / Right-angled
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Kontakt für Vierkantstift 0,635mm, Kupferlegierung
Contact Material
Contact for square pin 0,635mm, copper alloy
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)
Contact Surface
Acc. to options (see below), over Ni (1,3 ... 2,5µm)
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1000V
DC
Test Voltage
1000V
DC
Nennspannung
250V
AC
Voltage Rating
250V
AC
Nennstrom
3A
Current Rating
3A
Temperaturbereich
-40°C ... +105°C
Temperature Range
-40°C ... +105°C
Verarbeitung
Reflow-Lötverfahren; weitere Informationen in Kapitel T
Processing
Reflow-soldering, detailed information in ch. T
Doppelfederkontakt für Vierkantstift 0,635mm
Duam beam contact accepts square pin
0,635mm.
Series
Contacts
*
Type
*
Plating
342
80
02-40
Einreihig
Single row
04-80
Zweireihig
Double row
2
1
Einreihig, gerade
Single row, straight
2
Zweireihig, gerade
Double row, straight
3
Einreihig, gewinkelt
Single row, right angled
50
00
Vergoldet
Gold plated
50
Verzinnt
Tin plated
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
