56121-8690 datasheet, PDF - EEWORLD Datasheet

56121-8690: DescriptionWire Terminal; CategoryThe connector Connector bracket; File Size73KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

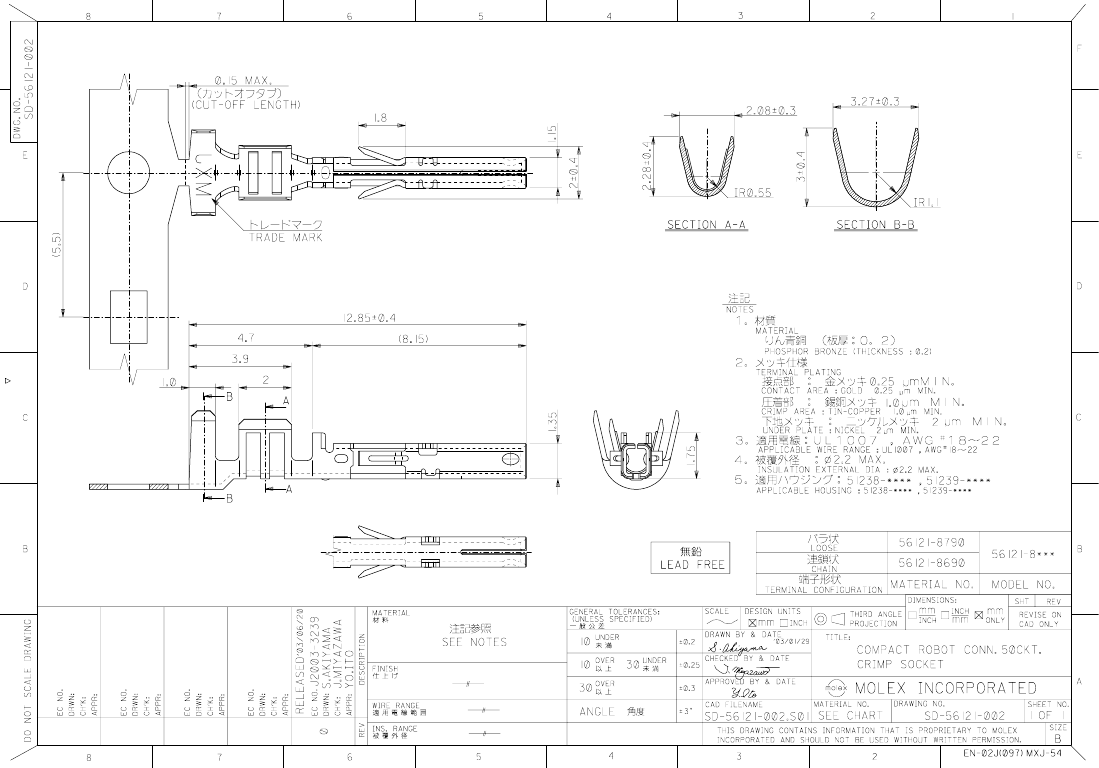

56121-8690 Overview

Wire Terminal

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATING: GOLD OVER NICKEL (79), TERMINATION: TIN-COPPER (39) OVER NICKEL (79)
Assembly name	CONTACT
Maximum number of cable entries	0.0866 inch
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	CHAIN
Contact point gender	FEMALE
Contact style	SQUARE SOCKET
DIN compliance	NO
Finished thickness	10
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal length	0.1535 inch
Terminal type	CRIMP
used for	51238, 51239
Maximum wire diameter	18 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

	56121-8690	56121-8790
Description	Wire Terminal	Wire Terminal
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	MATING: GOLD OVER NICKEL (79), TERMINATION: TIN-COPPER (39) OVER NICKEL (79)	MATING: GOLD OVER NICKEL (79), TERMINATION: TIN-COPPER (39) OVER NICKEL (79)
Assembly name	CONTACT	CONTACT
Maximum number of cable entries	0.0866 inch	0.0866 inch
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contactor design	CHAIN	LOOSE
Contact point gender	FEMALE	FEMALE
Contact style	SQUARE SOCKET	SQUARE SOCKET
DIN compliance	NO	NO
Finished thickness	10	10
IEC compliance	NO	NO
MIL compliance	NO	NO
Material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation method	STRAIGHT	STRAIGHT
Terminal length	0.1535 inch	0.1535 inch
Terminal type	CRIMP	CRIMP
used for	51238, 51239	51238, 51239
Maximum wire diameter	18 AWG	18 AWG
Minimum wire diameter	22 AWG	22 AWG
Base Number Matches	1	1
