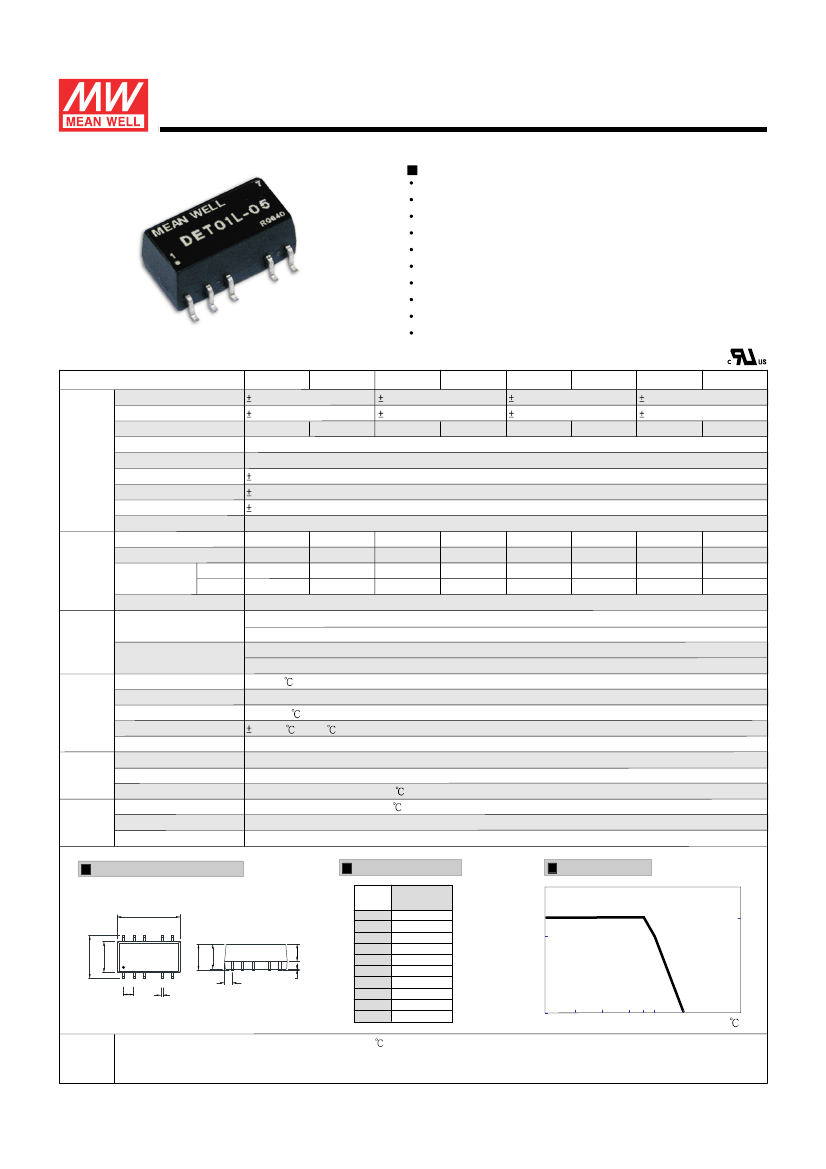

1W DC-DC Unregulated Dual Output Converter
Features :
3000VDC I/O isolation
Internal SMD technology
Protection: Short circuit
Cooling by free air convection
Non-conductive plastic case
SMD package styles
100% full load burn-in test
Low cost / High reliability
Approved: UL / CUL
1 year warranty
DET01
series
SPECIFICATION
ORDER NO.
DC OUTPUT VOLTAGE
OUTPUT CURRENT RANGE
EFFICIENCY
RATED POWER
OUTPUT
DET01L-05
5V
100mA
72%
1W
71%
DET01M-05
DET01L-09
9V
56mA
75%
73%
DET01M-09
DET01L-12
12V
42mA
78%
74%
DET01M-12
DET01L-15
15V
33mA
79%
75%
DET01M-15
RIPPLE & NOISE (max.)
Note.2
100mVp-p
LINE REGULATION
Note.3
1.2% for 1% input variation
LOAD REGULATION
Note.4
8.0%
VOLTAGE TOLERANCE
VOLTAGE RANGE
NORMAL VOLTAGE
8.0%
4.5 ~ 5.5V
5V
Full load 280mA
No load 29mA
Momentary
Protection type : Broken
Momentary
Protection type : Broken
-40 ~ +85
-40 ~ +105
(Refer to output load derating curve)
, 10 ~ 95% RH
20% ~ 90% RH non-condensing
0.03% / (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
UL60950-1, CSA C22.2
I/P-O/P:3KVDC
I/P-O/P: 100M Ohms / 500VDC / 25
/ 70% RH
10.8 ~ 13.2V
12V
122mA
18mA
4.5 ~ 5.5V
5V
280mA
29mA
10.8 ~ 13.2V
12V
122mA
18mA
4.5 ~ 5.5V
5V
280mA
29mA
10.8 ~ 13.2V
12V
122mA
18mA
4.5 ~ 5.5V
5V
280mA
29mA
10.8 ~ 13.2V
12V
122mA
29mA
SWITCHING FREQUENCY(Typ.)
100KHz
INPUT
INPUT CURRENT
PROTECTION
OVERLOAD
Fuse recommended
PROTECTION
SHORT CIRCUIT
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
MTBF
OTHERS
DIMENSION
WEIGHT
500khrs min. MIL-HDBK-217F(25 )
15.24*7.5*6.0mm or 0.60"*0.30"*0.24" inch (L*W*H)
1.7g
Mechanical Specification
15.24
12 11 1 0
8
7
Unit: mm (inch)
Pin Configuration
Pin No.
1
2
3
5
6
7
8
10
11
12
Derating Curve
Output
-Vin
+Vin
NC
COM
-Vout
NC
+Vout
NC
NC
NC
100
LOAD (%)
80
11.2 MAX
7.50
6.25
TOP VIEW
1
2
3
5
6
6.00
2.54
0 .2 5
2.54
0.5
4 .1 3
-40
0
25
50 70 85
100
Ta (
)
NOTE
1.All parameters are specified at normal input, rated load, 25 70% RH. Ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
File Name: DET01-SPEC 2008-05-08
