Part Number

Search

D3L20U

Description
super fast recovery rectifiers(200v 2.5A)
CategoryDiscrete semiconductor    diode
File Size282KB,7 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric View All

D3L20U Online Shopping

Suppliers Part Number Price MOQ In stock
D3L20U - - View Buy Now

D3L20U Overview

super fast recovery rectifiers(200v 2.5A)

D3L20U Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSHINDENGEN
Parts packaging codeTO-220AC
package instructionITO-220, 2 PIN
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW NOISE, FREEWHEELING DIODE
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.98 V
JEDEC-95 codeTO-220AC
JESD-30 codeR-PSFM-T2
JESD-609 codee0
Humidity sensitivity level2
Maximum non-repetitive peak forward current45 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current2.5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
SHINDENGEN
Super Fast Recovery Rectifiers
Single
D3L20U
200V 2.5A
FEATURES
Low noise
trr35ns
Fully Isolated Molding
OUTLINE DIMENSIONS
Case : ITO-220
(Unit : mm)
APPLICATION
Switching power supply
Free Wheel
Home Appliances, Office Equipment
Telecommunication, Factory Automation
RATINGS
●Absolute Maximum Ratings (If not specified Tc=25℃)
Item
Symbol
Conditions
Storage Temperature
Tstg
Operating Junction Temperature
Tj
Maximum Reverse Voltage
V
RM
Average Rectified Forward Current
50Hz sine wave, R-load, Tc=136℃
I
O
Peak Surge Forward Current
I
FSM
50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃
Dielectric Strength
Vdis
Terminals to case, AC 1 minute
Mounting Torque
TOR
(Recommended torque:
0.3N½m)
●Electrical Characteristics (If not specified Tc=25℃)
Item
Symbol
Conditions
Forward Voltage
V
F
I
F
=2.5A, Pulse measurement
Reverse Current
V
R
=V
RM,
Pulse measurement
I
R
Reverse Recovery Time
trr
I
F
=0.5A,  I
R
=1A
Thermal Resistance
θjc
Junction to case
Ratings
-40∼150
150
200
2.5
45
1.5
0.5
Unit
V
A
A
kV
N½m
Ratings
Max.0.98
Max.10
MAX.35
Max.5.0
Unit
V
μA
ns
℃/W

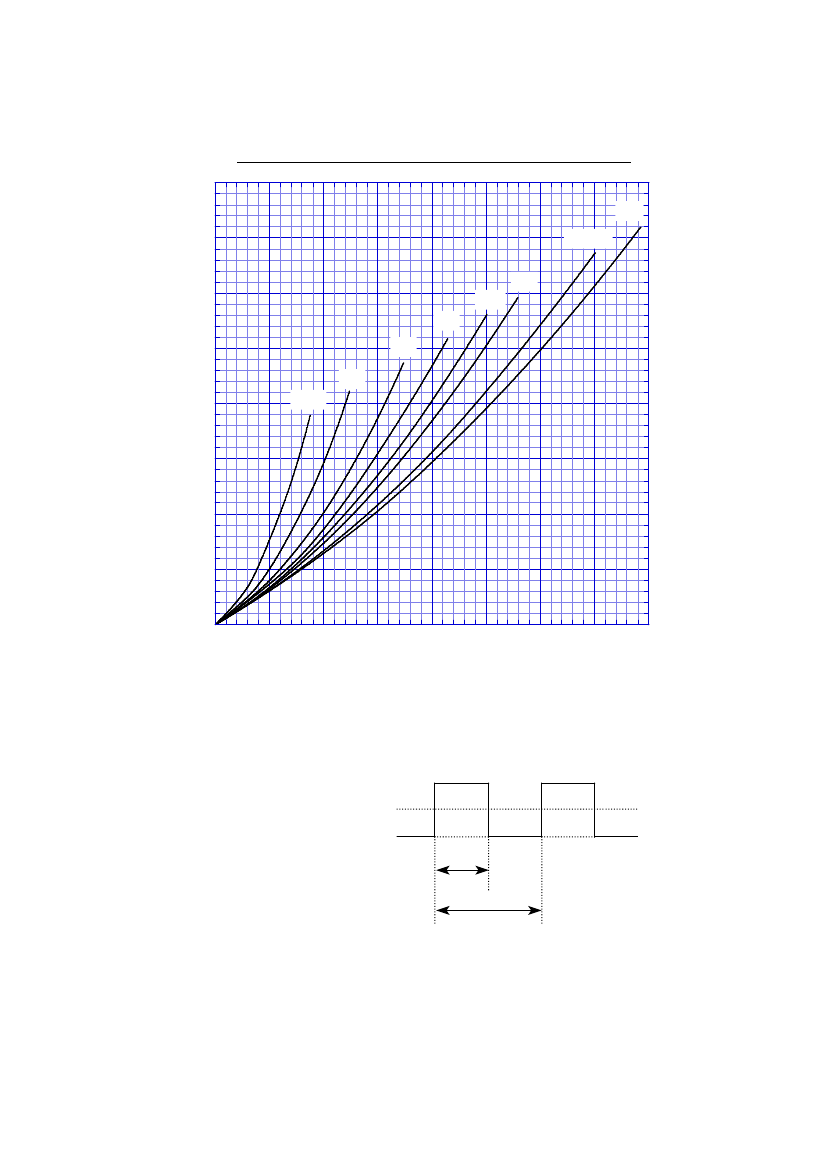

Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd
