860-10-026-40-001191: DescriptionBoard Connector, 26 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size116KB，2 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric View All

860-10-026-40-001191 Overview

Board Connector, 26 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

860-10-026-40-001191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1334908080
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Switzerland
YTEOL	8.15
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

23/07/2013

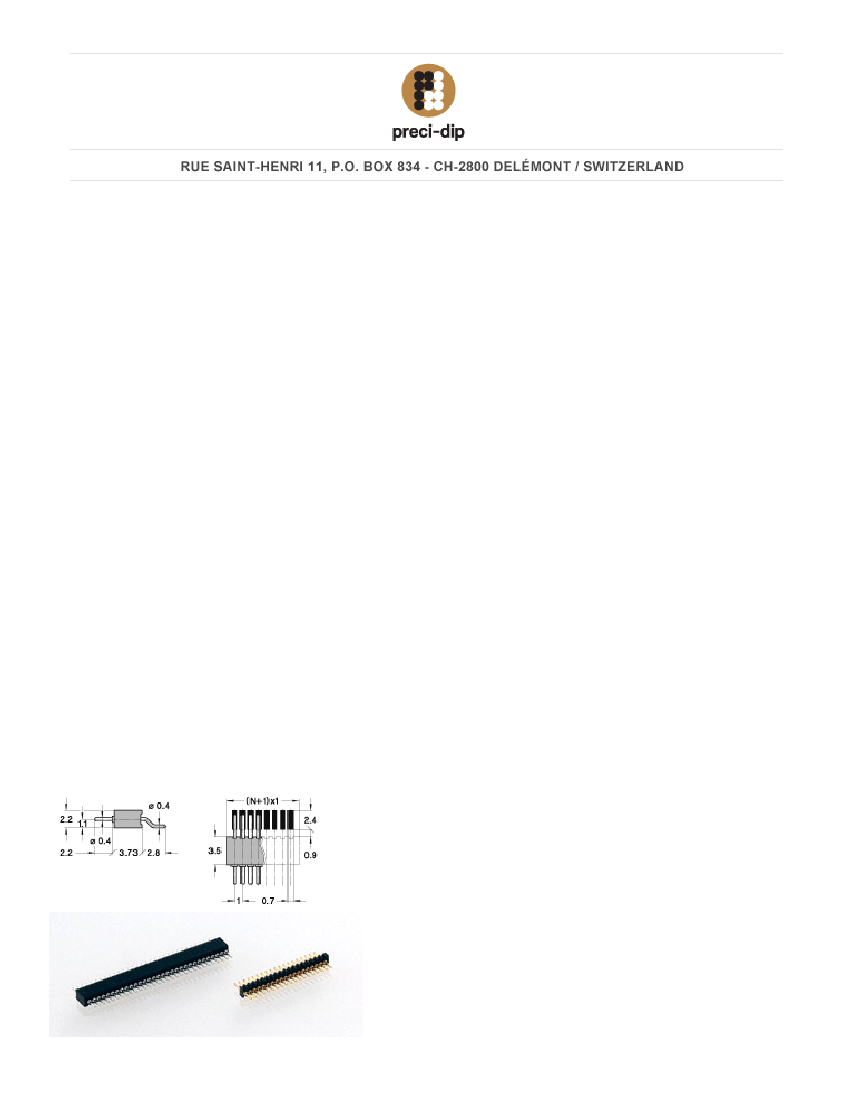

Spring-Loaded Connectors - PRECI-DIP SA - swiss world connects

Your selected product

PCB Connectors - Surface mount parallel

Series 860

860-10-NNN-40-001101

Single row

1 mm, Surface mount parallel

Ultraminiature PCB pin connectors

Solder tail / SMD parallel mount.

Technical specs.:

Insulator:

Flammability:

Contact:

Connecting pin Ø:

Mechanical life:

Rated current:

Dielectric strength:

Black glass filled polyester PCT-GF30-FR

UL 94V-O

Brass CuZn36Pb3 (C36000)

0.40 mm

Min. 500 cycles

1A

Min. 500 V RMS

Coplanarity SMD terminations: Max. 0.1 mm (measured on 25 mm long connectors)

www.precidip.com/AppHost/9695,1/Scripts/Modules/Catalog/default.aspx?s=860-10-NNN-40-001101&i=703&p=209#1

1/2
