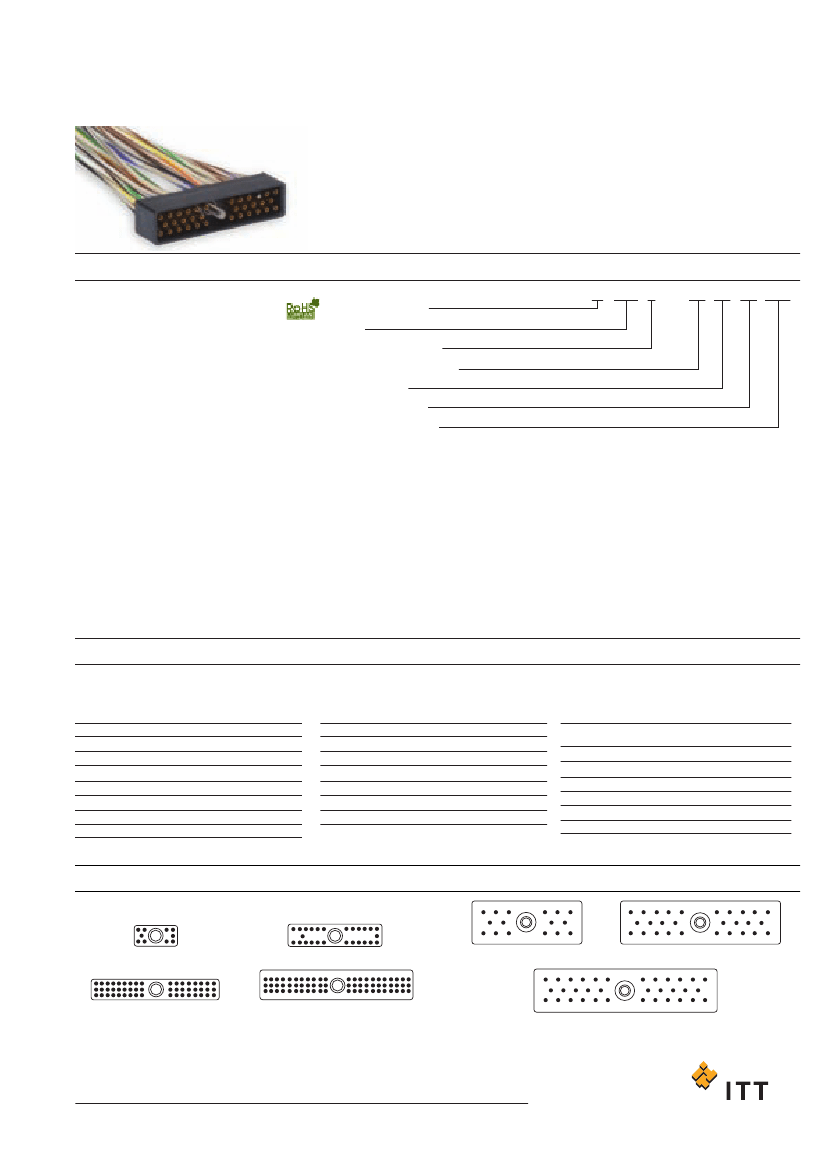

Micro Center Jackscrew

The MJS jackscrew series provides a reliable interconnect for board-to-board,

board-to-cable and in-line cable-to-cable applications. Layouts accommodating

up to 76 MICROPIN/MICROSOCKET

contacts are available, with the same

wide range of options as are offered with the other MICRO Line products offered

in this catalog.

MJS

How to Order

RoHS COMPLIANCE

SERIES

INSULATOR MATERIAL

CONTACT ARRANGEMENT

CONTACT TYPE

TERMINATION TYPE

TERMINATION CODES

SERIES

MJS - Micro Center Jackscrew

INSULATOR MATERIAL

B - Diallyl phthalate

V - Polyester

U - Polyetherimide

R - Polyphenylene sulfide

CONTACT ARRANGEMENTS

Unshrounded Receptacle: 10, 26, 51, 66

Shrouded Receptacle; 10, 26, 34, 38, 42, 76

Low Profile Plug and Receptacle

(shrouded): 28

CONTACT TYPE

P - Pin

S - Socket

TERMINATION TYPE

H - Insulated wire harness.

I - Integral tail (MJSV-28S only).

L - Solid - uninsulated wire.

S - Solder pot to accept #26 AWG

harness wire.

T - Thru bundle pigtail (MJSV-28P only).

TERMINATION CODE*

(H) 001

- 18" , 7/34 strand, #26 AWG,

MIL-W-16878/4, Type E Teflon,

yellow.

- 18", 7/34 strand, #26 AWG,

MIL-W-16878/4, Type E Teflon,

color coded to MIL-STD-681

System I.

- 1/2" uninsulated solid #25

AWG gold plated copper.

- 1" uninsulated solid #25 AWG

gold plated copper.

MJS

001

(H) 003

(L) 1

(L) 2

* See Termination Codes shown below.

Standard Wire Termination Codes

The following termination codes are listed for your information. For additional codes please refer to Appendix on page 79 and 81.

All wire lengths are minimum.

Harness Type (H)

#26 AWG per MIL-W-16878/4 Type E Teflon, 7/34 stranded.

Solid Uninsulated Type (L)

#25 AWG gold plated solid copper.

Length

3 (76.2)

6 (152.4)

8 (203.2)

10 (254.0)

12 (304.8)

18 (457.2)

20 (508.0)

All Yellow

H 020

H 019

H 026

H 029

H 028

H 001

H 038

Color Coded

H 027

H 016

H 034

H 025

H 002

H 003

H 023

Length

24 (609.6)

30 (762.0)

36 (914.4)

48 (1219.2)

72 (1828.8)

120 (3048.0)

All Yellow

H 009

H 010

H 011

H 013

H 017

H 042

Color Coded

H 004

H 005

H 006

H 048

H 046

H 041

Termination

Code

L61

L56

L57

L39

L58

Length

Termination

Code

L14

L16

L10

Length

.125 (3.18)

.150 (3.81)

.190 (4.83)

.250 (6.35)

.375 (9.53)

.500 (12.70)

.750 (19.05)

1.000 (25.40)

1.500 (38.10)

2.000 (50.80)

2.500 (63.50)

3.000 (76.20)

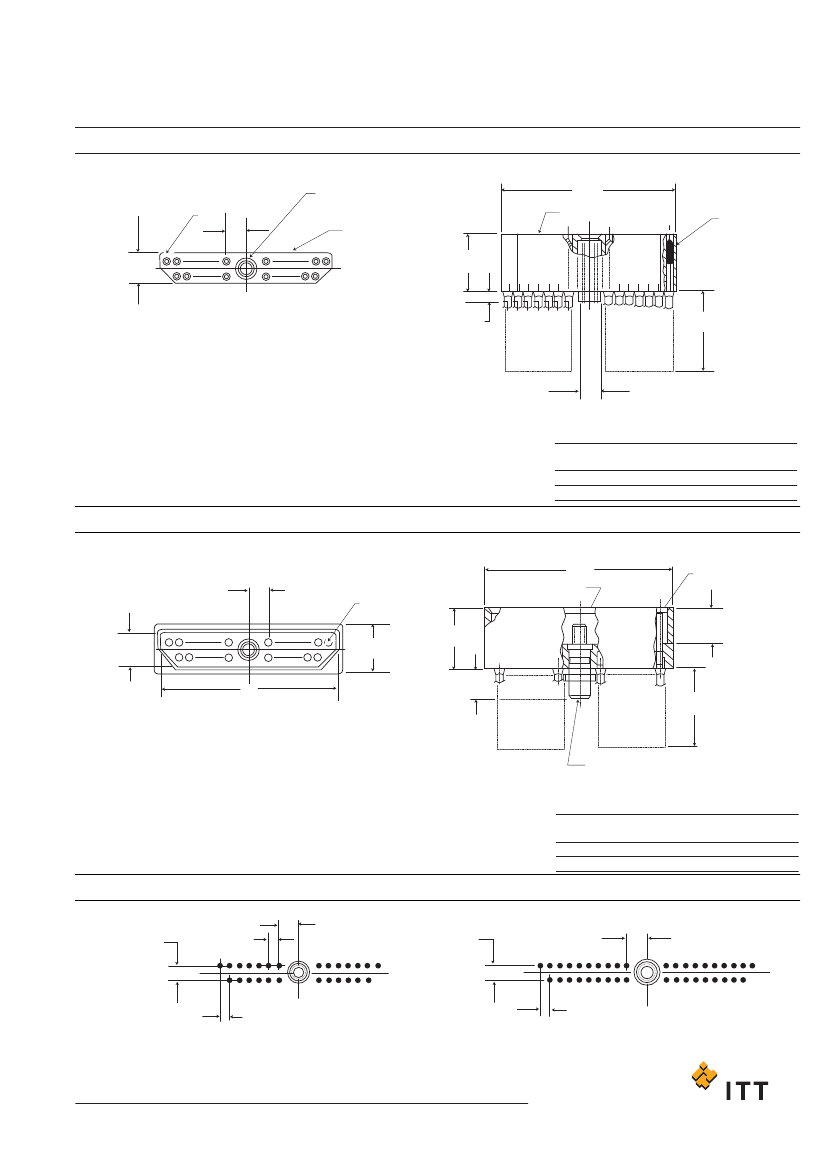

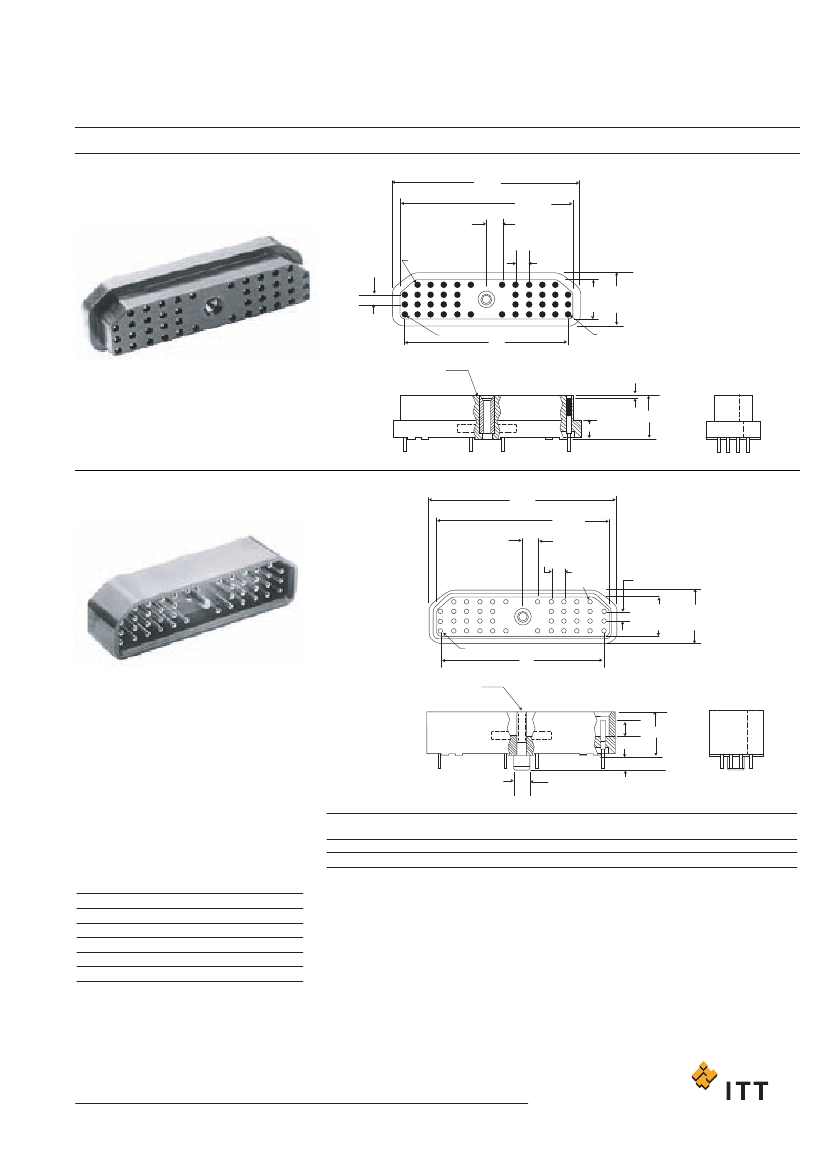

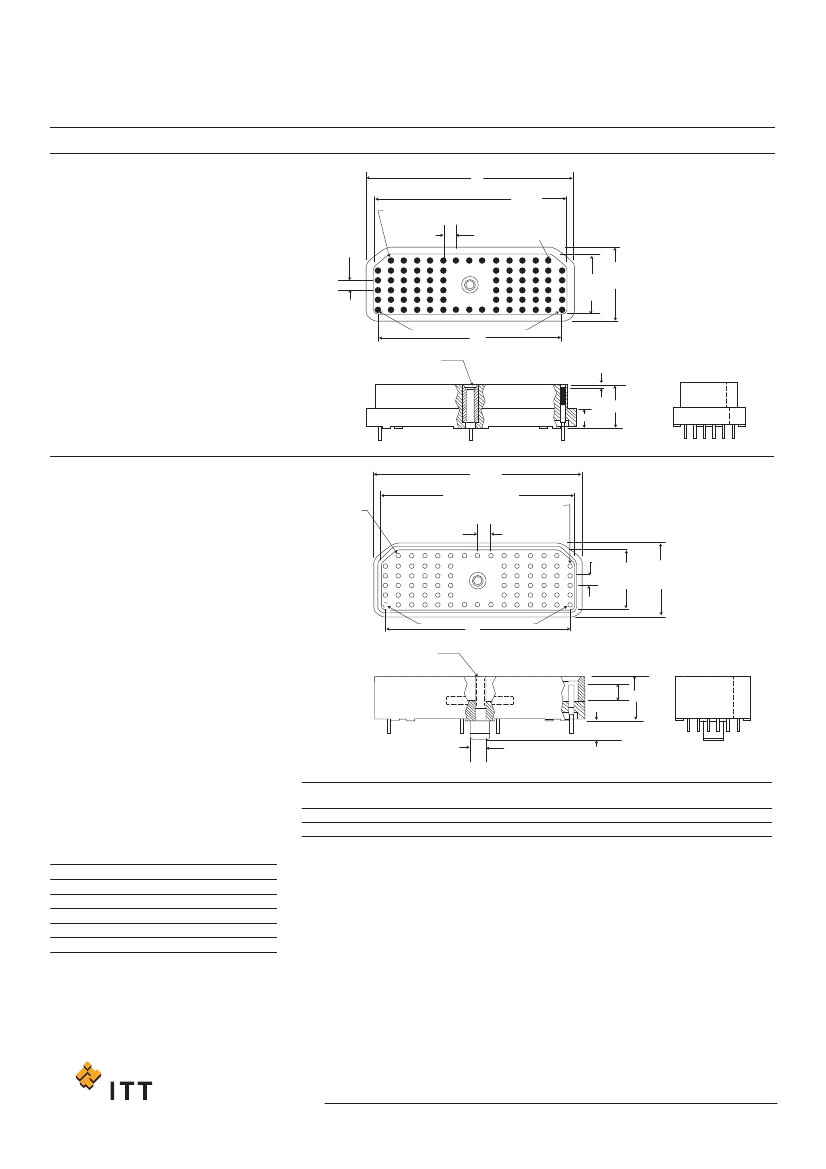

Contact Arrangements

Face view of pin-use reverse order for socket

10 Contacts

26 Contacts

16 Contacts**

28 Contacts**

51 Contacts

66 Contacts

MJSB/MJSU (unshrouded)

34 Contacts

MJSV (shrouded)

*Low profile configuration

**MJSV & MJSR

Identification numbers are for reference only and do not appear on connectors.

Dimensions shown in inch (mm)

Specifications and dimensions subject to change

www.ittcannon.com
