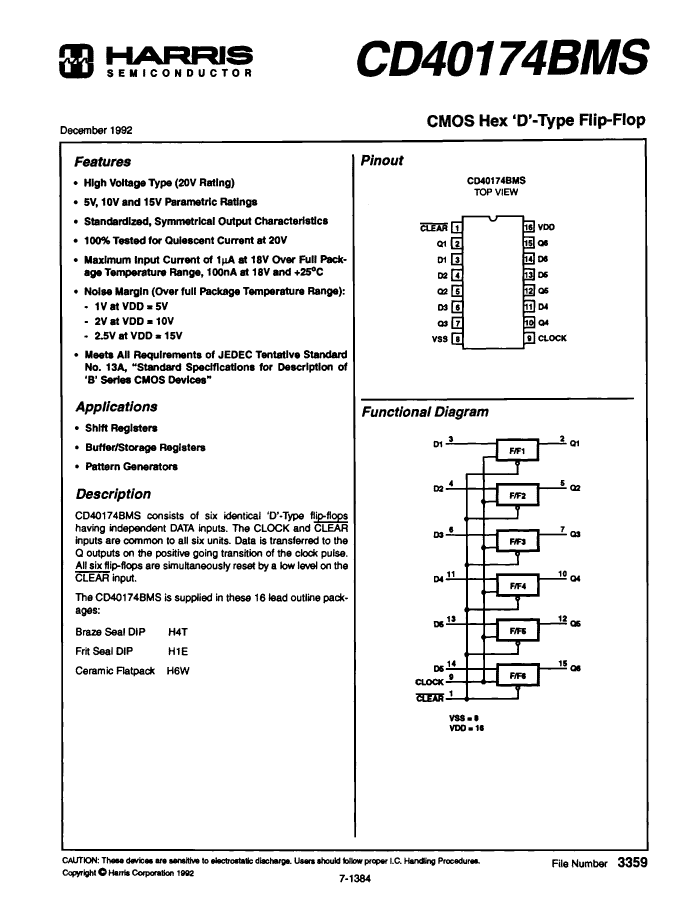

5962R9660501VXX datasheet, PDF

5962R9660501VXX: DescriptionD Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, CMOS, CDFP16; Categorylogic logic; File Size280KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

5962R9660501VXX Overview

D Flip-Flop, 4000/14000/40000 Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, CMOS, CDFP16

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT
series	4000/14000/40000
JESD-30 code	R-CDFP-F16
Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16

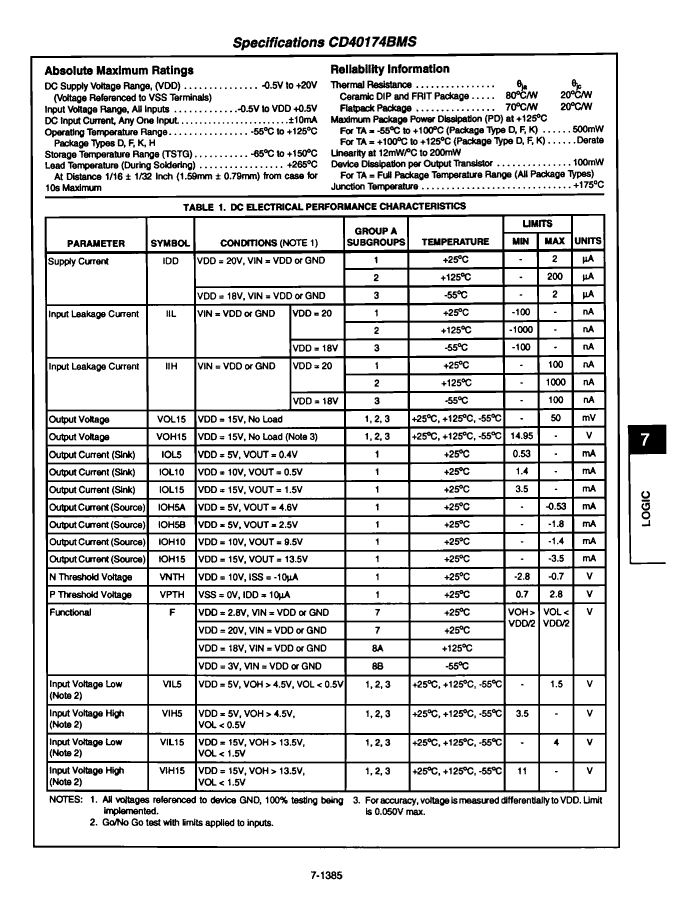

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK

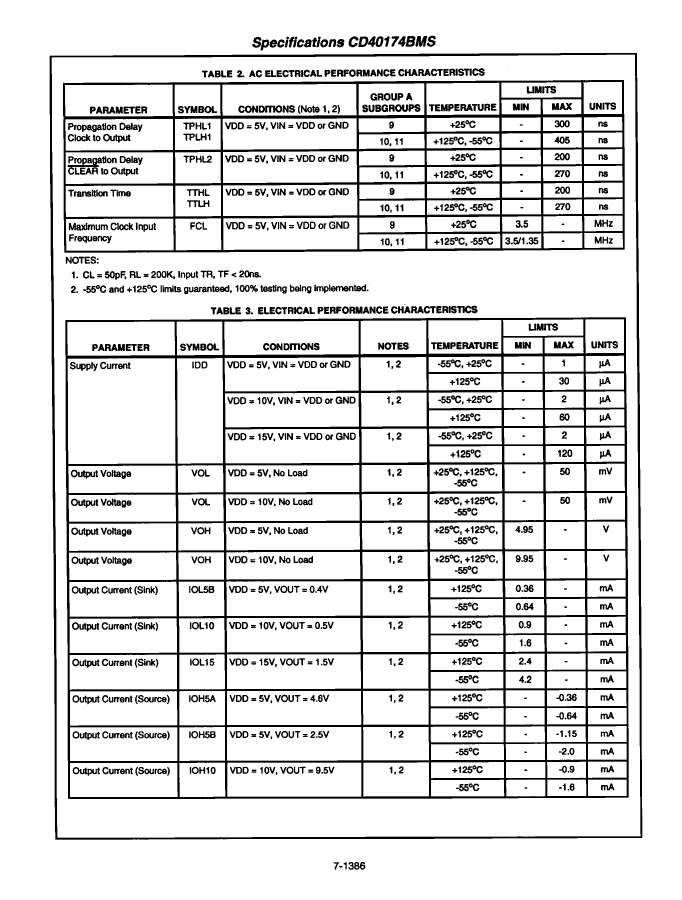

propagation delay (tpd)	405 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

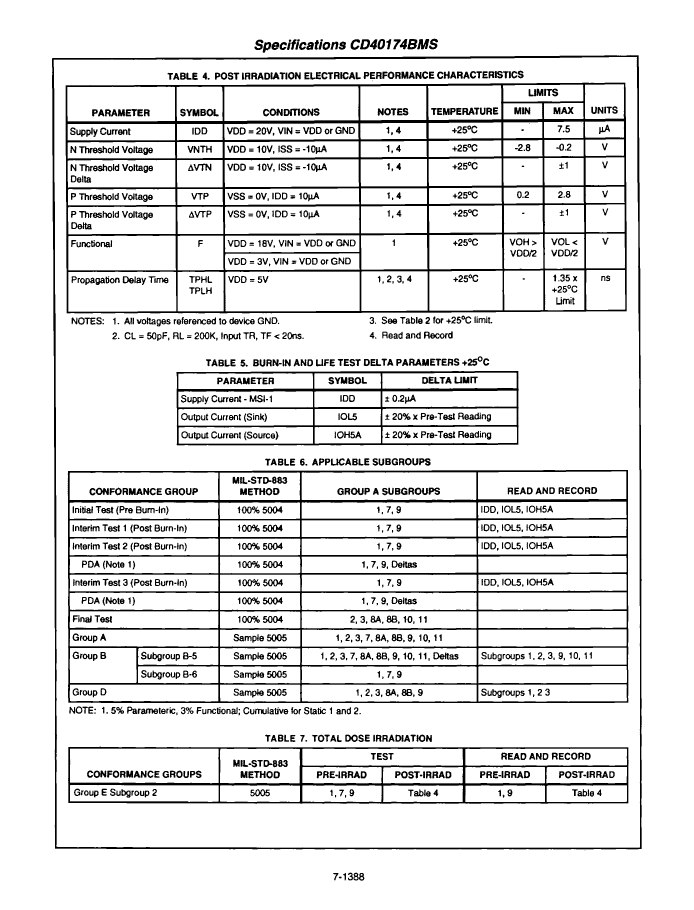

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE

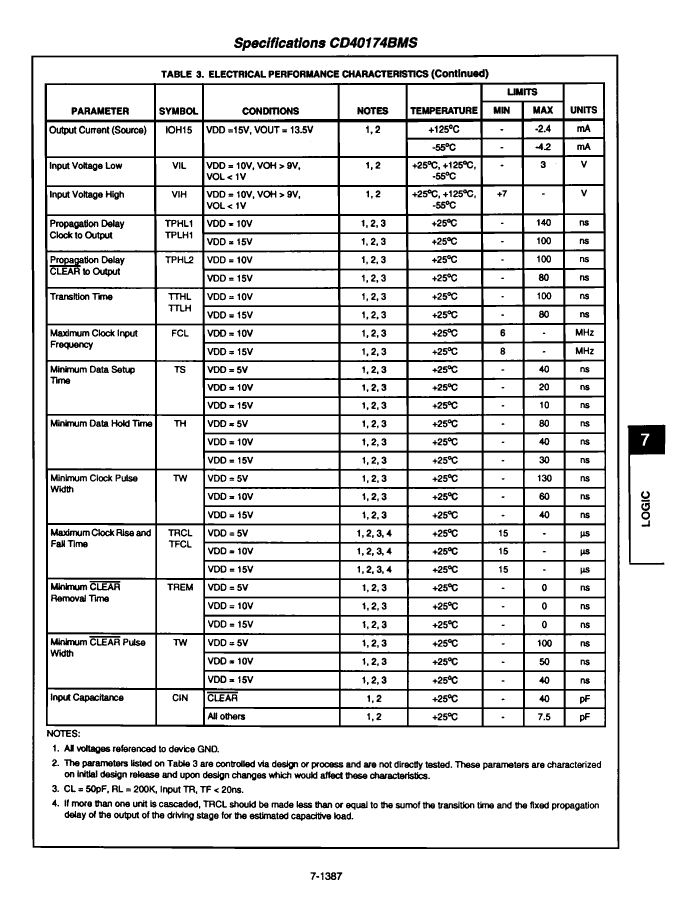

minfmax	2.59 MHz
Base Number Matches	1
