SMAZ5938B-E3/5A datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> SMAZ5938B-E3/5A

SMAZ5938B-E3/5A: Descriptiondiode zener 36v 500mw do214ac; CategoryDiscrete semiconductor diode; File Size91KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SMAZ5938B-E3/5A Overview

diode zener 36v 500mw do214ac

SMAZ5938B-E3/5A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	38 Ω
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	36 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	5%
Working test current	10.4 mA

Preview

Download Datasheet

View All

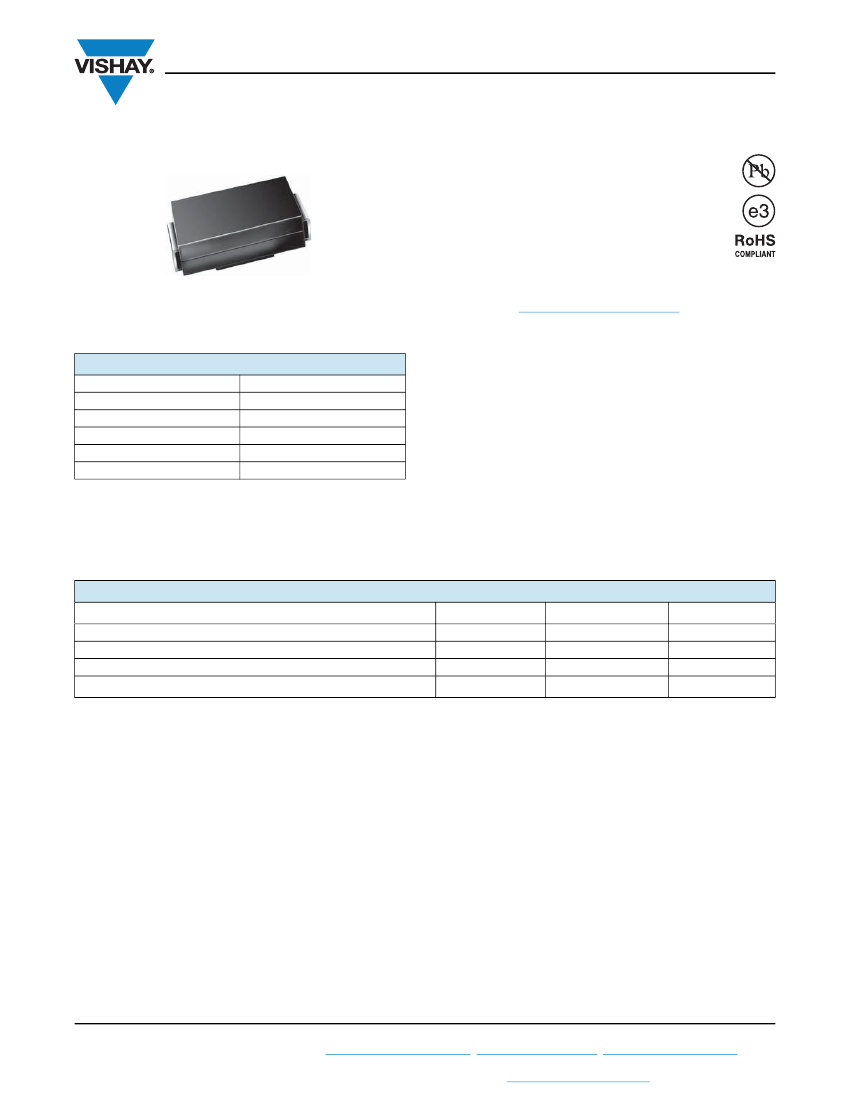

SMAZ5919B thru SMAZ5945B

www.vishay.com

Vishay General Semiconductor

Surface Mount Power Voltage-Regulating Diodes

FEATURES

•

Low profile package

• Ideal for automated placement

• Low Zener impedance

• Low regulation factor

• Meets MSL level 1, per

LF maximum peak of 260 °C

J-STD-020,

DO-214AC (SMA)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

MECHANICAL DATA

PRIMARY CHARACTERISTICS

tot

at T

= 75 °C

tot

at T

= 25 °C

max.

specification

Int. construction

5.6 V to 68 V

1500 mW

500 mW

150 °C

Pulse current

Single

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant and commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

Color band denotes cathode end

per

TYPICAL APPLICATIONS

For general purpose regulation and protection applications.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum steady state power dissipation at T

= 75 °C (fig. 1)

(1)

Maximum steady state power dissipation at T

= 25 °C (fig. 1)

Operating junction and storage temperature range

(2)

(3)

SYMBOL

tot

, T

STG

VALUE

1500

500

1.5

- 65 to + 150

UNIT

°C

Maximum instantaneous forward voltage at 200 mA for all types

Notes

(1)

Mounted on PCB with 5.0 mm x 5.0 mm copper pads attached to each terminal

(2)

Mounted on minimum recommended pad layout

(3)

Pulse test: 300 μs pulse width, 1 % duty cycle
