C150PB datasheet, PDF - EEWORLD Datasheet

C150PB: Descriptionthyristor scr 70a 1200v TO-94; CategoryAnalog mixed-signal IC Trigger device; File Size1MB，5 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

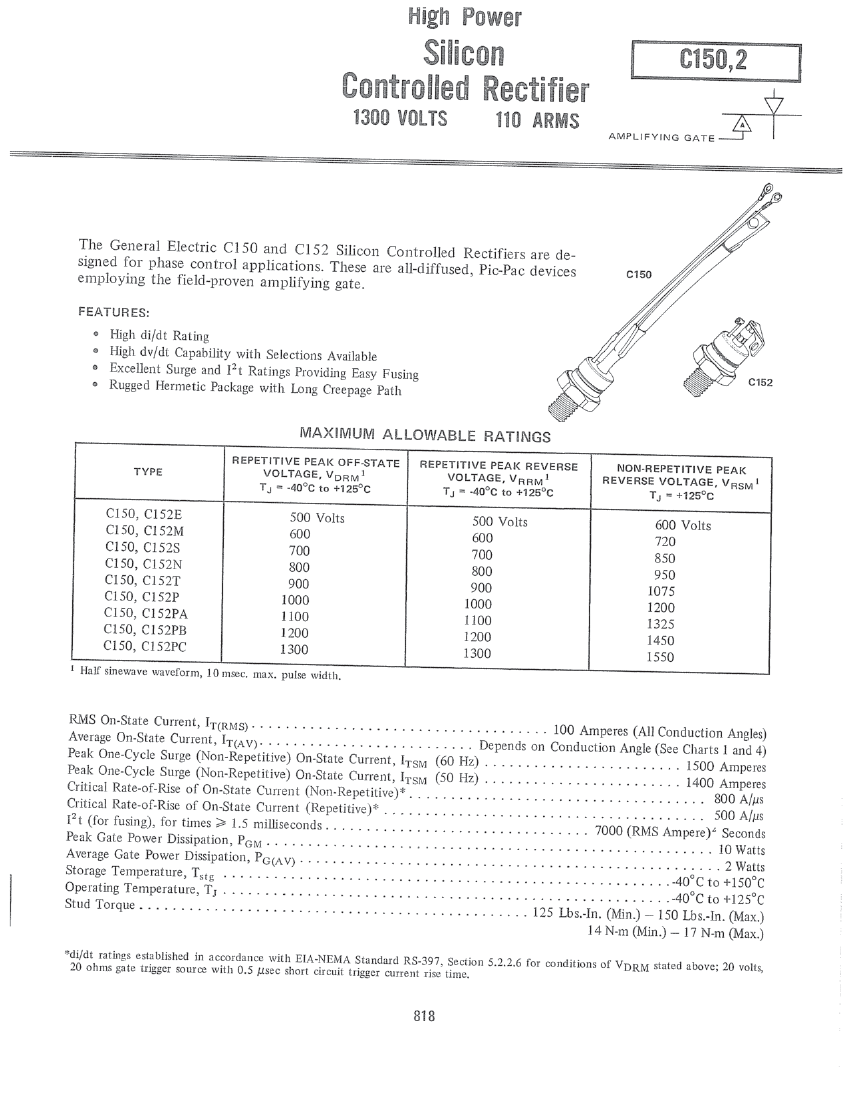

C150PB Overview

thyristor scr 70a 1200v TO-94

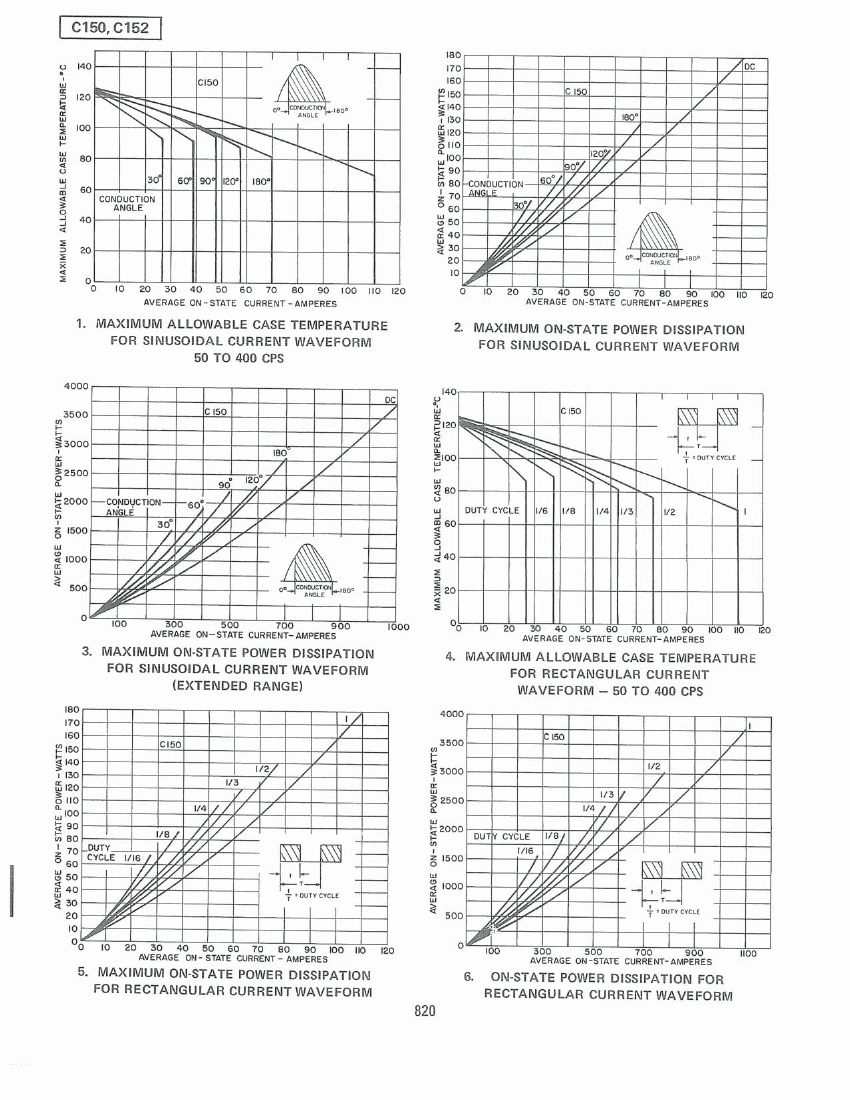

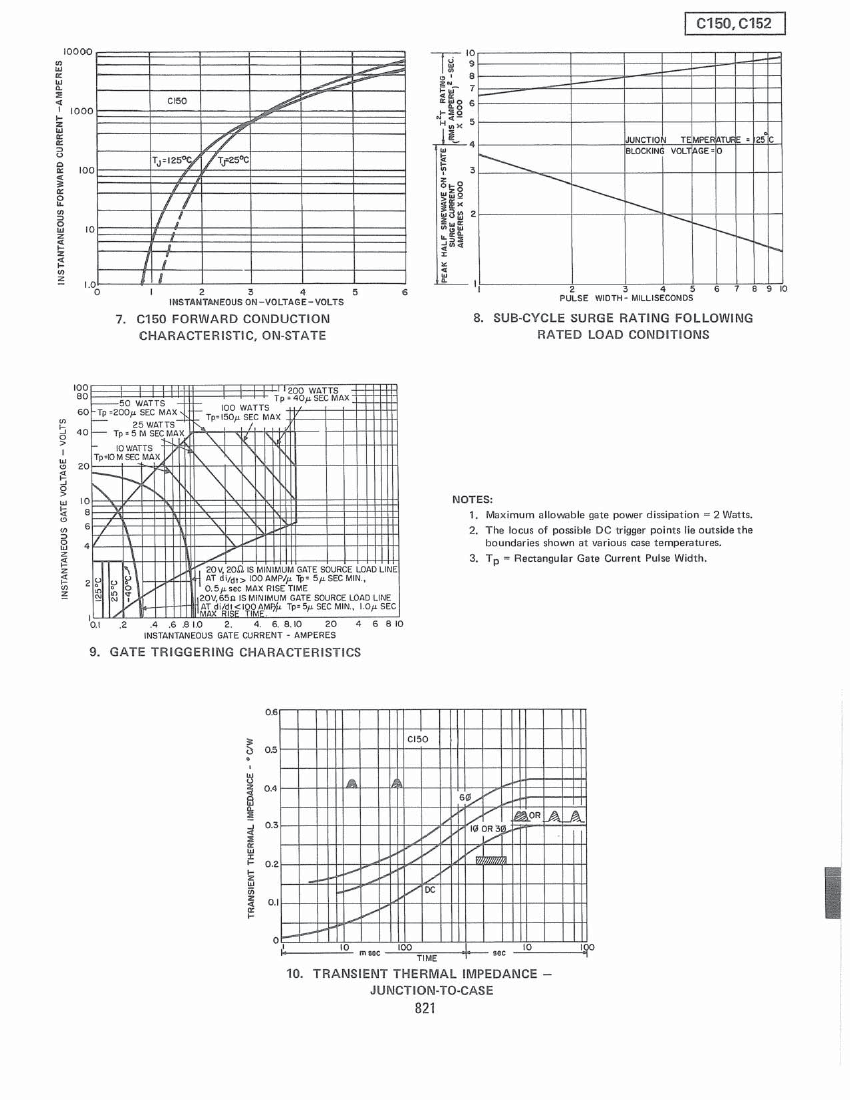

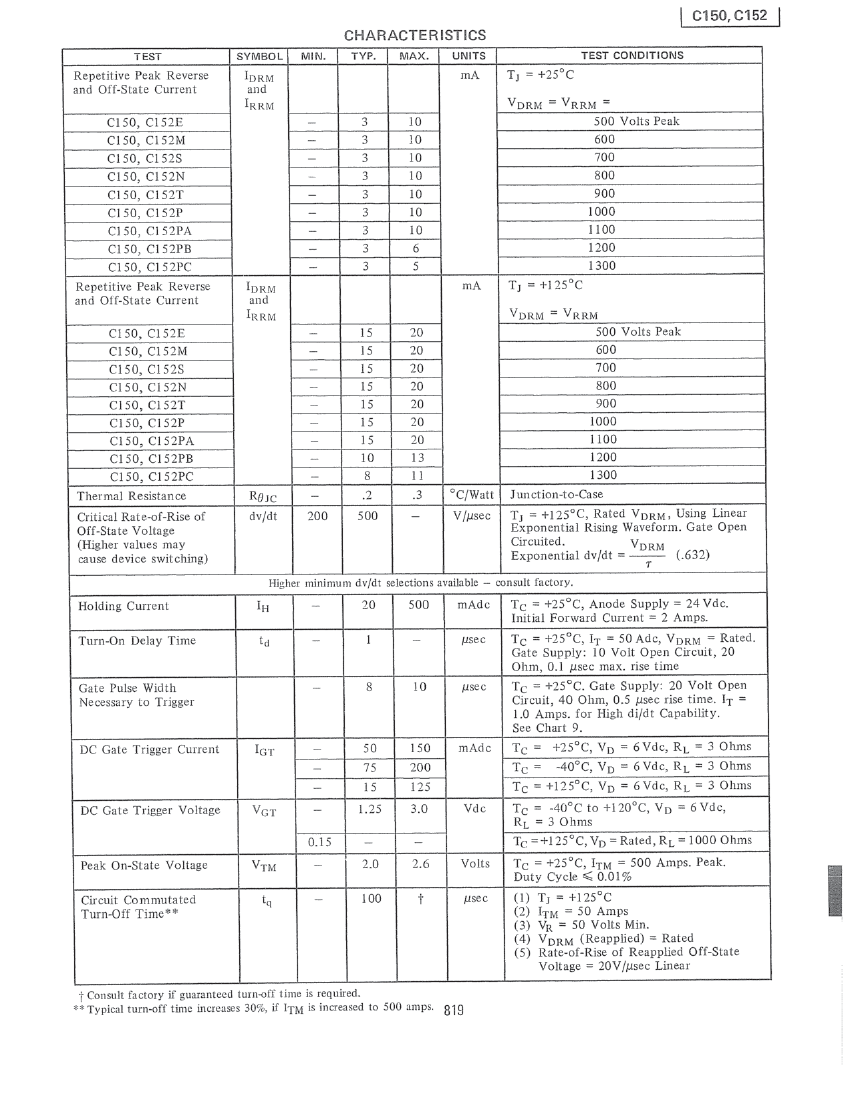

Parameter Name	Attribute value
Maker	POWEREX
package instruction	POST/STUD MOUNT, O-MUPM-H3
Contacts	3
Reach Compliance Code	unknown
Other features	TO-83 FLAGED LEAD ALSO AVAILABLE
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	500 mA
JESD-30 code	O-MUPM-H3
Maximum leakage current	13 mA
On-state non-repetitive peak current	1500 A
Number of components	1
Number of terminals	3
Maximum on-state current	70000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C

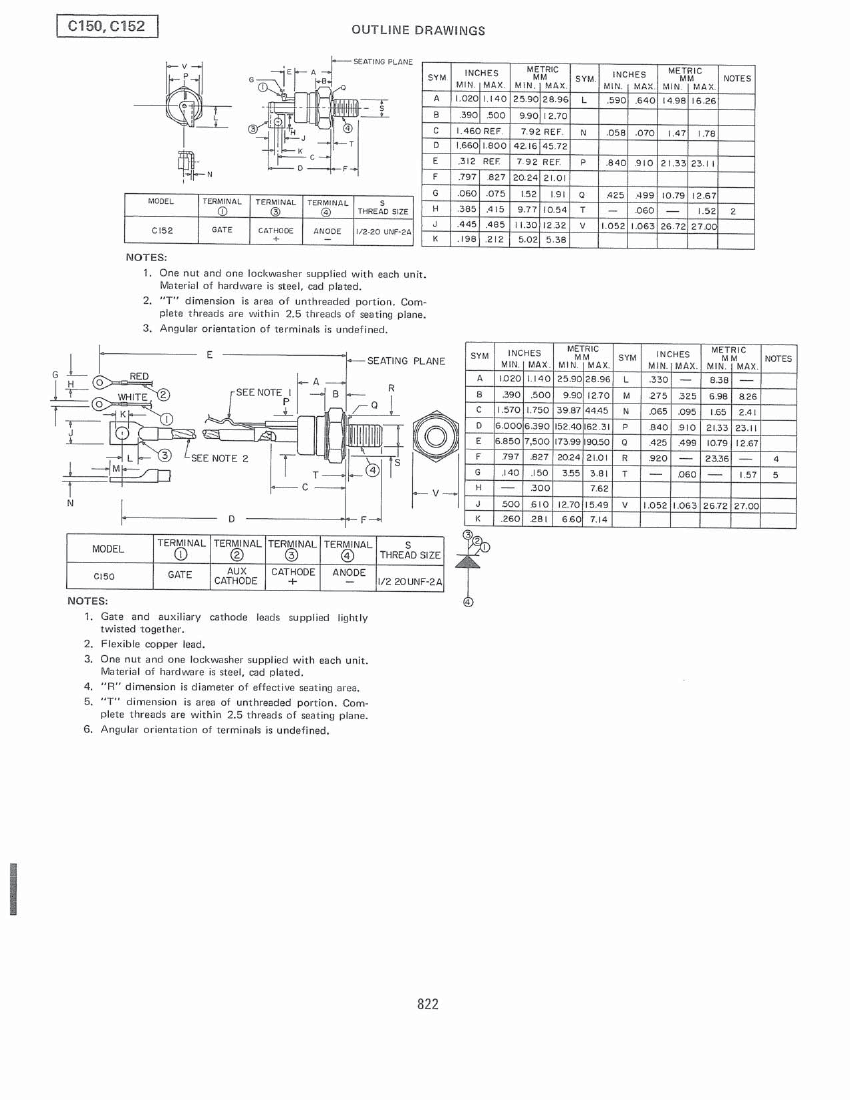

Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	125.6 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
