35978-0523 datasheet, PDF - EEWORLD Datasheet

35978-0523: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Yellow Insulator, Receptacle; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35978-0523 Overview

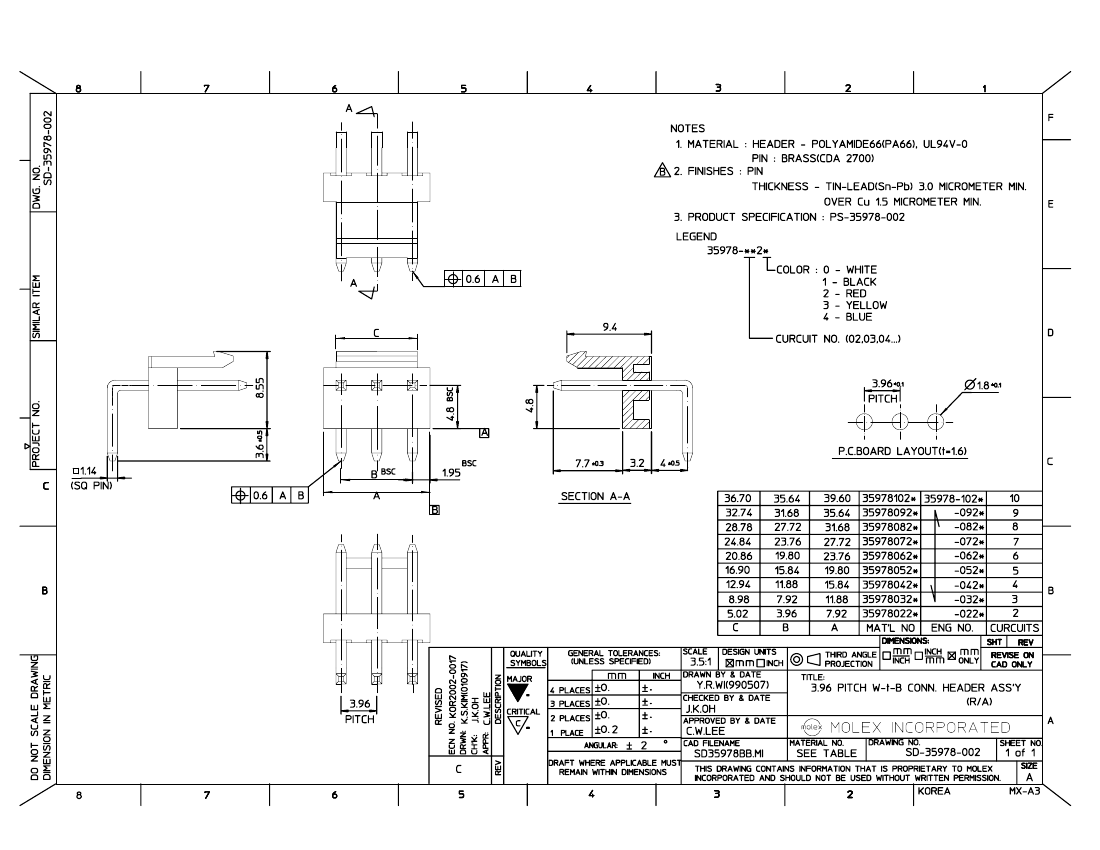

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Yellow Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303445255
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Manufacturer	Molex
Samacsys Modified On	2022-06-13 23:12:56
YTEOL	0
Other features	WITH BAG PACKAGING
body width	0.337 inch
subject depth	0.528 inch
body length	0.78 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN/LEAD OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
maximum insertion force	13.344 N
Insulation resistance	500000000 Ω
Insulator color	YELLOW
insulator material	POLYAMIDE
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL
Terminal length	0.142 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	5
Evacuation force-minimum value	.5838 N
