Industrial
rack and panel connectors
Red range
connectors

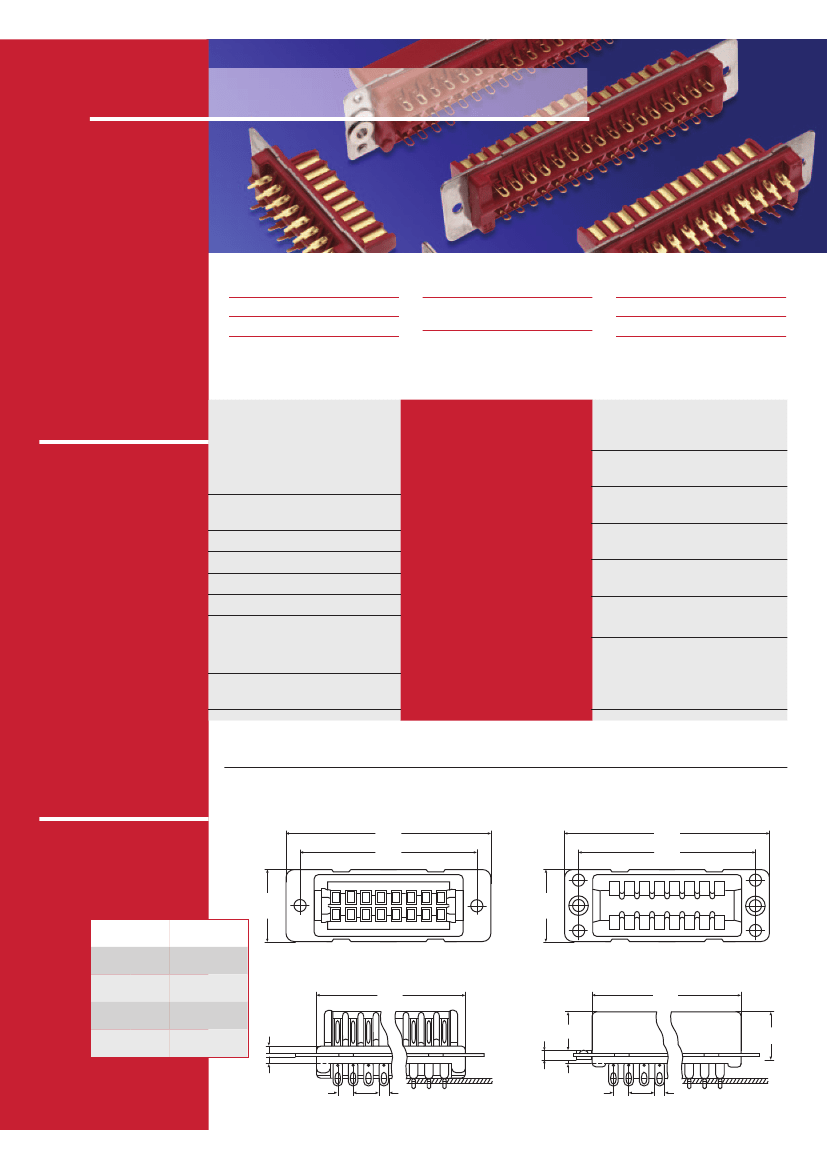

Connectors
Industrial
rack and panel connectors
This compre h e n s i v e
range of rugged rack and
panel connectors is
available in four sizes
with options for both pcb
or cable mounting.
These connectors are
used throughout industry
in blind mating
applications.
FEATURES
Rugged construction
180 polarised
Dowel polarised for blind
mating
o
Floating bushes to assist
alignment
Excellent current carrying
characteristics
Pcb or cable mounted
Available in four sizes
Cover with universal top or
side entry cable clamp
Technical Data
MATERIALS
Insulator
Contact
Mounting plates
Latching screws & bushes
Dowels
Covers
Nylon PF or Diallyl-phthalate (DAP)
Copper alloy plated hard
acid gold
Stainless steel
Mild steel bright nickel plate
Brass nickel plate
Aluminium alloy
ELECTRICAL
Current
All contacts (simultaneously)
Working voltage
Proof voltage
Contact resistance - (initially)
- (after conditioning)
Insulation resistance – (initially)
- (after conditioning)
Nylon PF
at 80˚C Tamb.
5A max
800V d.c.
or a.c.peak
3.5k V d.c.
or a.c.peak
5mΩ max
10mΩ max
10
5
MΩ min
10
4
MΩ min
DAP
at 100˚C Tamb.
5A max
800V d.c.
or a.c.peak
3.5k V d.c.
or a.c.peak
5mΩ max
10mΩ max
10
7
MΩ min
10
6
MΩ min
MECHANICAL
Mechanical operations
Insertion and withdrawal force
(per contact pair)
Nylon PF
500
2.3N max
/0.8 min
DAP
500
2.3N max
/0.8 min
Red range
ENVIRONMENTAL
Climatic category
40/100/21
55/125/56
Barrier Polarised
Plug and socket
dimensions
No. of
Ways
8
A max
43.94
62.99
82.04
B crs
34.92
53.97
73.02
92.07
C max
26.42
45.47
64.52
Plug
A
B
1
3
4
5
6
8
Socket
A
B
2
7
22.35
9
10
11
12
13
14
15
16
22.35 max
9
1
10
2
11
3
12
4
13
5
14
6
15
7
16
8
16
24
32
C
C
2.29 min
83.57
12.20 max
101.09
14.73 max
2.03 min
4.70 nom
2.67 max
2.79 max
2.03 min
4.70 nom
2.67 max
Barrier Polarised
Solder termination PC termination
19.05 max
19.05 max
Plug
Solder termination
19.05 max
*R3.96
BUSH HOLES
3.18
Socket
PC termination
19.05 max
*R3.96
0.91
0.91
7.1
nom.
0.91
0.91
7.9
nom
4.0
0.76 nom
Bushes float 0.76 radially
* Note: Ends are relieved on
32 way sockets only
Plug plate
fixing holes 3.18ø
3.2

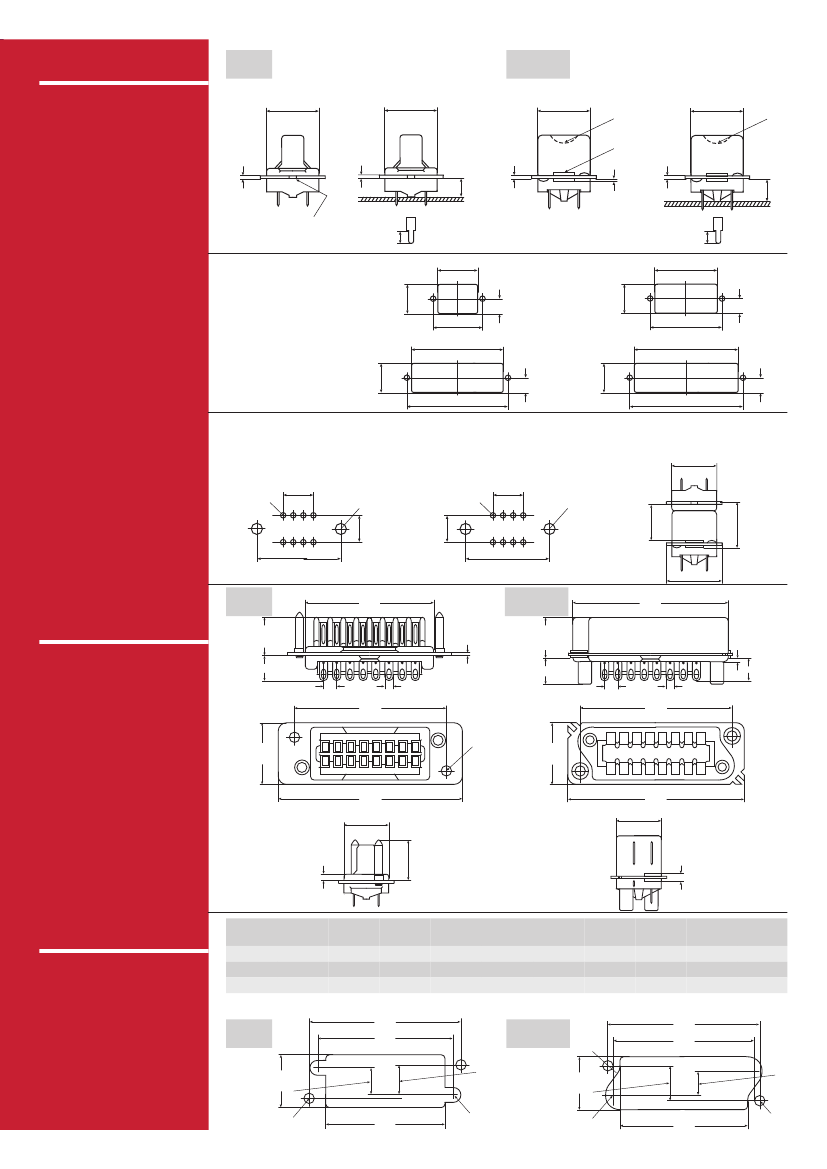

Mounting details
8 WAY
28.45
10.67
16 WAY
47.50
10.67
21.33
34.92
24 WAY
66.55
10.67
21.33
21.33
53.95
32 WAY
85.60
10.67
21.33
73.02
P.C.B. layout
View from rear of plug
No. of Pitches
x 4.7
ø1.57
View from rear of sockets
No. of Pitches
x 4.7
ø1.57
9.14
Barrier polarised plug
and socket mated
92.07
19.05 max
Inside
mounting
Outside
mounting
ø3.30
9.14
ø3.30
14.49 nom.
17.96 nom.
Dowel Polarised
Plug
14.99 max.
9.65 max.
B
B
A
Socket
14.99 max.
11.17 max.
22.35 max.
F
0.91
2.03 min.
9.14 max.
2.67 max.
G
Both holes
3.18ø
Red range
4.38 nom.
B
1
2
3
4
5
6
2.67 max.
4.38 nom.
7
8
22.35
max.
9
10
11
12
13
14
15
16
2 holes
3.18ø
22.35
max.
9
1
10
2
11
3
12
4
13
5
14
6
15
7
16
8
C
19.30 max.
H
19.30 max.
16.00 max.
2.79 max.
Dimensions
2.29 max.
Bushes float 0.75 radially
No. of
Ways
16 way
24 way
32 way
A
max
39.65
57.02
74.50
B
crs
51.41
68.68
85.95
C
max
62.15
79.45
96.77
D
crs
46.79
64.06
81.33
E
nom
40.64
57.91
75.54
F
max
57.90
74.17
91.95
G
crs
51.61
68.48
85.95
H
max
61.98
79.32
96.65
I
crs
46.81
63.58
81.33
J
nom
44.70
61.72
79.48
Mounting details
from wiring side
Plug
B
D
11.68
crs
Socket
G
3.55
rad
I
8.64
crs
19.81
8.64
crs
2 holes 3.30ø
E
21.08
11.68
crs
6.10 rad
J
2 holes
3.30ø
3.81 rad
ORDERING information
DESCRIPTION
Style
Gender
Plug
Barrier
Polarised
Socket
No. of Ways
8
16
24
32
8
16
24
32
8
16
24
32
8
16
24
32
16
24
32
16
24
32
ORDER CODE
Moulding Material
Nylon PF
Diallyl-Phthalate
RP8
RP16
RP24
RP32
RS8*
RS16*
RS24*
RS32*
RP8-T
RP16-T
RP24-T
RP32-T
RS8P-T
RS16P-T
RS24P-T
RS32P-T
RPD16
–
–
RSD16
–
–
DRP108
DRP116
DRP124
DRP132
DRS108*
DRS116*
DRS124*
DRS132*
DRP108-T
DRP116-T
DRP124-T
DRP132-T
DRS108P-T
DRS116P-T
DRS124P-T
DRS132P-T
DRPD116
DRPD124
DRPD132
DRSD116
DRSD124
DRSD132
Plug
Barrier
Polarised
P.C.B Tail
Socket
Plug
Dowel
Polarised
Socket
*Sockets are normally supplied with floating bushes to assist alignment when mounted on racks and chassis. For sockets without floating bushes – add
P
to end of order
code e.g. Order code RS24P.
ACCESSORIES
Contact
Arrangement
8
16
24
32
Description
8 way cover
16 way cover
Latch clip
ACCESSORY ORDERING INFORMATION
A max
32.51
51.56
70.61
89.66
B crs
34.92
53.97
73.02
92.07
Order Code
RC108
RC116
RL-H
C max
36.83
43.18
43.18
43.18
Description
24 way cover
32 way cover
Latch plate
D max
40.89
47.24
47.24
47.24
E max
9.40
12.70
15.74
15.74
Order Code
RC124
RC132
RL-L
E
A comprehensive
range
In addition to rack and
panel connectors we
supply a compre h e n s i v e
range of connectors for
a variety of applications
including general
industrial, I.T. and
m i l i t a r y.
