DK630-640
LED Digital Panel Meters
Specifications Installation and Operating Instructions

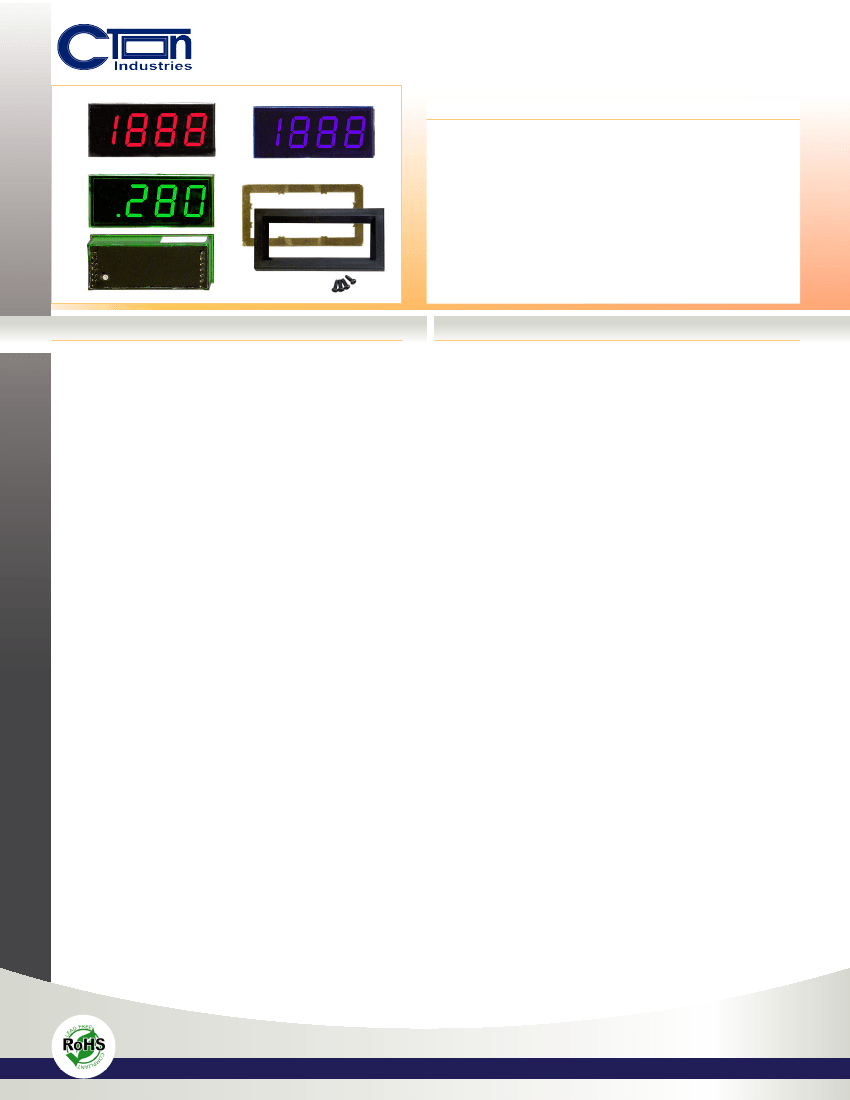

3½ Digit LED Display
FEATURES
}
}
}
}
}
}
}
}
}
}
}0.56",}3½}digit}high}intensity}LED}display
}Available}in}RED,}BLUE}or}GREEN
}User-selectable}decimal}points
Polycarbonate}case
}Optional}bezel}mount
SPECIFICATIONS
DISPLAY
Numeral Size:
Overrange:
Polarity Indication:
Supply Voltage:
Input Ranges:
Input Impedance:
Common Mode Range:
.56” (14.27 mm)
three lower order digits blank for
inputs >1999 & < -1999
automatic (-) for negative
+5 VDC @ 40 mA
±200 mV, ± 2 V, ±20 V
1000 MΩ (200 mV)
1 MΩ (other ranges)
± 1 VDC
±1% F.S. ± 2 counts
3 per second
ORDERING INFO
PART NUMBER
METER COLOR
METER INPUT
DK630 ......................................... RED .............................................200mV
DK631 ......................................... RED ................................................... 2V
DK632 ......................................... RED ................................................. 20V
DK633 ....................................... GREEN ...........................................200mV
DK634 ....................................... GREEN ................................................. 2V
INPUTS
DK635 ....................................... GREEN ............................................... 20V
DK636 .........................................BLUE ............................................200mV
.
DK637 .........................................BLUE .................................................. 2V
.
DK638 .........................................BLUE ................................................ 20V
.
DK640 ........................... RED with hold function ...............................200mV
DK641 ........................... RED with hold function ..................................... 2V
DK642 ........................... RED with hold function .................................. 20V
ACCESSORIES
PERFORMANCE
Accuracy:
Sampling Rate:
ENVIRONMENT
Operating Temperature: 0 to 50 °C
Max Humidity:
95% (non-condensing)
CONNECTION
12 pin
DLA-BEZ .............................................................................Bezel Assembly
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
CVC ..............................................................................................Calibrator
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
LED Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LED Display
DK630-640

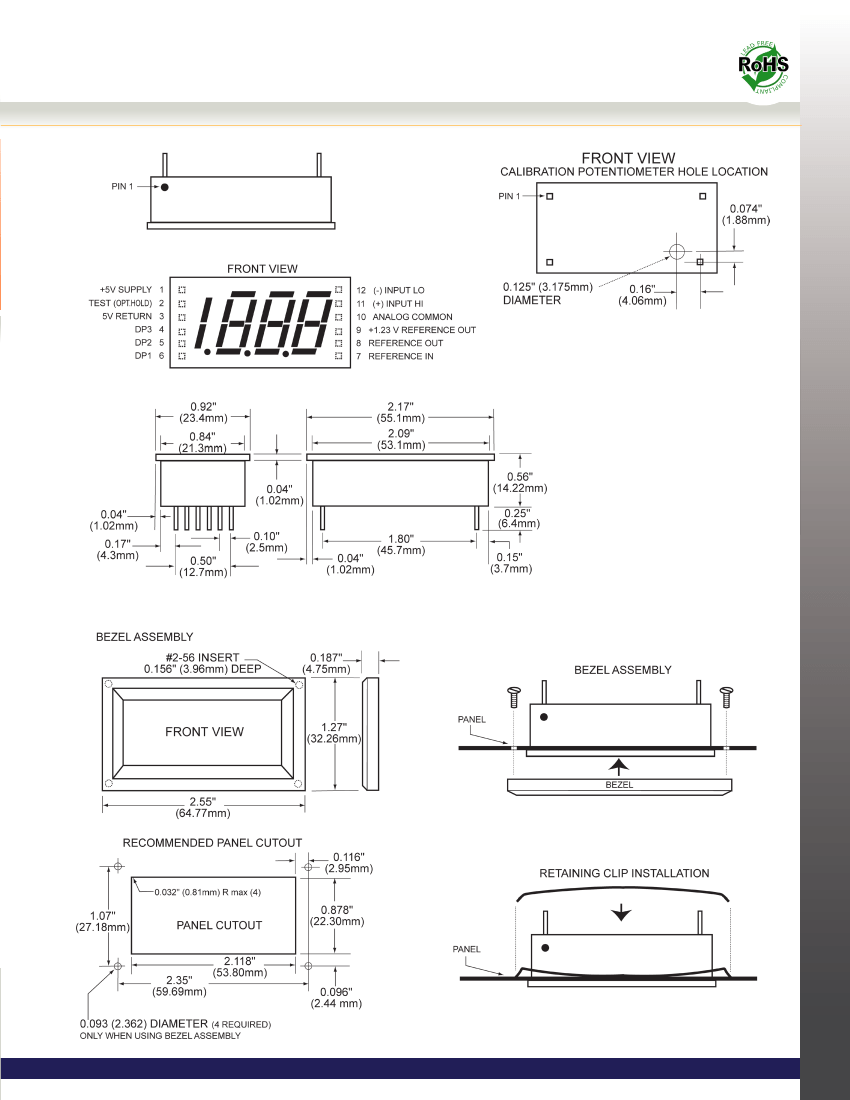

DIMENSIONS
Pin Dimensions: 0.025" (0.626 mm) x 0.025" (0.626 mm)
To enable DPs (Pin 4-6) connect to
Pin 3 (5V return)
Pin 3 should be tied to Pin 12 for normal operation
Connect Pins 7 & 8
For hold option, connect Pin 2 to Pin 1 (+5V supply)
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
