170M6314 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 170M6314

170M6314: DescriptionElectric Fuse, 1000A, 700VAC, 200000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size205KB，4 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

170M6314 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	170M6314	-	-	View	Buy Now

170M6314 Overview

Electric Fuse, 1000A, 700VAC, 200000A (IR), Inline/holder,

170M6314 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	51 mm
body height	76 mm
Body length or diameter	76 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	140000 J
Manufacturer's serial number	170M
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	76mm x 51mm x 76mm
Rated breaking capacity	200000 A
Rated current	1000 A
Rated voltage (AC)	700 V
Guideline	CE; IEC; UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

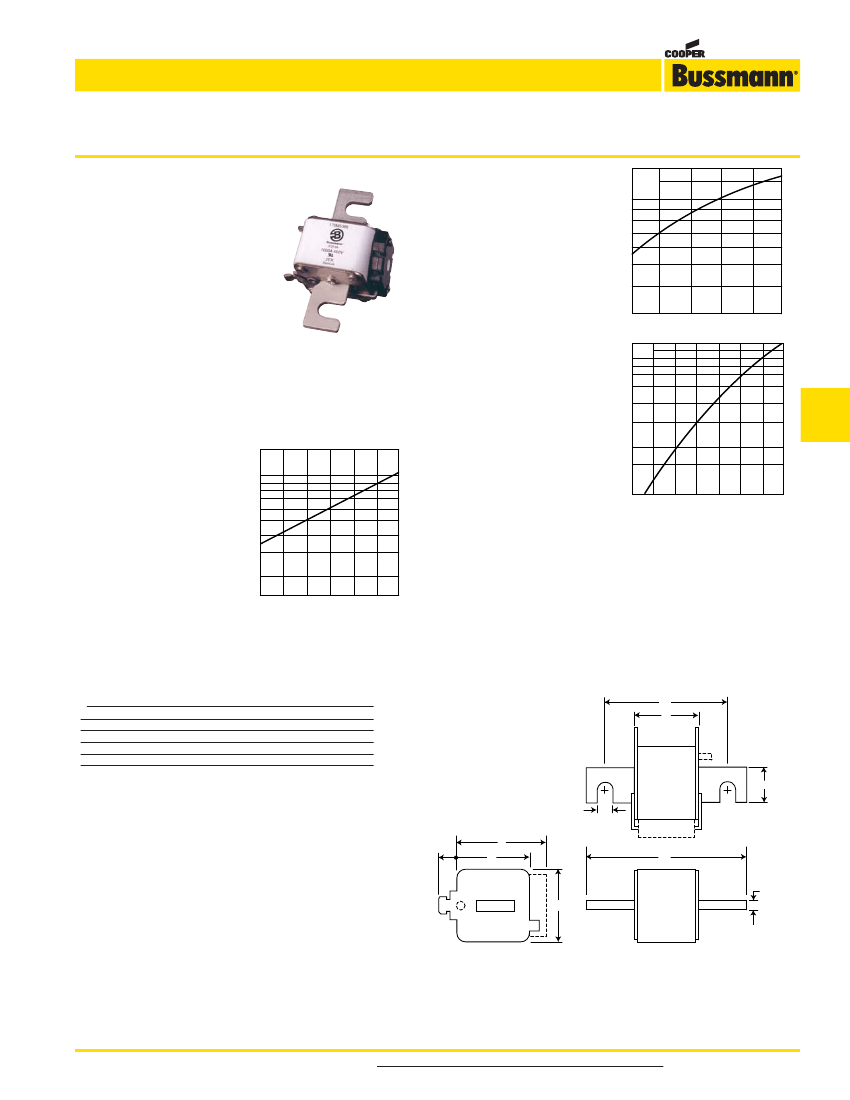

High Speed Fuses

Square Body French Style — 690V/700V (IEC/UL):

40-1500A

690V/700V (IEC/UL) 40-1500A

Specifications

Description:

Square body French

style high speed fuses.

Dimensions:

See dimensions

illustration.

Ratings:

Volts: —

—

Amps: —

IR: —

690Vac (IEC)

700Vac (UL)

40-1500A

200kA RMS Sym.

Arc Voltage

This curve gives the peak

arc voltage, UL, which may

appear across the fuse

during its operation as a

function of the applied

working voltage, Eg, (rms)

at a power factor of 15%.

Power Losses

Watts loss at rated current

is given in the electrical

characteristics. The curve

allows the calculation of

the power losses at load

currents lower than the

rated current. The correc-

tion factor, Kp, is given as

a function of the RMS load

current, Ib, in % of the

rated current.

1.4

1.2

200

300

400

500

600 690

1.0

0.8

0.6

0.5

0.4

0.3

0.2

Agency Information:

CE, Designed and tested to IEC

60269: Part 4, UL Recognized.

Electrical Characteristics

Total Clearing I

The total clearing I

t at

rated voltage and at power

factor of 15% are given in

the electrical characteris-

tics. For other voltages, the

clearing I

t is found by mul-

tiplying by correction factor,

K, given as a function of

applied working voltage,

Eg, (rms).

1.5

1.0

High Speed

Fuses

0.1

0.5

0.4

0.3

0.2

100 200 300 400 500 600 690

30 40 50 60 70 80 90 100%

Features and Benefits

• Excellent dc performance

• Low arc voltage and low energy let-through (I

• Low watts loss

• Superior cycling capability

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

Dimensions (mm)

Type -E/-, -EKN/-

Size

102

111

126

1mm = 0.0394” / 1” = 25.4mm

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp

163
