U2BC44,U2GC44,U2JC44

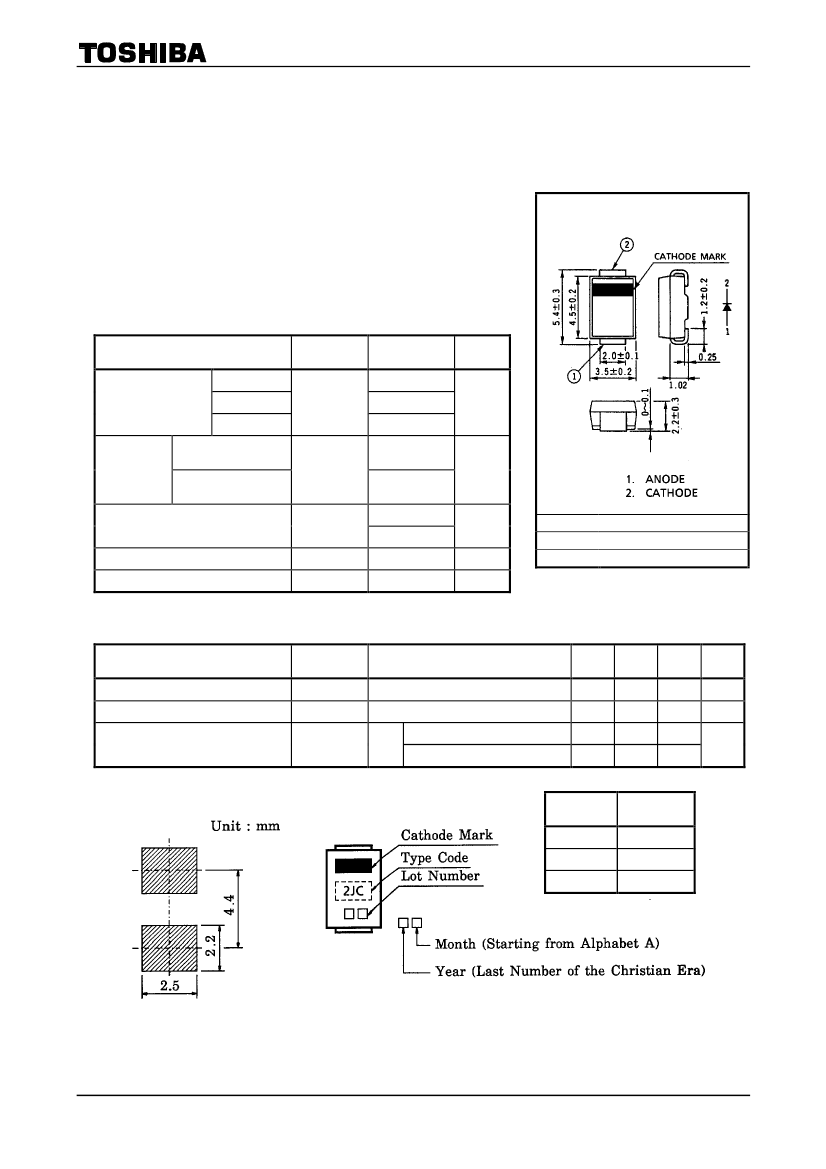

TOSHIBA SCHOTTKY BARRIER RECTIFIER SCHOTTKY BARRIER TYPE
U2BC44,U2GC44,U2JC44
GENERAL PURPOSE RECTIFIER APPLICATIONS
l
Repetitive Peak Reverse Voltage
l
Average Forward Current
l
Mini Plastic Mold Package
: V
RRM
= 100, 400, 600 V
: I
F (AV)
= 2.0 A
Unit: mm
MAXIMUM RATINGS
(Ta = 25°C)
CHARACTERISTIC
U2BC44
Repetitive Peak
Reverse Voltage
U2GC44
U2JC44
Average
Forward
Current
On Ceramic Substrate
On Glass−epoxy
Substrate
I
F (AV)
V
RRM
SYMBOL
RATING
100
400
600
2.0
(Ta = 45°C)
1.3
(Ta = 25°C)
80 (50Hz)
88 (60Hz)
−40~150
−40~150
V
UNIT
A
Peak One Cycle Surge Forward
Current (Non−Repetitive)
Junction Temparature Range
Storage Temparature Range
I
FSM
T
j
T
stg
A
°C
°C
JEDEC
JEITA
TOSHIBA
Weight: 0.1g
―
―
3−5F1A
ELECTRICAL CHARACTERISTICS
(Ta = 25°C)
CHARACTERISTIC
Peak Forward Voltage
Repetitive Peak Reverse Current
Thermal Resistance
SYMBOL
V
FM
I
RRM
R
th (j−a)
TEST CONDITION
I
FM
= 2.0 A
V
RRM
= Rated
DC
On ceramic substrate
On glass−epoxy substrate
MIN
―
―
―
―
TYP.
―
―
―
―
MAX
1.2
10
50
110
UNIT
V
µA
°C / W
STANDARD SOLDERING PAD
MARKING
CODE
2BC
2GC
2JC
TYPE
U2BC44
U2GC44
U2JC44
1

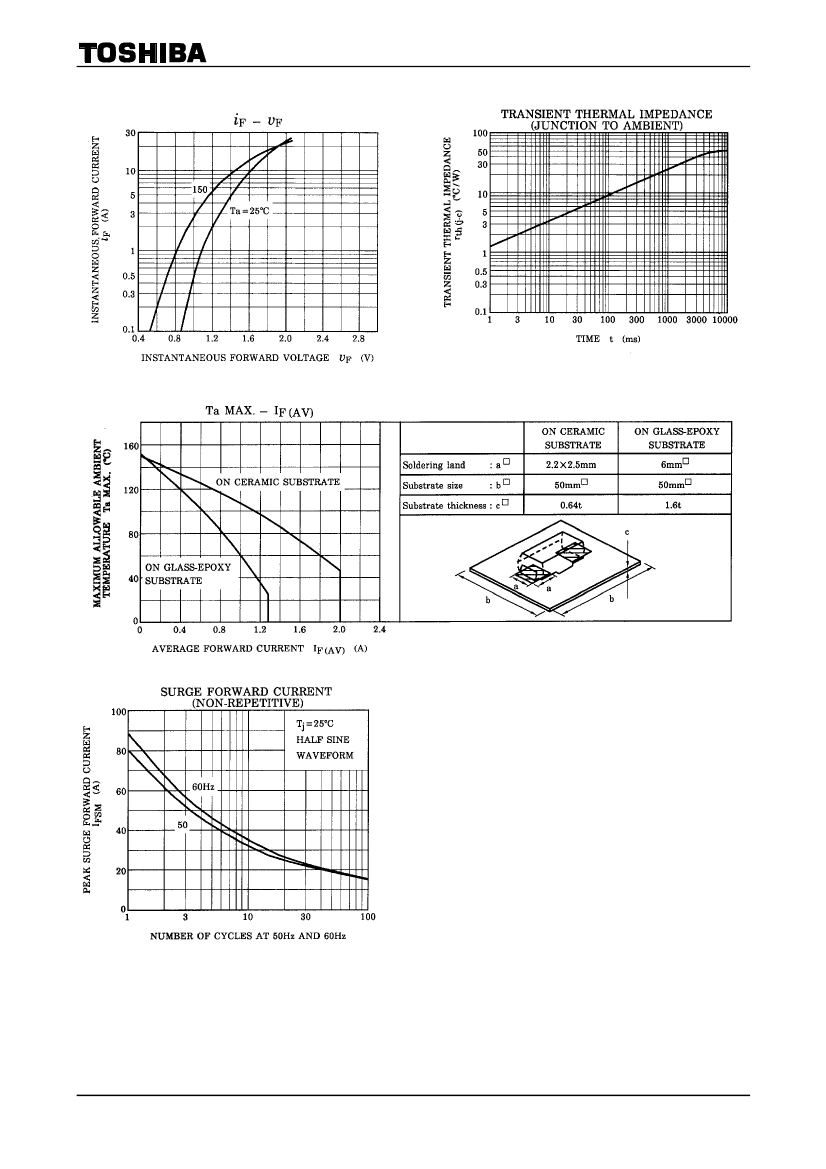

2001-07-11
