33-1006-10.00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 33-1006-10.00

33-1006-10.00: DescriptionFixed Attenuator, 0MHz Min, 1000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

33-1006-10.00 Overview

Fixed Attenuator, 0MHz Min, 1000MHz Max,

33-1006-10.00 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Nominal attenuation	10 dB
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	51.76 dBm
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

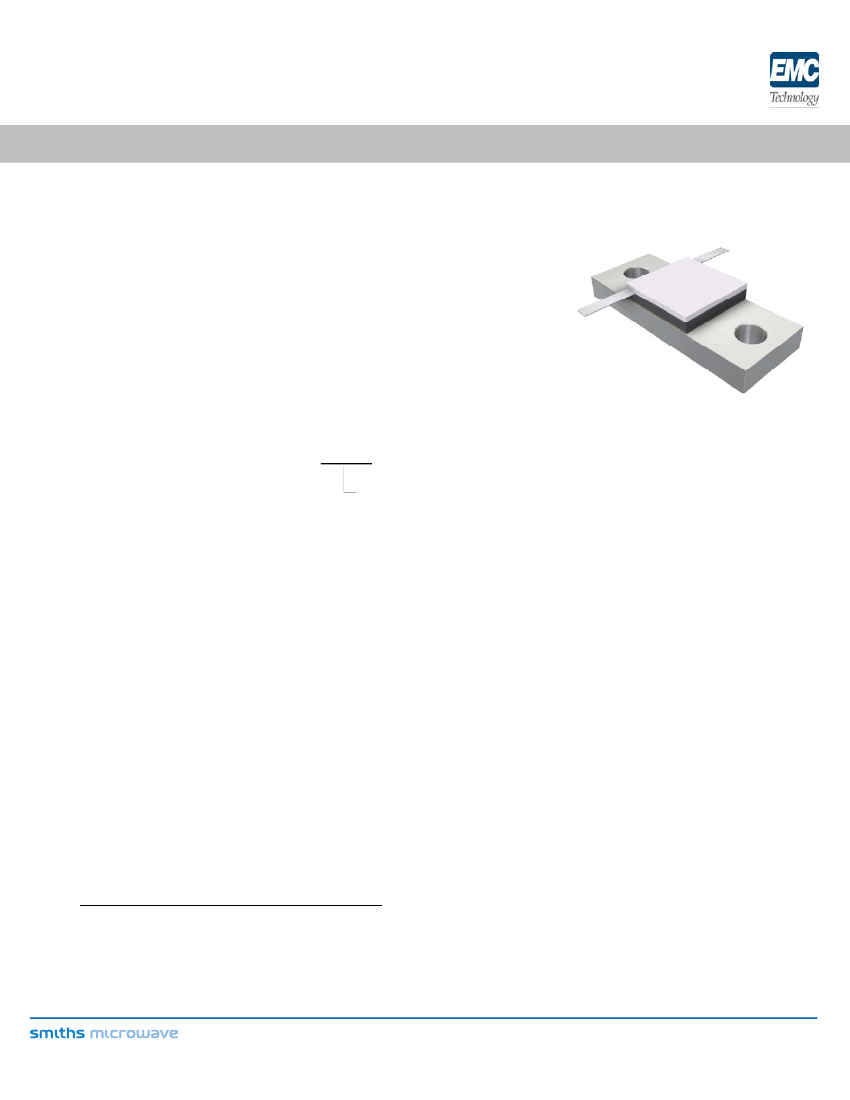

ATTENUATOR

FLANGE MOUNT 150 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 33-1006-XX.XX

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 33-1006

EN 13-3529

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount attenuators worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

33-1006-XX.XX

Attenuation Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

Input Power CW:

Peak Power:

VSWR:

50 ohms

DC - 1.0 GHz

1 through 20 dB in 1 dB increments

1 through 10 dB ± 0.5 dB

11 through 20 dB ± 1.5 dB

150 watts @ 100˚C heat sink, derated linearly to zero power at 150˚C

1500 watts (based on 10us pulse width and 1% duty cycle)

1.50:1 Max

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM / ˚C max

3.0 MARKING

Unit Marking:

Logo and Part Number; legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Attenuation and VSWR

Data Retention – Standard

5.0 PACKAGING

Standard Packaging:

Tray

Form 423F108

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
