BD036-118-G-T-0210-0250-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD036-118-G-T-0210-0250-N-D

BD036-118-G-T-0210-0250-N-D: DescriptionBoard Connector,; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD036-118-G-T-0210-0250-N-D Overview

Board Connector,

BD036-118-G-T-0210-0250-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2094049128
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	2
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE6T
JESD-609 code	e3
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	118
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

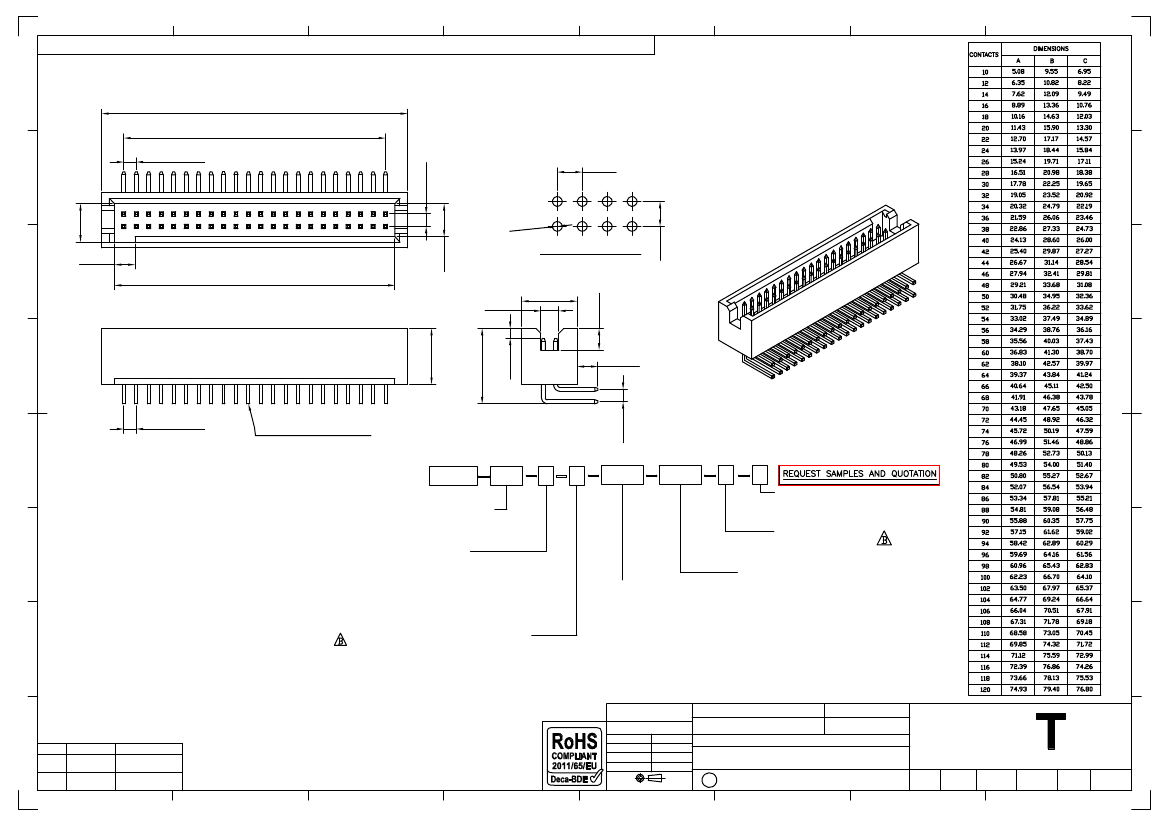

Global Connector Technology Ltd. - BD036: 1.27mm PITCH SHROUDED PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL

B±0.38

A±0.25

1.27 (Typ.)

1.27

Typ. (Non-Accum.)

3.92

Ø0.65

2.10

C±0.38

3.37

RECOMMENDED PCB LAYOUT

1.27

(Typ.)

1.84

2.20

D±0.2

5.65

1.27

1.27 (Typ.)

PIN 0.40X0.40 (Typ.)

Ordering Grid

1.00

E±0.2

BD036

No. of Contacts

10 to 120

e.g. 10 = 010

XXX

XXXX

Packing Options

D = Tube

(Standard)

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

Dimension E (1/100mm)

(Top of Insulator to Edge of Pin)

0770 = 7.70mm

(Standard)

or specify Dimension E

e.g. 0250 = 2.50mm

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

DIELECTRIC WITHSTANDING

耐电压

: AC 300 V

CONTACT RESISTANCE

接触电阻值：

20 mΩ Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94V-0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD065 - Allowing perfect polarisation

- Non-Polarised mating connections available - contact GCT for details

DETAIL

REV

DATE

DRAWING

RELEASE

03/04/08

INSULATOR INFO

AMMENDED

27/07/09

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator

Height 'H'

S = 5.70mm

(Standard)

T = 7.30mm

Dimension D (1/100mm)

(Tail Length)

0210 = 2.10mm

(Standard)

or specify Dimension D

e.g. 0250 = 2.50mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±3°

X.X ± 0.25

.XX°±2°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

Third Angle Projection

BD036

Description:-

03 APR 08

1.27mm PITCH SHROUDED PIN HEADER,

DUAL ROW, THROUGH HOLE, HORIZONTAL

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note
