350AXF100MEFCSN25X20 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 350AXF100MEFCSN25X20

350AXF100MEFCSN25X20: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, 20 MMH CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size104KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

350AXF100MEFCSN25X20 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, 20 MMH CAN, ROHS COMPLIANT

350AXF100MEFCSN25X20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1692025183
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.56125 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	570 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

[最終受注期日

[2012/09]

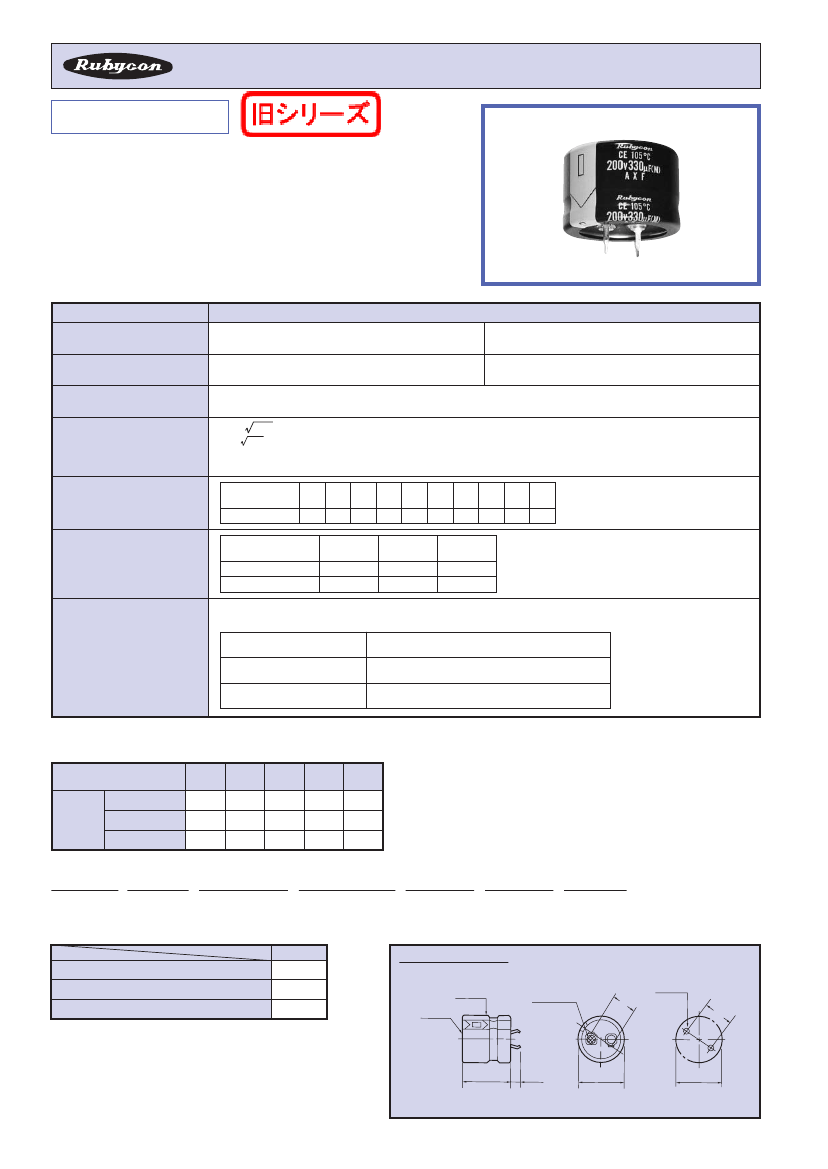

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

大½アルミニウム電解コンデンサ

AXF

シリーズ

SERIES

基板自立½105℃薄½品

105℃ Low profile, Snap-in Terminal Type

◆特長／FEATURES

•

105℃3000時間、高さ20mm品。

•

RoHS指令対応品。

Load Life : 105℃ 3000 hours, with 20mm height.

RoHS compliance.

•

従来のMXFシリーズを小½・高リプル化。

Smaller size with higher ripple current endurance than MXF series.

◆規格表／SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−40∼＋105℃

10∼100V.DC

±20％（20℃，120Hz）

I＝3

CV（定格電圧印加5分後)

I＝3

(After 5 minutes application of rated voltage)

−25∼＋105℃

160∼450V.DC

定格電圧範囲

Rated Voltage Range

静電容量許容差

Capacitance Tolerance

漏

れ

電

流

Leakage Current(MAX)

I＝漏れ電流(μA)

V＝定格電圧(V) C＝定格静電容量(μF)

Leakage Current Rated Voltage Rated Capacitance

定格電圧(V)

10 16 25 35 50 63 80 100 160∼ 420∼

Rated Voltage

400 450

tanδ

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.20

定格電圧(V)

10∼100

Rated Voltage

（−25℃）（20℃）

（−40℃）（20℃）

160∼250

−

315∼450

−

損失角の正接 (tanδ)

Dissipation Factor(MAX)

（20℃，120Hz）

インピーダンス比

Impedance Ratio(MAX)

（120Hz）

105℃中で3000時間定格電圧（リプル重畳）印加後、下記項目を満足すること

After applying rated voltage with rated ripple current for 3000hrs at 105℃, the capacitors shall meet the following requirements.

耐

Endurance

久

性

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

初期値の±20％以内

Within ±20％ of the initial value.

規格値の200％以下

Not more than 200％ of the specified value.

規格値以下

Not more than the specified value.

◆リプル電流補正係数／MULTIPLIER FOR RIPPLE CURRENT

周波数係数 Frequency coefficient

周波数

（Hz）

Frequency

60 50） 120

（

1.00

500

1.05

1.20

1.10

1.30

1.25

10k≦

1.15

1.50

1.40

□□□

副記号

Option

10∼100WV 0.90

Coefficient

係数

160∼250WV 0.80

315∼450WV 0.80

◆呼称方法／PART NUMBER

□□□

定格電圧

Rated Voltage

AXF

シリーズ名

Series

□□□□□

定格静電容量

Rated Capacitance

□

静電容量許容差

Capacitance Tolerance

端子記号

Terminal Code

D×L

ケースサイズ

Case Size

◆副記号／Option

PETスリーブ、底板なし

PET Sleeve without plate

PVCスリーブ、底板なし

PVC Sleeve without plate

PVCスリーブ、底板あり

PVC Sleeve with plate

記号

Code

EFC

OOE

なし

Blank

◆寸法図／DIMENSIONS

●SN （3.5）

［4

mm½

端子タプ

イ

［4(3.5)mm½terminal type

スリーブ

SLEEVE

弁

VENT

陰極

NEGATIVE

2-φ2

（mm）

±0.1

L±2

※

4±0.5

※½しφ35は3.5±0.5

For φ35, 3.5±0.5

φD±1

基板穴寸法図

MOUNTING HOLES
