82WFR50KTR datasheet, PDF - EEWORLD Datasheet

82WFR50KTR: DescriptionPotentiometer, Cermet, 0.5W, 50000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel,; CategoryPassive components The resistor; File Size991KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

82WFR50KTR Overview

Potentiometer, Cermet, 0.5W, 50000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	755654857
Reach Compliance Code	compliant
YTEOL	7.6
Actuator direction	VERTICAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Cylindrical
gang number	1
Lead diameter	0.432 mm
Lead length	15.24 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	6.35 mm
Package length	5.3 mm
Package form	PCB Mount
method of packing	TR, 14 INCH
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	50000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	220 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

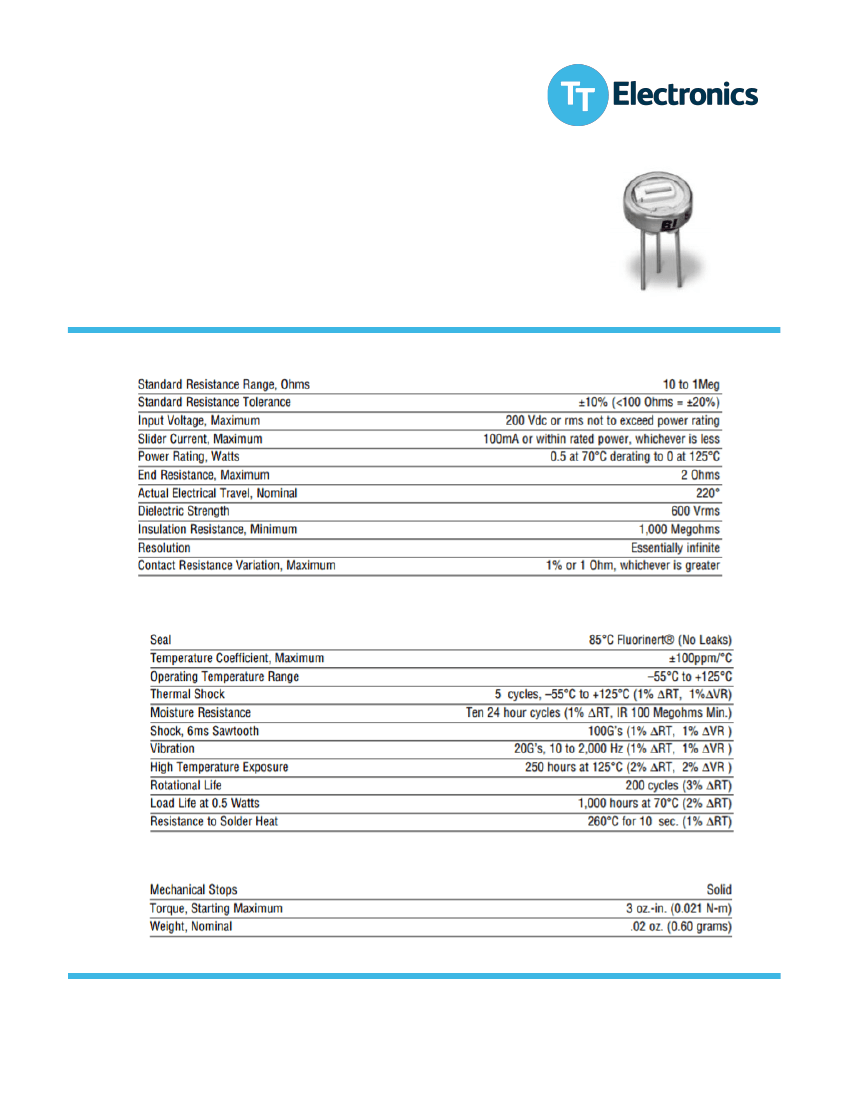

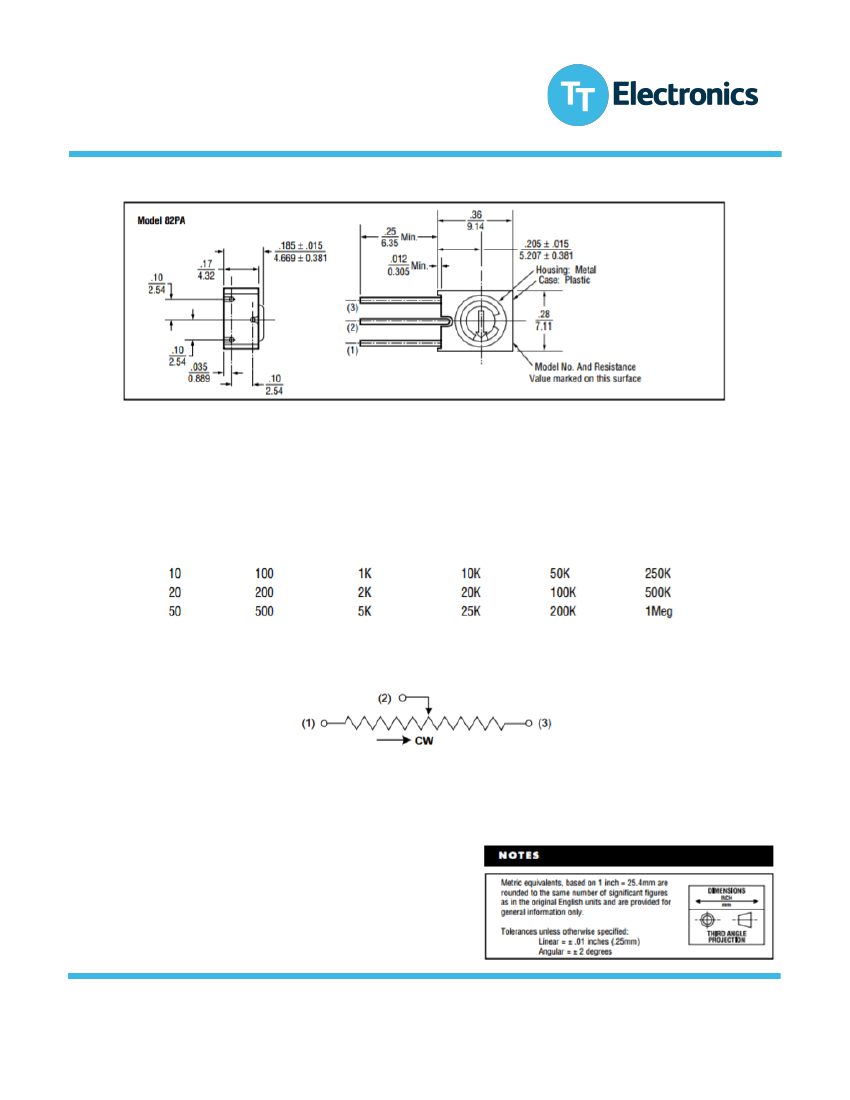

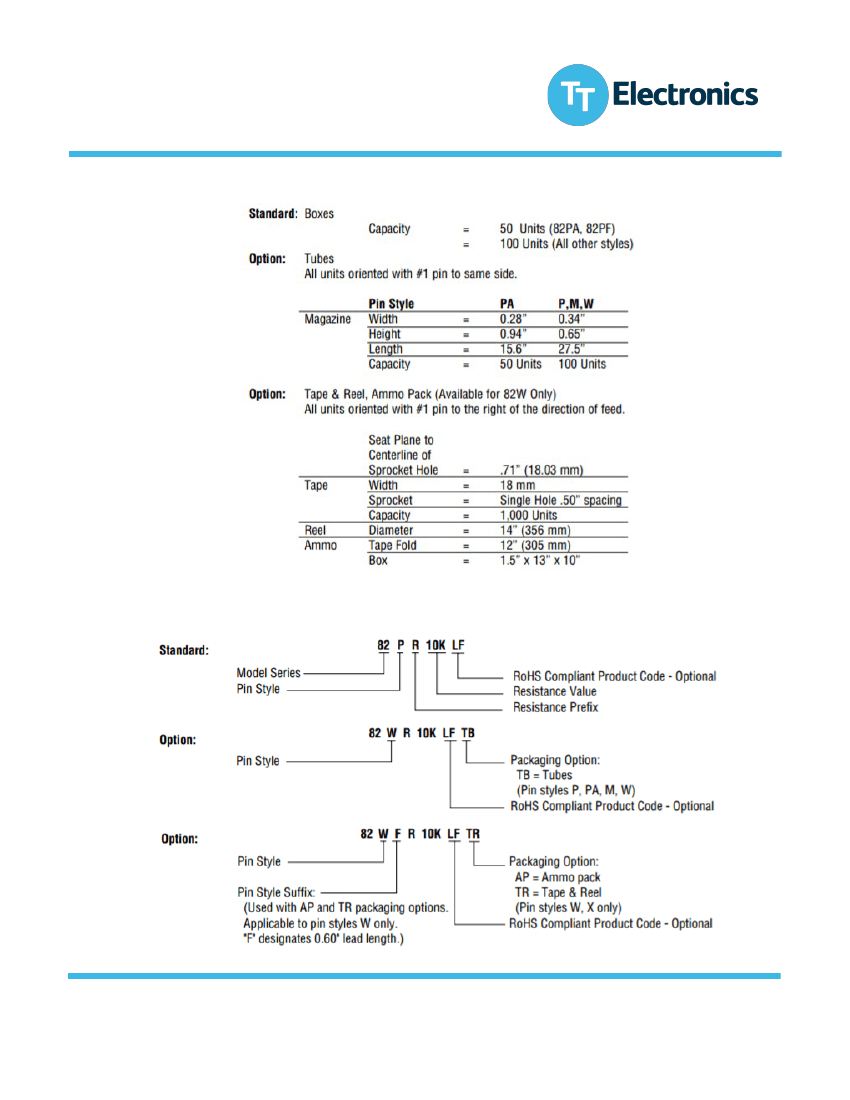

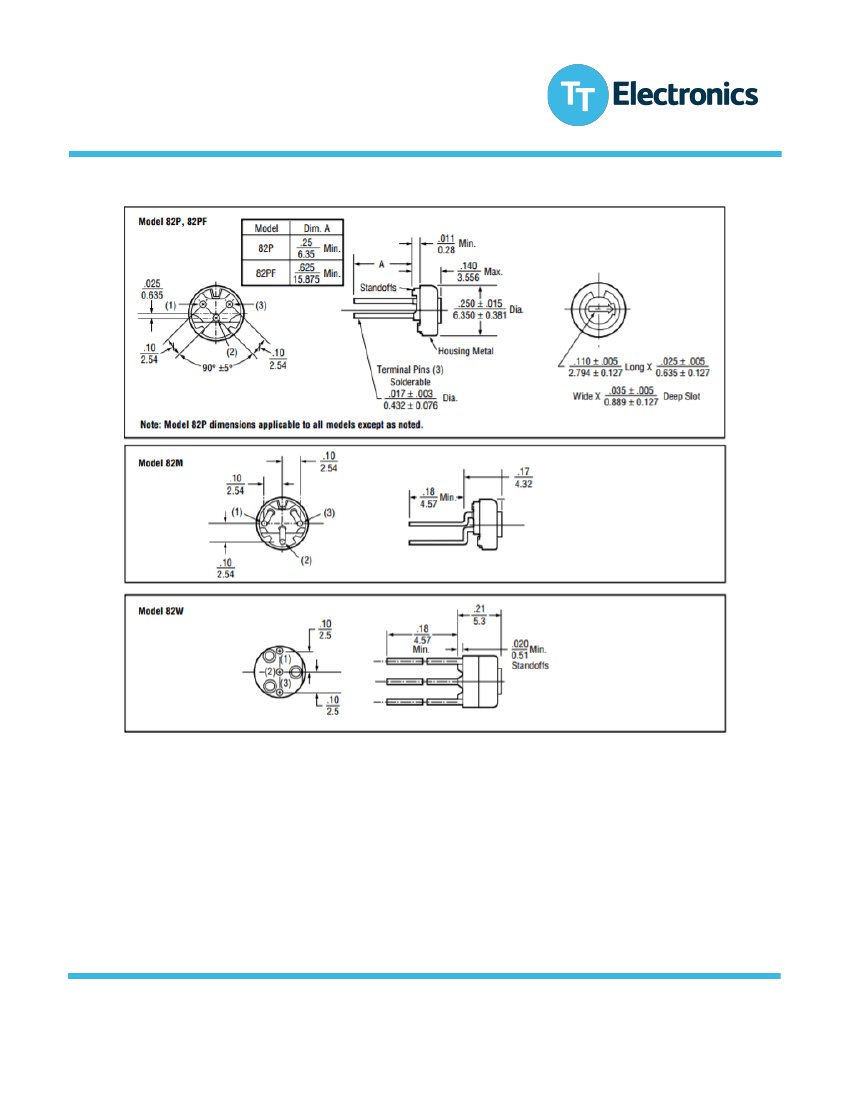

Single Turn Trimmer

Model 82

Features:

•

1/4”

diameter

•

Single turn

•

Cermet

Electrical

Environmental

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

413 Rood RD, Suite 7

Calexico, CA 92231

Ph: + 1 (714) 447-2345

www.ttelectronics.com/bi-technologies

Issue B 04/2019 Page 1
