4-1775058-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4-1775058-0

4-1775058-0: Description7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER; CategoryThe connector The connector; File Size254KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

4-1775058-0 Overview

7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER

4-1775058-0 Parametric

Parameter Name	Attribute value
Objectid	2027122103
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	ROHS AND ELV COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.254 inch
subject depth	0.331 inch
body length	0.665 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	YELLOW
insulator material	POLYAMIDE6T
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	MIXED
PCB contact row spacing	1.4986 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
Terminal length	0.13 inch
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

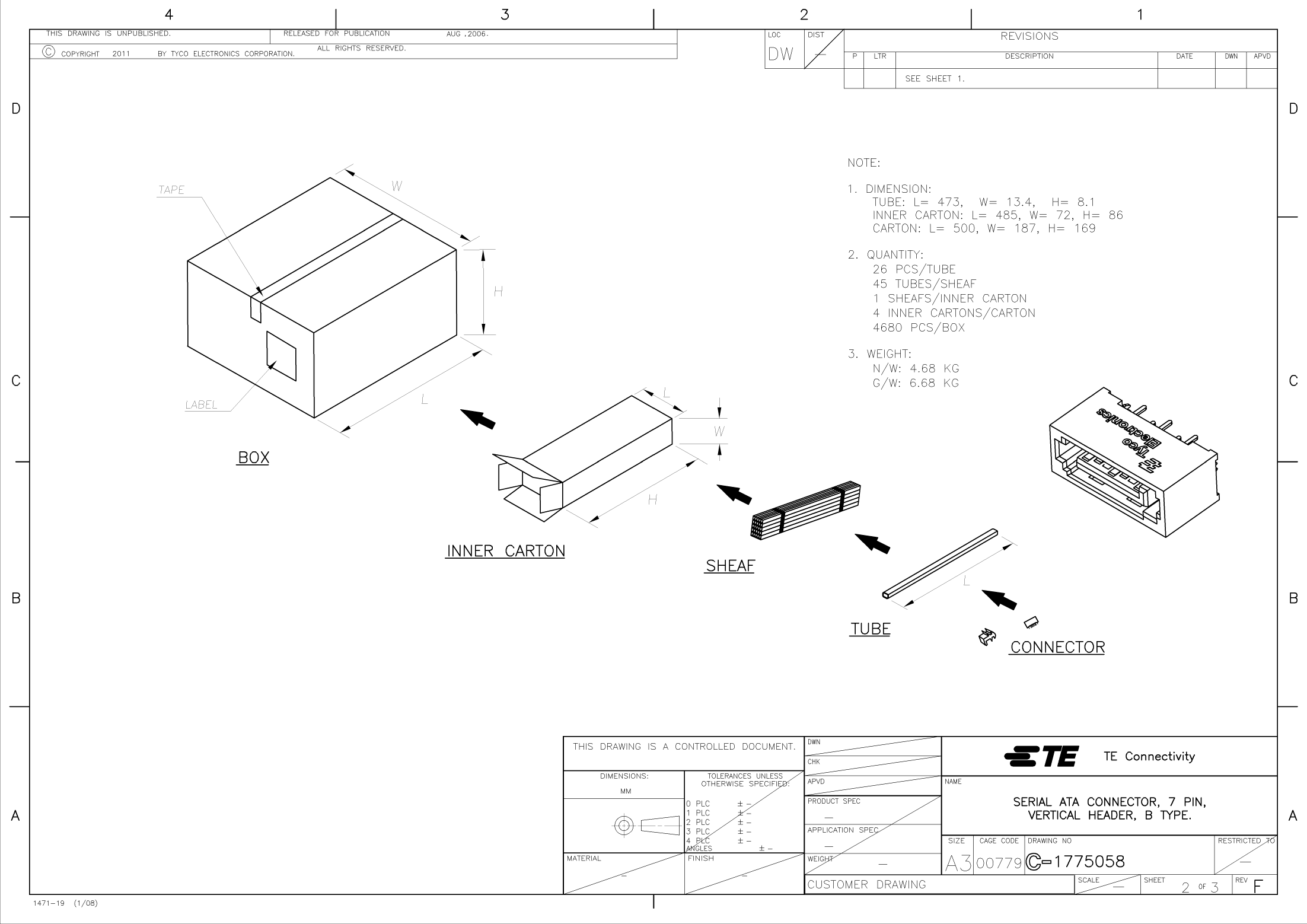

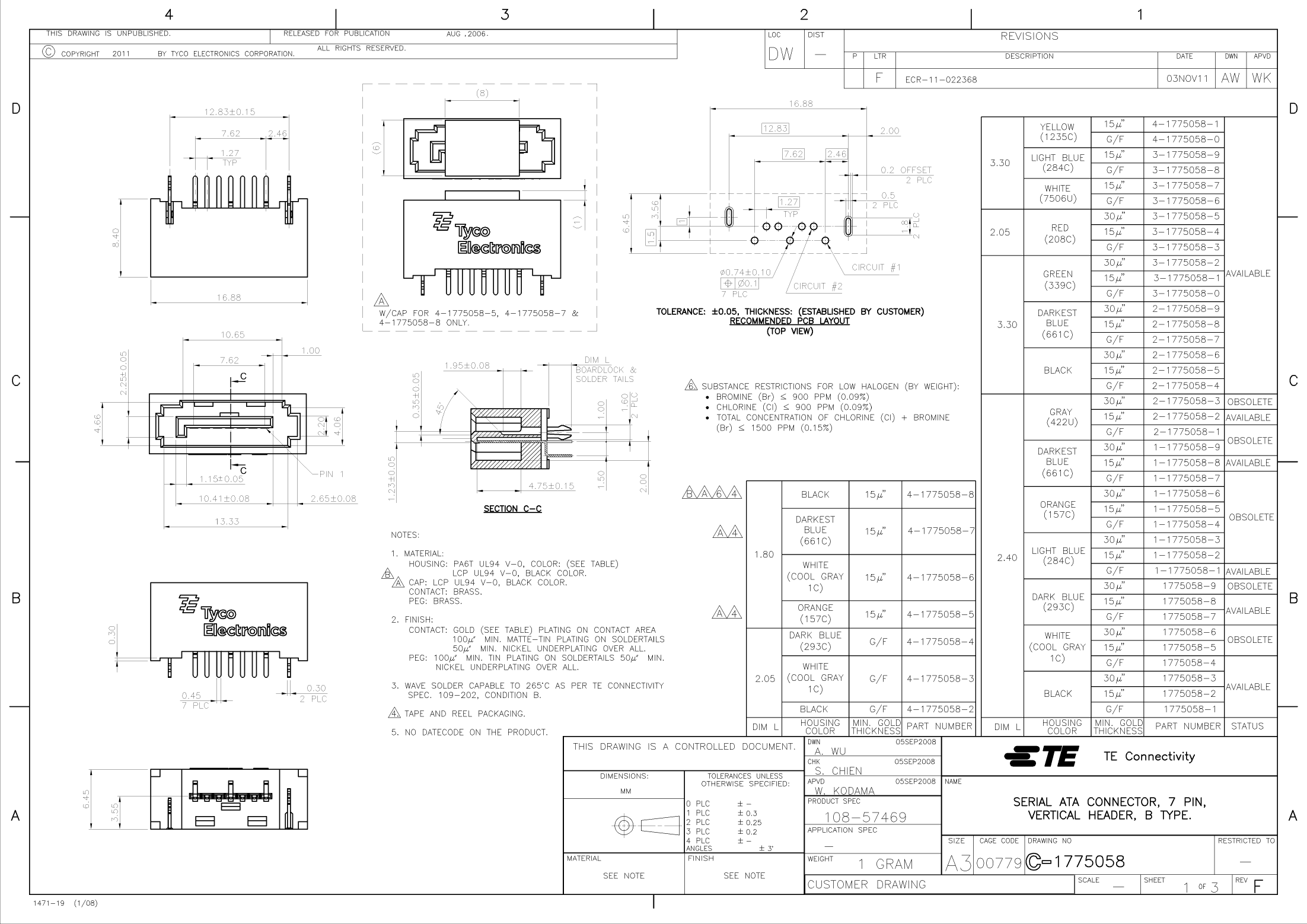

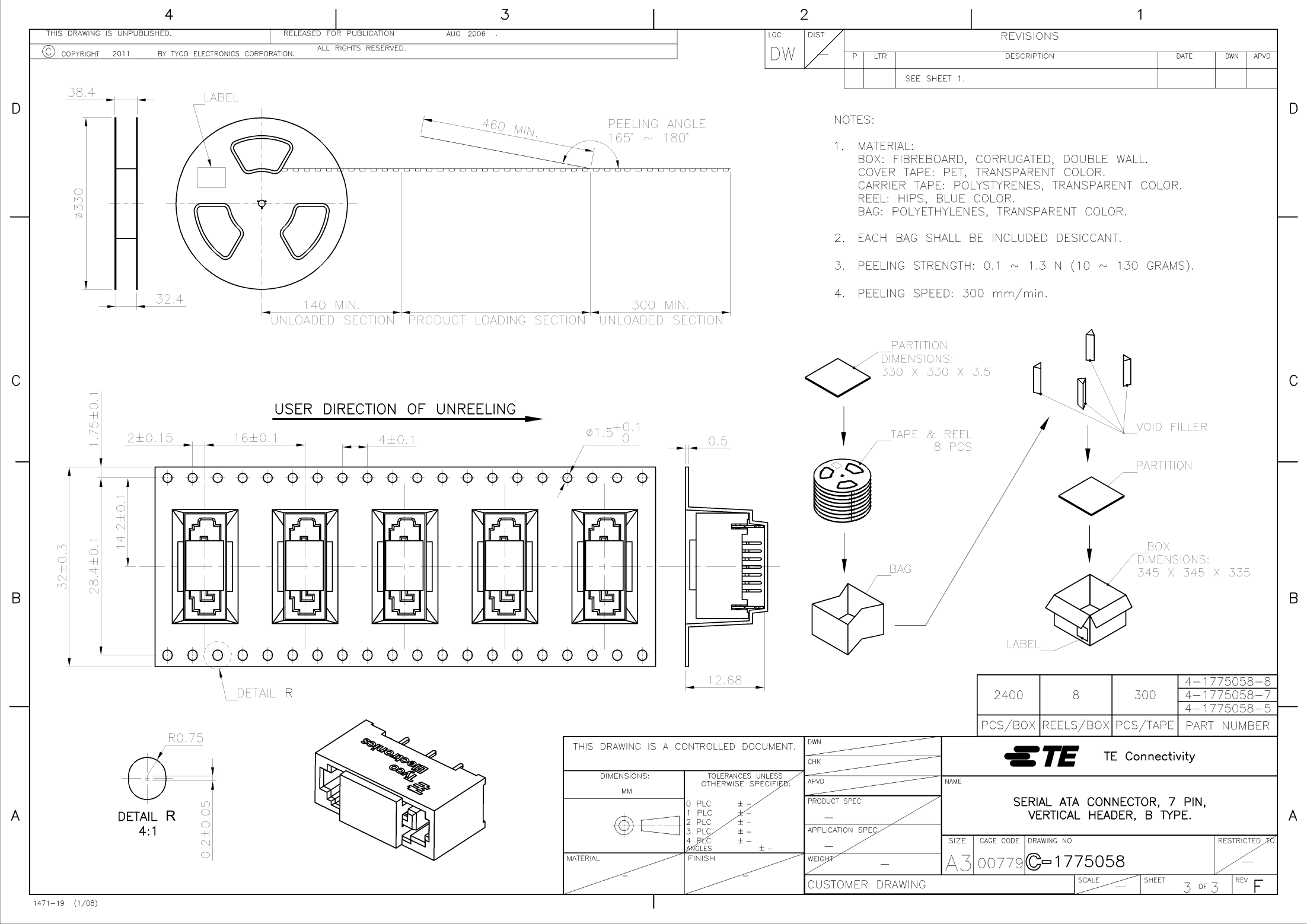

Preview

Download Datasheet

View All

4-1775058-0 Related Products

	4-1775058-0	3-1775058-9	3-1775058-6	3-1775058-0	4-1775058-1	M80-4T10605F3-02-301-04-302	M80-4T10642F2-12-302-01-322	M80-4T1080100-06-322-12-322
Description	7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER	7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER	7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER	7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER	7 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER	Board Connector, 12 Contact(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
Objectid	2027122103	2027122094	2027122085	2027122067	2027122106	307107059	308495568	308499843
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.254 inch	0.254 inch	0.254 inch	0.254 inch	0.254 inch	0.219 inch	0.219 inch	0.219 inch
subject depth	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.205 inch	0.205 inch	0.205 inch
body length	0.665 inch	0.665 inch	0.665 inch	0.665 inch	0.665 inch	1.575 inch	2.677 inch	3.543 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU	AU	AU
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	Gold (Au)	Tin (Sn)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	25 mΩ	25 mΩ	25 mΩ
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	YELLOW	BLUE	WHITE	GREEN	YELLOW	BLACK	BLACK	BLACK
insulator material	POLYAMIDE6T	POLYAMIDE6T	POLYAMIDE6T	POLYAMIDE6T	POLYAMIDE6T	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Mixed contacts	NO	NO	NO	NO	NO	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	15u inch	FLASH inch	FLASH inch	15u inch	12u inch	12u inch	12u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.118 inch	0.118 inch	0.118 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Other features	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	-	-	-
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	-	-
DIN compliance	NO	NO	NO	NO	NO	-	-	-
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	-	-	-
empty shell	NO	NO	NO	NO	NO	-	-	-
Filter function	NO	NO	NO	NO	NO	-	-	-
IEC compliance	NO	NO	NO	NO	NO	-	-	-
JESD-609 code	e3	-	e3	e3	-	e4	e3	e0
MIL compliance	NO	NO	NO	NO	NO	-	-	-
PCB row number	2	2	2	2	2	-	-	-
Number of ports	1	1	1	1	1	-	-	-
Number of rows loaded	2	2	2	2	2	-	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-
PCB contact pattern	MIXED	MIXED	MIXED	MIXED	MIXED	-	-	-
PCB contact row spacing	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	-	-	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	-	-
Total number of contacts	7	7	7	7	7	12	-	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	-	-
